8sv1

Caspase-1 complex with interleukin-18

Method: ELECTRON MICROSCOPY D_max: 121.3 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Caspase-1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 150–297 Chain B； UniProt 317–404 Chain a； UniProt 150–297 Chain b； UniProt 317–404	Fragment：subunit P20 (UNP residues 120-297) Fragment：subunit P10 (UNP residues 317-404)	Interleukin-18 × 2 （Q14116）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.50 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8SV1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BMQ CRYSTAL STRUCTURE OF THE COMPLEX OF INTERLEUKIN-1BETA CONVERTING ENZYME (ICE) WITH A PEPTIDE BASED INHIBITOR, (3S )-N-METHANESULFONYL-3-({1-[N-(2-NAPHTOYL)-L-VALYL]-L-PROLYL }AMINO)-4-OXOBUTANAMIDE Deposited 1998-07-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 131–297（167 aa） Chain B 317–404（88 aa）	Not recorded	MNO (3S)-N-METHANESULFONYL-3-({1-[N-(2-NAPHTOYL)-L-VALYL]-L-PROLYL}AMINO)-4-OXOBUTANAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；PROTEIN WAS CRYSTALLIZED FROM 10-15% PEG 6000, 100MM HEPES PH 7.0	Resolution 2.50 Å R-free 0.317
1BMQ CRYSTAL STRUCTURE OF THE COMPLEX OF INTERLEUKIN-1BETA CONVERTING ENZYME (ICE) WITH A PEPTIDE BASED INHIBITOR, (3S )-N-METHANESULFONYL-3-({1-[N-(2-NAPHTOYL)-L-VALYL]-L-PROLYL }AMINO)-4-OXOBUTANAMIDE Deposited 1998-07-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 131–297（167 aa） Chain B 317–404（88 aa）	Not recorded	MNO (3S)-N-METHANESULFONYL-3-({1-[N-(2-NAPHTOYL)-L-VALYL]-L-PROLYL}AMINO)-4-OXOBUTANAMIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；PROTEIN WAS CRYSTALLIZED FROM 10-15% PEG 6000, 100MM HEPES PH 7.0	Resolution 2.50 Å R-free 0.317
1IBC CRYSTAL STRUCTURE OF INHIBITED INTERLEUKIN-1BETA CONVERTING ENZYME Deposited 1997-02-12	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 104–297（194 aa） Chain B 317–404（88 aa）	Mutation：D381A Mutation：D381A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；1.5 ML DROPS OF PROTEIN-INHIBITOR SOLUTION (5.0 MG/ML IN 10 MILLIMOLAR TRIS-HCL, PH 8.5, 10 MILLI-MOLAR DTT, 3 MILLIMOLAR SODIUM AZIDE) WERE MIXED WITH AN EQUAL VOLUME OF RESERVOIR BUFFER (7.2% PEG-6000 (W:W), 0.10 M PIPES PH 5.8, 10 MILLIMOLAR DTT, 3 MILLIMOLAR SODIUM AZIDE) AND INCUBATED AT ROOM TEMPERATURE.	Resolution 2.73 Å R-free 0.285
1ICE STRUCTURE AND MECHANISM OF INTERLEUKIN-1BETA CONVERTING ENZYME Deposited 1994-09-29	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 131–297（167 aa） Chain B 317–404（88 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.60 Å
1RWK Crystal structure of human caspase-1 in complex with 3-(2-mercapto-acetylamino)-4-oxo-pentanoic acid Deposited 2003-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 120–297（178 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P20 Chain B 317–404（88 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P10	Not recorded	158 3-(2-MERCAPTO-ACETYLAMINO)-4-OXO-PENTANOIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；274 K；0.1M HEPES, 2M (NH4)2SO4, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 274K	Resolution 2.30 Å R-free 0.258
1RWM Crystal structure of human caspase-1 in complex with 4-oxo-3-[2-(5-{[4-(quinoxalin-2-ylamino)-benzoylamino]-methyl}-thiophen-2-yl)-acetylamino]-pentanoic acid Deposited 2003-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 120–297（178 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P20 Chain B 317–404（88 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P10	Not recorded	Q2Y 4-OXO-3-[2-(5-{[4-(QUINOXALIN-2-YLAMINO)-BENZOYLAMINO]-METHYL}-THIOPHEN-2-YL)-ACETYLAMINO]-PENTANOIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；278 K；0.1M PIPES, 200mM Li2SO4, 25% PEG2K MME, 10mM DTT, 3mM NaN3, 2mM MgCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 2.70 Å R-free 0.254
1RWN Crystal structure of human caspase-1 in complex with 3-{2-ethyl-6-[4-(quinoxalin-2-ylamino)-benzoylamino]-hexanoylamino}-4-oxo-butyric acid Deposited 2003-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 120–297（178 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P20 Chain B 317–404（88 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P10	Not recorded	4QB 3-{2-ETHYL-6-[4-(QUINOXALIN-2-YLAMINO)-BENZOYLAMINO]-HEXANOYLAMINO}-4-OXO-BUTYRIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；278 K；0.1M PIPES, 175mM (NH4)2SO4, 25% PEG2K MME, 10mM DTT, 3mM NaN3, 2mM MgCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 2.00 Å R-free 0.236
1RWO Crystal structure of human caspase-1 in complex with 4-oxo-3-{6-[4-(quinoxalin-2-ylamino)-benzoylamino]-2-thiophen-2-yl-hexanoylamino}-pentanoic acid Deposited 2003-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 120–297（178 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P20 Chain B 317–404（88 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P10	Not recorded	BTH 4-OXO-3-{6-[4-(QUINOXALIN-2-YLAMINO)-BENZOYLAMINO]-2-THIOPHEN-2-YL-HEXANOYLAMINO}-PENTANOIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；278 K；0.1M PIPES, 200mM Li2SO4, 25% PEG2K MME, 10mM DTT, 3mM NaN3, 2mM MgCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 2.10 Å R-free 0.242
1RWP Crystal structure of human caspase-1 in complex with 3-{6-[(8-hydroxy-quinoline-2-carbonyl)-amino]-2-thiophen-2-yl-hexanoylamino}-4-oxo-butyric acid Deposited 2003-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 120–297（178 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P20 Chain B 317–404（88 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P10	Not recorded	HQC 3-{6-[(8-HYDROXY-QUINOLINE-2-CARBONYL)-AMINO]-2-THIOPHEN-2-YL-HEXANOYLAMINO}-4-OXO-BUTYRI ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；278 K；0.1M PIPES, 175mM (NH4)2SO4, 25% PEG2K MME, 10mM DTT, 3mM NaN3, 2mM MgCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 2.20 Å R-free 0.245
1RWV Crystal structure of human caspase-1 in complex with 5-[5-(1-carboxymethyl-2-oxo-propylcarbamoyl)-5-phenyl-pentylsulfamoyl]-2-hydroxy-benzoic acid Deposited 2003-12-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 120–297（178 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P20 Chain B 317–404（88 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P10	Not recorded	5PH 5-[5-(1-CARBOXYMETHYL-2-OXO-PROPYLCARBAMOYL)-5-PHENYL-PENTYLSULFAMOYL]-2-HYDROXY-BENZOIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；278 K；0.1M PIPES, 14% PEG 6000, 10mM DTT, 3mM NaN3, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 2.10 Å R-free 0.238
1RWW Crystal structure of human caspase-1 in complex with 4-oxo-3-[(6-{[4-(quinoxalin-2-ylamino)-benzoylamino]-methyl}-pyridine-3-carbonyl)-amino]-butyric acid Deposited 2003-12-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 120–297（178 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P20 Chain B 317–404（88 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P10	Not recorded	OQB 4-OXO-3-[(6-{[4-(QUINOXALIN-2-YLAMINO)-BENZOYLAMINO]-METHYL}-PYRIDINE-3-CARBONYL)-AMINO]-BUTYRIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；278 K；0.1M PIPES, 192mM (NH4)2SO4, 25% PEG 2000 MME, 10mM DTT, 3mM NaN3, 2mM MgCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 2.80 Å R-free 0.246
1RWX Crystal structure of human caspase-1 in complex with 4-oxo-3-{6-[4-(quinoxalin-2-yloxy)-benzoylamino]-2-thiophen-2-yl-hexanoylamino}-butyric acid Deposited 2003-12-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 120–297（178 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P20 Chain B 317–404（88 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P10	Not recorded	YBH 4-OXO-3-{6-[4-(QUINOXALIN-2-YLOXY)-BENZOYLAMINO]-2-THIOPHEN-2-YL-HEXANOYLAMINO}-BUTYRIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；278 K；0.1M PIPES, 88mM (NH4)2SO4, 25% PEG 2000 MME, 10mM DTT, 3mM NaN3, 2mM MgCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 1.85 Å R-free 0.242
1SC1 Crystal structure of an active-site ligand-free form of the human caspase-1 C285A mutant Deposited 2004-02-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 120–297（178 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P20 Chain B 317–404（88 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P10	Mutation：C285A	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；278 K；0.1 M HEPES, 2 M (NH4)2SO4, 25 mM DTT. 0.01% Triton-X was added to the drop to prevent the crystals from attaching themselves to the cover slips., pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 2.60 Å R-free 0.273
1SC3 Crystal structure of the human caspase-1 C285A mutant in complex with malonate Deposited 2004-02-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 120–297（178 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P20 Chain B 317–404（88 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P10	Mutation：C285A	MLI MALONATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；274 K；2 M sodium malonate, VAPOR DIFFUSION, HANGING DROP, temperature 274K	Resolution 1.80 Å R-free 0.238
1SC4 Crystal structure of the human caspase-1 C285A mutant after removal of malonate Deposited 2004-02-11	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 120–297（178 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P20 Chain B 317–404（88 aa） Fragment：INTERLEUKIN-1 BETA CONVERTASE P10	Mutation：C285A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；274 K；2 M sodium malonate, VAPOR DIFFUSION, HANGING DROP, temperature 274K. Malonate-bound enzyme crystals were transferred into mother liquor composed of 0.1 M PIPES pH 6, 88 mM (NH4)2SO4, 25% PEG 2000 MME, 10 mM DTT, 3 mM NaN3 and 2 mM MgCl2, and soaked for 2 days to remove malonate.	Resolution 2.10 Å R-free 0.258
2FQQ Crystal structure of human caspase-1 (Cys285->Ala, Cys362->Ala, Cys364->Ala, Cys397->Ala) in complex with 1-methyl-3-trifluoromethyl-1H-thieno[2,3-c]pyrazole-5-carboxylic acid (2-mercapto-ethyl)-amide Deposited 2006-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 120–297（178 aa） Fragment：p20 subunit, residues 120-297 Chain B 317–404（88 aa） Fragment：p10 subunit, residues 317-404	Mutation：C285A Mutation：C362A, C364A, C397A	F1G 1-METHYL-3-TRIFLUOROMETHYL-1H-THIENO[2,3-C]PYRAZOLE-5-CARBOXYLIC ACID (2-MERCAPTO-ETHYL)-AMIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；10 mM HEPES, 16.5% PEG 3350, 250 mM (NH4)2SO4, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.30 Å R-free 0.280
2H48 Crystal structure of human caspase-1 (Cys362->Ala, Cys364->Ala, Cys397->Ala) in complex with 3-[2-(2-benzyloxycarbonylamino-3-methyl-butyrylamino)-propionylamino]-4-oxo-pentanoic acid (z-VAD-FMK) Deposited 2006-05-23	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 120–297（178 aa） Fragment：large subunit, residues, 120-297 Chain B 317–404（88 aa） Fragment：small subunit, residues 317-404	Mutation：C362A, C364A, C397A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.1M Pipes pH 6.0, 200 mM ammonium sulfate, 25% PEG 2000 MME, 10 mM DTT, 2 mM magnesium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.272
2H4W Crystal structure of human caspase-1 (Glu390->Asp) in complex with 3-[2-(2-benzyloxycarbonylamino-3-methyl-butyrylamino)-propionylamino]-4-oxo-pentanoic acid (z-VAD-FMK) Deposited 2006-05-25	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 120–297（178 aa） Fragment：p20 subunit, residues 120-297 Chain B 317–404（88 aa） Fragment：p10 subunit, residues 317-404	Mutation：E390D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.1 M PIPES, 200 mM (NH4)2SO4, 25% PEG 2000 MME, 10 mM DTT, 3 mM NaN3, 2 mM MgCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.247
2H4Y Crystal structure of human caspase-1 (Arg286->Lys) in complex with 3-[2-(2-benzyloxycarbonylamino-3-methyl-butyrylamino)-propionylamino]-4-oxo-pentanoic acid (z-VAD-FMK) Deposited 2006-05-25	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 120–297（178 aa） Fragment：p20 subunit, residues 120-297 Chain B 317–404（88 aa） Fragment：p10 subunit, residues 317-404	Mutation：R286K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.1 M PIPES, 200 mM Li2SO4, 25% PEG 2000 MME, 10 mM DTT, 3 mM NaN3, 2 mM MgCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.235
2H51 Crystal structure of human caspase-1 (Glu390->Asp and Arg286->Lys) in complex with 3-[2-(2-benzyloxycarbonylamino-3-methyl-butyrylamino)-propionylamino]-4-oxo-pentanoic acid (z-VAD-FMK) Deposited 2006-05-25	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 120–297（178 aa） Fragment：p20 subunit, residues 120-297 Chain B 317–404（88 aa） Fragment：p10 subunit, residues 317-404	Mutation：R286K Mutation：E390D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.1 M PIPES, 200 mM (NH4)2SO4, 25% PEG 2000 MME, 10 mM DTT, 3 mM NaN3, 2 mM MgCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.236
2H54 Crystal structure of human caspase-1 (Thr388->Ala) in complex with 3-[2-(2-benzyloxycarbonylamino-3-methyl-butyrylamino)-propionylamino]-4-oxo-pentanoic acid (z-VAD-FMK) Deposited 2006-05-25	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 120–297（178 aa） Fragment：p20 subunit, residues 120-297 Chain B 317–404（88 aa） Fragment：p10 subunit, residues 317-404	Mutation：T388A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.1 M PIPES, 200 mM (NH4)2SO4, 25% PEG 2000 MME, 10 mM DTT, 3 mM NaN3, 2 mM MgCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.80 Å R-free 0.246
2HBQ Crystal structure of wildtype human caspase-1 in complex with 3-[2-(2-benzyloxycarbonylamino-3-methyl-butyrylamino)-propionylamino]-4-oxo-pentanoic acid (z-VAD-FMK) Deposited 2006-06-14	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 120–297（178 aa） Fragment：P20 Subunit, residues 120-297 Chain B 317–404（88 aa） Fragment：P10 Subunit, residues 317-404	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.1 M Pipes, 200 MM LI2SO4, 25% PEG 2000 MME, 10 MM DTT, 3 MM NAN3, 2 MM MGCL2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.80 Å R-free 0.236
2HBR Crystal structure of human caspase-1 (Arg286->Ala) in complex with 3-[2-(2-benzyloxycarbonylamino-3-methyl-butyrylamino)-propionylamino]-4-oxo-pentanoic acid (z-VAD-FMK) Deposited 2006-06-14	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 120–297（178 aa） Fragment：P20 Subunit, residues 120-297 Chain B 317–404（88 aa） Fragment：P10 Subunit, residues 317-404	Mutation：R286A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；0.1 M HEPES, 2 M (NH4)2SO4, 25 MM DTT, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.270
2HBY Crystal structure of human caspase-1 (Glu390->Ala) in complex with 3-[2-(2-benzyloxycarbonylamino-3-methyl-butyrylamino)-propionylamino]-4-oxo-pentanoic acid (z-VAD-FMK) Deposited 2006-06-14	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 120–297（178 aa） Fragment：P20 Subunit, Residues 120-297 Chain B 317–404（88 aa） Fragment：P10 Subunit, Residues 317-404	Mutation：E390A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.1 M Pipes, 350 MM LI2SO4, 20% PEG 2000 MME, 10 MM DTT, 3 MM NAN3, 2 MM MGCL2, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.258
2HBZ Crystal structure of human caspase-1 (Arg286->Ala, Glu390->Ala) in complex with 3-[2-(2-benzyloxycarbonylamino-3-methyl-butyrylamino)-propionylamino]-4-oxo-pentanoic acid (z-VAD-FMK) Deposited 2006-06-14	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 120–297（178 aa） Fragment：P20 Subunit, Residues 120-297 Chain B 317–404（88 aa） Fragment：P10 Subunit, Residues 317-404	Mutation：R286A Mutation：E390A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.1 M Pipes, 100 MM LI2SO4, 25% PEG 2000 MME, 10 MM DTT, 3 MM NAN3, 2 MM MGCL2, pH 6.00, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.249
3D6F Crystal structure of human caspase-1 with a naturally-occurring Arg240->Gln substitution in complex with 3-[2-(2-benzyloxycarbonylamino-3-methyl-butyrylamino)-propionylamino]-4-oxo-pentanoic acid (z-VAD-FMK) Deposited 2008-05-19	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 120–297（178 aa） Fragment：Caspase-1 subunit p20 Chain B 317–404（88 aa） Fragment：Caspase-1 subunit p10	Mutation：R240Q	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；Crystals obtained by hanging-drop vapor diffusion at 4 C (277K) against a reservoir of 0.1 M PIPES pH 6.0, 75-175 mM (NH4)2SO4, 25% PEG 2000 MME, 10 mM DTT, 3 mM NaN3, and 2 mM MgCl2. All crystals cryoprotected in mother liquors supplemented with 20% (v/v) glycerol for 30-90 sec and immersion in liquid nitrogen., VAPOR DIFFUSION, HANGING DROP	Resolution 1.90 Å R-free 0.240
3D6H Crystal structure of human caspase-1 with a naturally-occurring Asn263->Ser substitution in complex with 3-[2-(2-benzyloxycarbonylamino-3-methyl-butyrylamino)-propionylamino]-4-oxo-pentanoic acid (z-VAD-FMK) Deposited 2008-05-19	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 120–297（178 aa） Fragment：Caspase-1 subunit p20 Chain B 317–404（88 aa） Fragment：Caspase-1 subunit p10	Mutation：N263S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；Crystals obtained by hanging-drop vapor diffusion at 4 C (277K) against a reservoir of 0.1 M PIPES pH 6.0, 75-175 mM (NH4)2SO4, 25% PEG 2000 MME, 10 mM DTT, 3 mM NaN3, and 2 mM MgCl2. All crystals cryoprotected in mother liquors supplemented with 20% (v/v) glycerol for 30-90 sec and immersion in liquid nitrogen. , VAPOR DIFFUSION, HANGING DROP	Resolution 2.00 Å R-free 0.237
3D6M Crystal structure of human caspase-1 with a naturally-occurring Lys319->Arg substitution in complex with 3-[2-(2-benzyloxycarbonylamino-3-methyl-butyrylamino)-propionylamino]-4-oxo-pentanoic acid (z-VAD-FMK) Deposited 2008-05-19	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 120–297（178 aa） Fragment：CASP1 p20 Chain B 317–404（88 aa） Fragment：CASP1 p10	Mutation：K319R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；Crystals obtained by hanging-drop vapor diffusion at 4 C (277K) against a reservoir of 0.1 M PIPES pH 6.0, 75-175 mM (NH4)2SO4, 25% PEG 2000 MME, 10 mM DTT, 3 mM NaN3, and 2 mM MgCl2. All crystals cryoprotected in mother liquors supplemented with 20% (v/v) glycerol for 30-90 sec and immersion in liquid nitrogen., VAPOR DIFFUSION, HANGING DROP	Resolution 1.80 Å R-free 0.247
3E4C Procaspase-1 zymogen domain crystal structure Deposited 2008-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 104–404（301 aa） Fragment：procaspase-1 zymogen domain (UNP residues 104-404) Chain B 104–404（301 aa） Fragment：procaspase-1 zymogen domain (UNP residues 104-404)	Mutation：C285A Mutation：C285A	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 7.5；277 K；0.2 M MgCl2 20% PEG 3350, pH 7.5, EVAPORATION, temperature 277K	Resolution 2.05 Å R-free 0.263
3NS7 Succinic Acid Amides as P2-P3 Replacements for Inhibitors of Interleukin-1beta Converting Enzyme (ICE or Caspase 1) Deposited 2010-07-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 136–297（162 aa） Fragment：UNP residues 136-297 Chain B 317–404（88 aa） Fragment：UNP residues 317-404	Not recorded	3NS (3S)-4-hydroxy-3-{[(2S)-4-{[2-(2-methyl-1H-benzimidazol-1-yl)ethyl]amino}-2-(1-methylethyl)-4-oxobutanoyl]amino}butanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；276 K；pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 276K	Resolution 2.60 Å
3NS7 Succinic Acid Amides as P2-P3 Replacements for Inhibitors of Interleukin-1beta Converting Enzyme (ICE or Caspase 1) Deposited 2010-07-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 136–297（162 aa） Fragment：UNP residues 136-297 Chain B 317–404（88 aa） Fragment：UNP residues 317-404	Not recorded	3NS (3S)-4-hydroxy-3-{[(2S)-4-{[2-(2-methyl-1H-benzimidazol-1-yl)ethyl]amino}-2-(1-methylethyl)-4-oxobutanoyl]amino}butanoic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；276 K；pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 276K	Resolution 2.60 Å
5FNA Cryo-EM reconstruction of caspase-1 CARD Deposited 2015-11-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 2–86（85 aa） Fragment：CARD DOMAIN Chain B 2–86（85 aa） Fragment：CARD DOMAIN Chain C 2–86（85 aa） Fragment：CARD DOMAIN Chain D 2–86（85 aa） Fragment：CARD DOMAIN Chain E 2–86（85 aa） Fragment：CARD DOMAIN Chain F 2–86（85 aa） Fragment：CARD DOMAIN Chain G 2–86（85 aa） Fragment：CARD DOMAIN Chain H 2–86（85 aa） Fragment：CARD DOMAIN	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 20 MM SODIUM HEPES, 150 MM NACL, 2 MM DTT；pH 8；20 MM SODIUM HEPES, 150 MM NACL, 2 MM DTT cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE	Resolution 4.80 Å
5MMV Crystal structure of human Caspase-1 with 2-((2-naphthoyl)-L-valyl)-4-hydroxy-N-((3S)-2-hydroxy-5-oxotetrahydrofuran-3-yl)-2-azabicyclo[2.2.2]octane-3-carboxamide (Compound 1) Deposited 2016-12-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 120–297（178 aa） Chain B 317–404（88 aa）	Not recorded	WE0 (3~{S})-3-[[(3~{S})-2-[(2~{S})-3-methyl-2-(naphthalen-2-ylcarbonylamino)butanoyl]-4-oxidanyl-2-azabicyclo[2.2.2]octan-3-yl]carbonylamino]-4-oxidanyl-butanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；0.1 M HEPES (pH 7.4), 2 M (NH4)2SO4, and 25 mM DTT	Resolution 2.15 Å R-free 0.249
5MTK Crystal structure of human Caspase-1 with (3S,6S,10aS)-N-((2S,3S)-2-hydroxy-5-oxotetrahydrofuran-3-yl)-6-(isoquinoline-1-carboxamido)-5-oxodecahydropyrrolo[1,2-a]azocine-3-carboxamide (PGE-3935199) Deposited 2017-01-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 120–297（178 aa） Chain B 317–404（88 aa）	Not recorded	N7N (3~{S})-3-[[(3~{S},6~{S},10~{a}~{S})-6-(isoquinolin-1-ylcarbonylamino)-5-oxidanylidene-2,3,6,7,8,9,10,10~{a}-octahydro-1~{H}-pyrrolo[1,2-a]azocin-3-yl]carbonylamino]-4-oxidanyl-butanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M HEPES (pH 7.4), 2 M (NH4)2SO4 and 25 mM DTT	Resolution 2.53 Å R-free 0.299
6BZ9 Crystal structure of human caspase-1 in complex with Ac-FLTD-CMK Deposited 2017-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 120–297（178 aa） Fragment：UNP residues 120-297 Chain B 317–404（88 aa） Fragment：UNP residues 317-404	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M sodium formate, 20% w/v PEG3350	Resolution 1.80 Å R-free 0.210
6F6R Crystal structure of human Caspase-1 with N-{3-[1-((S)-2-Hydroxy-5-oxo-tetrahydro-furan-3-ylcarbamoyl)-ethyl]-1-methyl-2,4-dioxo-1,2,3,4-tetrahydro-pyrimidin-5-yl}-4-(quinoxalin-2-ylamino)-benzamide Deposited 2017-12-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 118–297（180 aa） Chain B 317–404（88 aa）	Not recorded	CVE (3~{S})-3-[[(2~{R})-2-[3-methyl-2,6-bis(oxidanylidene)-5-[[4-(quinoxalin-2-ylamino)phenyl]carbonylamino]pyrimidin-1-yl]propanoyl]amino]-4-oxidanyl-butanoic acid × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M HEPES (pH7.4), 2 M (NH4)2SO4 and 25 mM DTT	Resolution 1.80 Å R-free 0.205
6F6R Crystal structure of human Caspase-1 with N-{3-[1-((S)-2-Hydroxy-5-oxo-tetrahydro-furan-3-ylcarbamoyl)-ethyl]-1-methyl-2,4-dioxo-1,2,3,4-tetrahydro-pyrimidin-5-yl}-4-(quinoxalin-2-ylamino)-benzamide Deposited 2017-12-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 118–297（180 aa） Chain B 317–404（88 aa）	Not recorded	CVE (3~{S})-3-[[(2~{R})-2-[3-methyl-2,6-bis(oxidanylidene)-5-[[4-(quinoxalin-2-ylamino)phenyl]carbonylamino]pyrimidin-1-yl]propanoyl]amino]-4-oxidanyl-butanoic acid × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M HEPES (pH7.4), 2 M (NH4)2SO4 and 25 mM DTT	Resolution 1.80 Å R-free 0.205
6KN0 caspase-1 P20/P10 C285A in complex with human GSDMD-C domain Deposited 2019-08-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 131–297（167 aa） Chain B 317–404（88 aa）	Mutation：C285A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；150 mM KBr, 30% (w/v) polyethylene glycol mono-methyester 2000	Resolution 2.79 Å R-free 0.300
6KN0 caspase-1 P20/P10 C285A in complex with human GSDMD-C domain Deposited 2019-08-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 131–297（167 aa） Chain D 317–404（88 aa）	Mutation：C285A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；150 mM KBr, 30% (w/v) polyethylene glycol mono-methyester 2000	Resolution 2.79 Å R-free 0.300
6PZP Crystal structure of caspase-1 in complex with VX-765 Deposited 2019-08-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 120–297（178 aa） Chain B 317–404（88 aa）	Not recorded	P7S N-(4-amino-3-chlorobenzene-1-carbonyl)-3-methyl-L-valyl-N-[(2S)-1-carboxy-3-oxopropan-2-yl]-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M sodium formate, 20% w/v PEG3350	Resolution 1.94 Å R-free 0.208
6VIE Structure of caspase-1 in complex with gasdermin D Deposited 2020-01-13	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 120–303（184 aa） Fragment：residues 120-316 Chain B 317–404（88 aa） Fragment：residues 317-404	Mutation：C285A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.2 M Ammonium citrate tribasic pH 7.0, 20% PEG3350	Resolution 3.40 Å R-free 0.314
7KEU Cryo-EM structure of the Caspase-1-CARD:ASC-CARD octamer Deposited 2020-10-12	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 2–86（85 aa） Fragment：UNP residues 2-86 Chain F 2–86（85 aa） Fragment：UNP residues 2-86 Chain G 2–86（85 aa） Fragment：UNP residues 2-86 Chain H 2–86（85 aa） Fragment：UNP residues 2-86	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
8WRA The Crystal Structure of CASP1 from Biortus Deposited 2023-10-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 120–404（285 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.15M Na formate, 14% PEG3350	Resolution 1.45 Å R-free 0.213
8WRA The Crystal Structure of CASP1 from Biortus Deposited 2023-10-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 120–404（285 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.15M Na formate, 14% PEG3350	Resolution 1.45 Å R-free 0.213
9WZ6 Full-length Caspase-1-CARD filament Deposited 2025-09-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–404（404 aa） Chain B 1–404（404 aa） Chain C 1–404（404 aa） Chain D 1–404（404 aa） Chain E 1–404（404 aa） Chain F 1–404（404 aa） Chain G 1–404（404 aa） Chain H 1–404（404 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.66 Å
9WZI Full-length Caspase-1-CARD filament Deposited 2025-09-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–404（404 aa） Chain B 1–404（404 aa） Chain C 1–404（404 aa） Chain D 1–404（404 aa） Chain E 1–404（404 aa） Chain F 1–404（404 aa） Chain G 1–404（404 aa） Chain H 1–404（404 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å

41 other PDB entries and 46 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CASP1_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–148； UniProt 150–297 Author chain a； PDBConstruct 1–148； UniProt 150–297 Author chain B； PDBConstruct 1–88； UniProt 317–404 Author chain b； PDBConstruct 1–88； UniProt 317–404

Interleukin-18

Homo sapiens

UniProt Q14116

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain C； UniProt 6–193 Chain c； UniProt 6–193	Not recorded	Caspase-1 × 2 （P29466） Caspase-1 × 2 （P29466）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.50 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8SV1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1J0S Solution structure of the human interleukin-18 Deposited 2002-11-21	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–193（157 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；303 K；Ionic strength (raw mmCIF value) 150mM KCl；Pressure ambient NMR sample composition 1mM interleukin-18 U-15N,13C; 50mM phosphate buffer K \| 90% H2O/10% D2O	Resolution not provided
2VXT Crystal structure of human IL-18 complexed to murine reference antibody 125-2H Fab Deposited 2008-07-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 37–193（157 aa）	Mutation：YES	CL CHLORIDE ION × 2 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；IL-18 AND 125-2H FAB WERE MIXED (1:3 MASS RATIO), INCUBATED OVERNIGHT AT 277 K, PURIFIED BY MONOQ ANION EXCHANGE CHROMATOGRAPHY, AND CONCENTRATED TO 10 MG/ML. THE COMPLEX WAS CRYSTALLIZED BY HANGING DROP VAPOR DIFFUSION BY MIXING COMPLEX (1.5 MICROLITERS [UL]) WITH 1.8 UL OF RESERVOIR SOLUTION (30% PEG 4000, 100 MM TRIS, PH 8.5, 0.2 M MGCL2) AND 0.3 UL OF 300 MM SULFO-BETAINE 201, AND SUSPENDING THE DROP OVER THE RESERVOIR AT 291 K. ROD-LIKE CRYSTALS APPEARED WITHIN ONE WEEK.	Resolution 1.49 Å R-free 0.196
3F62 Crystal Structure of Human IL-18 in complex with Ectromelia virus IL-18 Binding Protein Deposited 2008-11-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 37–193（157 aa） Fragment：UNP residues 37-193	Mutation：C38S, C68S, C76S, C127S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；30% Peg 3350, 0.5M KCl, 0.1M Sodium Citrate, pH 4.5, pH 7.5, VAPOR DIFFUSION, temperature 298K	Resolution 2.00 Å R-free 0.235
3WO2 Crystal structure of human interleukin-18 Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–193（157 aa）	Not recorded	CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 3 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100mM Bis-Tris-HCl, 2.5M ammonium sulfate, 0.2%(w/v) CHAPS, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.33 Å R-free 0.271
3WO2 Crystal structure of human interleukin-18 Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 37–193（157 aa）	Not recorded	CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 3 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100mM Bis-Tris-HCl, 2.5M ammonium sulfate, 0.2%(w/v) CHAPS, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.33 Å R-free 0.271
3WO2 Crystal structure of human interleukin-18 Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 37–193（157 aa）	Not recorded	CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 3 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100mM Bis-Tris-HCl, 2.5M ammonium sulfate, 0.2%(w/v) CHAPS, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.33 Å R-free 0.271
3WO2 Crystal structure of human interleukin-18 Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 37–193（157 aa）	Not recorded	CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100mM Bis-Tris-HCl, 2.5M ammonium sulfate, 0.2%(w/v) CHAPS, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.33 Å R-free 0.271
3WO3 Crystal structure of IL-18 in complex with IL-18 receptor alpha Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 37–193（157 aa）	Not recorded	SO4 SULFATE ION × 7 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；50mM N-Cyclohexyl-3-aminopropanesulfonic acid, 35% pentaerythritol ethoxylate (15/4 EO/OH), 350mM ammonium sulfate, 50mM LysoFos Choline 10, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.10 Å R-free 0.222
3WO3 Crystal structure of IL-18 in complex with IL-18 receptor alpha Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 37–193（157 aa）	Not recorded	SO4 SULFATE ION × 12 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；50mM N-Cyclohexyl-3-aminopropanesulfonic acid, 35% pentaerythritol ethoxylate (15/4 EO/OH), 350mM ammonium sulfate, 50mM LysoFos Choline 10, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.10 Å R-free 0.222
3WO3 Crystal structure of IL-18 in complex with IL-18 receptor alpha Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 37–193（157 aa）	Not recorded	SO4 SULFATE ION × 8 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；50mM N-Cyclohexyl-3-aminopropanesulfonic acid, 35% pentaerythritol ethoxylate (15/4 EO/OH), 350mM ammonium sulfate, 50mM LysoFos Choline 10, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.10 Å R-free 0.222
3WO3 Crystal structure of IL-18 in complex with IL-18 receptor alpha Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 37–193（157 aa）	Not recorded	SO4 SULFATE ION × 7 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；50mM N-Cyclohexyl-3-aminopropanesulfonic acid, 35% pentaerythritol ethoxylate (15/4 EO/OH), 350mM ammonium sulfate, 50mM LysoFos Choline 10, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.10 Å R-free 0.222
3WO3 Crystal structure of IL-18 in complex with IL-18 receptor alpha Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 37–193（157 aa）	Not recorded	SO4 SULFATE ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；50mM N-Cyclohexyl-3-aminopropanesulfonic acid, 35% pentaerythritol ethoxylate (15/4 EO/OH), 350mM ammonium sulfate, 50mM LysoFos Choline 10, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.10 Å R-free 0.222
3WO3 Crystal structure of IL-18 in complex with IL-18 receptor alpha Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 37–193（157 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；50mM N-Cyclohexyl-3-aminopropanesulfonic acid, 35% pentaerythritol ethoxylate (15/4 EO/OH), 350mM ammonium sulfate, 50mM LysoFos Choline 10, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.10 Å R-free 0.222
3WO4 Crystal structure of the IL-18 signaling ternary complex Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 37–193（157 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；277 K；100mM Tris-HCl, 18% polyethylene glycol 4000, 200mM magnesium chloride, 40mM hexaamminecobalt (III) chloride, pH 7.4, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.10 Å R-free 0.232
4EEE Crystal Structure of YLDV 14L IL-18 Binding Protein in Complex with Human IL-18 Deposited 2012-03-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 37–193（157 aa） Chain D 37–193（157 aa）	Mutation：C38S, K67A, C68S, E69A, K70A, I71A, C76S, C127S Mutation：C38S, K67A, C68S, E69A, K70A, I71A, C76S, C127S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；18% PEG 3350, 0.1M BIS-TRIS PROPANE/CITRIC ACID PH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.71 Å R-free 0.270
4EKX Crystal Structure of YLDV 14L IL-18 Binding Protein in Complex with Human IL-18 Deposited 2012-04-10	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 37–193（157 aa） Chain D 37–193（157 aa）	Mutation：C38S, K67A, C68S, E69A, K70A, I71A, C76S, C127S Mutation：C38S, K67A, C68S, E69A, K70A, I71A, C76S, C127S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；12% PEG 3350, pH 8.0, vapor diffusion, temperature 298K	Resolution 1.75 Å R-free 0.231
4EKX Crystal Structure of YLDV 14L IL-18 Binding Protein in Complex with Human IL-18 Deposited 2012-04-10	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 37–193（157 aa）	Mutation：C38S, K67A, C68S, E69A, K70A, I71A, C76S, C127S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；12% PEG 3350, pH 8.0, vapor diffusion, temperature 298K	Resolution 1.75 Å R-free 0.231
4EKX Crystal Structure of YLDV 14L IL-18 Binding Protein in Complex with Human IL-18 Deposited 2012-04-10	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 37–193（157 aa）	Mutation：C38S, K67A, C68S, E69A, K70A, I71A, C76S, C127S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；298 K；12% PEG 3350, pH 8.0, vapor diffusion, temperature 298K	Resolution 1.75 Å R-free 0.231
4HJJ Structure Reveals Function of the Dual Variable Domain Immunoglobulin (DVD-Ig) Molecule Deposited 2012-10-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 37–192（156 aa） Fragment：UNP resiudes 37-192	Not recorded	GOL GLYCEROL × 2 SO4 SULFATE ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；277 K；2M Ammonium Sulfate, 0.1M Sodium Acetate., pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.220
4R6U IL-18 receptor complex Deposited 2014-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 37–193（157 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；291 K；20% PEG3350, 0.03 M citric acid, 0.07 M Bis-Tris propane, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.282
4R6U IL-18 receptor complex Deposited 2014-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 37–193（157 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；291 K；20% PEG3350, 0.03 M citric acid, 0.07 M Bis-Tris propane, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.282
4XFS Structure of IL-18 SER Mutant I Deposited 2014-12-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–193（157 aa）	Mutation：K139A, K140A, E141A, E143A, L144A	DMS DIMETHYL SULFOXIDE × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；47% PEG 2K MME, 0.1M HEPES, 5% DMSO	Resolution 1.91 Å R-free 0.229
4XFS Structure of IL-18 SER Mutant I Deposited 2014-12-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 37–193（157 aa）	Mutation：K139A, K140A, E141A, E143A, L144A	DMS DIMETHYL SULFOXIDE × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；47% PEG 2K MME, 0.1M HEPES, 5% DMSO	Resolution 1.91 Å R-free 0.229
4XFS Structure of IL-18 SER Mutant I Deposited 2014-12-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 37–193（157 aa） Chain B 37–193（157 aa）	Mutation：K139A, K140A, E141A, E143A, L144A Mutation：K139A, K140A, E141A, E143A, L144A	DMS DIMETHYL SULFOXIDE × 5 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；47% PEG 2K MME, 0.1M HEPES, 5% DMSO	Resolution 1.91 Å R-free 0.229
4XFT Structure of IL-18 SER Mutant III Deposited 2014-12-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–193（157 aa）	Mutation：K67A, E69A, K70A, I71A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；35% PEG 3350, 0.1M MES, 5% DMSO	Resolution 2.00 Å R-free 0.218
4XFT Structure of IL-18 SER Mutant III Deposited 2014-12-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 37–193（157 aa）	Mutation：K67A, E69A, K70A, I71A	DMS DIMETHYL SULFOXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；35% PEG 3350, 0.1M MES, 5% DMSO	Resolution 2.00 Å R-free 0.218
4XFT Structure of IL-18 SER Mutant III Deposited 2014-12-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 37–193（157 aa） Chain B 37–193（157 aa）	Mutation：K67A, E69A, K70A, I71A Mutation：K67A, E69A, K70A, I71A	DMS DIMETHYL SULFOXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；35% PEG 3350, 0.1M MES, 5% DMSO	Resolution 2.00 Å R-free 0.218
4XFU Structure of IL-18 SER Mutant V Deposited 2014-12-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 33–189（157 aa）	Mutation：P57R, K67A, E69A, K70A, I71A, S105R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；35% PEG 3350, 0.1M Tris, 0.1M Sodium Acetate	Resolution 2.85 Å R-free 0.287
4XFU Structure of IL-18 SER Mutant V Deposited 2014-12-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 33–189（157 aa）	Mutation：P57R, K67A, E69A, K70A, I71A, S105R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；35% PEG 3350, 0.1M Tris, 0.1M Sodium Acetate	Resolution 2.85 Å R-free 0.287
4XFU Structure of IL-18 SER Mutant V Deposited 2014-12-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 33–189（157 aa） Chain B 33–189（157 aa）	Mutation：P57R, K67A, E69A, K70A, I71A, S105R Mutation：P57R, K67A, E69A, K70A, I71A, S105R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；35% PEG 3350, 0.1M Tris, 0.1M Sodium Acetate	Resolution 2.85 Å R-free 0.287
7AL7 The Crystal Structure of Human IL-18 in Complex With Human IL-18 Binding Protein Deposited 2020-10-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 36–193（158 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；0.2 M Calcium acetate hydrate, 0.1 M Sodium cacodylate trihydrate pH 6.5, 18% w/v Polyethylene glycol 8000	Resolution 1.80 Å R-free 0.232
8J6K Crystal structure of pro-interleukin-18 and caspase-4 complex Deposited 2023-04-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–193（193 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.2 M Calcium acetate, 0.1M Tris-HCl pH 9.0, 13% PEG 8000, 0.01 M L-Glutathione reduced, 0.01 M L-Glutathione oxidized	Resolution 3.12 Å R-free 0.269
8SPB Caspase-4/Pro-IL-18 complex Deposited 2023-05-02	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 6–193（188 aa） Chain c 6–193（188 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8URV Solution NMR structure of pro-IL-18 Deposited 2023-10-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–193（193 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298.1 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR measurement conditions pH 6.1；298.1 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR sample composition 0.5 mM [U-13C; U-15N] pro-interleukin-18, 20 mM MES, 50 mM potassium chloride, 10 mM DTT, 97% H2O/3% D2O \| 97% H2O/3% D2O NMR sample composition 0.5 mM [U-13C; U-15N] pro-interleukin-18, 20 mM MES, 50 mM potassium chloride, 10 mM DTT, 100% D2O \| 100% D2O NMR sample composition 0.5 mM [5% U-13C; U-15N] pro-interleukin-18, 20 mM MES, 50 mM potassium chloride, 10 mM DTT, 97% H2O/3% D2O \| 97% H2O/3% D2O	Resolution not provided
9OD7 Structure of disulfide-stabilized IL-18 variant Deposited 2025-04-25	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–193（157 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；273.15 K；0.1M MIB buffer (mixing sodium malonate, imidazole, and boric acid in the molar ratios 2:3:3), pH 4.0, 25% PEG 1500	Resolution 1.90 Å R-free 0.195
9OD9 Structure of disulfide-stabilized IL-18 variant Deposited 2025-04-25	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–193（157 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291.15 K；0.1M sodium citrate, pH 5.0, 20% PEG 600	Resolution 1.60 Å R-free 0.188

19 other PDB entries and 36 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL18_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–188； UniProt 6–193 Author chain c； PDBConstruct 1–188； UniProt 6–193

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

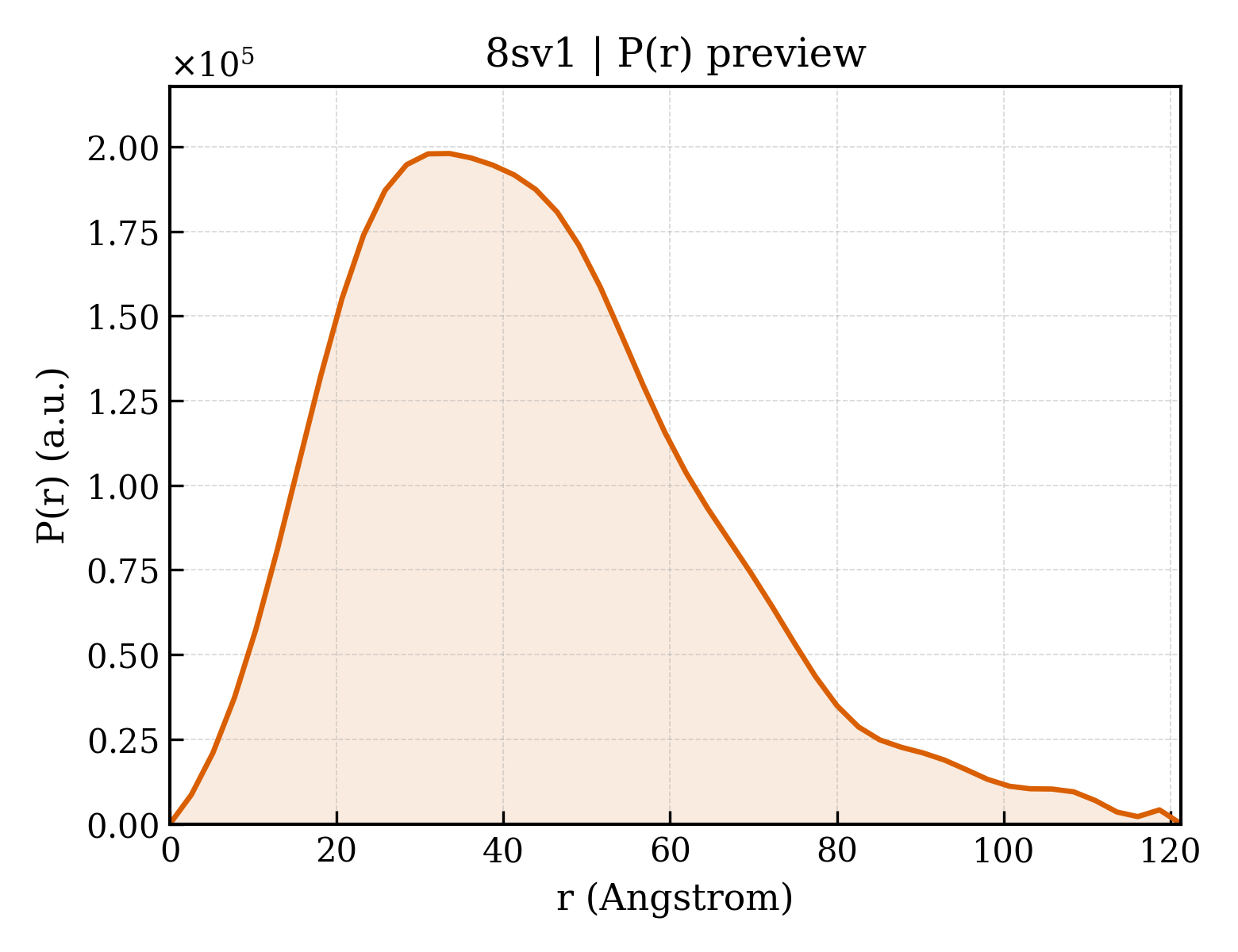

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8sv1
Deposition date deposition_date	2023-05-15
Structure title title	Caspase-1 complex with interleukin-18
Keywords keywords	Innate immune, Complex, HYDROLASE, IMMUNE SYSTEM; HYDROLASE, IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.57 Å
Radius of gyration Rg (electron density) rg_electron	33.61 Å
Forward intensity I(0) i0	128933000.00
Molecular weight molecular_weight	90364.0 kDa
Excluded volume excluded_volume	112870 Å³
Envelope volume envelope_volume	149880 Å³
Hydration-shell volume shell_volume	39212 Å³
Envelope diameter envelope_diameter	129.8 Å
Shell Rg shell_rg	37.63 Å
Envelope Rg envelope_rg	34.54 Å
Shape Rg shape_rg	33.59 Å
Total Rg total_rg	33.98 Å
Total atoms total_atoms	6330
Residues n_residues	792
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	121.3 Å
Rg (real space) rg_real	33.87 Å
Rg uncertainty (real space) rg_real_error	1.26 Å
I(0) (real space) i0_real	1.2890e+08
I(0) uncertainty (real space) i0_real_error	2.0760e+06
Rg (reciprocal space) rg_reciprocal	33.68 Å
I(0) (reciprocal space) i0_reciprocal	128900000.0000
Solution quality estimate total_estimate	0.7839
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	33.5 Å
Skewness Skewness skewness	0.695
Kurtosis Kurtosis kurtosis	0.366
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	45260000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.648; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.706; Smooth: 0.536

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Caspase-1
Molecular weight formula_weight	16607.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,a
Atom count atom_count	6330

AEIYPIMDKSSRTRLALIICNEEFDSIPRRTGAEVDITGMTMLLQNLGYSVDVKKNLTASDMTTELEAFAHRPEHKTSDSTFLVFMSHGIREGICGKKHSEQVPDILQLNAIFNMLNTKNCPSLKDKPKVIIIQACRGDSPGVVWFKD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli B

Entity 2 Entity 2 polymer

Description description	Caspase-1
Molecular weight formula_weight	10258.8 kDa
EC 编号 ec_number	3.4.22.36
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,b

AIKKAHIEKDFIAFCSSTPDNVSWRHPTMGSVFIGRLIEHMQEYACSCDVEEIFRKVRFSFEQPDGRAQMPTTERVTLTRCFYLFPGH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli B

Entity 3 Entity 3 polymer

Description description	Interleukin-18
Molecular weight formula_weight	21850.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,c

VEDNCINFVAMKFIDNTLYFIAEDDENLESDYFGKLESKLSVIRNLNDQVLFIDQGNRPLFEDMTDSDCRDNAPRTIFIISMYKDSQPRGMAVTISVKCEKISTLSCENKIISFKEMNPPDNIKDTKSDIIFFQRSVPGHDNKMQFESSSYEGYFLACEKERDLFKLILKKEDELGDRSIMFTVQNED

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Baculovirus expression vector pFastBac1-HM

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.50 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	260549

fit	/app/data/saxs_computation/sv/8sv1/8sv1.fit
pddf	/app/data/pr_computation/sv/8sv1/8sv1.pr.out
profile	/app/data/saxs_computation/sv/8sv1/8sv1.dat

Caspase-1 complex with interleukin-18

1. Protein Identity and Related Structures Protein Identity & Related Structures

Caspase-1

State in the Current Structure

Other States of the Same Protein in the Database

Interleukin-18

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
