Cryo-EM structure of human Anion Exchanger 1 bound to Dipyridamole

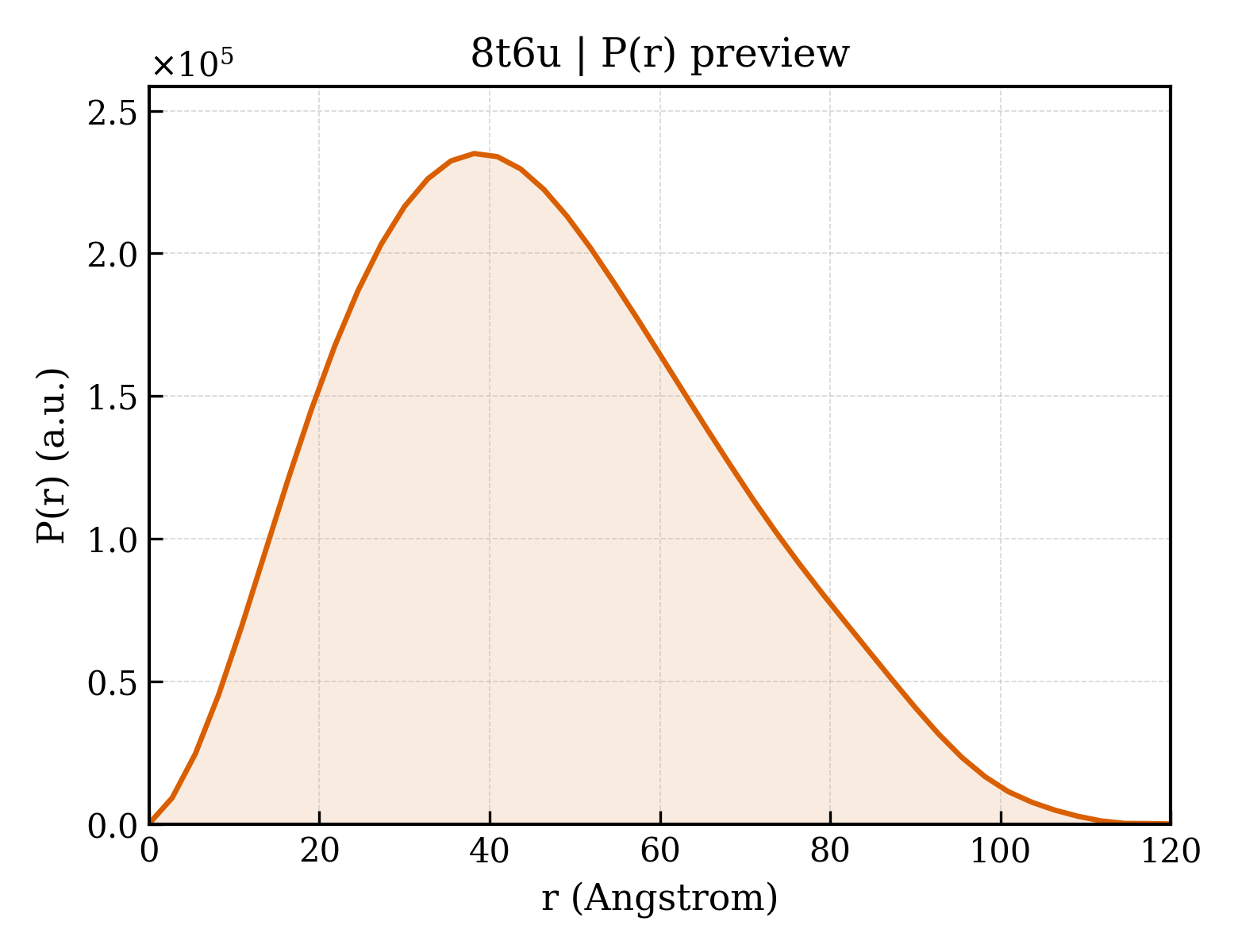

Method: ELECTRON MICROSCOPY Dmax: 120.0 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Band 3 anion transport protein

Homo sapiens

UniProt P02730

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Other combination Homooligomer Protein × 2 其他Polymer 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 369–891 Chain B； UniProt 369–891 Not recorded 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CLR CHOLESTEROL × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 H9F 2-[[2-[bis(2-hydroxyethyl)amino]-4,8-di(piperidin-1-yl)pyrimido[5,4-d]pyrimidin-6-yl]-(2-hydroxyethyl)amino]ethanol × 2 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；Blot force 3 for 3-5 seconds was used and subsequent grids were screened for ice thickness prior to data collection Resolution 3.13 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8T6U Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1BH7 A LOW ENERGY STRUCTURE FOR THE FINAL CYTOPLASMIC LOOP OF BAND 3, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1998-06-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 803–835（33 aa） Fragment：FINAL CYTOPLASMIC LOOP
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 3.5；298 K；Ionic strength (raw mmCIF value) 12mM；Pressure ATMOSPHERIC
NMR sample composition 30% TFE-D3/H2O
Resolution not provided
1BNX STRUCTURAL STUDIES ON THE EFFECTS OF THE DELETION IN THE RED CELL ANION EXCHANGER (BAND3, AE1) ASSOCIATED WITH SOUTH EAST ASIAN OVALOCYTOSIS. Deposited 1998-07-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 388–429（42 aa） Fragment：C-TERMINAL CYTOPLASM/FIRST MEMBRANE SPAN
Mutation：A400-A408 DELETION Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 3.5；298 K；Pressure 1
Resolution not provided
1BTQ THE SOLUTION STRUCTURES OF THE FIRST AND SECOND TRANSMEMBRANE-SPANNING SEGMENTS OF BAND 3 Deposited 1994-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 405–424（20 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1BTR THE SOLUTION STRUCTURES OF THE FIRST AND SECOND TRANSMEMBRANE-SPANNING SEGMENTS OF BAND 3 Deposited 1993-05-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 405–424（20 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1BTS THE SOLUTION STRUCTURES OF THE FIRST AND SECOND TRANSMEMBRANE-SPANNING SEGMENTS OF BAND 3 Deposited 1994-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 436–456（21 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1BTT THE SOLUTION STRUCTURES OF THE FIRST AND SECOND TRANSMEMBRANE-SPANNING SEGMENTS OF BAND 3 Deposited 1994-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 436–456（21 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1BZK STRUCTURAL STUDIES ON THE EFFECTS OF THE DELETION IN THE RED CELL ANION EXCHANGER (BAND3, AE1) ASSOCIATED WITH SOUTH EAST ASIAN OVALOCYTOSIS. Deposited 1998-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 389–430（42 aa） Fragment：C-TERMINAL CYTOPLASM/FIRST MEMBRANE SPAN
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 3.5；298 K；Pressure 1
Resolution not provided
1HYN CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF HUMAN ERYTHROCYTE BAND-3 PROTEIN Deposited 2001-01-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain P 1–379（379 aa）
Chain Q 1–379（379 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.8；METHOD: SITTING DROP VAPOR DIFFUSION WITH SEEDING. TEMPERATURE: 293 K. RESERVOIR: 50-53% SATURATED AMMONIUM SULFATE, 150mM SODIUM CITRATE PH 4.8. PROTEIN: 7 mg/ml PROTEIN IN 5mM SODIUM PHOSPHATE PH 6.8, 10 mM SODIUM CHLORIDE.
Resolution 2.60 Å R-free 0.290
1HYN CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF HUMAN ERYTHROCYTE BAND-3 PROTEIN Deposited 2001-01-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain R 1–379（379 aa）
Chain S 1–379（379 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.8；METHOD: SITTING DROP VAPOR DIFFUSION WITH SEEDING. TEMPERATURE: 293 K. RESERVOIR: 50-53% SATURATED AMMONIUM SULFATE, 150mM SODIUM CITRATE PH 4.8. PROTEIN: 7 mg/ml PROTEIN IN 5mM SODIUM PHOSPHATE PH 6.8, 10 mM SODIUM CHLORIDE.
Resolution 2.60 Å R-free 0.290
1HYN CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF HUMAN ERYTHROCYTE BAND-3 PROTEIN Deposited 2001-01-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric
Chain P 1–379（379 aa）
Chain Q 1–379（379 aa）
Chain R 1–379（379 aa）
Chain S 1–379（379 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.8；METHOD: SITTING DROP VAPOR DIFFUSION WITH SEEDING. TEMPERATURE: 293 K. RESERVOIR: 50-53% SATURATED AMMONIUM SULFATE, 150mM SODIUM CITRATE PH 4.8. PROTEIN: 7 mg/ml PROTEIN IN 5mM SODIUM PHOSPHATE PH 6.8, 10 mM SODIUM CHLORIDE.
Resolution 2.60 Å R-free 0.290
2BTA NMR STUDY OF N-TERMINAL HUMAN BAND 3 PEPTIDE, RESIDUES 1-15 Deposited 1995-11-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–15（15 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
2BTB NMR STUDY OF N-TERMINAL HUMAN BAND 3 PEPTIDE, RESIDUES 1-15 Deposited 1995-11-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–15（15 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
3BTB NMR SOLUTION STRUCTURE OF A BAND 3 PEPTIDE INHIBITOR BOUND TO GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE, 20 STRUCTURES Deposited 1997-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–15（15 aa） Fragment：GLYCOLYTIC ENZYME-BINDING DOMAIN, N-TERMINAL 15 RESIDUES OF BAND 3 PROTEIN
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.5；283 K
Resolution not provided
4KY9 Structural and Functional Analysis of a Putative Substrate Access Tunnel in the Cytosolic Domain of Human Anion Exchanger 1 Deposited 2013-05-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 51–356（306 aa） Fragment：UNP residues 51-356
Chain P 51–356（306 aa） Fragment：UNP residues 51-356
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；100 mM BisTris pH 6.5, 18% PEG 3350, with 0.5% (w/v) octylglucoside, vapor diffusion, sitting drop, temperature 298K
Resolution 2.23 Å R-free 0.223
4YZF Crystal structure of the anion exchanger domain of human erythrocyte Band 3 Deposited 2015-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded 4KU 2,2'-ethane-1,2-diylbis{5-[(sulfanylmethyl)amino]benzenesulfonic acid} × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；277 K；100 mM Tris-HCl (pH 8.0), 22-26 %(v/v) PEG300, 250 mM CH3COOK
Resolution 3.50 Å R-free 0.290
4YZF Crystal structure of the anion exchanger domain of human erythrocyte Band 3 Deposited 2015-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–911（911 aa）
Chain D 1–911（911 aa）
Not recorded 4KU 2,2'-ethane-1,2-diylbis{5-[(sulfanylmethyl)amino]benzenesulfonic acid} × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；277 K；100 mM Tris-HCl (pH 8.0), 22-26 %(v/v) PEG300, 250 mM CH3COOK
Resolution 3.50 Å R-free 0.290
7TVZ Cryo-EM structure of human band 3-protein 4.2 complex in diagonal conformation Deposited 2022-02-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 LMT DODECYL-BETA-D-MALTOSIDE × 5 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7TW0 Cryo-EM structure of human band 3-protein 4.2 complex in vertical conformation Deposited 2022-02-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7TW1 Cryo-EM structure of human band 3-protein 4.2 complex (B2P2vertical) Deposited 2022-02-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
7TW2 Cryo-EM structure of human band 3 dimer from red blood cell Deposited 2022-02-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7TW3 Cryo-EM structure of human ankyrin complex (B2P1A1) from red blood cell Deposited 2022-02-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
7TW5 Cryo-EM structure of human ankyrin complex (B2P1A2) from red blood cell Deposited 2022-02-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.70 Å
7TW6 Cryo-EM structure of human ankyrin complex (B4P1A1) from red blood cell Deposited 2022-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Chain J 1–911（911 aa）
Chain K 1–911（911 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.60 Å
7TY4 Cryo-EM structure of human Anion Exchanger 1 Deposited 2022-02-11 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded CLR CHOLESTEROL × 2 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 Y01 CHOLESTEROL HEMISUCCINATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blot force 3 for 3-5 seconds was used and subsequent grids were screened for ice thickness prior to data collection
Resolution 2.99 Å
7TY6 Cryo-EM structure of human Anion Exchanger 1 bound to 4,4'-Diisothiocyanatodihydrostilbene-2,2'-Disulfonic Acid (H2DIDS) Deposited 2022-02-11 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded CLR CHOLESTEROL × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 4DS 4,4'-Diisothiocyano-2,2'-stilbenedisulfonic acid × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blot force 3 for 3-5 seconds was used and subsequent grids were screened for ice thickness prior to data collection
Resolution 2.98 Å
7TY7 Cryo-EM structure of human Anion Exchanger 1 bound to Bicarbonate Deposited 2022-02-11 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded BCT BICARBONATE ION × 2 CLR CHOLESTEROL × 7 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blot force 3 for 3-5 seconds was used and subsequent grids were screened for ice thickness prior to data collection
Resolution 3.37 Å
7TY8 Cryo-EM structure of human Anion Exchanger 1 bound to Niflumic Acid Deposited 2022-02-11 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded CLR CHOLESTEROL × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 NFL 2-{[3-(TRIFLUOROMETHYL)PHENYL]AMINO}NICOTINIC ACID × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blot force 3 for 3-5 seconds was used and subsequent grids were screened for ice thickness prior to data collection
Resolution 3.18 Å
7TYA Cryo-EM structure of human Anion Exchanger 1 modified with Diethyl Pyrocarbonate (DEPC) Deposited 2022-02-11 Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) CLR CHOLESTEROL × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blot force 3 for 3-5 seconds was used and subsequent grids were screened for ice thickness prior to data collection
Resolution 3.07 Å
7UZ3 Band 3-Glycophorin A complex, outward facing Deposited 2022-05-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–911（911 aa）
Chain E 1–911（911 aa）
Not recorded CLR CHOLESTEROL × 4 PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05 % (w/v) digitonin, 130mM KCl, 20mM HEPES pH 7.4, 1mM ATP, 1mM MgCl2, 1mM PMSF. Peak fractions were concentrated to 8mg/mL, and 0.01% (w/v) of glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds.
Resolution 2.35 Å
7UZU Ankyrin-1 (N-terminal region of membrane binding domain, local refinement from consensus reconstruction; bound to N-terminal peptide from band 3) Deposited 2022-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain W 1–911（911 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL and 0.01% ( w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds
Resolution 2.30 Å
7UZV Cytoplasmic domains of Band 3-I (local refinement from consensus reconstruction of ankyrin complexes) Deposited 2022-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–911（911 aa）
Chain E 1–911（911 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL and 0.01% ( w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds
Resolution 2.50 Å
7V07 Band 3-I-TM local refinement from erythrocyte ankyrin-1 complex consensus reconstruction Deposited 2022-05-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–911（911 aa）
Chain E 1–911（911 aa）
Not recorded CLR CHOLESTEROL × 4 PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL and 0.01% ( w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds
Resolution 2.80 Å
7V0K Consensus refinement of human erythrocyte ankyrin-1 complex (Composite map) Deposited 2022-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain O 1–911（911 aa）
Chain P 1–911（911 aa）
Chain W 1–911（911 aa）
Not recorded CLR CHOLESTEROL × 6 AJP Digitonin × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds
Resolution 2.40 Å
7V0M Local refinement of ankyrin-1 (N-terminal half), class 1 of erythrocyte ankyrin-1 complex Deposited 2022-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain W 1–911（911 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds
Resolution 2.70 Å
7V0T Local refinement of Band 3-I cytoplasmic domains, class 1 of erythrocyte ankyrin-1 complex Deposited 2022-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–911（911 aa）
Chain E 1–911（911 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05 % (w/v) digitonin, 130mM KCl, 20mM HEPES pH 7.4, 1mM ATP, 1mM MgCl2, 1mM PMSF. Peak fractions were concentrated to 8mg/mL, and 0.01% (w/v) of glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds
Resolution 2.70 Å
7V0U Local refinement of Band 3-II cytoplasmic domains, class 1 of erythrocyte ankyrin-1 complex Deposited 2022-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain D 1–911（911 aa）
Chain F 1–911（911 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds.
Resolution 3.00 Å
7V0Y Local refinement of Band 3-III cytoplasmic domains, class 1 of erythrocyte ankyrin-1 complex Deposited 2022-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–911（911 aa）
Chain E 1–911（911 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds.
Resolution 3.00 Å
7V19 Local refinement of Band 3-II transmembrane domains, class 1 of erythrocyte ankyrin-1 complex Deposited 2022-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–911（911 aa）
Chain E 1–911（911 aa）
Not recorded CLR CHOLESTEROL × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds.
Resolution 3.30 Å
8CRQ Local refinement of Band 3-I transmembrane domains, class 1 of erythrocyte ankyrin-1 complex Deposited 2022-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–911（911 aa）
Chain E 1–911（911 aa）
Not recorded CLR CHOLESTEROL × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds.
Resolution 3.20 Å
8CRR Local refinement of Band 3-III transmembrane domains, class 1 of erythrocyte ankyrin-1 complex Deposited 2022-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–911（911 aa）
Chain E 1–911（911 aa）
Not recorded CLR CHOLESTEROL × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds.
Resolution 3.00 Å
8CRT Local refinement of Rh trimer, glycophorin B and Band3-III transmembrane region, class 1a of erythrocyte ankyrin-1 complex Deposited 2022-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric
Chain C 1–911（911 aa）
Chain E 1–911（911 aa）
Not recorded CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds.
Resolution 3.00 Å
8CS9 Composite reconstruction of Class 1 of the erythrocyte ankyrin-1 complex Deposited 2022-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 18 PDB declaration: octadecameric
Chain V 1–911（911 aa）
Chain Y 1–911（911 aa）
Chain Z 1–911（911 aa）
Chain e 1–911（911 aa）
Chain f 1–911（911 aa）
Chain g 1–911（911 aa）
Not recorded CLR CHOLESTEROL × 8 AJP Digitonin × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds
Resolution 2.74 Å
8CSL Sub-tomogram averaging of erythrocyte ankyrin-1 complex Deposited 2022-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain V 1–911（911 aa）
Chain W 1–911（911 aa）
Chain Y 1–911（911 aa）
Chain Z 1–911（911 aa）
Chain e 1–911（911 aa）
Chain f 1–911（911 aa）
Chain g 1–911（911 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；130 mM KCl, 10 mM HEPES, pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 25.00 Å
8CSV Local refinement of Anykyrin-1 (N-terminal half of membrane binding domain) in Class 2 of erythrocyte ankyrin-1 complex Deposited 2022-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain W 1–911（911 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds
Resolution 2.70 Å
8CSY Local refinement of cytoplasmic domains of band3-I in class 2 of erythrocyte ankyrin-1 complex Deposited 2022-05-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–911（911 aa）
Chain E 1–911（911 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds
Resolution 2.70 Å
8CT3 Local refinement of band3-I transmembrane region from class 2 of erythrocyte ankyrin-1 complex Deposited 2022-05-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–911（911 aa）
Chain E 1–911（911 aa）
Not recorded CLR CHOLESTEROL × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds
Resolution 3.30 Å
8CTE Class 2 of erythrocyte ankyrin-1 complex (Composite map) Deposited 2022-05-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain P 1–911（911 aa）
Chain T 1–911（911 aa）
Chain W 1–911（911 aa）
Not recorded CLR CHOLESTEROL × 10 AJP Digitonin × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Final gel filtration buffer contained 0.05% w/v digitonin, 130 mM KCl, 20 mM HEPES, pH 7.4, 1 mM ATP, 1 mM MgCl2, 1 mM PMSF. Peak fractions were concentrated to 8 mg/mL, and 0.01% w/v glycyrrhizic acid was added immediately prior to vitrification.
cryo-EM vitrification conditions Cryogen ETHANE；4-6 seconds, wait time 30 seconds
Resolution 2.90 Å
8T3R Cryo-EM Analysis of AE1 Structure in 100 mM NaCl Buffer: Form1 Deposited 2023-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 2 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.99 Å
8T3U Cryo-EM Analysis of AE1 Structure in 100 mM NaCl Buffer: Form2 Deposited 2023-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8T44 Cryo-EM Analysis of AE1 Structure in 100 mM NaHCO3 Buffer: Form1 Deposited 2023-06-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 3 CO3 CARBONATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.12 Å
8T45 Cryo-EM Analysis of AE1 Structure in 100 mM NaHCO3 Buffer: Form2 Deposited 2023-06-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.99 Å
8T47 Cryo-EM Analysis of AE1 Structure in 100 mM NaHCO3 Buffer: Form3 Deposited 2023-06-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–911（911 aa）
Chain B 1–911（911 aa）
Not recorded PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 4 CO3 CARBONATE ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
8T6V Cryo-EM structure of human Anion Exchanger 1 bound to 4,4'-Diisothiocyanatostilbene-2,2'-Disulfonic Acid (DIDS) Deposited 2023-06-18 Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 369–891（523 aa）
Chain B 369–891（523 aa）
Not recorded 4DS 4,4'-Diisothiocyano-2,2'-stilbenedisulfonic acid × 2 CLR CHOLESTEROL × 6 Y01 CHOLESTEROL HEMISUCCINATE × 2 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blot force 3 for 3-5 seconds was used and subsequent grids were screened for ice thickness prior to data collection
Resolution 2.95 Å
9MND Band 3 OF/IF1 Deposited 2024-12-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–911（911 aa）
Chain C 1–911（911 aa）
Not recorded PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 4 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
9MNG Band 3 OF/OF Deposited 2024-12-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–911（911 aa）
Chain C 1–911（911 aa）
Not recorded PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.11 Å
9MOS Band 3 IF1/IF2 Deposited 2024-12-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–911（911 aa）
Chain C 1–911（911 aa）
Not recorded PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 2 PLC DIUNDECYL PHOSPHATIDYL CHOLINE × 2 CL CHLORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.88 Å

53 other PDB entries and 56 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name B3AT_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–523； UniProt 369–891 Author chain B； PDBConstruct 1–523； UniProt 369–891

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 8t6u

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8t6u
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8t6u
Deposition date deposition_date2023-06-18
Structure title titleCryo-EM structure of human Anion Exchanger 1 bound to Dipyridamole
Keywords keywordsTransmembrane, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier35.72 Å
Radius of gyration Rg (electron density) rg_electron35.33 Å
Forward intensity I(0) i0162331000.00
Molecular weight molecular_weight121670.0 kDa
Excluded volume excluded_volume160450 ų
Envelope volume envelope_volume195240 ų
Hydration-shell volume shell_volume46734 ų
Envelope diameter envelope_diameter123.8 Å
Shell Rg shell_rg41.09 Å
Envelope Rg envelope_rg34.97 Å
Shape Rg shape_rg35.36 Å
Total Rg total_rg35.66 Å
Total atoms total_atoms8602
Residues n_residues1032
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax120.0 Å
Rg (real space) rg_real35.80 Å
Rg uncertainty (real space) rg_real_error0.90 Å
I(0) (real space) i0_real1.6230e+08
I(0) uncertainty (real space) i0_real_error2.5600e+06
Rg (reciprocal space) rg_reciprocal35.75 Å
I(0) (reciprocal space) i0_reciprocal162300000.0000
Solution quality estimate total_estimate0.8832
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary38.2 Å
Skewness Skewness skewness0.369
Kurtosis Kurtosis kurtosis-0.439
Angular range angular_range— – 0.2200 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha16680000.0000
Real-space data points n_real_points45
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.884; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.954; Smooth: 0.872
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

▶

8. Citations (1)

▶

9. Files and Curves (10)
