SAXSdb — 8thq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein argonaute-2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Homooligomer	Protein 2 RNA 2	;RNA (5'-R(CPGPUPGPAPCPUPCP*U)-3') ; × 2 water × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AGO2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–127； UniProt 227–352 Author chain B； PDBConstruct 2–127； UniProt 227–352

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8thq
Deposition date deposition_date	2023-07-17
Last revision last_revision	2024-10-16
Structure title title	Nonamer RNA bound to hAgo2-PAZ
Keywords keywords	h-Ago2-PAZ, RNA, loopmeRNA, PAZ domain, RNA BINDING PROTEIN, RNA BINDING PROTEIN-RNA complex; RNA BINDING PROTEIN/RNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8thq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8thq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

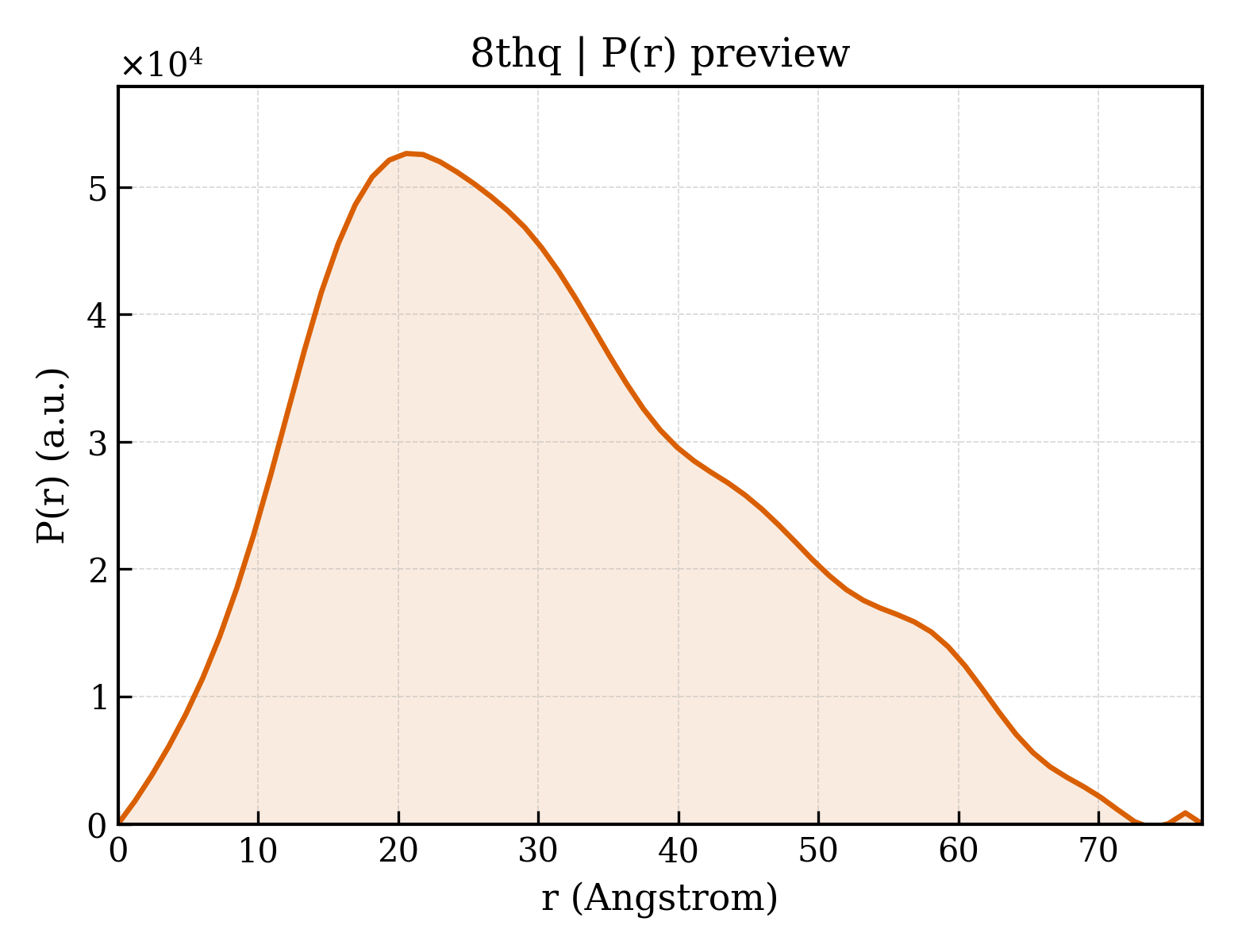

8thq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.85 Å
Rg (electron density)	24.17 Å
Total Rg	24.68 Å
Atom count	2332
Residues	260
Excluded volume	40526 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8thq__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Protein argonaute-2
Molecular weight formula_weight	14767.1 kDa
EC 编号 ec_number	3.1.26.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2348

SAQPVIEFVCEVLDFKSIEEQQKPLTDSQRVKFTKEIKGLKVEITHCGQMKRKYRVCNVTRRPASHQTFPLQQESGQTVECTVAQYFKDRHKLVLRYPHLPCLQVGQEQKHTYLPLEVCNIVAGQRC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	;RNA (5'-R(CPGPUPGPAPCPUPCP*U)-3') ;
Molecular weight formula_weight	2808.7 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	R,S

CGUGACUCU

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	16

▶

Unit-cell length a length_a	91.936 Å
Unit-cell length b length_b	91.936 Å
Unit-cell length c length_c	69.579 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	2.410 Å
Low-resolution limit resolution_low	26.550 Å
R factor r_factor	0.2184
R_work r_work	0.2149
R_free r_free	0.2837
