SAXSdb — 8tqc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mediator of RNA polymerase II transcription subunit 12

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Mediator of RNA polymerase II transcription subunit 13 × 1 （Q9UHV7） Cyclin-dependent kinase 8 × 1 （P49336） Cyclin-C × 1 （P24863） ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MED12_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–2177； UniProt 1–2177

Mediator of RNA polymerase II transcription subunit 13

Homo sapiens

UniProt Q9UHV7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Mediator of RNA polymerase II transcription subunit 12 × 1 （Q93074） Cyclin-dependent kinase 8 × 1 （P49336） Cyclin-C × 1 （P24863） ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MED13_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–2174； UniProt 1–2174

Cyclin-dependent kinase 8

Homo sapiens

UniProt P49336

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Mediator of RNA polymerase II transcription subunit 12 × 1 （Q93074） Mediator of RNA polymerase II transcription subunit 13 × 1 （Q9UHV7） Cyclin-C × 1 （P24863） ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDK8_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–464； UniProt 1–464

Cyclin-C

Homo sapiens

UniProt P24863

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Mediator of RNA polymerase II transcription subunit 12 × 1 （Q93074） Mediator of RNA polymerase II transcription subunit 13 × 1 （Q9UHV7） Cyclin-dependent kinase 8 × 1 （P49336） ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CCNC_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain B； PDBConstruct 1–283； UniProt 1–283

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8tqc
Deposition date deposition_date	2023-08-06
Structure title title	Structure of the human CDK8 kinase module
Keywords keywords	Transcription, Mediator, CDK8, MED12, MED13, CKM.; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8tqc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

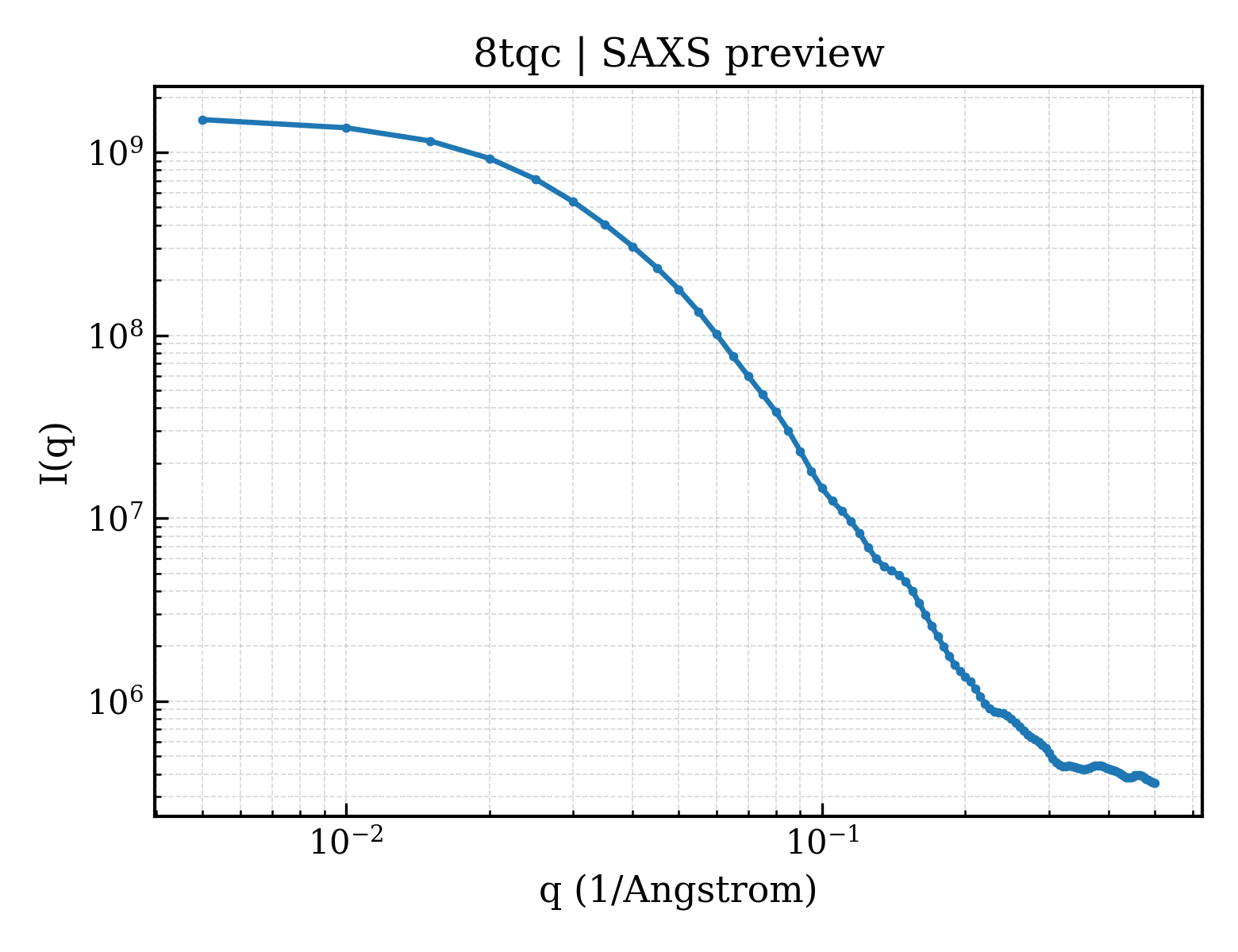

8tqc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

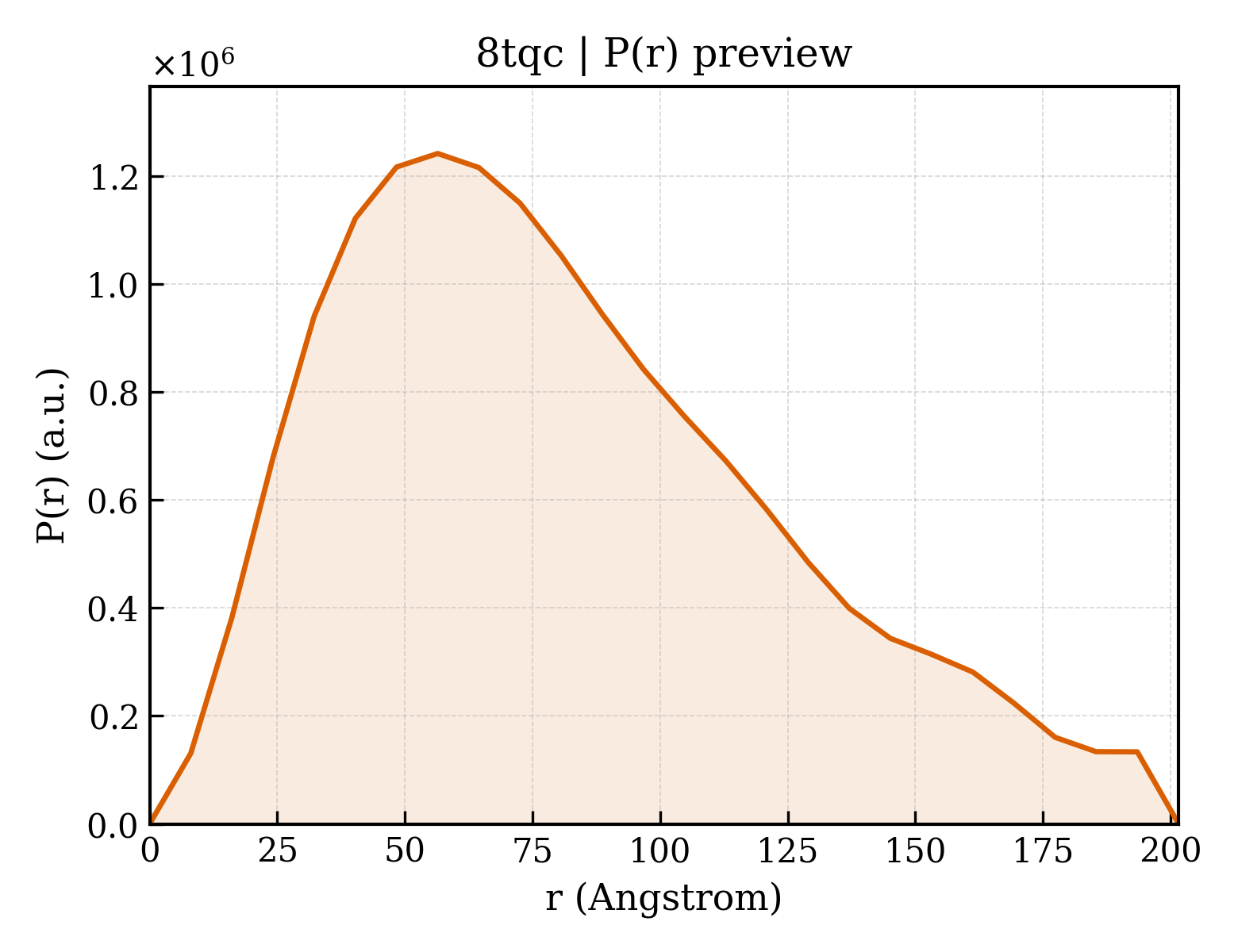

8tqc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	63.42 Å
Rg (electron density)	64.33 Å
Total Rg	64.13 Å
Atom count	23613
Residues	2944
Excluded volume	423130 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8tqc__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Mediator of RNA polymerase II transcription subunit 12
Molecular weight formula_weight	243354.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	23620

MAAFGILSYEHRPLKRPRLGPPDVYPQDPKQKEDELTALNVKQGFNNQPAVSGDEHGSAKNVSFNPAKISSNFSSIIAEKLRCNTLPDTGRRKPQVNQKDNFWLVTARSQSAINTWFTDLAGTKPLTQLAKKVPIFSKKEEVFGYLAKYTVPVMRAAWLIKMTCAYYAAISETKVKKRHVDPFMEWTQIITKYLWEQLQKMAEYYRPGPAGSGGCGSTIGPLPHDVEVAIRQWDYTEKLAMFMFQDGMLDRHEFLTWVLECFEKIRPGEDELLKLLLPLLLRYSGEFVQSAYLSRRLAYFCTRRLALQLDGVSSHSSHVISAQSTSTLPTTPAPQPPTSSTPSTPFSDLLMCPQHRPLVFGLSCILQTILLCCPSALVWHYSLTDSRIKTGSPLDHLPIAPSNLPMPEGNSAFTQQVRAKLREIEQQIKERGQAVEVRWSFDKCQEATAGFTIGRVLHTLEVLDSHSFERSDFSNSLDSLCNRIFGLGPSKDGHEISSDDDAVVSLLCEWAVSCKRSGRHRAMVVAKLLEKRQAEIEAERCGESEAADEKGSIASGSLSAPSAPIFQDVLLQFLDTQAPMLTDPRSESERVEFFNLVLLFCELIRHDVFSHNMYTCTLISRGDLAFGAPGPRPPSPFDDPADDPEHKEAEGSSSSKLEDPGLSESMDIDPSSSVLFEDMEKPDFSLFSPTMPCEGKGSPSPEKPDVEKEVKPPPKEKIEGTLGVLYDQPRHVQYATHFPIPQEESCSHECNQRLVVLFGVGKQRDDARHAIKKITKDILKVLNRKGTAETDQLAPIVPLNPGDLTFLGGEDGQKRRRNRPEAFPTAEDIFAKFQHLSHYDQHQVTAQVSRNVLEQITSFALGMSYHLPLVQHVQFIFDLMEYSLSISGLIDFAIQLLNELSVVEAELLLKSSDLVGSYTTSLCLCIVAVLRHYHACLILNQDQMAQVFEGLCGVVKHGMNRSDGSSAERCILAYLYDLYTSCSHLKNKFGELFSDFCSKVKNTIYCNVEPSESNMRWAPEFMIDTLENPAAHTFTYTGLGKSLSENPANRYSFVCNALMHVCVGHHDPDRVNDIAILCAELTGYCKSLSAEWLGVLKALCCSSNNGTCGFNDLLCNVDVSDLSFHDSLATFVAILIARQCLLLEDLIRCAAIPSLLNAACSEQDSEPGARLTCRILLHLFKTPQLNPCQSDGNKPTVGIRSSCDRHLLAASQNRIVDGAVFAVLKAVFVLGDAELKGSGFTVTGGTEELPEEEGGGGSGGRRQGGRNISVETASLDVYAKYVLRSICQQEWVGERCLKSLCEDSNDLQDPVLSSAQAQRLMQLICYPHRLLDNEDGENPQRQRIKRILQNLDQWTMRQSSLELQLMIKQTPNNEMNSLLENIAKATIEVFQQSAETGSSSGSTASNMPSSSKTKPVLSSLERSGVWLVAPLIAKLPTSVQGHVLKAAGEELEKGQHLGSSSRKERDRQKQKSMSLLSQQPFLSLVLTCLKGQDEQREGLLTSLYSQVHQIVNNWRDDQYLDDCKPKQLMHEALKLRLNLVGGMFDTVQRSTQQTTEWAMLLLEIIISGTVDMQSNNELFTTVLDMLSVLINGTLAADMSSISQGSMEENKRAYMNLAKKLQKELGERQSDSLEKVRQLLPLPKQTRDVITCEPQGSLIDTKGNKIAGFDSIFKKEGLQVSTKQKISPWDLFEGLKPSAPLSWGWFGTVRVDRRVARGEEQQRLLLYHTHLRPRPRAYYLEPLPLPPEDEEPPAPTLLEPEKKAPEPPKTDKPGAAPPSTEERKKKSTKGKKRSQPATKTEDYGMGPGRSGPYGVTVPPDLLHHPNPGSITHLNYRQGSIGLYTQNQPLPAGGPRVDPYRPVRLPMQKLPTRPTYPGVLPTTMTGVMGLEPSSYKTSVYRQQQPAVPQGQRLRQQLQQSQGMLGQSSVHQMTPSSSYGLQTSQGYTPYVSHVGLQQHTGPAGTMVPPSYSSQPYQSTHPSTNPTLVDPTRHLQQRPSGYVHQQAPTYGHGLTSTQRFSHQTLQQTPMISTMTPMSAQGVQAGVRSTAILPEQQQQQQQQQQQQQQQQQQQQQQQQQQYHIRQQQQQQILRQQQQQQQQQQQQQQQQQQQQQQQQQQHQQQQQQQAAPPQPQPQSQPQFQRQGLQQTQQQQQTAALVRQLQQQLSNTQPQPSTNIFGRY

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Baculovirus expression vector pFastBac1-HM

Entity 2 Entity 2 polymer

Description description	Mediator of RNA polymerase II transcription subunit 13
Molecular weight formula_weight	239535.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MSASFVPNGASLEDCHCNLFCLADLTGIKWKKYVWQGPTSAPILFPVTEEDPILSSFSRCLKADVLGVWRRDQRPGRRELWIFWWGEDPSFADLIHHDLSEEEDGVWENGLSYECRTLLFKAVHNLLERCLMNRNFVRIGKWFVKPYEKDEKPINKSEHLSCSFTFFLHGDSNVCTSVEINQHQPVYLLSEEHITLAQQSNSPFQVILCPFGLNGTLTGQAFKMSDSATKKLIGEWKQFYPISCCLKEMSEEKQEDMDWEDDSLAAVEVLVAGVRMIYPACFVLVPQSDIPTPSPVGSTHCSSSCLGVHQVPASTRDPAMSSVTLTPPTSPEEVQTVDPQSVQKWVKFSSVSDGFNSDSTSHHGGKIPRKLANHVVDRVWQECNMNRAQNKRKYSASSGGLCEEATAAKVASWDFVEATQRTNCSCLRHKNLKSRNAGQQGQAPSLGQQQQILPKHKTNEKQEKSEKPQKRPLTPFHHRVSVSDDVGMDADSASQRLVISAPDSQVRFSNIRTNDVAKTPQMHGTEMANSPQPPPLSPHPCDVVDEGVTKTPSTPQSQHFYQMPTPDPLVPSKPMEDRIDSLSQSFPPQYQEAVEPTVYVGTAVNLEEDEANIAWKYYKFPKKKDVEFLPPQLPSDKFKDDPVGPFGQESVTSVTELMVQCKKPLKVSDELVQQYQIKNQCLSAIASDAEQEPKIDPYAFVEGDEEFLFPDKKDRQNSEREAGKKHKVEDGTSSVTVLSHEEDAMSLFSPSIKQDAPRPTSHARPPSTSLIYDSDLAVSYTDLDNLFNSDEDELTPGSKKSANGSDDKASCKESKTGNLDPLSCISTADLHKMYPTPPSLEQHIMGFSPMNMNNKEYGSMDTTPGGTVLEGNSSSIGAQFKIEVDEGFCSPKPSEIKDFSYVYKPENCQILVGCSMFAPLKTLPSQYLPPIKLPEECIYRQSWTVGKLELLSSGPSMPFIKEGDGSNMDQEYGTAYTPQTHTSFGMPPSSAPPSNSGAGILPSPSTPRFPTPRTPRTPRTPRGAGGPASAQGSVKYENSDLYSPASTPSTCRPLNSVEPATVPSIPEAHSLYVNLILSESVMNLFKDCNFDSCCICVCNMNIKGADVGVYIPDPTQEAQYRCTCGFSAVMNRKFGNNSGLFLEDELDIIGRNTDCGKEAEKRFEALRATSAEHVNGGLKESEKLSDDLILLLQDQCTNLFSPFGAADQDPFPKSGVISNWVRVEERDCCNDCYLALEHGRQFMDNMSGGKVDEALVKSSCLHPWSKRNDVSMQCSQDILRMLLSLQPVLQDAIQKKRTVRPWGVQGPLTWQQFHKMAGRGSYGTDESPEPLPIPTFLLGYDYDYLVLSPFALPYWERLMLEPYGSQRDIAYVVLCPENEALLNGAKSFFRDLTAIYESCRLGQHRPVSRLLTDGIMRVGSTASKKLSEKLVAEWFSQAADGNNEAFSKLKLYAQVCRYDLGPYLASLPLDSSLLSQPNLVAPTSQSLITPPQMTNTGNANTPSATLASAASSTMTVTSGVAISTSVATANSTLTTASTSSSSSSNLNSGVSSNKLPSFPPFGSMNSNAAGSMSTQANTVQSGQLGGQQTSALQTAGISGESSSLPTQPHPDVSESTMDRDKVGIPTDGDSHAVTYPPAIVVYIIDPFTYENTDESTNSSSVWTLGLLRCFLEMVQTLPPHIKSTVSVQIIPCQYLLQPVKHEDREIYPQHLKSLAFSAFTQCRRPLPTSTNVKTLTGFGPGLAMETALRSPDRPECIRLYAPPFILAPVKDKQTELGETFGEAGQKYNVLFVGYCLSHDQRWILASCTDLYGELLETCIINIDVPNRARRKKSSARKFGLQKLWEWCLGLVQMSSLPWRVVIGRLGRIGHGELKDWSCLLSRRNLQSLSKRLKDMCRMCGISAADSPSILSACLVAMEPQGSFVIMPDSVSTGSVFGRSTTLNMQTSQLNTPQDTSCTHILVFPTSASVQVASATYTTENLDLAFNPNNDGADGMGIFDLLDTGDDLDPDIINILPASPTGSPVHSPGSHYPHGGDAGKGQSTDRLLSTEPHEEVPNILQQPLALGYFVSTAKAGPLPDWFWSACPQAQYQCPLFLKASLHLHVPSVQSDELLHSKHSHPLDSNQTSDVLRFVLEQYNALSWLTCDPATQDRRSCLPIHFVVLNQLYNFIMNML

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Baculovirus expression vector pFastBac1-HM

Entity 3 Entity 3 polymer

Description description	Cyclin-dependent kinase 8
Molecular weight formula_weight	53368.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MDYDFKVKLSSERERVEDLFEYEGCKVGRGTYGHVYKAKRKDGKDDKDYALKQIEGTGISMSACREIALLRELKHPNVISLQKVFLSHADRKVWLLFDYAEHDLWHIIKFHRASKANKKPVQLPRGMVKSLLYQILDGIHYLHANWVLHRDLKPANILVMGEGPERGRVKIADMGFARLFNSPLKPLADLDPVVVTFWYRAPELLLGARHYTKAIDIWAIGCIFAELLTSEPIFHCRQEDIKTSNPYHHDQLDRIFNVMGFPADKDWEDIKKMPEHSTLMKDFRRNTYTNCSLIKYMEKHKVKPDSKAFHLLQKLLTMDPIKRITSEQAMQDPYFLEDPLPTSDVFAGCQIPYPKREFLTEEEPDDKGDKKNQQQQQGNNHTNGTGHPGNQDSSHTQGPPLKKVRVVPPTTTSGGLIMTSDYQRSNPHAAYPNPGPSTSQPQSSMGYSATSQQPPQYSHQTHRY

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Baculovirus expression vector pFastBac1-HM

Entity 4 Entity 4 polymer

Description description	Cyclin-C
Molecular weight formula_weight	33279.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MAGNFWQSSHYLQWILDKQDLLKERQKDLKFLSEEEYWKLQIFFTNVIQALGEHLKLRQQVIATATVYFKRFYARYSLKSIDPVLMAPTCVFLASKVEEFGVVSNTRLIAAATSVLKTRFSYAFPKEFPYRMNHILECEFYLLELMDCCLIVYHPYRPLLQYVQDMGQEDMLLPLAWRIVNDTYRTDLCLLYPPFMIALACLHVACVVQQKDARQWFAELSVDMEKILEIIRVILKLYEQWKNFDERKEMATILSKMPKPKPPPNSEGEQGPNGSQNSSYSQS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Baculovirus expression vector pFastBac1-HM

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	122015

Structure of the human CDK8 kinase module
