8umt

Atomic model of the human CTF18-RFC-PCNA binary complex in the three-subunit binding state (state 2)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chromosome transmission fidelity protein 18 homolog

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Replication factor C subunit 2 × 1 （P35250） Replication factor C subunit 5 × 1 （P40937） Replication factor C subunit 4 × 1 （P35249） Replication factor C subunit 3 × 1 （P40938） Proliferating cell nuclear antigen × 3 （P12004） MAGNESIUM ION × 3 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CTF18_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–975； UniProt 1–975

Replication factor C subunit 2

Homo sapiens

UniProt P35250

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Chromosome transmission fidelity protein 18 homolog × 1 （Q8WVB6） Replication factor C subunit 5 × 1 （P40937） Replication factor C subunit 4 × 1 （P35249） Replication factor C subunit 3 × 1 （P40938） Proliferating cell nuclear antigen × 3 （P12004） MAGNESIUM ION × 3 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RFC2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–354； UniProt 1–354

Replication factor C subunit 5

Homo sapiens

UniProt P40937

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Chromosome transmission fidelity protein 18 homolog × 1 （Q8WVB6） Replication factor C subunit 2 × 1 （P35250） Replication factor C subunit 4 × 1 （P35249） Replication factor C subunit 3 × 1 （P40938） Proliferating cell nuclear antigen × 3 （P12004） MAGNESIUM ION × 3 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RFC5_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–340； UniProt 1–340

Replication factor C subunit 4

Homo sapiens

UniProt P35249

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Chromosome transmission fidelity protein 18 homolog × 1 （Q8WVB6） Replication factor C subunit 2 × 1 （P35250） Replication factor C subunit 5 × 1 （P40937） Replication factor C subunit 3 × 1 （P40938） Proliferating cell nuclear antigen × 3 （P12004） MAGNESIUM ION × 3 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RFC4_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–363； UniProt 1–363

Replication factor C subunit 3

Homo sapiens

UniProt P40938

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Chromosome transmission fidelity protein 18 homolog × 1 （Q8WVB6） Replication factor C subunit 2 × 1 （P35250） Replication factor C subunit 5 × 1 （P40937） Replication factor C subunit 4 × 1 （P35249） Proliferating cell nuclear antigen × 3 （P12004） MAGNESIUM ION × 3 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RFC3_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–356； UniProt 1–356

Proliferating cell nuclear antigen

Homo sapiens

UniProt P12004

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Chromosome transmission fidelity protein 18 homolog × 1 （Q8WVB6） Replication factor C subunit 2 × 1 （P35250） Replication factor C subunit 5 × 1 （P40937） Replication factor C subunit 4 × 1 （P35249） Replication factor C subunit 3 × 1 （P40938） MAGNESIUM ION × 3 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PCNA_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 1–261； UniProt 1–261 Author chain G； PDBConstruct 1–261； UniProt 1–261 Author chain H； PDBConstruct 1–261； UniProt 1–261

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8umt
Deposition date deposition_date	2023-10-18
Structure title title	Atomic model of the human CTF18-RFC-PCNA binary complex in the three-subunit binding state (state 2)
Keywords keywords	DNA clamp loader complex, REPLICATION-DNA complex; REPLICATION/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8umt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8umt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

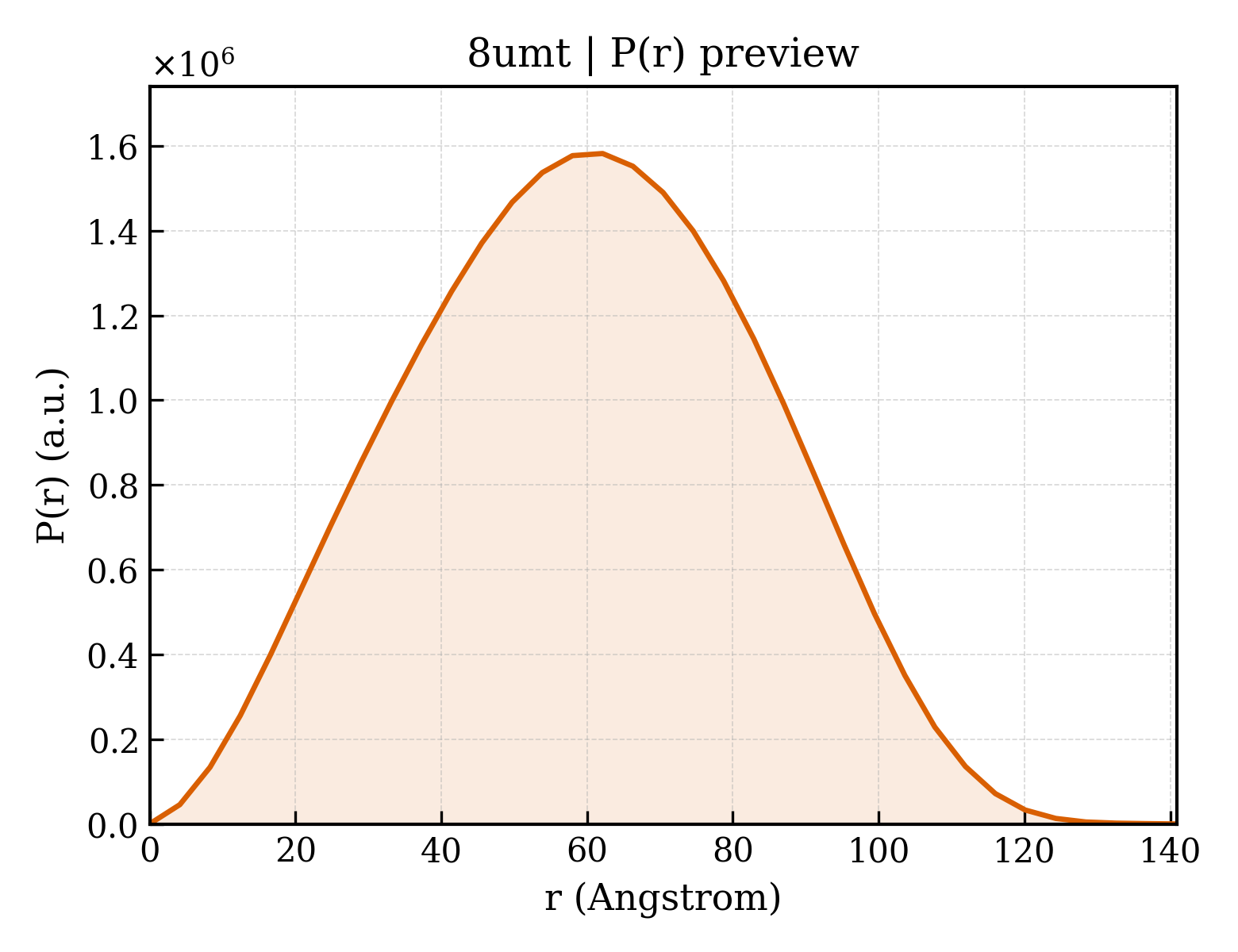

8umt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	45.86 Å
Rg (electron density)	45.00 Å
Total Rg	45.31 Å
Atom count	20697
Residues	2625
Excluded volume	370240 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8umt__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Chromosome transmission fidelity protein 18 homolog
Molecular weight formula_weight	107524.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	20697

MEDYEQELCGVEDDFHNQFAAELEVLAELEGASTPSPSGVPLFTAGRPPRTFEEALARGDAASSPAPAASVGSSQGGARKRQVDADLQPAGSLPHAPRIKRPRLQVVKRLNFRSEEMEEPPPPDSSPTDITPPPSPEDLAELWGHGVSEAAADVGLTRASPAARNPVLRRPPILEDYVHVTSTEGVRAYLVLRADPMAPGVQGSLLHVPWRGGGQLDLLGVSLASLKKQVDGERRERLLQEAQKLSDTLHSLRSGEEEAAQPLGAPEEEPTDGQDASSHCLWVDEFAPRHYTELLSDDFTNRCLLKWLKLWDLVVFGHERPSRKPRPSVEPARVSKEATAPGKWKSHEQVLEEMLEAGLDPSQRPKQKVALLCGPPGLGKTTLAHVIARHAGYSVVEMNASDDRSPEVFRTRIEAATQMESVLGAGGKPNCLVIDEIDGAPVAAINVLLSILNRKGPQEVGPQGPAVPSGGGRRRRAEGGLLMRPIICICNDQFAPSLRQLKQQAFLLHFPPTLPSRLVQRLQEVSLRQGMRADPGVLAALCEKTDNDIRACINTLQFLYSRGQRELSVRDVQATRVGLKDQRRGLFSVWQEVFQLPRAQRRRVGQDPALPADTLLLGDGDAGSLTSASQRFYRVLHAAASAGEHEKVVQGLFDNFLRLRLRDSSLGAVCVALDWLAFDDLLAGAAHHSQSFQLLRYPPFLPVAFHVLFASSHTPRITFPSSQQEAQNRMSQMRNLIQTLVSGIAPATRSRATPQALLLDALCLLLDILAPKLRPVSTQLYSTREKQQLASLVGTMLAYSLTYRQERTPDGQYIYRLEPNVEELCRFPELPARKPLTYQTKQLIAREIEVEKMRRAEASARVENSPQVDGSPPGLEGLLGGIGEKGVHRPAPRNHEQRLEHIMRRAAREEQPEKDFFGRVVVRSTAVPSAGDTAPEQDSVERRMGTAVGRSEVWFRFNEGVSNAVRRSLYIRDLL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 2 Entity 2 polymer

Description description	Replication factor C subunit 2
Molecular weight formula_weight	39203.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MEVEAVCGGAGEVEAQDSDPAPAFSKAPGSAGHYELPWVEKYRPVKLNEIVGNEDTVSRLEVFAREGNVPNIIIAGPPGTGKTTSILCLARALLGPALKDAMLELNASNDRGIDVVRNKIKMFAQQKVTLPKGRHKIIILDEADSMTDGAQQALRRTMEIYSKTTRFALACNASDKIIEPIQSRCAVLRYTKLTDAQILTRLMNVIEKERVPYTDDGLEAIIFTAQGDMRQALNNLQSTFSGFGFINSENVFKVCDEPHPLLVKEMIQHCVNANIDEAYKILAHLWHLGYSPEDIIGNIFRVCKTFQMAEYLKLEFIKEIGYTHMKIAEGVNSLLQMAGLLARLCQKTMAPVAS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 3 Entity 3 polymer

Description description	Replication factor C subunit 5
Molecular weight formula_weight	38545.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

METSALKQQEQPAATKIRNLPWVEKYRPQTLNDLISHQDILSTIQKFINEDRLPHLLLYGPPGTGKTSTILACAKQLYKDKEFGSMVLELNASDDRGIDIIRGPILSFASTRTIFKKGFKLVILDEADAMTQDAQNALRRVIEKFTENTRFCLICNYLSKIIPALQSRCTRFRFGPLTPELMVPRLEHVVEEEKVDISEDGMKALVTLSSGDMRRALNILQSTNMAFGKVTEETVYTCTGHPLKSDIANILDWMLNQDFTTAYRNITELKTLKGLALHDILTEIHLFVHRVDFPSSVRIHLLTKMADIEYRLSVGTNEKIQLSSLIAAFQVTRDLIVAEA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 4 Entity 4 polymer

Description description	Replication factor C subunit 4
Molecular weight formula_weight	39735.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MQAFLKGTSISTKPPLTKDRGVAASAGSSGENKKAKPVPWVEKYRPKCVDEVAFQEEVVAVLKKSLEGADLPNLLFYGPPGTGKTSTILAAARELFGPELFRLRVLELNASDERGIQVVREKVKNFAQLTVSGSRSDGKPCPPFKIVILDEADSMTSAAQAALRRTMEKESKTTRFCLICNYVSRIIEPLTSRCSKFRFKPLSDKIQQQRLLDIAKKENVKISDEGIAYLVKVSEGDLRKAITFLQSATRLTGGKEITEKVITDIAGVIPAEKIDGVFAACQSGSFDKLEAVVKDLIDEGHAATQLVNQLHDVVVENNLSDKQKSIITEKLAEVDKCLADGADEHLQLISLCATVMQQLSQNC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 5 Entity 5 polymer

Description description	Replication factor C subunit 3
Molecular weight formula_weight	40614.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MSLWVDKYRPCSLGRLDYHKEQAAQLRNLVQCGDFPHLLVYGPSGAGKKTRIMCILRELYGVGVEKLRIEHQTITTPSKKKIEISTIASNYHLEVNPSDAGNSDRVVIQEMLKTVAQSQQLETNSQRDFKVVLLTEVDKLTKDAQHALRRTMEKYMSTCRLILCCNSTSKVIPPIRSRCLAVRVPAPSIEDICHVLSTVCKKEGLNLPSQLAHRLAEKSCRNLRKALLMCEACRVQQYPFTADQEIPETDWEVYLRETANAIVSQQTPQRLLEVRGRLYELLTHCIPPEIIMKGLLSELLHNCDGQLKGEVAQMAAYYEHRLQLGSKAIYHLEAFVAKFMALYKKFMEDGLEGMMF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect cell expression vector pTIE1

Entity 6 Entity 6 polymer

Description description	Proliferating cell nuclear antigen
Molecular weight formula_weight	28795.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,G,H

MFEARLVQGSILKKVLEALKDLINEACWDISSSGVNLQSMDSSHVSLVQLTLRSEGFDTYRCDRNLAMGVNLTSMSKILKCAGNEDIITLRAEDNADTLALVFEAPNQEKVSDYEMKLMDLDVEQLGIPEQEYSCVVKMPSGEFARICRDLSHIGDAVVISCAKDGVKFSASGELGNGNIKLSQTSNVDKEEEAVTIEMNEPVQLTFALRYLNFFTKATPLSSTVTLSMSADVPLVVEYKIADMGHLKYYLAPKIEDEEGS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 8 Entity 8 non-polymer

Description description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 9 Entity 9 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.33 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	232473
