SAXSdb — 8urj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Exportin-1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 6 RNA 1	Rev HIV-1 × 1 GTP-binding nuclear protein Ran × 2 （P62826） Rev HIV-1 × 1 HIV-1 RRE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	XPO1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–1062； UniProt 1–1056 Author chain C； PDBConstruct 7–1062； UniProt 1–1056

GTP-binding nuclear protein Ran

Homo sapiens

UniProt P62826

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 6 RNA 1	Exportin-1 × 2 （O14980） Rev HIV-1 × 1 Rev HIV-1 × 1 HIV-1 RRE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAN_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 5–181； UniProt 3–179 Author chain H； PDBConstruct 5–181； UniProt 3–179

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8urj
Deposition date deposition_date	2023-10-26
Structure title title	Cryo-EM structure of the HIV-1 nuclear export complex
Keywords keywords	HIV Karyopherin Rev Crm1, RNA BINDING PROTEIN-RNA complex; RNA BINDING PROTEIN/RNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8urj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

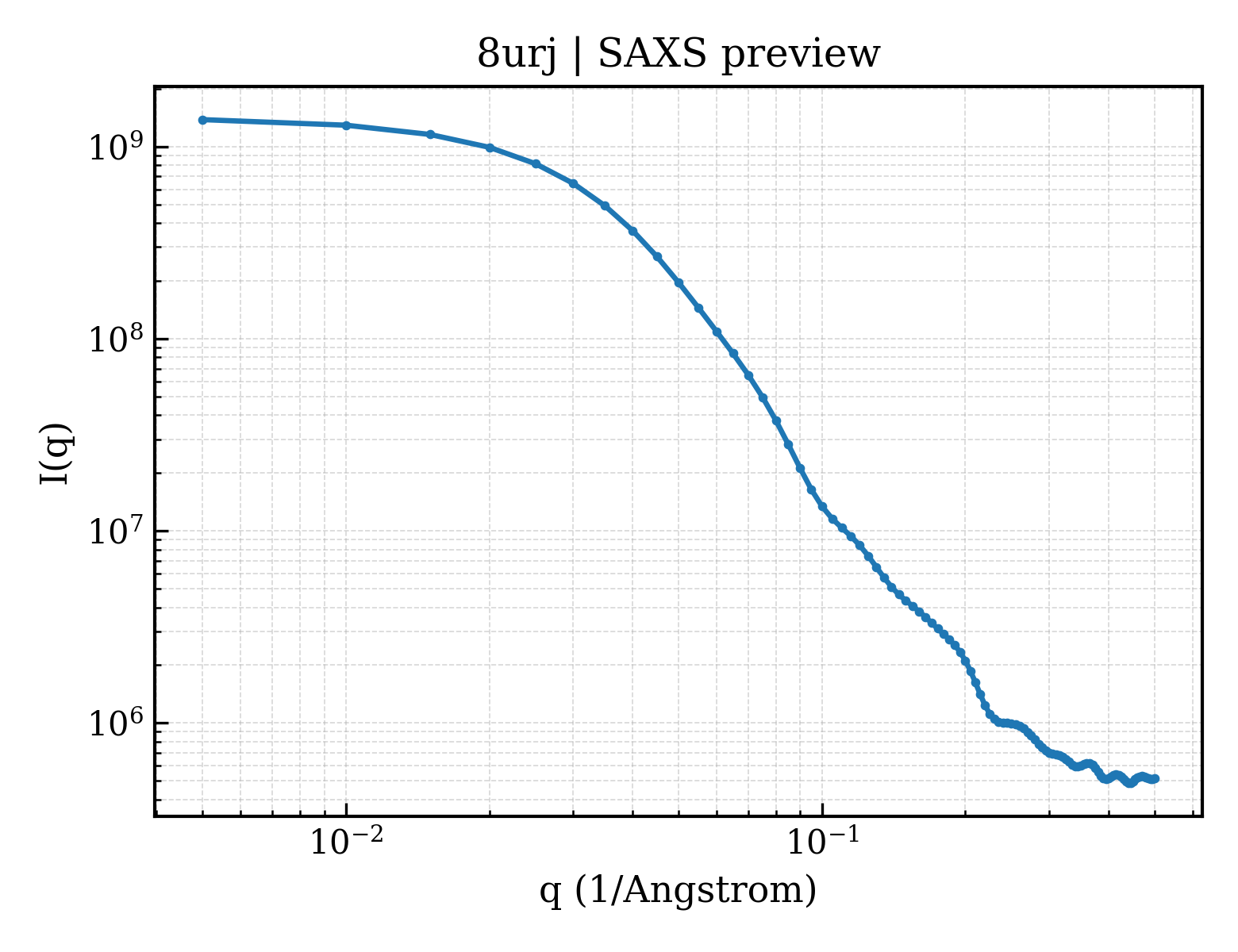

8urj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8urj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	51.59 Å
Rg (electron density)	51.73 Å
Total Rg	51.71 Å
Atom count	40851
Residues	2642
Excluded volume	391350 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8urj__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Exportin-1
Molecular weight formula_weight	122268.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	40851

GAMGSGMPAIMTMLADHAARQLLDFSQKLDINLLDNVVNCLYHGEGAQQRMAQEVLTHLKEHPDAWTRVDTILEFSQNMNTKYYGLQILENVIKTRWKILPRNQCEGIKKYVVGLIIKTSSDPTCVEKEKVYIGKLNMILVQILKQEWPKHWPTFISDIVGASRTSESLCQNNMVILKLLSEEVFDFSSGQITQVKSKHLKDSMCNEFSQIFQLCQFVMENSQNAPLVHATLETLLRFLNWIPLGYIFETKLISTLIYKFLNVPMFRNVSLKCLTEIAGVSVSQYEEQFVTLFTLTMMQLKQMLPLNTNIRLAYSNGKDDEQNFIQNLSLFLCTFLKEHDQLIEKRLNLRETLMEALHYMLLVSEVEETEIFKICLEYWNHLAAELYRESPFSTSASPLLSGSQHFDVPPRRQLYLPMLFKVRLLMVSRMAKPEEVLVVENDQGEVVREFMKDTDSINLYKNMRETLVYLTHLDYVDTERIMTEKLHNQVNGTEWSWKNLNTLCWAIGSISGAMHEEDEKRFLVTVIKDLLGLCEQKRGKDNKAIIASNIMYIVGQYPRFLRAHWKFLKTVVNKLFEFMHETHDGVQDMACDTFIKIAQKCRRHFVQVQVGEVMPFIDEILNNINTIICDLQPQQVHTFYEAVGYMIGAQTDQTVQEHLIEKYMLLPNQVWDSIIQQATKNVDILKDPETVKQLGSILKTNVRACKAVGHPFVIQLGRIYLDMLNVYKCLSENISAAIQANGEMVTKQPLIRSMRTVKRETLKLISGWVSRSNDPQMVAENFVPPLLDAVLIDYQRNVPAAREPEVLSTMAIIVNKLGGHITAEIPQIFDAVFECTLNMINKDFEEYPEHRTNFFLLLQAVNSHCFPAFLAIPPTQFKLVLDSIIWAFKHTMRNVADTGLQILFTLLQNVAQEEAAAQSFYQTYFCDILQHIFSVVTDTSHTAGLTMHASILAYMFNLVEEGKISTSLNPGNPVNNQIFLQEYVANLLKSAFPHLQDAQVKLFVTGLFSLNQDIPAFKEHLRDFLVQIKEFAGEDTSDLFLEEREIALRQADEEKHKRQMSV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Rev HIV-1
Molecular weight formula_weight	10687.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

AMAGRSGDSDEDLLKAVRLIKFLYQSNPPPNPEGTRQARRNRRRRWRARQRQIHSISERIRSTYLGRSAEPVPLQTVDEMTKKFGTLTIDCN

Source Source

Source organism organism	Human immunodeficiency virus 1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Escherichia coli BL21

Entity 3 Entity 3 polymer

Description description	GTP-binding nuclear protein Ran
Molecular weight formula_weight	20722.1 kDa
EC 编号 ec_number	3.6.5.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

GHMTAQGEPQVQFKLVLVGDGGTGKTTFVKRHLTGEFEKKYVATLGVEVHPLVFHTNRGPIKFNVWDTAGLEKFGGLRDGYYIQAQCAIIMFDVTSRVTYKNVPNWHRDLVRVCENIPIVLCGNKVDIKDRKVKAKSIVFHRKKNLQYYDISAKSNYNFEKPFLWLARKLIGDPNLEFVAM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 4 Entity 4 polymer

Description description	Rev HIV-1
Molecular weight formula_weight	10644.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

GAMAGRSGDSDEDLLKAVRLIKFLYQSNPPPNPEGTRQARRNRRRRWRERQRQIHSISERILSTYLGRSAEPVPLQTVDEMTKKFGTLTIDC

Source Source

Source organism organism	Human immunodeficiency virus 1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Escherichia coli BL21

Entity 5 Entity 5 polymer

Description description	HIV-1 RRE
Molecular weight formula_weight	114996.1 kDa
Mutation mutation	G262A G269A
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	G

UGAACCAUUAGGAAUAGCACCCACCAAGGCAAAGAGAAGAGUGGUGCAGAGAGAAAAAAGAGCAGUGGGAAUAGUAGGAGCUAUGUUCCUUGGGUUCUUGGGAGCAGCAGGAAGCACUAUGGGCGCAGUGUCAUUGACGCUGACGGUACAGGCCAGACAAUUAUUGUCUGGUAUAGUGCAACAGCAGAACAAUUUGCUGAGGGCUAUUGAGGCGCAACAACAUCUGUUGCAACUCACAGUCUGGGGCAUCAAGCAGCUCCAAGCAAGAAUCCUGGCUGUGGAAAGAUACCUAAGGGAUCAACAGCUCCUAGGGGAAUUCGGUUGCUCUGGAAAACUCAUUUGCACCACUGCUGUG

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.25 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	260885

Cryo-EM structure of the HIV-1 nuclear export complex
