SAXSdb — 8vhq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ribonucleoside-diphosphate reductase 1 subunit alpha

Escherichia coli K-12

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	;2'-DEOXYADENOSINE 5'-TRIPHOSPHATE ; × 4 MAGNESIUM ION × 4 ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	;2'-DEOXYADENOSINE 5'-TRIPHOSPHATE ; × 4 MAGNESIUM ION × 4 ADENOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RIR1_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 20–779； UniProt 1–760 Author chain B； PDBConstruct 20–779； UniProt 1–760 Author chain C； PDBConstruct 20–779； UniProt 1–760 Author chain D； PDBConstruct 20–779； UniProt 1–760

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8vhq
Deposition date deposition_date	2024-01-02
Structure title title	Crystal structure of E. coli class Ia ribonucleotide reductase alpha subunit W28A variant bound to dATP and ATP
Keywords keywords	Ribonucleotide reductase, allosteric regulation, nucleotide binding, subunit interaction, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8vhq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8vhq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

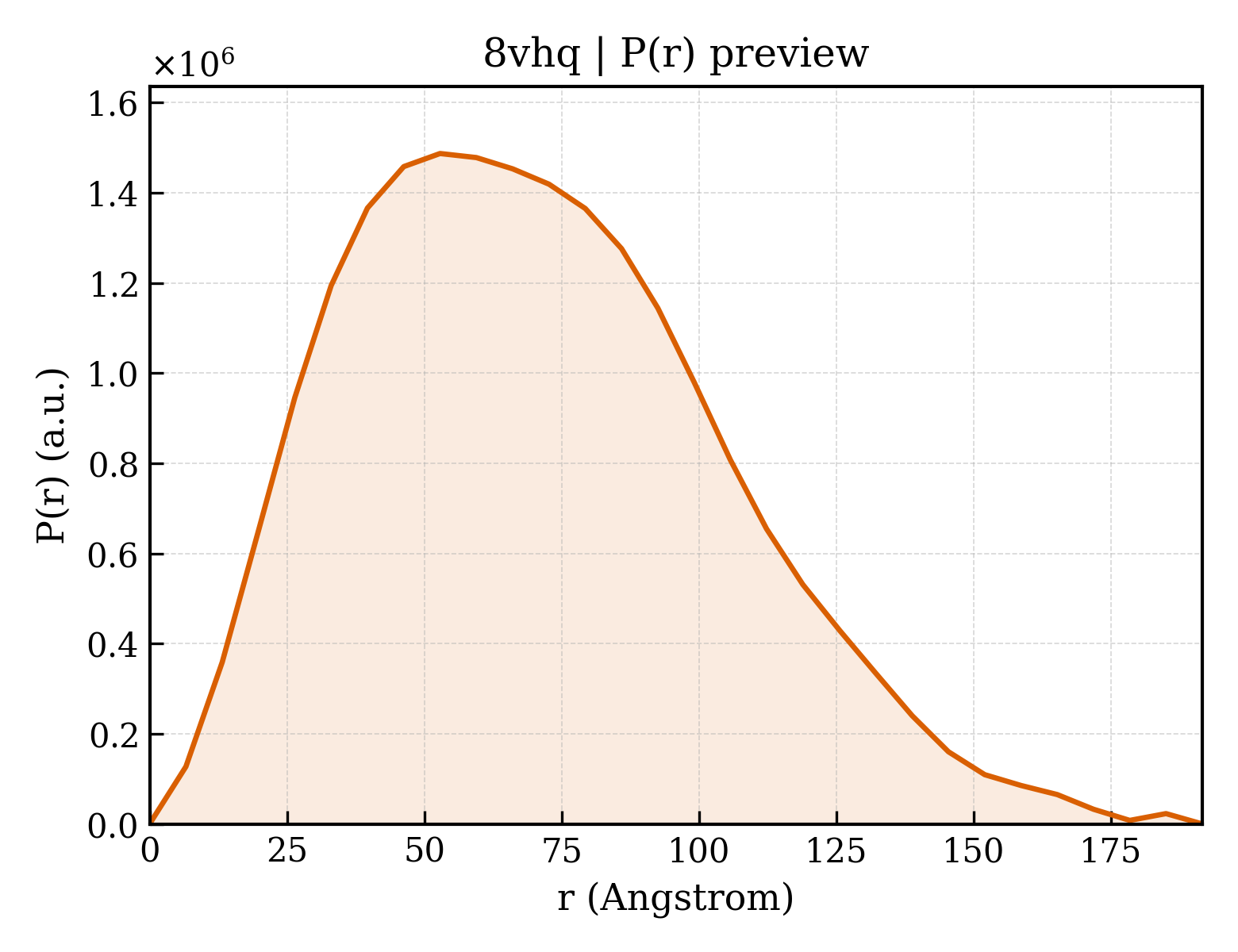

8vhq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.36 Å
Rg (electron density)	38.91 Å
Total Rg	39.16 Å
Atom count	11855
Residues	1467
Excluded volume	209850 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8vhq__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8vhq__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Ribonucleoside-diphosphate reductase 1 subunit alpha
Molecular weight formula_weight	87682.0 kDa
EC 编号 ec_number	1.17.4.1
Mutation mutation	W28A
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	23705

MGSSHHHHHHSSGLVPRGSMNQNLLVTKRDGSTERINLDKIHRVLDAAAEGLHNVSISQVELRSHIQFYDGIKTSDIHETIIKAAADLISRDAPDYQYLAARLAIFHLRKKAYGQFEPPALYDHVVKMVEMGKYDNHLLEDYTEEEFKQMDTFIDHDRDMTFSYAAVKQLEGKYLVQNRVTGEIYESAQFLYILVAACLFSNYPRETRLQYVKRFYDAVSTFKISLPTPIMSGVRTPTRQFSSCVLIECGDSLDSINATSSAIVKYVSQRAGIGINAGRIRALGSPIRGGEAFHTGCIPFYKHFQTAVKSCSQGGVRGGAATLFYPMWHLEVESLLVLKNNRGVEGNRVRHMDYGVQINKLMYTRLLKGEDITLFSPSDVPGLYDAFFADQEEFERLYTKYEKDDSIRKQRVKAVELFSLMMQERASTGRIYIQNVDHCNTHSPFDPAIAPVRQSNLCLEIALPTKPLNDVNDENGEIALCTLSAFNLGAINNLDELEELAILAVRALDALLDYQDYPIPAAKRGAMGRRTLGIGVINFAYYLAKHGKRYSDGSANNLTHKTFEAIQYYLLKASNELAKEQGACPWFNETTYAKGILPIDTYKKDLDTIANEPLHYDWEALRESIKTHGLRNSTLSALMPSETSSQISNATNGIEPPRGYVSIKASKDGILRQVVPDYEHLHDAYELLWEMPGNDGYLQLVGIMQKFIDQSISANTNYDPSRFPSGKVPMQQLLKDLLTAYKFGVKTLYYQNTRDGAEDAQDDLVPSIQDDGCESGACK

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;2'-DEOXYADENOSINE 5'-TRIPHOSPHATE ;
Molecular weight formula_weight	491.2 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	4

▶

Unit-cell length a length_a	112.695 Å
Unit-cell length b length_b	139.929 Å
Unit-cell length c length_c	300.766 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.400 Å
Low-resolution limit resolution_low	49.618 Å
R factor r_factor	0.2057
R_work r_work	0.2043
R_free r_free	0.2327

Crystal structure of E. coli class Ia ribonucleotide reductase alpha subunit W28A variant bound to dATP and ATP
