1. Protein Identity and Related Structures Protein Identity & Related Structures

Structural maintenance of chromosomes protein 6

Saccharomyces cerevisiae S288C

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Structural maintenance of chromosomes protein 5 × 1 （Q08204） Non-structural maintenance of chromosomes element 1 × 1 （Q07913） Non-structural maintenance of chromosome element 3 × 1 （Q05541） Non-structural maintenance of chromosomes element 4 × 1 （A0A6L0Z6W9）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SMC6_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–1114； UniProt 1–1114

Structural maintenance of chromosomes protein 5

Saccharomyces cerevisiae S288C

UniProt Q08204

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Structural maintenance of chromosomes protein 6 × 1 （Q12749） Non-structural maintenance of chromosomes element 1 × 1 （Q07913） Non-structural maintenance of chromosome element 3 × 1 （Q05541） Non-structural maintenance of chromosomes element 4 × 1 （A0A6L0Z6W9）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SMC5_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–1093； UniProt 1–1093

Non-structural maintenance of chromosomes element 1

Saccharomyces cerevisiae S288C

UniProt Q07913

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Structural maintenance of chromosomes protein 6 × 1 （Q12749） Structural maintenance of chromosomes protein 5 × 1 （Q08204） Non-structural maintenance of chromosome element 3 × 1 （Q05541） Non-structural maintenance of chromosomes element 4 × 1 （A0A6L0Z6W9）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NSE1_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain F； PDBConstruct 1–336； UniProt 1–336

Non-structural maintenance of chromosome element 3

Saccharomyces cerevisiae S288C

UniProt Q05541

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Structural maintenance of chromosomes protein 6 × 1 （Q12749） Structural maintenance of chromosomes protein 5 × 1 （Q08204） Non-structural maintenance of chromosomes element 1 × 1 （Q07913） Non-structural maintenance of chromosomes element 4 × 1 （A0A6L0Z6W9）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NSE3_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain G； PDBConstruct 1–303； UniProt 1–303

Non-structural maintenance of chromosomes element 4

Saccharomyces cerevisiae S288C

UniProt A0A6L0Z6W9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Structural maintenance of chromosomes protein 6 × 1 （Q12749） Structural maintenance of chromosomes protein 5 × 1 （Q08204） Non-structural maintenance of chromosomes element 1 × 1 （Q07913） Non-structural maintenance of chromosome element 3 × 1 （Q05541）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A6L0Z6W9_YEASX
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain H； PDBConstruct 1–402； UniProt 1–402

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8wjn
Deposition date deposition_date	2023-09-26
Structure title title	Cryo-EM structure of 6-subunit Smc5/6 head region
Keywords keywords	CELL CYCLE; CELL CYCLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8wjn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8wjn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

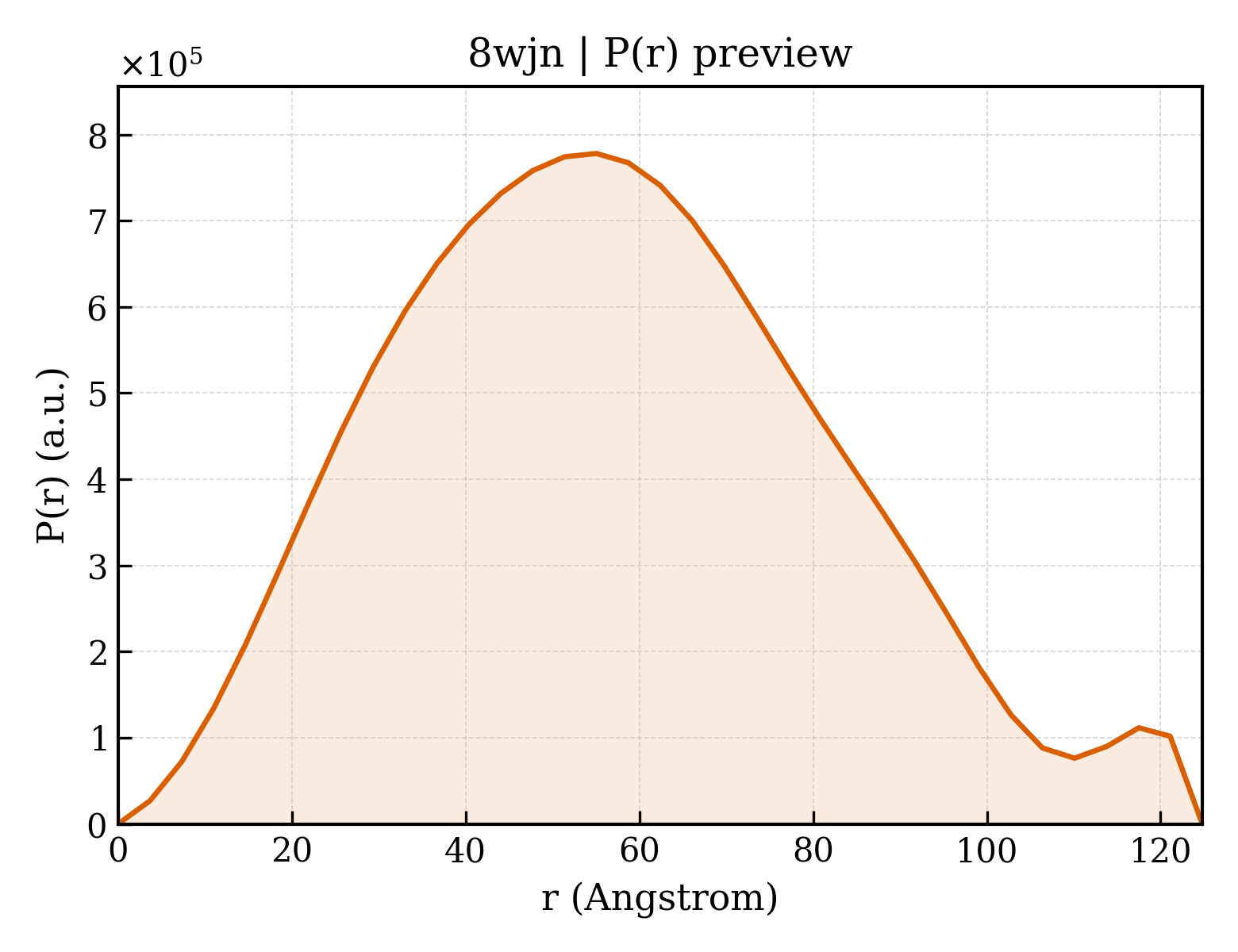

8wjn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	46.28 Å
Rg (electron density)	46.24 Å
Total Rg	46.41 Å
Atom count	29655
Residues	1842
Excluded volume	263300 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8wjn__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Structural maintenance of chromosomes protein 6
Molecular weight formula_weight	128199.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	29655

MISTTISGKRPIEQVDDELLSLTAQQENEEQQQQRKRRRHQFAPMTQFNSNTLDEDSGFRSSSDVATADQDNFLEESPSGYIKKVILRNFMCHEHFELELGSRLNFIVGNNGSGKSAILTAITIGLGAKASETNRGSSLKDLIREGCYSAKIILHLDNSKYGAYQQGIFGNEIIVERIIKRDGPASFSLRSENGKEISNKKKDIQTVVDYFSVPVSNPMCFLSQDAARSFLTASTSQDKYSHFMKGTLLQEITENLLYASAIHDSAQENMALHLENLKSLKAEYEDAKKLLRELNQTSDLNERKMLLQAKSLWIDVAHNTDACKNLENEISGIQQKVDEVTEKIRNRQEKIERYTSDGTTIEAQIDAKVIYVNEKDSEHQNARELLRDVKSRFEKEKSNQAEAQSNIDQGRKKVDALNKTIAHLEEELTKEMGGDKDQMRQELEQLEKANEKLREVNNSLVVSLQDVKNEERDIQHERESELRTISRSIQNKKVELQNIAKGNDTFLMNFDRNMDRLLRTIEQRKNEFETPAIGPLGSLVTIRKGFEKWTRSIQRAISSSLNAFVVSNPKDNRLFRDIMRSCGIRSNIPIVTYCLSQFDYSKGRAHGNYPTIVDALEFSKPEIECLFVDLSRIERIVLIEDKNEARNFLQRNPVNVNMALSLRDRRSGFQLSGGYRLDTVTYQDKIRLKVNSSSDNGTQYLKDLIEQETKELQNIRDRYEEKLSEVRSRLKEIDGRLKSTKNEMRKTNFRMTELKMNVGKVVDTGILNSKINERKNQEQAIASYEAAKEELGLKIEQIAQEAQPIKEQYDSTKLALVEAQDELQQLKEDINSRQSKIQKYKDDTIYYEDKKKVYLENIKKIEVNVAALKEGIQRQIQNACAFCSKERIENVDLPDTQEEIKRELDKVSRMIQKAEKSLGLSQEEVIALFEKCRNKYKEGQKKYMEIDEALNRLHNSLKARDQNYKNAEKGTCFDADMDFRASLKVRKFSGNLSFIKDTKSLEIYILTTNDEKARNVDTLSGGEKSFSQMALLLATWKPMRSRIIALDEFDVFMDQVNRKIGTTLIVKKLKDIARTQTIIITPQDIGKIADIDSSGVSIHRMRDPERQNNSNFYN

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Structural maintenance of chromosomes protein 5
Molecular weight formula_weight	126237.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MTSLIDLGRYVERTHHGEDTEPRSKRVKIAKPDLSSFQPGSIIKIRLQDFVTYTLTEFNLSPSLNMIIGPNGSGKSTFVCAVCLGLAGKPEYIGRSKKVEDFIKNGQDVSKIEITLKNSPNVTDIEYIDARDETIKITRIITRSKRRSDYLINDYQVSESVVKTLVAQLNIQLDNLCQFLSQERVEEFARLKSVKLLVETIRSIDASLLDVLDELRELQGNEQSLQKDLDFKKAKIVHLRQESDKLRKSVESLRDFQNKKGEIELHSQLLPYVKVKDHKEKLNIYKEEYERAKANLRAILKDKKPFANTKKTLENQVEELTEKCSLKTDEFLKAKEKINEIFEKLNTIRDEVIKKKNQNEYYRGRTKKLQATIISTKEDFLRSQEILAQTHLPEKSVFEDIDIKRKEIINKEGEIRDLISEIDAKANAINHEMRSIQRQAESKTKSLTTTDKIGILNQDQDLKEVRDAVLMVREHPEMKDKILEPPIMTVSAINAQFAAYLAQCVDYNTSKALTVVDSDSYKLFANPILDKFKVNLRELSSADTTPPVPAETVRDLGFEGYLSDFITGDKRVMKMLCQTSKIHTIPVSRRELTPAQIKKLITPRPNGKILFKRIIHGNRLVDIKQSAYGSKQVFPTDVSIKQTNFYQGSIMSNEQKIRIENEIINLKNEYNDRKSTLDALSNQKSGYRHELSELASKNDDINREAHQLNEIRKKYTMRKSTIETLREKLDQLKREARKDVSQKIKDIDDQIQQLLLKQRHLLSKMASSMKSLKNCQKELISTQILQFEAQNMDVSMNDVIGFFNEREADLKSQYEDKKKFVKEMRDTPEFQSWMREIRSYDQDTKEKLNKVAEKYEEEGNFNLSFVQDVLDKLESEIAMVNHDESAVTILDQVTAELRELEHTVPQQSKDLETIKAKLKEDHAVLEPKLDDIVSKISARFARLFNNVGSAGAVRLEKPKDYAEWKIEIMVKFRDNAPLKKLDSHTQSGGERAVSTVLYMIALQEFTSAPFRVVDEINQGMDSRNERIVHKAMVENACAENTSQYFLITPKLLTGLHYHEKMRIHCVMAGSWIPNPSEDPKMIHFGETSNYSFD

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Non-structural maintenance of chromosomes element 1
Molecular weight formula_weight	38373.4 kDa
EC 编号 ec_number	2.3.2.27
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MEVHEEQVSAPVTGDATAKYLLQYILSARGICHENALILALMRLETDASTLNTEWSIQQWVDKLNDYINAINVKLNLLGYKIIRINHGIGRNAVTLKAKQNFESFEDNTAIRAHNNDYAVLQSIVLPESNRFFVYVNLASTEETKLATRFNQNEIEFMKWAIEQFMISGETIVEGPALETSIIVKEVNRILVAATGDSNLAKWRKFSTFTVGSTNLFQFQELTATDIEDLLLRLCELKWFYRTQEGKFGIDLRCIAELEEYLTSMYNLNTCQNCHKLAIQGVRCGNESCREENEETGENSLSQIWHVDCFKHYITHVSKNCDRCGSSLITEGVYVI

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	Non-structural maintenance of chromosome element 3
Molecular weight formula_weight	34005.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MSSIDNDSDVDLTEDLAVAKIVKENPVARKMVRYILSRGESQNSIITRNKLQSVIHEAAREENIAKPSFSKMFMDINAILYNVYGFELQGLPSKNNMNAGGNGSNSNTNKSMPEPLGHRAQKFILLNNVPHSKNFDDFKILQSAHTYEELIVTGEYIGDDIASGTSNTLESKLSTDRDLVYKGVLSVILCIVFFSKNNILHQELIKFLETFGIPSDGSKIAILNITIEDLIKSLEKREYIVRLEEKSDTDGEVISYRIGRRTQAELGLESLEKLVQEIMGLEKEQTKSLHDDIIKSIGDSYSI

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 polymer

Description description	Non-structural maintenance of chromosomes element 4
Molecular weight formula_weight	46195.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MSSTVISRKRRNSTVTEPDSSGETRKQKKSRSDEKSSSSKDGDPQLEFKVLQGYRDLESEMHKGRAQVTRTGDIGVAMDNLNAVDSLFNKVIGIKNNGLFAHDARAMVSISELAQISVRNLKFDDSRSMVNLENIVNSLKRYMLKEHFKLNNIAENRNDLTLAADEQSAADQQEESDGDIDRTPDDNHTDKATSSFKATSMRHSYLQQFSHYNEFSQFNWFRIGALYNTISKNAPITDHLMGPLSIEKKPRVLTQRRRNNDQVGEKITAEKITQHSLNSTQQETTPEQVKKCFKKLSKKLGPEGSINLFKFIIDPNSFSRSIENLFYTSFLIKEGKLLMEHDEEGLPTIKIKQSISHTDSRSKEIERQRRRAAHQNHIIFQMDMPTWRKLIKKYNITSPFLD

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Spodoptera frugiperda

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	5.58 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	293207
