8y7y

Local structure of HCoV-HKU1A spike in complex with TMPRSS2 and glycan

Method: ELECTRON MICROSCOPY D_max: 142.4 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Spike glycoprotein

Human coronavirus HKU1 (isolate N1)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 8 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 14–1281 Chain B； UniProt 14–1281	Not recorded	Transmembrane protease serine 2 × 1 （O15393） ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 MJJ methyl 9-O-acetyl-5-acetamido-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosidonic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.24 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8Y7Y	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5GNB Crystal Structure of the Receptor Binding Domain of the Spike Glycoprotein of Human Betacoronavirus HKU1 (HKU1 1A-CTD, 2.3 angstrom, native-SAD phasing) Deposited 2016-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 307–677（371 aa） Fragment：UNP residues 307-677	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1M Tris, 24%PEG4000, 0.2M MgCl2, 4% v/v Pentaerythritol ethoxylate (3/4 EO/OH)	Resolution 2.30 Å R-free 0.219
5KWB Crystal Structure of the Receptor Binding Domain of the Spike Glycoprotein of Human Betacoronavirus HKU1 (HKU1 1A-CTD, 1.9 angstrom, molecular replacement) Deposited 2016-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 307–677（371 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 MG MAGNESIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1M Tris, 24%PEG4000, 0.2M MgCl2	Resolution 1.91 Å R-free 0.201
8DGW Crystal structure of HCoV-HKU1 spike stem helix peptide in complex with Fab of broadly neutralizing antibody CC95.108 isolated from a vaccinated COVID-19 convalescent Deposited 2022-06-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 1226–1250（25 aa） Fragment：stem helix domain, residues 1226-1250	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M Ammonium formate, 20% (w/v) PEG 3350	Resolution 2.81 Å R-free 0.248
8DGW Crystal structure of HCoV-HKU1 spike stem helix peptide in complex with Fab of broadly neutralizing antibody CC95.108 isolated from a vaccinated COVID-19 convalescent Deposited 2022-06-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 1226–1250（25 aa） Fragment：stem helix domain, residues 1226-1250	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M Ammonium formate, 20% (w/v) PEG 3350	Resolution 2.81 Å R-free 0.248
8DGW Crystal structure of HCoV-HKU1 spike stem helix peptide in complex with Fab of broadly neutralizing antibody CC95.108 isolated from a vaccinated COVID-19 convalescent Deposited 2022-06-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 1226–1250（25 aa） Fragment：stem helix domain, residues 1226-1250	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M Ammonium formate, 20% (w/v) PEG 3350	Resolution 2.81 Å R-free 0.248
8DGW Crystal structure of HCoV-HKU1 spike stem helix peptide in complex with Fab of broadly neutralizing antibody CC95.108 isolated from a vaccinated COVID-19 convalescent Deposited 2022-06-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 1226–1250（25 aa） Fragment：stem helix domain, residues 1226-1250	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M Ammonium formate, 20% (w/v) PEG 3350	Resolution 2.81 Å R-free 0.248
8VGT Structure of the HKU1 RBD bound to the human TMPRSS2 receptor Deposited 2023-12-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 320–614（295 aa） Fragment：RBD	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8Y7X Structure of HCoV-HKU1A spike in the functionally anchored-3up conformation with 3TMPRSS2 Deposited 2024-02-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 14–1281（1268 aa） Chain B 14–1281（1268 aa） Chain C 14–1281（1268 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 23	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
8YOY Structure of HKU1A RBD with TMPRSS2 Deposited 2024-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 307–677（371 aa） Fragment：RBD domain	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.21 Å
9BSW Cryo-EM structure of HCoV-HKU1 Spike glycoprotein (DDA state) Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain B 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain C 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 36	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.06 Å
9BSX Cryo-EM structure of HCoV-HKU1 glycoprotein in complex with 9O-acetyl GD3 sialoglycan (DAA state) Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain B 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain C 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 39 A1AR1 5-acetamido-8-O-(5-acetamido-9-O-acetyl-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranonosyl)-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosonic acid × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.37 Å
9BSY Cryo-EM structure of HCoV-HKU1 glycoprotein in complex with 9O-acetyl GD3 sialoglycan (DAU state) Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain B 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain C 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 31 A1AR1 5-acetamido-8-O-(5-acetamido-9-O-acetyl-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranonosyl)-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosonic acid × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.58 Å
9BSZ Cryo-EM structure of HCoV-HKU1 glycoprotein in complex with 9O-acetyl GD3 sialoglycan (AUU state) Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain B 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain C 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 32 A1AR2 5-acetamido-9-O-acetyl-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranonosyl-(2->8)-5-acetamido-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranonosyl-(2->3)-beta-D-galactopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.49 Å
9BT0 Cryo-EM structure of HCoV-HKU1 Spike glycoprotein (DDD state) Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain B 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain C 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 39	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.23 Å
9BT1 Cryo-EM structure of HCoV-HKU1 glycoprotein in complex with 9O-acetyl GD3 sialoglycan (UUU state) Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain B 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain C 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 30 A1AR1 5-acetamido-8-O-(5-acetamido-9-O-acetyl-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranonosyl)-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosonic acid × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.22 Å
9BT2 Cryo-EM structure of HCoV-HKU1 glycoprotein D1 (Down State, locally refined) Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 1.93 Å
9BT9 Cryo-EM Structure of HKU1 spike D1 Domain (Active state, locally refined) Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.11 Å
9BTA Cryo-EM density map of HKU1 spike glycoprotein D1 domain in complex with 9O-acetyl GD3 sialoglycan (Down_alt state, locally refined) Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 A1AR1 5-acetamido-8-O-(5-acetamido-9-O-acetyl-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranonosyl)-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosonic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.39 Å
9BTB Cryo-EM density map of HKU1 spike glycoprotein D1 domain in complex with 9O-acetyl GD3 sialoglycan (Active state, locally refined) Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 A1AR1 5-acetamido-8-O-(5-acetamido-9-O-acetyl-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranonosyl)-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosonic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.33 Å
9BTC Cryo-EM density map of HKU1 spike glycoprotein D1 domain in complex with 9O-acetyl GD3 sialoglycan (Up state, locally refined) Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 14–1223（1210 aa） Fragment：ectodomain (UNP residues 14-1298)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 A1AR1 5-acetamido-8-O-(5-acetamido-9-O-acetyl-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranonosyl)-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosonic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.41 Å
9BTD Cryo-EM structure of HCoV-HKU1 glycoprotein in complex with 9O-acetyl GD3 sialoglycan (DDA state) Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain B 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain C 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 37 A1AR1 5-acetamido-8-O-(5-acetamido-9-O-acetyl-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranonosyl)-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosonic acid × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.43 Å
9IZN Crystal structure of HKU1A RBD bound to TMPRSS2 Deposited 2024-08-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 307–677（371 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；2% v/v Tacsimate pH 7.0, 5% v/v 2-Propanol, 0.1 M Imidazole (pH 7.0) and 8% w/v Polyethylene glycol 3350	Resolution 2.40 Å R-free 0.261
9JCX Crystal structure of the HCoV-HKU1 RBD and TMPRSS2 Deposited 2024-08-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 323–609（287 aa）	Not recorded	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.2 M Tris pH 7.0, 0.2 M MgCl2, 10% (w/v) Polyethylene glycol 8,000	Resolution 2.75 Å R-free 0.237
9JCY Crystal structure of the HCoV-HKU1 RBD in complex with Fab Deposited 2024-08-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 323–609（287 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.2% (w/v) Ala-Ala, 0.2% (w/v) Ala-Gln, 0.2% (w/v) Gly-Glu, 0.2% (w/v) Gly-L-Ala, 0.2% (w/v) Gly-L-Asp, 0.2% (w/v) Gly-Sar, 0.2% (w/v) L-Carnosine, 0.2% (w/v) Leu-Ala hydrate, 0.1 M Buffer System 3 [Tris (base); BICINE] pH 8.5, 20% (v/v) PEG 500* MME, 10 % w/v PEG 20,000; for TMPRSS2:VHH77, 0.2 M sodium malonate pH 6.0, 10% (w/v) Polyethylene glycol 3,350	Resolution 1.80 Å R-free 0.203
9N12 Cryo-EM structure of HCoV-HKU1 glycoprotein (mutant T31VPR34 to GGGG) Deposited 2025-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1298（1285 aa） Chain B 14–1298（1285 aa） Chain C 14–1298（1285 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 39	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.18 Å
9N13 Cryo-EM structure of HCoV-HKU1 glycoprotein D1 Domain (mutant T31VPR34 to GGGG) Deposited 2025-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 14–1298（1285 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å
9N14 Cryo-EM structure of HCoV-HKU1 glycoprotein in complex with 9OAc-GD3(mutant T31VPR34 to GGGG) Deposited 2025-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain B 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298) Chain C 14–1298（1285 aa） Fragment：ectodomain (UNP residues 14-1298)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 35 A1AR1 5-acetamido-8-O-(5-acetamido-9-O-acetyl-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranonosyl)-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosonic acid × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.08 Å
9N15 Cryo-EM structure of HCoV-HKU1 glycoprotein D1 Domain in complex with 9OAc-GD3(mutant T31VPR34 to GGGG) Deposited 2025-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 14–1298（1285 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 A1AR1 5-acetamido-8-O-(5-acetamido-9-O-acetyl-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranonosyl)-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosonic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9N16 Cryo-EM structure of HCoV-HKU1 glycoprotein (Deletion 33Pro34Arg) Deposited 2025-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1298（1285 aa） Chain B 14–1298（1285 aa） Chain C 14–1298（1285 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 39	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.01 Å
9N17 Cryo-EM structure of HCoV-HKU1 glycoprotein D1 Domain (Deletion 33Pro34Arg) Deposited 2025-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 14–1298（1285 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
9N18 Cryo-EM structure of HCoV-HKU1 spike glycoprotein in complex with 9OAc-GD3 tetrasacchride (Deletion 33Pro34Arg) Deposited 2025-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1298（1285 aa） Chain B 14–1298（1285 aa） Chain C 14–1298（1285 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 39 A1AR1 5-acetamido-8-O-(5-acetamido-9-O-acetyl-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranonosyl)-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosonic acid × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.02 Å
9N19 Cryo-EM structure of HCoV-HKU1spike glycoprotein D1 Domain in complex with 9OAc-GD3 tetrasacchride (Deletion 33Pro34Arg) Deposited 2025-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 14–1298（1285 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 A1AR1 5-acetamido-8-O-(5-acetamido-9-O-acetyl-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranonosyl)-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosonic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.02 Å
9OPQ TMPRSS2 (S441A) bound to the HCoV-NL63 S2'region genetically fused to the HCoV-HKU1 RBD Deposited 2025-05-19	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 320–509（190 aa） Chain A 511–614（104 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å

30 other PDB entries and 33 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SPIKE_CVHN1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1268； UniProt 14–1281 Author chain B； PDBConstruct 1–1268； UniProt 14–1281

Transmembrane protease serine 2

Homo sapiens

UniProt O15393

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 8 PDB declaration: trimeric（3） Consistent with protein copy count	Chain T； UniProt 109–492	Not recorded	Spike glycoprotein × 2 （Q5MQD0） ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 MJJ methyl 9-O-acetyl-5-acetamido-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosidonic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.24 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8Y7Y	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7MEQ Crystal structure of human TMPRSS2 in complex with Nafamostat Deposited 2021-04-07	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 109–492（384 aa）	Not recorded	GBS 4-carbamimidamidobenzoic acid × 1 UNX UNKNOWN LIGAND × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；30.0% (w/v) Jeffamine ED-2001 7.0, 0.1 M HEPES pH7.0	Resolution 1.95 Å R-free 0.225
7XYD Crystal structure of TMPRSS2 in complex with Nafamostat Deposited 2022-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were mutated to DDDDK	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；293 K；0.1M acetic acid/sodium acetate, pH 4.0, 20% w/v PEG 4000	Resolution 2.58 Å R-free 0.248
7XYD Crystal structure of TMPRSS2 in complex with Nafamostat Deposited 2022-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were mutated to DDDDK	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；293 K；0.1M acetic acid/sodium acetate, pH 4.0, 20% w/v PEG 4000	Resolution 2.58 Å R-free 0.248
7Y0E Crystal structure of TMPRSS2 in complex with Camostat Deposited 2022-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were replaced with DDDDK.	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 5.0, 16% w/v PEG 8000	Resolution 2.39 Å R-free 0.239
7Y0E Crystal structure of TMPRSS2 in complex with Camostat Deposited 2022-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were replaced with DDDDK.	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 5.0, 16% w/v PEG 8000	Resolution 2.39 Å R-free 0.239
7Y0F Crystal structure of TMPRSS2 in complex with UK-371804 Deposited 2022-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：Residues 250-255 (SSRQSR) in the database have been replaced with DDDDK.	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 I9V 2-[(1-carbamimidamido-4-chloranyl-isoquinolin-7-yl)sulfonylamino]-2-methyl-propanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 5.0, 16% w/v PEG 8000	Resolution 2.60 Å R-free 0.237
7Y0F Crystal structure of TMPRSS2 in complex with UK-371804 Deposited 2022-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：Residues 250-255 (SSRQSR) in the database have been replaced with DDDDK.	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 I9V 2-[(1-carbamimidamido-4-chloranyl-isoquinolin-7-yl)sulfonylamino]-2-methyl-propanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 5.0, 16% w/v PEG 8000	Resolution 2.60 Å R-free 0.237
8HD8 Crystal structure of TMPRSS2 in complex with 212-148 Deposited 2022-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were replaced with DDDDK.	CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 4.0, 20% w/v PEG 4000	Resolution 2.40 Å R-free 0.218
8HD8 Crystal structure of TMPRSS2 in complex with 212-148 Deposited 2022-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were replaced with DDDDK.	CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 4.0, 20% w/v PEG 4000	Resolution 2.40 Å R-free 0.218
8JHZ Cryo-EM structure of the TcsH-TMPRSS2 complex Deposited 2023-05-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 106–492（387 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4	Resolution 3.20 Å
8JI0 Cryo-EM structure of the TcsH-CROP in complex with TMPRSS2 Deposited 2023-05-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 106–492（387 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8S0L Crystal structure of the TMPRSS2 zymogen in complex with the nanobody A07 Deposited 2024-02-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 107–492（386 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；20 %w/v PEG 3350, 0.05 M HEPES (pH 7.0), 1 %w/v Tryptone, 0.001 %w/v NaN3	Resolution 1.80 Å R-free 0.215
8S0M Crystal structure of the HKU1 receptor binding domain in complex with TMPRSS2 and the nanobody A01 Deposited 2024-02-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 107–492（386 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.35 M NaH2PO4, 0.65 M K2HPO4	Resolution 3.55 Å R-free 0.221
8S0M Crystal structure of the HKU1 receptor binding domain in complex with TMPRSS2 and the nanobody A01 Deposited 2024-02-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 107–492（386 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.35 M NaH2PO4, 0.65 M K2HPO4	Resolution 3.55 Å R-free 0.221
8S0N Crystal structure of the TMPRSS2 zymogen in complex with the nanobody A07 Deposited 2024-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 107–492（386 aa）	Mutation：S441A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；10 %w/v PEG 3000, 0.1 M imidazole (pH 8.0), 0.2 M lithium sulfate	Resolution 2.30 Å R-free 0.246
8S0N Crystal structure of the TMPRSS2 zymogen in complex with the nanobody A07 Deposited 2024-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 107–492（386 aa）	Mutation：S441A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；10 %w/v PEG 3000, 0.1 M imidazole (pH 8.0), 0.2 M lithium sulfate	Resolution 2.30 Å R-free 0.246
8V04 High resolution TMPRSS2 structure following acylation by nafamostat Deposited 2023-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 148–255（108 aa） Chain B 256–492（237 aa） Fragment：Peptidase S1 domain residues 256-492	Mutation：S251D, R252D, Q253D, S254D, R255K	EDO 1,2-ETHANEDIOL × 9 UNX UNKNOWN LIGAND × 1 GBS 4-carbamimidamidobenzoic acid × 1 CIT CITRIC ACID × 1 CA CALCIUM ION × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；3 uL hanging drop (2:1 protein:precipitant) grown over precipitant solution containing 25%PEG4000, 0.2M ammonium sulfate, and 0.1M sodium acetate pH 4.6. Protein (10 mg/mL) was in a buffer containing 25 mM Tris pH 8.0, 75 mM NaCl, and 2 mM CaCl2	Resolution 1.58 Å R-free 0.181
8V1F TMPRSS2 complexed with the noncovalent inhibitor 6-amidino-2-napthol Deposited 2023-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 148–255（108 aa） Fragment：SRCR domain non-catalytic chain residues 148-254 Chain B 256–492（237 aa） Fragment：Peptidase S1 domain residues 256-492	Mutation：S251D, R252D, Q253D, S254D, R255K	TAM TRIS(HYDROXYETHYL)AMINOMETHANE × 3 UNX UNKNOWN LIGAND × 1 EDO 1,2-ETHANEDIOL × 12 7R8 6-oxidanylnaphthalene-2-carboximidamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；precipitant containing 20% PEG3350, 0.2 M dibasic ammonium citrate. Protein mixed 1uL:1uL protein:precipitant and set as 2 uL hanging drop on glass slides	Resolution 2.19 Å R-free 0.223
8V1F TMPRSS2 complexed with the noncovalent inhibitor 6-amidino-2-napthol Deposited 2023-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 148–255（108 aa） Fragment：SRCR domain non-catalytic chain residues 148-254 Chain D 256–492（237 aa） Fragment：Peptidase S1 domain residues 256-492	Mutation：S251D, R252D, Q253D, S254D, R255K	TAM TRIS(HYDROXYETHYL)AMINOMETHANE × 1 UNX UNKNOWN LIGAND × 2 EDO 1,2-ETHANEDIOL × 8 7R8 6-oxidanylnaphthalene-2-carboximidamide × 1 PEG DI(HYDROXYETHYL)ETHER × 1 CIT CITRIC ACID × 2 PG4 TETRAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；precipitant containing 20% PEG3350, 0.2 M dibasic ammonium citrate. Protein mixed 1uL:1uL protein:precipitant and set as 2 uL hanging drop on glass slides	Resolution 2.19 Å R-free 0.223
8VGT Structure of the HKU1 RBD bound to the human TMPRSS2 receptor Deposited 2023-12-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8Y1D 2up-TM conformation of HKU1-B S protein after incubation of the receptor Deposited 2024-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 109–492（384 aa） Chain E 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 51	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
8Y1E 3up-TM conformation of HKU1-B S protein after incubation of the receptor Deposited 2024-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 109–492（384 aa） Chain E 109–492（384 aa） Chain F 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 51	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
8Y7X Structure of HCoV-HKU1A spike in the functionally anchored-3up conformation with 3TMPRSS2 Deposited 2024-02-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain x 109–492（384 aa） Chain y 109–492（384 aa） Chain z 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 23	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
8Y87 Structure of HCoV-HKU1C spike in the functionally anchored-1up conformation with 1TMPRSS2 Deposited 2024-02-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain T 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 22	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.26 Å
8Y88 Structure of HCoV-HKU1C spike in the functionally anchored-2up conformation with 2TMPRSS2 Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain I 109–492（384 aa） Chain T 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 18	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.03 Å
8Y89 Structure of HCoV-HKU1C spike in the functionally anchored-3up conformation with 2TMPRSS2 Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 109–492（384 aa） Chain T 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 13	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.32 Å
8Y8A Structure of HCoV-HKU1C spike in the functionally anchored-3up conformation with 3TMPRSS2 Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain G 109–492（384 aa） Chain H 109–492（384 aa） Chain T 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 10	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å
8Y8B Local structure of HCoV-HKU1C spike in complex with TMPRSS2 and glycan Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 109–492（384 aa） Chain T 109–492（384 aa）	Not recorded	MJJ methyl 9-O-acetyl-5-acetamido-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosidonic acid × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.01 Å
8YOY Structure of HKU1A RBD with TMPRSS2 Deposited 2024-03-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 109–492（384 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.21 Å
8YQQ Structure of HKU1B RBD with TMPRSS2 Deposited 2024-03-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.95 Å
9E83 TMPRSS2 crystal structure following acylation by UCSF_157 Deposited 2024-11-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 148–255（108 aa） Chain B 256–492（237 aa） Fragment：Peptidase S1 domain residues 256-492	Mutation：S251D/R252D/Q253D/S254D/R255K	CIT CITRIC ACID × 1 EDO 1,2-ETHANEDIOL × 3 VU4 4-(2-aminoethyl)benzoic acid × 1 UNX UNKNOWN LIGAND × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；3 uL hanging drop (2:1 protein:precipitant) grown over precipitant solution containing 25%PEG4000, 0.2M ammonium sulfate, and 0.1M sodium acetate pH 4.6. Protein (10 mg/mL) was in a buffer containing 25 mM Tris pH 8.0, 75 mM NaCl, and 2 mM CaCl2	Resolution 2.07 Å R-free 0.260
9IZN Crystal structure of HKU1A RBD bound to TMPRSS2 Deposited 2024-08-01	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 109–492（384 aa）	Mutation：R255Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；2% v/v Tacsimate pH 7.0, 5% v/v 2-Propanol, 0.1 M Imidazole (pH 7.0) and 8% w/v Polyethylene glycol 3350	Resolution 2.40 Å R-free 0.261
9JCX Crystal structure of the HCoV-HKU1 RBD and TMPRSS2 Deposited 2024-08-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K Mutation：S441A	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.2 M Tris pH 7.0, 0.2 M MgCl2, 10% (w/v) Polyethylene glycol 8,000	Resolution 2.75 Å R-free 0.237
9JD0 Crystal structure of TMPRSS2 in complex with nanobody Deposited 2024-08-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GOL GLYCEROL × 1 MLI MALONATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.2 M sodium malonate pH 6.0, 10% (w/v) Polyethylene glycol 3,350	Resolution 2.00 Å R-free 0.221
9JD0 Crystal structure of TMPRSS2 in complex with nanobody Deposited 2024-08-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 MLI MALONATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.2 M sodium malonate pH 6.0, 10% (w/v) Polyethylene glycol 3,350	Resolution 2.00 Å R-free 0.221
9JD1 Crystal structure of TMPRSS2 in complex with Fab Deposited 2024-08-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 GOL GLYCEROL × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；50 mM MES pH 5.6, 8.6% (w/v) Polyethylene glycol 4,000, 17.1% (v/v) Polyethylene glycol 600	Resolution 1.90 Å R-free 0.223
9K3T Cryo-EM structure of TMPRSS2 in complex with Fab fragments of 752 mAb and 2228 mAb Deposited 2024-10-20	Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 109–492（384 aa）	Mutation：250SSRQSR255 replaced with DDDDDK	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.15 Å
9OPQ TMPRSS2 (S441A) bound to the HCoV-NL63 S2'region genetically fused to the HCoV-HKU1 RBD Deposited 2025-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 110–492（383 aa）	Mutation：S441A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9OPR TMPRSS2 S441A in complex with the H1H7 Fab and anti-kappa light chain nanobody Deposited 2025-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 110–492（383 aa）	Mutation：S441A	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9U8G Crystal structure of TMPRSS2 in complex with nanobody77_10 Deposited 2025-03-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 109–254（146 aa） Chain B 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；100 mM HEPES/ Sodium hydroxide pH 7.0, 10% w/v PEG 6000	Resolution 2.00 Å R-free 0.230
9U8G Crystal structure of TMPRSS2 in complex with nanobody77_10 Deposited 2025-03-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；100 mM HEPES/ Sodium hydroxide pH 7.0, 10% w/v PEG 6000	Resolution 2.00 Å R-free 0.230
9Z3J HCoV-NL63 S2' peptide bound to TMPRSS2 S441A (complexed with the H1H7 Fab and an anti-kappa-nanobody) Deposited 2025-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 110–249（140 aa） Chain B 256–492（237 aa）	Mutation：S441A Mutation：S441A	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å

33 other PDB entries and 42 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TMPS2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain T； PDBConstruct 1–383； UniProt 109–492

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

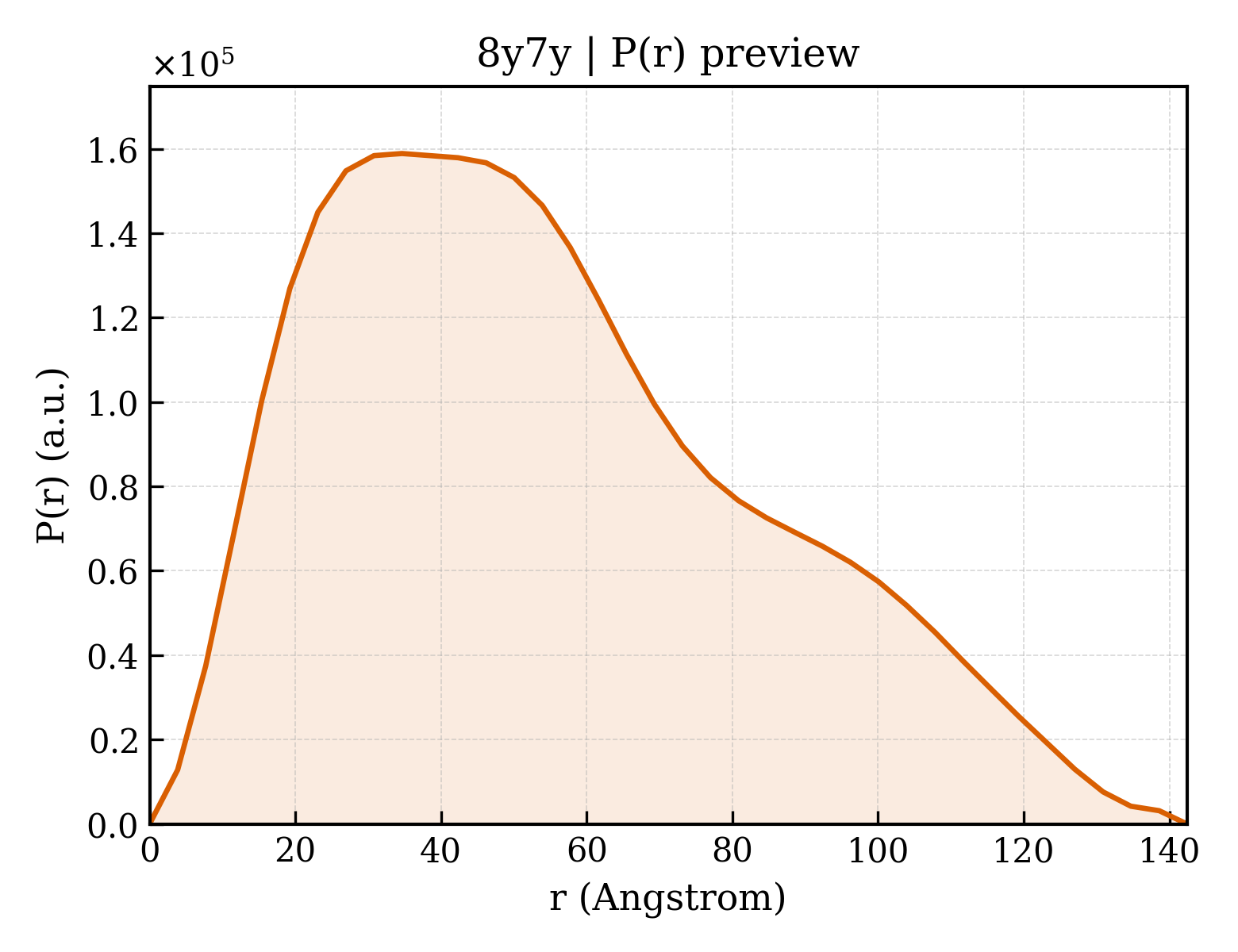

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8y7y
Deposition date deposition_date	2024-02-05
Structure title title	Local structure of HCoV-HKU1A spike in complex with TMPRSS2 and glycan
Keywords keywords	HKU1A, spike, TMPRSS2, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	43.12 Å
Radius of gyration Rg (electron density) rg_electron	43.91 Å
Forward intensity I(0) i0	146289000.00
Molecular weight molecular_weight	97457.0 kDa
Excluded volume excluded_volume	121240 Å³
Envelope volume envelope_volume	181940 Å³
Hydration-shell volume shell_volume	37964 Å³
Envelope diameter envelope_diameter	150.0 Å
Shell Rg shell_rg	43.77 Å
Envelope Rg envelope_rg	43.17 Å
Shape Rg shape_rg	43.97 Å
Total Rg total_rg	43.71 Å
Total atoms total_atoms	6860
Residues n_residues	861
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	142.4 Å
Rg (real space) rg_real	43.65 Å
Rg uncertainty (real space) rg_real_error	1.52 Å
I(0) (real space) i0_real	1.4630e+08
I(0) uncertainty (real space) i0_real_error	2.7800e+06
Rg (reciprocal space) rg_reciprocal	43.12 Å
I(0) (reciprocal space) i0_reciprocal	146200000.0000
Solution quality estimate total_estimate	0.7703
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	34.6 Å
Skewness Skewness skewness	0.545
Kurtosis Kurtosis kurtosis	-0.467
Angular range angular_range	— – 0.1850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	9615000.0000
Real-space data points n_real_points	38
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.762; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.643; Smooth: 0.081

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Spike glycoprotein
Molecular weight formula_weight	141235.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6860

VIGDFNCTNFAINDLNTTVPRISEYVVDVSYGLGTYYILDRVYLNTTILFTGYFPKSGANFRDLSLKGTTYLSTLWYQKPFLSDFNNGIFSRVKNTKLYVNKTLYSEFSTIVIGSVFINNSYTIVVQPHNGVLEITACQYTMCEYPHTICKSKGSSRNESWHFDKSEPLCLFKKNFTYNVSTDWLYFHFYQERGTFYAYYADSGMPTTFLFSLYLGTLLSHYYVLPLTCNAISSNTDNETLQYWVTPLSKRQYLLKFDNRGVITNAVDCSSSFFSEIQCKTKSLLPNTGVYDLSGFTVKPVATVHRRIPDLPDCDIDKWLNNFNVPSPLNWERKIFSNCNFNLSTLLRLVHTDSFSCNNFDESKIYGSCFKSIVLDKFAIPNSRRSDLQLGSSGFLQSSNYKIDTTSSSCQLYYSLPAINVTINNYNPSSWNRRYGFNNFNLSSHSVVYSRYCFSVNNTFCPCAKPSFASSCKSHKPPSASCPIGTNYRSCESTTVLDHTDWCRCSCLPDPITAYDPRSCSQKKSLVGVGEHCAGFGVDEEKCGVLDGSYNVSCLCSTDAFLGWSYDTCVSNNRCNIFSNFILNGINSGTTCSNDLLQPNTEVFTDVCVDYDLYGITGQGIFKEVSAVYYNSWQNLLYDSNGNIIGFKDFVTNKTYNIFPCYAGRVSAAFHQNASSLALLYRNLKCSYVLNNISLTTQPYFDSYLGCVFNADNLTDYSVSSCALRMGSGFCVDYNSPSSSSSGGSGSSISASYRFVTFEPFNVSFVNDSIESVGGLYEIKIPTNFTIVGQEEFIQTNSPKVTIDCSLFVCSNYAACHDLLSEYGTFCDNINSILDEVNGLLDTTQLHVADTLMQGVTLSSNLNTNLHFDVDNINFKSLVGCLGPHCGSSSRSFFEDLLFDKVKLSDVGFVEAYNNCTGGSEIRDLLCVQSFNGIKVLPPILSESQISGYTTAATVAAMFPPWSAAAGIPFSLNVQYRINGLGVTMDVLNKNQKLIATAFNNALLSIQNGFSATNSALAKIQSVVNSNAQALNSLLQQLFNKFGAISSSLQEILSRLDPPEAQVQIDRLINGRLTALNAYVSQQLSDISLVKFGAALAMEKVNECVKSQSPRINFCGNGNHILSLVQNAPYGLLFMHFSYKPISFKTVLVSPGLCISGDVGIAPKQGYFIKHNDHWMFTGSSYYYPEPISDKNVVFMNTCSVNFTKAPLVYLNHSVPKLSDFESELSHWFKNQTSIAPNLTLNLHTINATFLDLYYEMNLIQESIKSLN

来源 Source

来源生物 organism	Human coronavirus HKU1 (isolate N1)
通用名 common_name	HCoV-HKU1
NCBI Class编号 ncbi_taxonomy_id	443239
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Transmembrane protease serine 2
Molecular weight formula_weight	42283.6 kDa
EC 编号 ec_number	3.4.21.122
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	T

MGSKCSNSGIECDSSGTCINPSNWCDGVSHCPGGEDENRCVRLYGPNFILQVYSSQRKSWHPVCQDDWNENYGRAACRDMGYKNNFYSSQGIVDDSGSTSFMKLNTSAGNVDIYKKLYHSDACSSKAVVSLRCIACGVNLNDDDDKIVGGESALPGAWPWQVSLHVQNVHVCGGSIITPEWIVTAAHCVEKPLNNPWHWTAFAGILRQSFMFYGAGYQVEKVISHPNYDSKTKNNDIALMKLQKPLTFNDLVKPVCLPNPGMMLQPEQLCWISGWGATEEKGKTSEVLNAAKVLLIETQRCNSRYVYDNLITPAMICAGFLQGNVDSCQGDSGGPLVTSKNNIWWLIGDTSWGSGCAKAYRPGVYGNVMVFTDWIYRQMRADG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 branched

Description description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	748.7 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 7 Entity 7 non-polymer

Description description	methyl 9-O-acetyl-5-acetamido-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosidonic acid
Molecular weight formula_weight	365.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.24 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	315373

fit	/app/data/saxs_computation/y7/8y7y/8y7y.fit
pddf	/app/data/pr_computation/y7/8y7y/8y7y.pr.out
profile	/app/data/saxs_computation/y7/8y7y/8y7y.dat

Local structure of HCoV-HKU1A spike in complex with TMPRSS2 and glycan

1. Protein Identity and Related Structures Protein Identity & Related Structures

Spike glycoprotein

State in the Current Structure

Other States of the Same Protein in the Database

Transmembrane protease serine 2

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 branched

Entity 4 Entity 4 branched

Entity 5 Entity 5 branched

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
