8y89

Structure of HCoV-HKU1C spike in the functionally anchored-3up conformation with 2TMPRSS2

Method: ELECTRON MICROSCOPY D_max: 209.4 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Spike glycoprotein

Human coronavirus HKU1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 5 其他Polymer 11 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 14–1276 Chain B； UniProt 14–1276 Chain C； UniProt 14–1276	Not recorded	Transmembrane protease serine 2 × 2 （O15393） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 10 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 13	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.32 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8Y89	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5I08 Prefusion structure of a human coronavirus spike protein Deposited 2016-02-03	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1276（1263 aa） Chain B 14–1276（1263 aa） Chain C 14–1276（1263 aa）	Mutation：R751G, R752G, K753S, R754G, R755S,R751G, R752G, K753S, R754G, R755S Mutation：R751G, R752G, K753S, R754G, R755S,R751G, R752G, K753S, R754G, R755S Mutation：R751G, R752G, K753S, R754G, R755S,R751G, R752G, K753S, R754G, R755S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；3 uL sample was applied to grid, blotted, and plunged into liquid ethane.	Resolution 4.04 Å
8S0M Crystal structure of the HKU1 receptor binding domain in complex with TMPRSS2 and the nanobody A01 Deposited 2024-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 307–672（366 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.35 M NaH2PO4, 0.65 M K2HPO4	Resolution 3.55 Å R-free 0.221
8S0M Crystal structure of the HKU1 receptor binding domain in complex with TMPRSS2 and the nanobody A01 Deposited 2024-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 307–672（366 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.35 M NaH2PO4, 0.65 M K2HPO4	Resolution 3.55 Å R-free 0.221
8Y87 Structure of HCoV-HKU1C spike in the functionally anchored-1up conformation with 1TMPRSS2 Deposited 2024-02-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 14–1276（1263 aa） Chain B 14–1276（1263 aa） Chain C 14–1276（1263 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 22	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.26 Å
8Y88 Structure of HCoV-HKU1C spike in the functionally anchored-2up conformation with 2TMPRSS2 Deposited 2024-02-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 14–1276（1263 aa） Chain B 14–1276（1263 aa） Chain C 14–1276（1263 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 18	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.03 Å
8Y8A Structure of HCoV-HKU1C spike in the functionally anchored-3up conformation with 3TMPRSS2 Deposited 2024-02-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 14–1276（1263 aa） Chain B 14–1276（1263 aa） Chain C 14–1276（1263 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 10	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å
8Y8B Local structure of HCoV-HKU1C spike in complex with TMPRSS2 and glycan Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 14–1276（1263 aa） Chain B 14–1276（1263 aa）	Not recorded	MJJ methyl 9-O-acetyl-5-acetamido-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosidonic acid × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.01 Å
8Y8C Structure of HCoV-HKU1C spike in the inactive-closed conformation Deposited 2024-02-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1276（1263 aa） Chain B 14–1276（1263 aa） Chain C 14–1276（1263 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 25	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.95 Å
8Y8D Structure of HCoV-HKU1C spike in the inactive-1up conformation Deposited 2024-02-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1276（1263 aa） Chain B 14–1276（1263 aa） Chain C 14–1276（1263 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.41 Å
8Y8E Structure of HCoV-HKU1C spike in the inactive-2up conformation Deposited 2024-02-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1276（1263 aa） Chain B 14–1276（1263 aa） Chain C 14–1276（1263 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 16	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.62 Å
8Y8F Structure of HCoV-HKU1C spike in the glycan-activated-closed conformation Deposited 2024-02-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1276（1263 aa） Chain B 14–1276（1263 aa） Chain C 14–1276（1263 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 32	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.07 Å
8Y8G Structure of HCoV-HKU1C spike in the glycan-activated-1up conformation Deposited 2024-02-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1276（1263 aa） Chain B 14–1276（1263 aa） Chain C 14–1276（1263 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 20	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.23 Å
8Y8H Structure of HCoV-HKU1C spike in the glycan-activated-2up conformation Deposited 2024-02-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1276（1263 aa） Chain B 14–1276（1263 aa） Chain C 14–1276（1263 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 11	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.65 Å
8Y8I Structure of HCoV-HKU1C spike in the glycan-activated-3up conformation Deposited 2024-02-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 14–1276（1263 aa） Chain B 14–1276（1263 aa） Chain C 14–1276（1263 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.58 Å
8Y8J Local structure of HCoV-HKU1C spike in complex with glycan Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 14–1276（1263 aa） Chain B 14–1276（1263 aa）	Not recorded	MJJ methyl 9-O-acetyl-5-acetamido-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosidonic acid × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.57 Å
8YQQ Structure of HKU1B RBD with TMPRSS2 Deposited 2024-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 323–607（285 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.95 Å

15 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SPIKE_CVHN5
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1263； UniProt 14–1276 Author chain B； PDBConstruct 1–1263； UniProt 14–1276 Author chain C； PDBConstruct 1–1263； UniProt 14–1276

Transmembrane protease serine 2

Homo sapiens

UniProt O15393

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 5 其他Polymer 11 PDB declaration: pentameric（5） Consistent with protein copy count	Chain G； UniProt 109–492 Chain T； UniProt 109–492	Not recorded	Spike glycoprotein × 3 （Q0ZME7） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 10 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 13	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.32 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8Y89	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7MEQ Crystal structure of human TMPRSS2 in complex with Nafamostat Deposited 2021-04-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 109–492（384 aa）	Not recorded	GBS 4-carbamimidamidobenzoic acid × 1 UNX UNKNOWN LIGAND × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；30.0% (w/v) Jeffamine ED-2001 7.0, 0.1 M HEPES pH7.0	Resolution 1.95 Å R-free 0.225
7XYD Crystal structure of TMPRSS2 in complex with Nafamostat Deposited 2022-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were mutated to DDDDK	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；293 K；0.1M acetic acid/sodium acetate, pH 4.0, 20% w/v PEG 4000	Resolution 2.58 Å R-free 0.248
7XYD Crystal structure of TMPRSS2 in complex with Nafamostat Deposited 2022-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were mutated to DDDDK	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；293 K；0.1M acetic acid/sodium acetate, pH 4.0, 20% w/v PEG 4000	Resolution 2.58 Å R-free 0.248
7Y0E Crystal structure of TMPRSS2 in complex with Camostat Deposited 2022-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were replaced with DDDDK.	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 5.0, 16% w/v PEG 8000	Resolution 2.39 Å R-free 0.239
7Y0E Crystal structure of TMPRSS2 in complex with Camostat Deposited 2022-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were replaced with DDDDK.	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 5.0, 16% w/v PEG 8000	Resolution 2.39 Å R-free 0.239
7Y0F Crystal structure of TMPRSS2 in complex with UK-371804 Deposited 2022-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：Residues 250-255 (SSRQSR) in the database have been replaced with DDDDK.	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 I9V 2-[(1-carbamimidamido-4-chloranyl-isoquinolin-7-yl)sulfonylamino]-2-methyl-propanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 5.0, 16% w/v PEG 8000	Resolution 2.60 Å R-free 0.237
7Y0F Crystal structure of TMPRSS2 in complex with UK-371804 Deposited 2022-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：Residues 250-255 (SSRQSR) in the database have been replaced with DDDDK.	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 I9V 2-[(1-carbamimidamido-4-chloranyl-isoquinolin-7-yl)sulfonylamino]-2-methyl-propanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 5.0, 16% w/v PEG 8000	Resolution 2.60 Å R-free 0.237
8HD8 Crystal structure of TMPRSS2 in complex with 212-148 Deposited 2022-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were replaced with DDDDK.	CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 4.0, 20% w/v PEG 4000	Resolution 2.40 Å R-free 0.218
8HD8 Crystal structure of TMPRSS2 in complex with 212-148 Deposited 2022-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were replaced with DDDDK.	CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 4.0, 20% w/v PEG 4000	Resolution 2.40 Å R-free 0.218
8JHZ Cryo-EM structure of the TcsH-TMPRSS2 complex Deposited 2023-05-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 106–492（387 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4	Resolution 3.20 Å
8JI0 Cryo-EM structure of the TcsH-CROP in complex with TMPRSS2 Deposited 2023-05-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 106–492（387 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8S0L Crystal structure of the TMPRSS2 zymogen in complex with the nanobody A07 Deposited 2024-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 107–492（386 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；20 %w/v PEG 3350, 0.05 M HEPES (pH 7.0), 1 %w/v Tryptone, 0.001 %w/v NaN3	Resolution 1.80 Å R-free 0.215
8S0M Crystal structure of the HKU1 receptor binding domain in complex with TMPRSS2 and the nanobody A01 Deposited 2024-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 107–492（386 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.35 M NaH2PO4, 0.65 M K2HPO4	Resolution 3.55 Å R-free 0.221
8S0M Crystal structure of the HKU1 receptor binding domain in complex with TMPRSS2 and the nanobody A01 Deposited 2024-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 107–492（386 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.35 M NaH2PO4, 0.65 M K2HPO4	Resolution 3.55 Å R-free 0.221
8S0N Crystal structure of the TMPRSS2 zymogen in complex with the nanobody A07 Deposited 2024-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 107–492（386 aa）	Mutation：S441A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；10 %w/v PEG 3000, 0.1 M imidazole (pH 8.0), 0.2 M lithium sulfate	Resolution 2.30 Å R-free 0.246
8S0N Crystal structure of the TMPRSS2 zymogen in complex with the nanobody A07 Deposited 2024-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 107–492（386 aa）	Mutation：S441A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；10 %w/v PEG 3000, 0.1 M imidazole (pH 8.0), 0.2 M lithium sulfate	Resolution 2.30 Å R-free 0.246
8V04 High resolution TMPRSS2 structure following acylation by nafamostat Deposited 2023-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 148–255（108 aa） Chain B 256–492（237 aa） Fragment：Peptidase S1 domain residues 256-492	Mutation：S251D, R252D, Q253D, S254D, R255K	EDO 1,2-ETHANEDIOL × 9 UNX UNKNOWN LIGAND × 1 GBS 4-carbamimidamidobenzoic acid × 1 CIT CITRIC ACID × 1 CA CALCIUM ION × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；3 uL hanging drop (2:1 protein:precipitant) grown over precipitant solution containing 25%PEG4000, 0.2M ammonium sulfate, and 0.1M sodium acetate pH 4.6. Protein (10 mg/mL) was in a buffer containing 25 mM Tris pH 8.0, 75 mM NaCl, and 2 mM CaCl2	Resolution 1.58 Å R-free 0.181
8V1F TMPRSS2 complexed with the noncovalent inhibitor 6-amidino-2-napthol Deposited 2023-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 148–255（108 aa） Fragment：SRCR domain non-catalytic chain residues 148-254 Chain B 256–492（237 aa） Fragment：Peptidase S1 domain residues 256-492	Mutation：S251D, R252D, Q253D, S254D, R255K	TAM TRIS(HYDROXYETHYL)AMINOMETHANE × 3 UNX UNKNOWN LIGAND × 1 EDO 1,2-ETHANEDIOL × 12 7R8 6-oxidanylnaphthalene-2-carboximidamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；precipitant containing 20% PEG3350, 0.2 M dibasic ammonium citrate. Protein mixed 1uL:1uL protein:precipitant and set as 2 uL hanging drop on glass slides	Resolution 2.19 Å R-free 0.223
8V1F TMPRSS2 complexed with the noncovalent inhibitor 6-amidino-2-napthol Deposited 2023-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 148–255（108 aa） Fragment：SRCR domain non-catalytic chain residues 148-254 Chain D 256–492（237 aa） Fragment：Peptidase S1 domain residues 256-492	Mutation：S251D, R252D, Q253D, S254D, R255K	TAM TRIS(HYDROXYETHYL)AMINOMETHANE × 1 UNX UNKNOWN LIGAND × 2 EDO 1,2-ETHANEDIOL × 8 7R8 6-oxidanylnaphthalene-2-carboximidamide × 1 PEG DI(HYDROXYETHYL)ETHER × 1 CIT CITRIC ACID × 2 PG4 TETRAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；precipitant containing 20% PEG3350, 0.2 M dibasic ammonium citrate. Protein mixed 1uL:1uL protein:precipitant and set as 2 uL hanging drop on glass slides	Resolution 2.19 Å R-free 0.223
8VGT Structure of the HKU1 RBD bound to the human TMPRSS2 receptor Deposited 2023-12-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8Y1D 2up-TM conformation of HKU1-B S protein after incubation of the receptor Deposited 2024-01-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 109–492（384 aa） Chain E 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 51	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
8Y1E 3up-TM conformation of HKU1-B S protein after incubation of the receptor Deposited 2024-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 109–492（384 aa） Chain E 109–492（384 aa） Chain F 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 51	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
8Y7X Structure of HCoV-HKU1A spike in the functionally anchored-3up conformation with 3TMPRSS2 Deposited 2024-02-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain x 109–492（384 aa） Chain y 109–492（384 aa） Chain z 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 23	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
8Y7Y Local structure of HCoV-HKU1A spike in complex with TMPRSS2 and glycan Deposited 2024-02-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain T 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 MJJ methyl 9-O-acetyl-5-acetamido-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosidonic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.24 Å
8Y87 Structure of HCoV-HKU1C spike in the functionally anchored-1up conformation with 1TMPRSS2 Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain T 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 22	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.26 Å
8Y88 Structure of HCoV-HKU1C spike in the functionally anchored-2up conformation with 2TMPRSS2 Deposited 2024-02-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain I 109–492（384 aa） Chain T 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 18	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.03 Å
8Y8A Structure of HCoV-HKU1C spike in the functionally anchored-3up conformation with 3TMPRSS2 Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain G 109–492（384 aa） Chain H 109–492（384 aa） Chain T 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 10	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å
8Y8B Local structure of HCoV-HKU1C spike in complex with TMPRSS2 and glycan Deposited 2024-02-06	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 109–492（384 aa） Chain T 109–492（384 aa）	Not recorded	MJJ methyl 9-O-acetyl-5-acetamido-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosidonic acid × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.01 Å
8YOY Structure of HKU1A RBD with TMPRSS2 Deposited 2024-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 109–492（384 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.21 Å
8YQQ Structure of HKU1B RBD with TMPRSS2 Deposited 2024-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.95 Å
9E83 TMPRSS2 crystal structure following acylation by UCSF_157 Deposited 2024-11-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 148–255（108 aa） Chain B 256–492（237 aa） Fragment：Peptidase S1 domain residues 256-492	Mutation：S251D/R252D/Q253D/S254D/R255K	CIT CITRIC ACID × 1 EDO 1,2-ETHANEDIOL × 3 VU4 4-(2-aminoethyl)benzoic acid × 1 UNX UNKNOWN LIGAND × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；3 uL hanging drop (2:1 protein:precipitant) grown over precipitant solution containing 25%PEG4000, 0.2M ammonium sulfate, and 0.1M sodium acetate pH 4.6. Protein (10 mg/mL) was in a buffer containing 25 mM Tris pH 8.0, 75 mM NaCl, and 2 mM CaCl2	Resolution 2.07 Å R-free 0.260
9IZN Crystal structure of HKU1A RBD bound to TMPRSS2 Deposited 2024-08-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 109–492（384 aa）	Mutation：R255Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；2% v/v Tacsimate pH 7.0, 5% v/v 2-Propanol, 0.1 M Imidazole (pH 7.0) and 8% w/v Polyethylene glycol 3350	Resolution 2.40 Å R-free 0.261
9JCX Crystal structure of the HCoV-HKU1 RBD and TMPRSS2 Deposited 2024-08-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K Mutation：S441A	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.2 M Tris pH 7.0, 0.2 M MgCl2, 10% (w/v) Polyethylene glycol 8,000	Resolution 2.75 Å R-free 0.237
9JD0 Crystal structure of TMPRSS2 in complex with nanobody Deposited 2024-08-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GOL GLYCEROL × 1 MLI MALONATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.2 M sodium malonate pH 6.0, 10% (w/v) Polyethylene glycol 3,350	Resolution 2.00 Å R-free 0.221
9JD0 Crystal structure of TMPRSS2 in complex with nanobody Deposited 2024-08-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 MLI MALONATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.2 M sodium malonate pH 6.0, 10% (w/v) Polyethylene glycol 3,350	Resolution 2.00 Å R-free 0.221
9JD1 Crystal structure of TMPRSS2 in complex with Fab Deposited 2024-08-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 GOL GLYCEROL × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；50 mM MES pH 5.6, 8.6% (w/v) Polyethylene glycol 4,000, 17.1% (v/v) Polyethylene glycol 600	Resolution 1.90 Å R-free 0.223
9K3T Cryo-EM structure of TMPRSS2 in complex with Fab fragments of 752 mAb and 2228 mAb Deposited 2024-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 109–492（384 aa）	Mutation：250SSRQSR255 replaced with DDDDDK	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.15 Å
9OPQ TMPRSS2 (S441A) bound to the HCoV-NL63 S2'region genetically fused to the HCoV-HKU1 RBD Deposited 2025-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 110–492（383 aa）	Mutation：S441A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9OPR TMPRSS2 S441A in complex with the H1H7 Fab and anti-kappa light chain nanobody Deposited 2025-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 110–492（383 aa）	Mutation：S441A	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9U8G Crystal structure of TMPRSS2 in complex with nanobody77_10 Deposited 2025-03-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 109–254（146 aa） Chain B 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；100 mM HEPES/ Sodium hydroxide pH 7.0, 10% w/v PEG 6000	Resolution 2.00 Å R-free 0.230
9U8G Crystal structure of TMPRSS2 in complex with nanobody77_10 Deposited 2025-03-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；100 mM HEPES/ Sodium hydroxide pH 7.0, 10% w/v PEG 6000	Resolution 2.00 Å R-free 0.230
9Z3J HCoV-NL63 S2' peptide bound to TMPRSS2 S441A (complexed with the H1H7 Fab and an anti-kappa-nanobody) Deposited 2025-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 110–249（140 aa） Chain B 256–492（237 aa）	Mutation：S441A Mutation：S441A	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å

33 other PDB entries and 42 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TMPS2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain G； PDBConstruct 1–383； UniProt 109–492 Author chain T； PDBConstruct 1–383； UniProt 109–492

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8y89
Deposition date deposition_date	2024-02-06
Structure title title	Structure of HCoV-HKU1C spike in the functionally anchored-3up conformation with 2TMPRSS2
Keywords keywords	HKU1C, spike, TMPRSS2, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	65.46 Å
Radius of gyration Rg (electron density) rg_electron	65.86 Å
Forward intensity I(0) i0	2662720000.00
Molecular weight molecular_weight	435090.0 kDa
Excluded volume excluded_volume	543980 Å³
Envelope volume envelope_volume	916630 Å³
Hydration-shell volume shell_volume	121820 Å³
Envelope diameter envelope_diameter	235.6 Å
Shell Rg shell_rg	62.56 Å
Envelope Rg envelope_rg	64.49 Å
Shape Rg shape_rg	65.85 Å
Total Rg total_rg	65.81 Å
Total atoms total_atoms	30645
Residues n_residues	3956
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

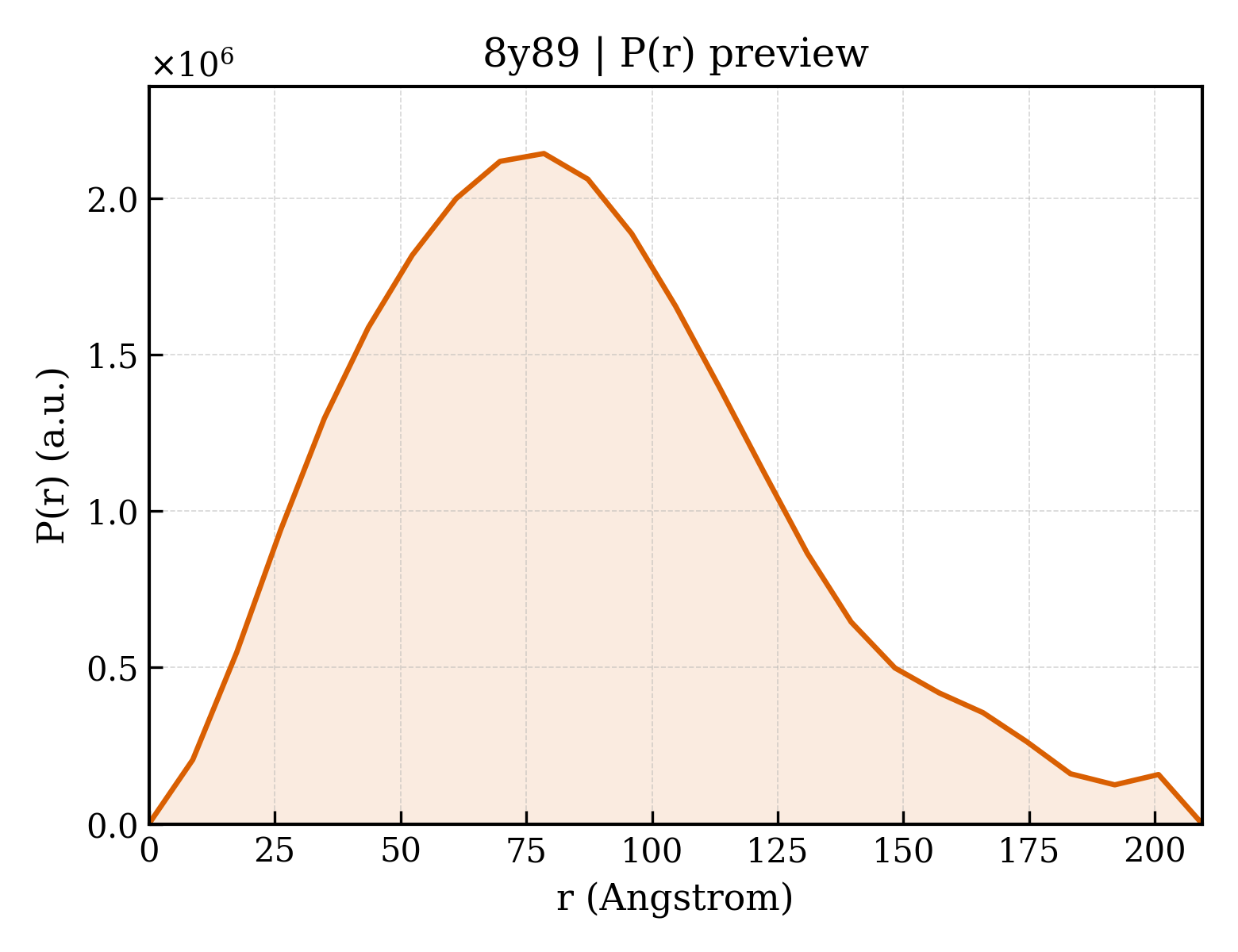

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	209.4 Å
Rg (real space) rg_real	65.81 Å
Rg uncertainty (real space) rg_real_error	1.81 Å
I(0) (real space) i0_real	2.6610e+09
I(0) uncertainty (real space) i0_real_error	5.9660e+07
Rg (reciprocal space) rg_reciprocal	65.06 Å
I(0) (reciprocal space) i0_reciprocal	2659000000.0000
Solution quality estimate total_estimate	0.8549
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	78.5 Å
Skewness Skewness skewness	0.508
Kurtosis Kurtosis kurtosis	-0.060
Angular range angular_range	— – 0.1200 Å⁻¹
Current regularization parameter α current_alpha	0.0015
Highest regularization parameter α highest_alpha	159300000.0000
Real-space data points n_real_points	25
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.914; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.371

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Spike glycoprotein
Molecular weight formula_weight	140242.5 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,B
Atom count atom_count	30645

VIGDFNCTNSFINDYNKTIPRISEDVVDVSLGLGTYYVLNRVYLNTTLLFTGYFPKSGANFRDLALKGSIYLSTLWYKPPFLSDFNNGIFSKVKNTKLYVNNTLYSEFSTIVIGSVFVNTSYTIVVQPHNGILEITACQYTMCEYPHTVCKSKGSIRNESWHIDSSEPLCLFKKNFTYNVSADWLYFHFYQERGVFYAYYADVGMPTTFLFSLYLGTILSHYYVMPLTCNAISSNTDNETLEYWVTPLSRRQYLLNFDEHGVITNAVDCSSSFLSEIQCKTQSFAPNTGVYDLSGFTVKPVATVYRRIPNLPDCDIDNWLNNVSVPSPLNWERRIFSNCNFNLSTLLRLVHVDSFSCNNLDKSKIFGSCFNSITVDKFAIPNRRRDDLQLGSSGFLQSSNYKIDISSSSCQLYYSLPLVNVTINNFNPSSWNRRYGFGSFNLSSYDVVYSDHCFSVNSDFCPCADPSVVNSCAKSKPPSAICPAGTKYRHCDLDTTLYVKNWCRCSCLPDPISTYSPNTCPQKKVVVGIGEHCPGLGINEEKCGTQLNHSSCFCSPDAFLGWSFDSCISNNRCNIFSNFIFNGINSGTTCSNDLLYSNTEISTGVCVNYDLYGITGQGIFKEVSAAYYNNWQNLLYDSNGNIIGFKDFLTNKTYTILPCYSGRVSAAFYQNSSSPALLYRNLKCSYVLNNISFISQPFYFDSYLGCVLNAVNLTSYSVSSCDLRMGSGFCIDYALPSSGGSGSGISSPYRFVTFEPFNVSFVNDSVETVGGLFEIQIPTNFTIAGHEEFIQTSSPKVTIDCSAFVCSNYAACHDLLSEYGTFCDNINSILNEVNDLLDITQLQVANALMQGVTLSSNLNTNLHSDVDNIDFKSLLGCLGSQCGSSSRSPLEDLLFNKVKLSDVGFVEAYNNCTGGSEIRDLLCVQSFNGIKVLPPILSETQISGYTTAATVAAMFPPWSAAAGVPFPLNVQYRINGLGVTMDVLNKNQKLIANAFNKALLSIQNGFTATPSALAKIQSVVNANAQALNSLLQQLFNKFGAISSSLQEILSRLDPPEAQVQIDRLINGRLTALNAYVSQQLSDITLIKAGASRAIEKVNECVKSQSPRINFCGNGNHILSLVQNAPYGLLFIHFSYKPTSFKTVLVSPGLCLSGDRGIAPKQGYFIKQNDSWMFTGSSYYYPEPISDKNVVFMNSCSVNFTKAPFIYLNNSIPNLSDFEAELSLWFKNHTSIAPNLTFNSHINATFLDLYYEMNVIQESIKSLN

来源 Source

来源生物 organism	Human coronavirus HKU1
通用名 common_name	Human coronavirus HKU1 (isolate N5)
NCBI Class编号 ncbi_taxonomy_id	443241
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Transmembrane protease serine 2
Molecular weight formula_weight	42283.6 kDa
EC 编号 ec_number	3.4.21.122
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	T,G

MGSKCSNSGIECDSSGTCINPSNWCDGVSHCPGGEDENRCVRLYGPNFILQVYSSQRKSWHPVCQDDWNENYGRAACRDMGYKNNFYSSQGIVDDSGSTSFMKLNTSAGNVDIYKKLYHSDACSSKAVVSLRCIACGVNLNDDDDKIVGGESALPGAWPWQVSLHVQNVHVCGGSIITPEWIVTAAHCVEKPLNNPWHWTAFAGILRQSFMFYGAGYQVEKVISHPNYDSKTKNNDIALMKLQKPLTFNDLVKPVCLPNPGMMLQPEQLCWISGWGATEEKGKTSEVLNAAKVLLIETQRCNSRYVYDNLITPAMICAGFLQGNVDSCQGDSGGPLVTSKNNIWWLIGDTSWGSGCAKAYRPGVYGNVMVFTDWIYRQMRADG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 4 Entity 4 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	13

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.32 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	116931

fit	/app/data/saxs_computation/y8/8y89/8y89.fit
pddf	/app/data/pr_computation/y8/8y89/8y89.pr.out
profile	/app/data/saxs_computation/y8/8y89/8y89.dat
