9jd1

Crystal structure of TMPRSS2 in complex with Fab

Method: X-RAY DIFFRACTION D_max: 141.1 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transmembrane protease serine 2 catalytic chain

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 4 其他Polymer 1 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 109–254 Chain D； UniProt 256–492	Mutation：S250D,S251D,R252D,Q253D, S254K	Light chain of Fab × 1 Heavy chain of Fab × 1 ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 GOL GLYCEROL × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：EVAPORATION；293 K；50 mM MES pH 5.6, 8.6% (w/v) Polyethylene glycol 4,000, 17.1% (v/v) Polyethylene glycol 600	Resolution 1.90 Å R-free 0.223

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9JD1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7MEQ Crystal structure of human TMPRSS2 in complex with Nafamostat Deposited 2021-04-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 109–492（384 aa）	Not recorded	GBS 4-carbamimidamidobenzoic acid × 1 UNX UNKNOWN LIGAND × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；30.0% (w/v) Jeffamine ED-2001 7.0, 0.1 M HEPES pH7.0	Resolution 1.95 Å R-free 0.225
7XYD Crystal structure of TMPRSS2 in complex with Nafamostat Deposited 2022-06-01	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were mutated to DDDDK	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；293 K；0.1M acetic acid/sodium acetate, pH 4.0, 20% w/v PEG 4000	Resolution 2.58 Å R-free 0.248
7XYD Crystal structure of TMPRSS2 in complex with Nafamostat Deposited 2022-06-01	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were mutated to DDDDK	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；293 K；0.1M acetic acid/sodium acetate, pH 4.0, 20% w/v PEG 4000	Resolution 2.58 Å R-free 0.248
7Y0E Crystal structure of TMPRSS2 in complex with Camostat Deposited 2022-06-04	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were replaced with DDDDK.	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 5.0, 16% w/v PEG 8000	Resolution 2.39 Å R-free 0.239
7Y0E Crystal structure of TMPRSS2 in complex with Camostat Deposited 2022-06-04	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were replaced with DDDDK.	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 5.0, 16% w/v PEG 8000	Resolution 2.39 Å R-free 0.239
7Y0F Crystal structure of TMPRSS2 in complex with UK-371804 Deposited 2022-06-04	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：Residues 250-255 (SSRQSR) in the database have been replaced with DDDDK.	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 I9V 2-[(1-carbamimidamido-4-chloranyl-isoquinolin-7-yl)sulfonylamino]-2-methyl-propanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 5.0, 16% w/v PEG 8000	Resolution 2.60 Å R-free 0.237
7Y0F Crystal structure of TMPRSS2 in complex with UK-371804 Deposited 2022-06-04	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：Residues 250-255 (SSRQSR) in the database have been replaced with DDDDK.	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1 I9V 2-[(1-carbamimidamido-4-chloranyl-isoquinolin-7-yl)sulfonylamino]-2-methyl-propanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 5.0, 16% w/v PEG 8000	Resolution 2.60 Å R-free 0.237
8HD8 Crystal structure of TMPRSS2 in complex with 212-148 Deposited 2022-11-03	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were replaced with DDDDK.	CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 4.0, 20% w/v PEG 4000	Resolution 2.40 Å R-free 0.218
8HD8 Crystal structure of TMPRSS2 in complex with 212-148 Deposited 2022-11-03	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：Residues 250-255 SSRQSR were replaced with DDDDK.	CA CALCIUM ION × 1 GBS 4-carbamimidamidobenzoic acid × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M acetic acid/sodium acetate, pH 4.0, 20% w/v PEG 4000	Resolution 2.40 Å R-free 0.218
8JHZ Cryo-EM structure of the TcsH-TMPRSS2 complex Deposited 2023-05-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 106–492（387 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4	Resolution 3.20 Å
8JI0 Cryo-EM structure of the TcsH-CROP in complex with TMPRSS2 Deposited 2023-05-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 106–492（387 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8S0L Crystal structure of the TMPRSS2 zymogen in complex with the nanobody A07 Deposited 2024-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 107–492（386 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；20 %w/v PEG 3350, 0.05 M HEPES (pH 7.0), 1 %w/v Tryptone, 0.001 %w/v NaN3	Resolution 1.80 Å R-free 0.215
8S0M Crystal structure of the HKU1 receptor binding domain in complex with TMPRSS2 and the nanobody A01 Deposited 2024-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 107–492（386 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.35 M NaH2PO4, 0.65 M K2HPO4	Resolution 3.55 Å R-free 0.221
8S0M Crystal structure of the HKU1 receptor binding domain in complex with TMPRSS2 and the nanobody A01 Deposited 2024-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 107–492（386 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.35 M NaH2PO4, 0.65 M K2HPO4	Resolution 3.55 Å R-free 0.221
8S0N Crystal structure of the TMPRSS2 zymogen in complex with the nanobody A07 Deposited 2024-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 107–492（386 aa）	Mutation：S441A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；10 %w/v PEG 3000, 0.1 M imidazole (pH 8.0), 0.2 M lithium sulfate	Resolution 2.30 Å R-free 0.246
8S0N Crystal structure of the TMPRSS2 zymogen in complex with the nanobody A07 Deposited 2024-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 107–492（386 aa）	Mutation：S441A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；10 %w/v PEG 3000, 0.1 M imidazole (pH 8.0), 0.2 M lithium sulfate	Resolution 2.30 Å R-free 0.246
8V04 High resolution TMPRSS2 structure following acylation by nafamostat Deposited 2023-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 148–255（108 aa） Chain B 256–492（237 aa） Fragment：Peptidase S1 domain residues 256-492	Mutation：S251D, R252D, Q253D, S254D, R255K	EDO 1,2-ETHANEDIOL × 9 UNX UNKNOWN LIGAND × 1 GBS 4-carbamimidamidobenzoic acid × 1 CIT CITRIC ACID × 1 CA CALCIUM ION × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；3 uL hanging drop (2:1 protein:precipitant) grown over precipitant solution containing 25%PEG4000, 0.2M ammonium sulfate, and 0.1M sodium acetate pH 4.6. Protein (10 mg/mL) was in a buffer containing 25 mM Tris pH 8.0, 75 mM NaCl, and 2 mM CaCl2	Resolution 1.58 Å R-free 0.181
8V1F TMPRSS2 complexed with the noncovalent inhibitor 6-amidino-2-napthol Deposited 2023-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 148–255（108 aa） Fragment：SRCR domain non-catalytic chain residues 148-254 Chain B 256–492（237 aa） Fragment：Peptidase S1 domain residues 256-492	Mutation：S251D, R252D, Q253D, S254D, R255K	TAM TRIS(HYDROXYETHYL)AMINOMETHANE × 3 UNX UNKNOWN LIGAND × 1 EDO 1,2-ETHANEDIOL × 12 7R8 6-oxidanylnaphthalene-2-carboximidamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；precipitant containing 20% PEG3350, 0.2 M dibasic ammonium citrate. Protein mixed 1uL:1uL protein:precipitant and set as 2 uL hanging drop on glass slides	Resolution 2.19 Å R-free 0.223
8V1F TMPRSS2 complexed with the noncovalent inhibitor 6-amidino-2-napthol Deposited 2023-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 148–255（108 aa） Fragment：SRCR domain non-catalytic chain residues 148-254 Chain D 256–492（237 aa） Fragment：Peptidase S1 domain residues 256-492	Mutation：S251D, R252D, Q253D, S254D, R255K	TAM TRIS(HYDROXYETHYL)AMINOMETHANE × 1 UNX UNKNOWN LIGAND × 2 EDO 1,2-ETHANEDIOL × 8 7R8 6-oxidanylnaphthalene-2-carboximidamide × 1 PEG DI(HYDROXYETHYL)ETHER × 1 CIT CITRIC ACID × 2 PG4 TETRAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；precipitant containing 20% PEG3350, 0.2 M dibasic ammonium citrate. Protein mixed 1uL:1uL protein:precipitant and set as 2 uL hanging drop on glass slides	Resolution 2.19 Å R-free 0.223
8VGT Structure of the HKU1 RBD bound to the human TMPRSS2 receptor Deposited 2023-12-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8Y1D 2up-TM conformation of HKU1-B S protein after incubation of the receptor Deposited 2024-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 109–492（384 aa） Chain E 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 51	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
8Y1E 3up-TM conformation of HKU1-B S protein after incubation of the receptor Deposited 2024-01-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 109–492（384 aa） Chain E 109–492（384 aa） Chain F 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 51	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
8Y7X Structure of HCoV-HKU1A spike in the functionally anchored-3up conformation with 3TMPRSS2 Deposited 2024-02-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain x 109–492（384 aa） Chain y 109–492（384 aa） Chain z 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 23	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.09 Å
8Y7Y Local structure of HCoV-HKU1A spike in complex with TMPRSS2 and glycan Deposited 2024-02-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain T 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 MJJ methyl 9-O-acetyl-5-acetamido-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosidonic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.24 Å
8Y87 Structure of HCoV-HKU1C spike in the functionally anchored-1up conformation with 1TMPRSS2 Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain T 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 22	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.26 Å
8Y88 Structure of HCoV-HKU1C spike in the functionally anchored-2up conformation with 2TMPRSS2 Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain I 109–492（384 aa） Chain T 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 18	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.03 Å
8Y89 Structure of HCoV-HKU1C spike in the functionally anchored-3up conformation with 2TMPRSS2 Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 109–492（384 aa） Chain T 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 13	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.32 Å
8Y8A Structure of HCoV-HKU1C spike in the functionally anchored-3up conformation with 3TMPRSS2 Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain G 109–492（384 aa） Chain H 109–492（384 aa） Chain T 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 10	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å
8Y8B Local structure of HCoV-HKU1C spike in complex with TMPRSS2 and glycan Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 109–492（384 aa） Chain T 109–492（384 aa）	Not recorded	MJJ methyl 9-O-acetyl-5-acetamido-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosidonic acid × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.01 Å
8YOY Structure of HKU1A RBD with TMPRSS2 Deposited 2024-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 109–492（384 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.21 Å
8YQQ Structure of HKU1B RBD with TMPRSS2 Deposited 2024-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 109–492（384 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.95 Å
9E83 TMPRSS2 crystal structure following acylation by UCSF_157 Deposited 2024-11-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 148–255（108 aa） Chain B 256–492（237 aa） Fragment：Peptidase S1 domain residues 256-492	Mutation：S251D/R252D/Q253D/S254D/R255K	CIT CITRIC ACID × 1 EDO 1,2-ETHANEDIOL × 3 VU4 4-(2-aminoethyl)benzoic acid × 1 UNX UNKNOWN LIGAND × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；3 uL hanging drop (2:1 protein:precipitant) grown over precipitant solution containing 25%PEG4000, 0.2M ammonium sulfate, and 0.1M sodium acetate pH 4.6. Protein (10 mg/mL) was in a buffer containing 25 mM Tris pH 8.0, 75 mM NaCl, and 2 mM CaCl2	Resolution 2.07 Å R-free 0.260
9IZN Crystal structure of HKU1A RBD bound to TMPRSS2 Deposited 2024-08-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 109–492（384 aa）	Mutation：R255Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；2% v/v Tacsimate pH 7.0, 5% v/v 2-Propanol, 0.1 M Imidazole (pH 7.0) and 8% w/v Polyethylene glycol 3350	Resolution 2.40 Å R-free 0.261
9JCX Crystal structure of the HCoV-HKU1 RBD and TMPRSS2 Deposited 2024-08-30	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K Mutation：S441A	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.2 M Tris pH 7.0, 0.2 M MgCl2, 10% (w/v) Polyethylene glycol 8,000	Resolution 2.75 Å R-free 0.237
9JD0 Crystal structure of TMPRSS2 in complex with nanobody Deposited 2024-08-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 109–254（146 aa） Chain C 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GOL GLYCEROL × 1 MLI MALONATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.2 M sodium malonate pH 6.0, 10% (w/v) Polyethylene glycol 3,350	Resolution 2.00 Å R-free 0.221
9JD0 Crystal structure of TMPRSS2 in complex with nanobody Deposited 2024-08-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 MLI MALONATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.2 M sodium malonate pH 6.0, 10% (w/v) Polyethylene glycol 3,350	Resolution 2.00 Å R-free 0.221
9K3T Cryo-EM structure of TMPRSS2 in complex with Fab fragments of 752 mAb and 2228 mAb Deposited 2024-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 109–492（384 aa）	Mutation：250SSRQSR255 replaced with DDDDDK	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.15 Å
9OPQ TMPRSS2 (S441A) bound to the HCoV-NL63 S2'region genetically fused to the HCoV-HKU1 RBD Deposited 2025-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 110–492（383 aa）	Mutation：S441A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9OPR TMPRSS2 S441A in complex with the H1H7 Fab and anti-kappa light chain nanobody Deposited 2025-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 110–492（383 aa）	Mutation：S441A	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9U8G Crystal structure of TMPRSS2 in complex with nanobody77_10 Deposited 2025-03-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 109–254（146 aa） Chain B 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；100 mM HEPES/ Sodium hydroxide pH 7.0, 10% w/v PEG 6000	Resolution 2.00 Å R-free 0.230
9U8G Crystal structure of TMPRSS2 in complex with nanobody77_10 Deposited 2025-03-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 109–254（146 aa） Chain D 256–492（237 aa）	Mutation：S250D,S251D,R252D,Q253D, S254K	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；100 mM HEPES/ Sodium hydroxide pH 7.0, 10% w/v PEG 6000	Resolution 2.00 Å R-free 0.230
9Z3J HCoV-NL63 S2' peptide bound to TMPRSS2 S441A (complexed with the H1H7 Fab and an anti-kappa-nanobody) Deposited 2025-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 110–249（140 aa） Chain B 256–492（237 aa）	Mutation：S441A Mutation：S441A	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å

33 other PDB entries and 42 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TMPS2_HUMAN
Isoform	—
PDB entities	1, 4
Chains and sequence ranges	Author chain D； PDBConstruct 1–237； UniProt 256–492 Author chain C； PDBConstruct 1–146； UniProt 109–254

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

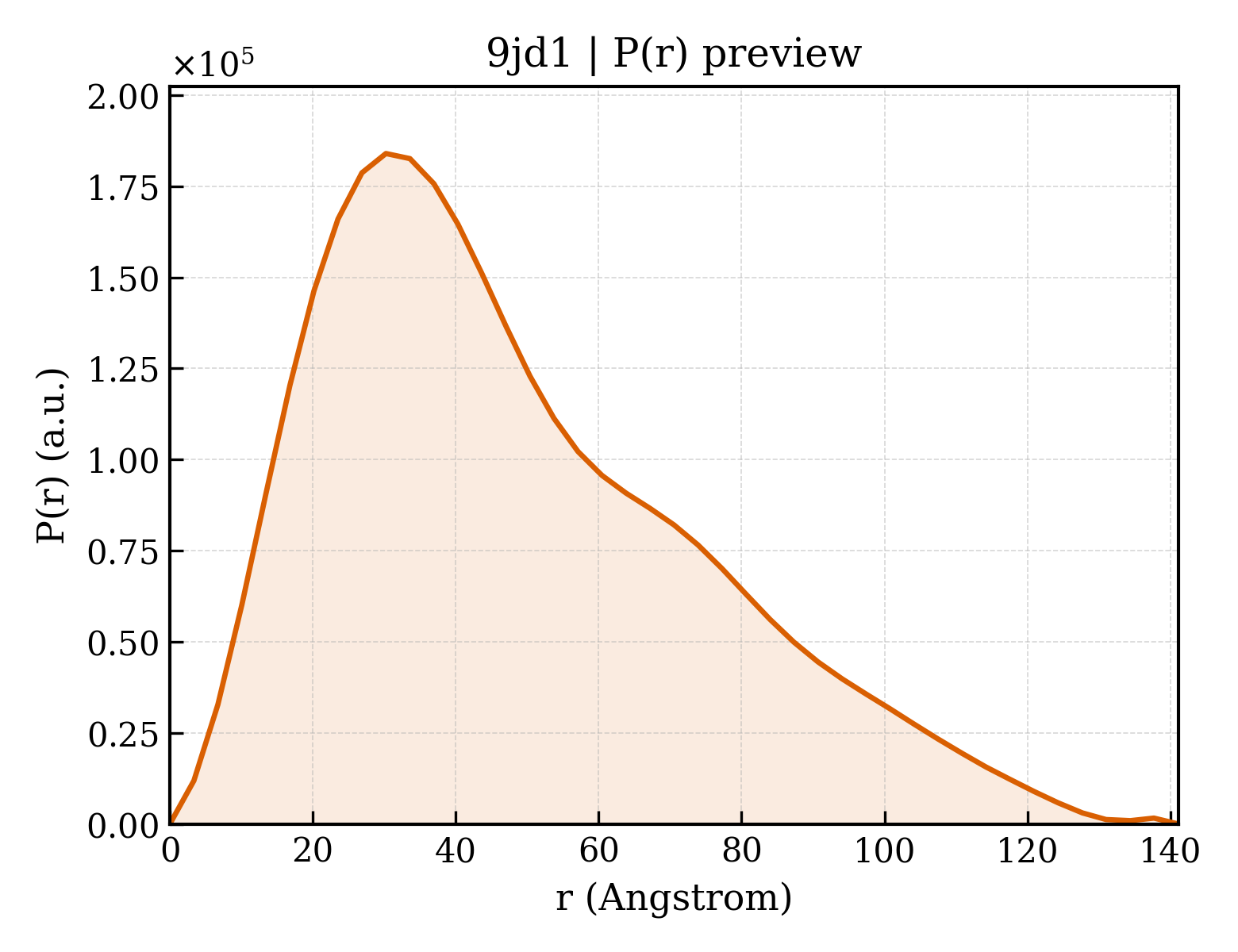

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9jd1
Deposition date deposition_date	2024-08-30
最后修订 last_revision	2025-07-30
Structure title title	Crystal structure of TMPRSS2 in complex with Fab
Keywords keywords	Complex, Antibody, Host protease, ANTIVIRAL PROTEIN; ANTIVIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	37.87 Å
Radius of gyration Rg (electron density) rg_electron	38.66 Å
Forward intensity I(0) i0	129991000.00
Molecular weight molecular_weight	88914.0 kDa
Excluded volume excluded_volume	109870 Å³
Envelope volume envelope_volume	146620 Å³
Hydration-shell volume shell_volume	35169 Å³
Envelope diameter envelope_diameter	149.1 Å
Shell Rg shell_rg	39.04 Å
Envelope Rg envelope_rg	39.42 Å
Shape Rg shape_rg	38.62 Å
Total Rg total_rg	38.83 Å
Total atoms total_atoms	6242
Residues n_residues	812
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	141.1 Å
Rg (real space) rg_real	38.67 Å
Rg uncertainty (real space) rg_real_error	1.80 Å
I(0) (real space) i0_real	1.3000e+08
I(0) uncertainty (real space) i0_real_error	2.7030e+06
Rg (reciprocal space) rg_reciprocal	38.17 Å
I(0) (reciprocal space) i0_reciprocal	129900000.0000
Solution quality estimate total_estimate	0.7277
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	30.2 Å
Skewness Skewness skewness	0.712
Kurtosis Kurtosis kurtosis	-0.124
Angular range angular_range	— – 0.2100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	14030000.0000
Real-space data points n_real_points	43
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.397; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.413; Smooth: 0.853

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Transmembrane protease serine 2 catalytic chain
Molecular weight formula_weight	27856.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D
Atom count atom_count	6955

IVGGESALPGAWPWQVSLHVQNVHVCGGSIITPEWIVTAAHCVEKPLNNPWHWTAFAGILRQSFMFYGAGYQVEKVISHPNYDSKTKNNDIALMKLQKPLTFNDLVKPVCLPNPGMMLQPEQLCWISGWGATEEKGKTSEVLNAAKVLLIETQRCNSRYVYDNLITPAMICAGFLQGNVDSCQGDSGGPLVTSKNNIWWLIGDTSWGSGCAKAYRPGVYGNVMVFTDWIYRQMRADGEFVEHHHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Light chain of Fab
Molecular weight formula_weight	23615.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

NFMLTQPHSMSESPGKTVTISCTRSSGSIASNYVQWYQQRPGSSPTTVIYDDNQRPSGVPDRFSGSIDSSSNSASLTISGLKTEDEADYYCQSYDSSNVIFGGGTKLTVLRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Heavy chain of Fab
Molecular weight formula_weight	25883.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QVQLQESGGDLVQPGGSLRLSCAASGFTFSSSAMTWVRQAPGKGLEWVSDISRNGGSTNYADSVKGRFTISRDNSKNTLYLQMNSLRAEDTAVYYCAREGYDFWSGRERRYYYYGMDVWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCGSHHHHHH

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Transmembrane protease serine 2 non-catalytic chain
Molecular weight formula_weight	16054.7 kDa
Mutation mutation	S250D,S251D,R252D,Q253D, S254K
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGSKCSNSGIECDSSGTCINPSNWCDGVSHCPGGEDENRCVRLYGPNFILQVYSSQRKSWHPVCQDDWNENYGRAACRDMGYKNNFYSSQGIVDDSGSTSFMKLNTSAGNVDIYKKLYHSDACSSKAVVSLRCIACGVNLNDDDDK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 5 Entity 5 branched

Description description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
Molecular weight formula_weight	195.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	667

▶

8. Citations (1)

▶

Unit-cell length a length_a	46.164 Å
Unit-cell length b length_b	89.176 Å
Unit-cell length c length_c	201.533 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	31.430 Å
R factor r_factor	0.1911
R_work r_work	0.1901
R_free r_free	0.2233

fit	/app/data/saxs_computation/jd/9jd1/9jd1.fit
pddf	/app/data/pr_computation/jd/9jd1/9jd1.pr.out
profile	/app/data/saxs_computation/jd/9jd1/9jd1.dat
