Human AP-3 dimer bound to myristoylated Arf1 (Q71L) and LAMP1 cargo on a lipid nanodisc

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AP-3 complex subunit delta-1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	AP-3 complex subunit beta-1 × 2 （O00203） AP-3 complex subunit mu-1 × 2 （Q9Y2T2） AP-3 complex subunit sigma-1 × 2 （Q92572） ADP-ribosylation factor 1 × 4 （P84077） Lysosome-associated membrane glycoprotein 1 × 2 （P11279） MAGNESIUM ION × 4 GUANOSINE-5'-TRIPHOSPHATE × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP3D1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain D； PDBConstruct 1–617； UniProt 1–617 Author chain d； PDBConstruct 1–617； UniProt 1–617

AP-3 complex subunit beta-1

Homo sapiens

UniProt O00203

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	AP-3 complex subunit delta-1 × 2 （O14617） AP-3 complex subunit mu-1 × 2 （Q9Y2T2） AP-3 complex subunit sigma-1 × 2 （Q92572） ADP-ribosylation factor 1 × 4 （P84077） Lysosome-associated membrane glycoprotein 1 × 2 （P11279） MAGNESIUM ION × 4 GUANOSINE-5'-TRIPHOSPHATE × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP3B1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–677； UniProt 1–677 Author chain b； PDBConstruct 1–677； UniProt 1–677

AP-3 complex subunit mu-1

Homo sapiens

UniProt Q9Y2T2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	AP-3 complex subunit delta-1 × 2 （O14617） AP-3 complex subunit beta-1 × 2 （O00203） AP-3 complex subunit sigma-1 × 2 （Q92572） ADP-ribosylation factor 1 × 4 （P84077） Lysosome-associated membrane glycoprotein 1 × 2 （P11279） MAGNESIUM ION × 4 GUANOSINE-5'-TRIPHOSPHATE × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP3M1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain M； PDBConstruct 1–418； UniProt 1–418 Author chain m； PDBConstruct 1–418； UniProt 1–418

AP-3 complex subunit sigma-1

Homo sapiens

UniProt Q92572

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	AP-3 complex subunit delta-1 × 2 （O14617） AP-3 complex subunit beta-1 × 2 （O00203） AP-3 complex subunit mu-1 × 2 （Q9Y2T2） ADP-ribosylation factor 1 × 4 （P84077） Lysosome-associated membrane glycoprotein 1 × 2 （P11279） MAGNESIUM ION × 4 GUANOSINE-5'-TRIPHOSPHATE × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP3S1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain S； PDBConstruct 1–193； UniProt 1–193 Author chain s； PDBConstruct 1–193； UniProt 1–193

ADP-ribosylation factor 1

Homo sapiens

UniProt P84077

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	AP-3 complex subunit delta-1 × 2 （O14617） AP-3 complex subunit beta-1 × 2 （O00203） AP-3 complex subunit mu-1 × 2 （Q9Y2T2） AP-3 complex subunit sigma-1 × 2 （Q92572） Lysosome-associated membrane glycoprotein 1 × 2 （P11279） MAGNESIUM ION × 4 GUANOSINE-5'-TRIPHOSPHATE × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARF1_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain A； PDBConstruct 1–180； UniProt 2–181 Author chain C； PDBConstruct 1–180； UniProt 2–181 Author chain a； PDBConstruct 1–180； UniProt 2–181 Author chain c； PDBConstruct 1–180； UniProt 2–181

Lysosome-associated membrane glycoprotein 1

Homo sapiens

UniProt P11279

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	AP-3 complex subunit delta-1 × 2 （O14617） AP-3 complex subunit beta-1 × 2 （O00203） AP-3 complex subunit mu-1 × 2 （Q9Y2T2） AP-3 complex subunit sigma-1 × 2 （Q92572） ADP-ribosylation factor 1 × 4 （P84077） MAGNESIUM ION × 4 GUANOSINE-5'-TRIPHOSPHATE × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LAMP1_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain Y； PDBConstruct 1–12； UniProt 406–417 Author chain y； PDBConstruct 1–12； UniProt 406–417

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9c59
Deposition date deposition_date	2024-06-06
Structure title title	Human AP-3 dimer bound to myristoylated Arf1 (Q71L) and LAMP1 cargo on a lipid nanodisc
Keywords keywords	Adaptor Protein complex, AP-3, Lysosomal transport, Endosomal transport, Protein trafficking, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9c59__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9c59__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

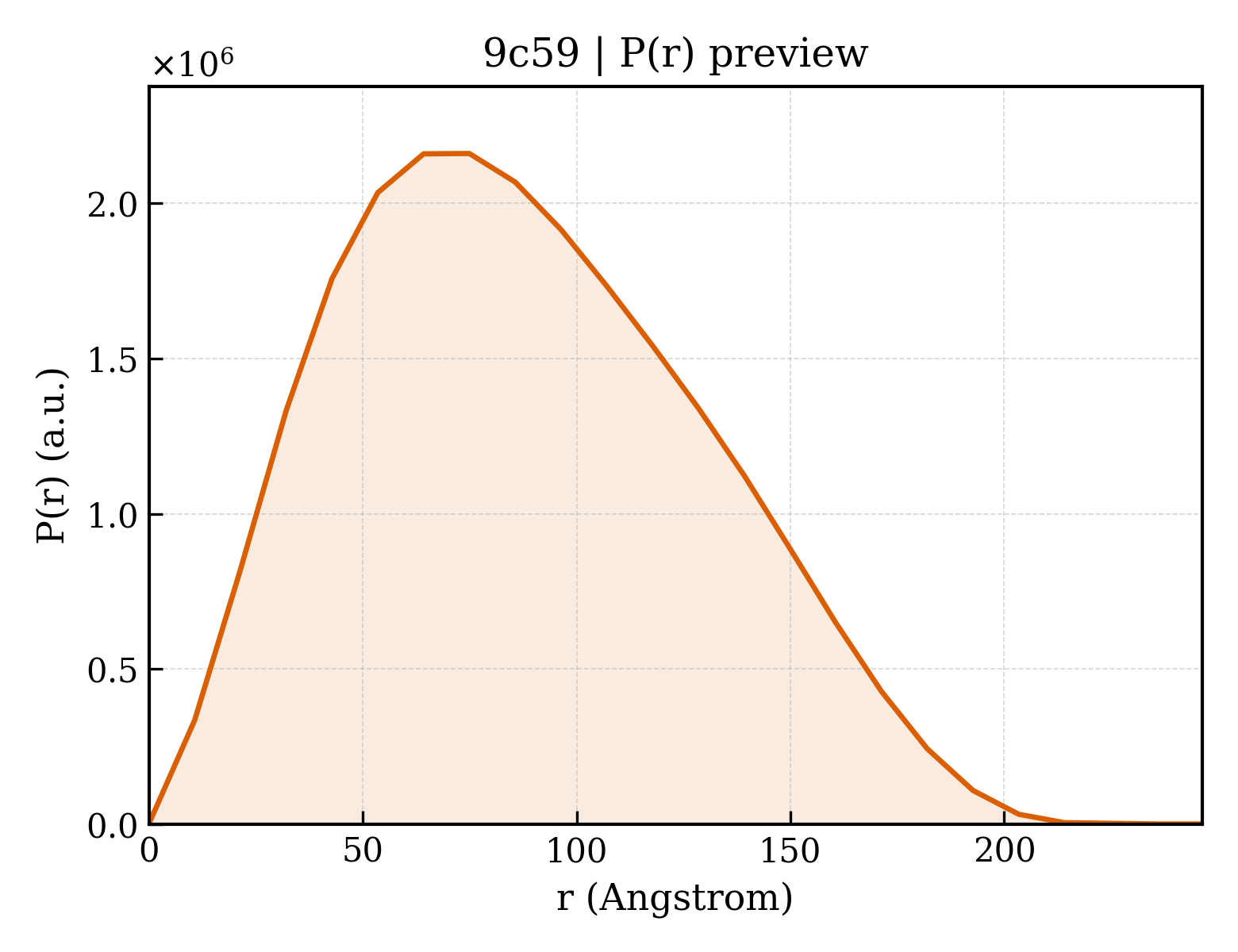

9c59__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	68.38 Å
Rg (electron density)	68.53 Å
Total Rg	68.55 Å
Atom count	33730
Residues	4226
Excluded volume	607620 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9c59__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	AP-3 complex subunit delta-1
Molecular weight formula_weight	69382.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,d
Atom count atom_count	33730

MALKMVKGSIDRMFDKNLQDLVRGIRNHKEDEAKYISQCIDEIKQELKQDNIAVKANAVCKLTYLQMLGYDISWAAFNIIEVMSASKFTFKRIGYLAASQSFHEGTDVIMLTTNQIRKDLSSPSQYDTGVALTGLSCFVTPDLARDLANDIMTLMSHTKPYIRKKAVLIMYKVFLKYPESLRPAFPRLKEKLEDPDPGVQSAAVNVICELARRNPKNYLSLAPLFFKLMTSSTNNWVLIKIIKLFGALTPLEPRLGKKLIEPLTNLIHSTSAMSLLYECVNTVIAVLISLSSGMPNHSASIQLCVQKLRILIEDSDQNLKYLGLLAMSKILKTHPKSVQSHKDLILQCLDDKDESIRLRALDLLYGMVSKKNLMEIVKKLMTHVDKAEGTTYRDELLTKIIDICSQSNYQYITNFEWYISILVELTRLEGTRHGHLIAAQMLDVAIRVKAIRKFAVSQMSALLDSAHLLASSTQRNGICEVLYAAAWICGEFSEHLQEPHHTLEAMLRPRVTTLPGHIQAVYVQNVVKLYASILQQKEQAGEAEGAQAVTQLMVDRLPQFVQSADLEVQERASCILQLVKHIQKLQAKDVPVAEEVSALFAGELNPVAPKAQKKVPV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	AP-3 complex subunit beta-1
Molecular weight formula_weight	76499.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,b

MSSNSFPYNEQSGGGEATELGQEATSTISPSGAFGLFSSDLKKNEDLKQMLESNKDSAKLDAMKRIVGMIAKGKNASELFPAVVKNVASKNIEIKKLVYVYLVRYAEEQQDLALLSISTFQRALKDPNQLIRASALRVLSSIRVPIIVPIMMLAIKEASADLSPYVRKNAAHAIQKLYSLDPEQKEMLIEVIEKLLKDKSTLVAGSVVMAFEEVCPDRIDLIHKNYRKLCNLLVDVEEWGQVVIIHMLTRYARTQFVSPWKEGDELEDNGKNFYESDDDQKEKTDKKKKPYTMDPDHRLLIRNTKPLLQSRNAAVVMAVAQLYWHISPKSEAGIISKSLVRLLRSNREVQYIVLQNIATMSIQRKGMFEPYLKSFYVRSTDPTMIKTLKLEILTNLANEANISTLLREFQTYVKSQDKQFAAATIQTIGRCATNILEVTDTCLNGLVCLLSNRDEIVVAESVVVIKKLLQMQPAQHGEIIKHMAKLLDSITVPVARASILWLIGENCERVPKIAPDVLRKMAKSFTSEDDLVKLQILNLGAKLYLTNSKQTKLLTQYILNLGKYDQNYDIRDRTRFIRQLIVPNVKSGALSKYAKKIFLAQKPAPLLESPFKDRDHFQLGTLSHTLNIKATGYLELSNWPEVAPDPSVRNVEVIELAKEWTPAGKAKQENSAKKFYS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	AP-3 complex subunit mu-1
Molecular weight formula_weight	46990.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,m

MIHSLFLINCSGDIFLEKHWKSVVSQSVCDYFFEAQEKAADVENVPPVISTPHHYLISIYRDKLFFVSVIQTEVPPLFVIEFLHRVADTFQDYFGECSEAAIKDNVVIVYELLEEMLDNGFPLATESNILKELIKPPTILRSVVNSITGSSNVGDTLPTGQLSNIPWRRAGVKYTNNEAYFDVVEEIDAIIDKSGSTVFAEIQGVIDACIKLSGMPDLSLSFMNPRLLDDVSFHPCIRFKRWESERVLSFIPPDGNFRLISYRVSSQNLVAIPVYVKHSISFKENSSCGRFDITIGPKQNMGKTIEGITVTVHMPKVVLNMNLTPTQGSYTFDPVTKVLTWDVGKITPQKLPSLKGLVNLQSGAPKPEENPSLNIQFKIQQLAISGLKVNRLDMYGEKYKPFKGVKYVTKAGKFQVRT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	AP-3 complex subunit sigma-1
Molecular weight formula_weight	21755.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S,s

MIKAILIFNNHGKPRLSKFYQPYSEDTQQQIIRETFHLVSKRDENVCNFLEGGLLIGGSDNKLIYRHYATLYFVFCVDSSESELGILDLIQVFVETLDKCFENVCELDLIFHVDKVHNILAEMVMGGMVLETNMNEIVTQIDAQNKLEKSEAGLAGAPARAVSAVKNMNLPEIPRNINIGDISIKVPNLPSFK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	ADP-ribosylation factor 1
Molecular weight formula_weight	20775.8 kDa
EC 编号 ec_number	3.6.5.2
Mutation mutation	Q71L
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,a,c

GNIFANLFKGLFGKKEMRILMVGLDAAGKTTILYKLKLGEIVTTIPTIGFNVETVEYKNISFTVWDVGGLDKIRPLWRHYFQNTQGLIFVVDSNDRERVNEAREELMRMLAEDELRDAVLLVFANKQDLPNAMNAAEITDKLGLHSLRHRNWYIQATCATSGDGLYEGLDWLSNQLRNQKSL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	Lysosome-associated membrane glycoprotein 1
Molecular weight formula_weight	1377.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Y,y

GRKRSHAGYQTI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 8 Entity 8 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	4

▶

Resolution resolution	4.30 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	122155
