1. Protein Identity and Related Structures Protein Identity & Related Structures

AP-3 complex subunit beta

Pan troglodytes

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	AP-3 complex subunit delta × 2 （A0A8V8TQW4） ADP-ribosylation factor 1 × 6 （P84077） AP-3 complex subunit mu-1 × 2 （A6KKR5） AP-3 complex subunit sigma-1 × 2 （Q92572）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A2I3SW12_PANTR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 13–658； UniProt 3–648 Author chain b； PDBConstruct 13–658； UniProt 3–648

AP-3 complex subunit delta

Homo sapiens

UniProt A0A8V8TQW4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	AP-3 complex subunit beta × 2 （A0A2I3SW12） ADP-ribosylation factor 1 × 6 （P84077） AP-3 complex subunit mu-1 × 2 （A6KKR5） AP-3 complex subunit sigma-1 × 2 （Q92572）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8V8TQW4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–1203； UniProt 1–1203 Author chain d； PDBConstruct 1–1203； UniProt 1–1203

ADP-ribosylation factor 1

Homo sapiens

UniProt P84077

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	AP-3 complex subunit beta × 2 （A0A2I3SW12） AP-3 complex subunit delta × 2 （A0A8V8TQW4） AP-3 complex subunit mu-1 × 2 （A6KKR5） AP-3 complex subunit sigma-1 × 2 （Q92572）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARF1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–181； UniProt 1–181 Author chain F； PDBConstruct 1–181； UniProt 1–181 Author chain G； PDBConstruct 1–181； UniProt 1–181 Author chain H； PDBConstruct 1–181； UniProt 1–181 Author chain I； PDBConstruct 1–181； UniProt 1–181 Author chain J； PDBConstruct 1–181； UniProt 1–181

AP-3 complex subunit mu-1

Rattus norvegicus

UniProt A6KKR5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	AP-3 complex subunit beta × 2 （A0A2I3SW12） AP-3 complex subunit delta × 2 （A0A8V8TQW4） ADP-ribosylation factor 1 × 6 （P84077） AP-3 complex subunit sigma-1 × 2 （Q92572）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A6KKR5_RAT
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain M； PDBConstruct 1–418； UniProt 1–418 Author chain m； PDBConstruct 1–418； UniProt 1–418

AP-3 complex subunit sigma-1

Homo sapiens

UniProt Q92572

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	AP-3 complex subunit beta × 2 （A0A2I3SW12） AP-3 complex subunit delta × 2 （A0A8V8TQW4） ADP-ribosylation factor 1 × 6 （P84077） AP-3 complex subunit mu-1 × 2 （A6KKR5）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP3S1_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain S； PDBConstruct 1–193； UniProt 1–193 Author chain s； PDBConstruct 1–193； UniProt 1–193

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9rtx
Deposition date deposition_date	2025-07-03
Structure title title	Mammalian AP3 complex on tubular membranes (ARF1 centered Beta3-ARF1 dimer-Beta3 interface)
Keywords keywords	Cargo adapter, Coat, trafficking, ENDOCYTOSIS; ENDOCYTOSIS
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9rtx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

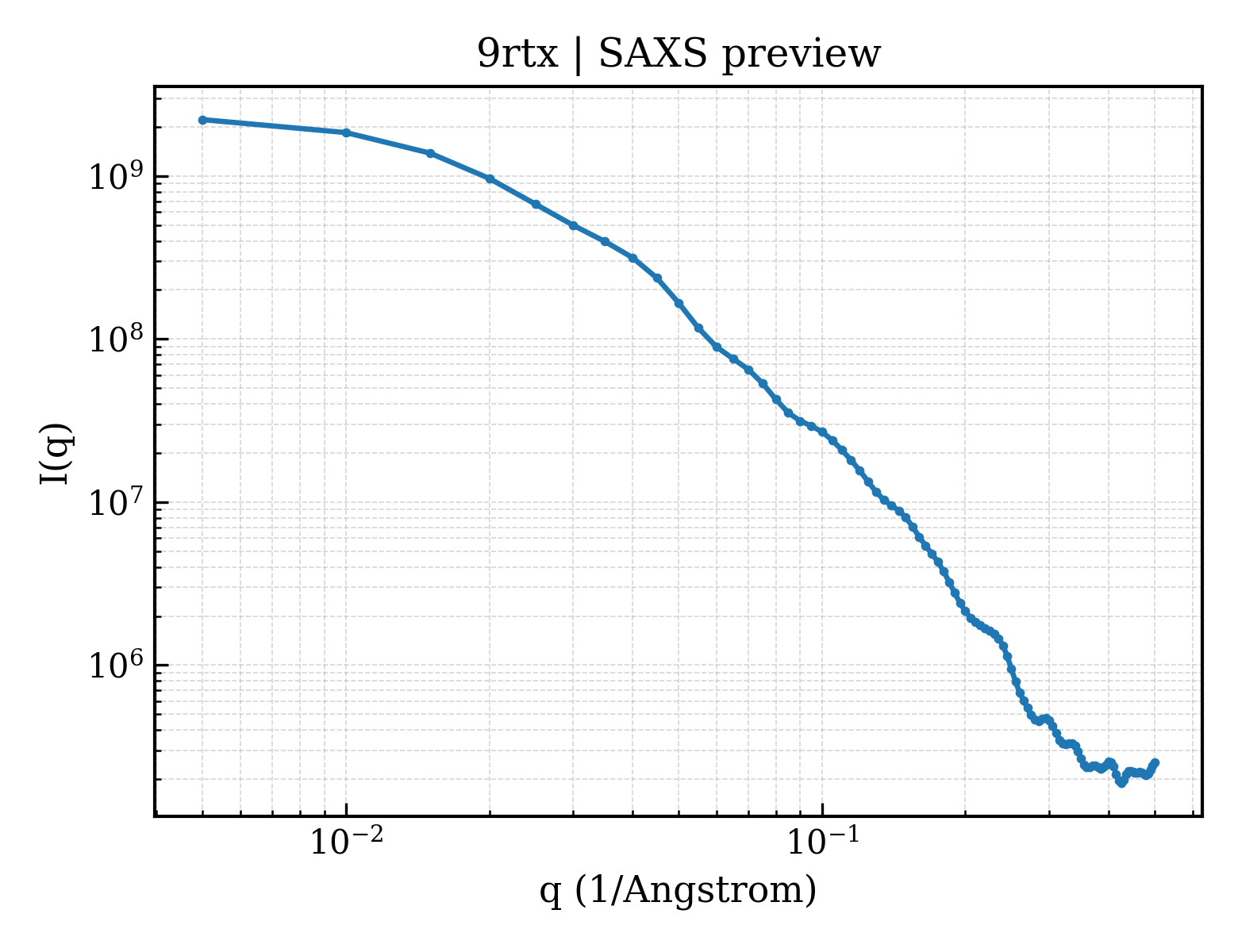

9rtx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9rtx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	85.72 Å
Rg (electron density)	86.83 Å
Total Rg	86.56 Å
Atom count	18000
Residues	4500
Excluded volume	247810 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9rtx__assembly_1__model_1`	14-meric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	AP-3 complex subunit beta
Molecular weight formula_weight	74584.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	b,B
Atom count atom_count	18000

HHHHHHHHHHMASNSFPYNEQSGGGEATELGQEATSTISPSGAFGLFSSDLKKNEDLKQMLESNKDSAKLDAMKRIVGMIAKGKNASELFPAVVKNVASKNIEIKKLVYVYLVRYAEEQQDLALLSISTFQRALKDPNQLIRASALRVLSSIRVPIIVPIMMLAIKEASADLSPYVRKNAAHAIQKLYSLDPEQKEMLIEVIEKLLKDKSTLVAGSVVMAFEEVCPDRIDLIHKNYRKLCNLLVDVEEWGQVVIIHMLTRYARTQFVSPWKEGDELEDNGKNFYESDDDQKEKTDKKKKPYTMDPDHRLLIRNTKPLLQSRNAAVVMAVAQLYWHISPKSEAGIISKSLVRLLRSNREVQYIVLQNIATMSIQRKGMFEPYLKSFYVRSTDPTMIKTLKLEILTNLANEANISTLLREFQTYVKSQDKQFAAATIQTIGRCATNILEVTDTCLNGLVCLLSNRDEIVVAESVVVIKKLLQMQPAQHGEIIKHMAKLLDSITVPVARASILWLIGENCERVPKIAPDVLRKMAKSFTSEDDLVKLQILNLGAKLYLTNSKQTKLLTQYILNLGKYDQNYDIRDRTRFIRQLIVPNEKSGALSKYAKKIFLAQKPAPLLESPFKDRDHFQLGTLSHTLNIKATGYLELSNWPEVAPDPSV

Source Source

Source organism organism	Pan troglodytes
Common name common_name	chimpanzee
NCBI taxonomy ID ncbi_taxonomy_id	9598
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	AP-3 complex subunit delta
Molecular weight formula_weight	135628.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	d,D

MALKMVKGSIDRMFDKNLQDLVRGIRNHKEDEAKYISQCIDEIKQELKQDNIAVKANAVCKLTYLQMLGYDISWAAFNIIEVMSASKFTFKRIGYLAASQSFHEGTNVIMLTTNQIRKDLSSPSQYDTGVALTGLSCFVTPDLARDLANDIMTLMSHTKPYIRKKAVLIMYKVFLKYPESLRPAFPRLKEKLEDPDPGVQSAAVNVICELARRNPKNYLSLAPLFFKLMTSSTNNWVLIKIIKLFGALTPLEPRLGKKLIEPLTNLIHSTSAMSLLYECVNTVIAVLISLSSGMPNHSASIQLCVQKLRILIEDSDQNLKYLGLLAMSKILKTHPKSVQSHKDLILQCLDDKDESIRLRALDLLYGMVSKKNLMEIVKKLMTHVDKAEGTTYRDELLTKIIDICSQSNYQYITNFEWYISILVELTRLEGTRHGHLIAAQMLDVAIRVKAIRKFAVSQMSALLDSAHLLASSTQRNGICEVLYAAAWICGEFSEHLQEPHHTLEAMLRPRVTTLPGHIQAVYVQNVVKLYASILQQKEQAGEAEGAQAVTQLMVDRLPQFVQSADLEVQERASCILQLVKHIQKLQAKDVPVAEEVSALFAGELNPVAPKAQKKVPVPEGLDLDAWINEPLSDSESEDERPRAVFHEEEQRRPKHRPSEADEEELARRREARKQEQANNPFYIKSSPSPQKRYQDTPGVEHIPVVQIDLSVPLKVPGLPMSDQYVKLEEERRHRQKLEKDKRRKKRKEKEKKGKRRHSSLPTESDEDIAPAQQVDIVTEEMPENALPSDEDDKDPNDPYRALDIDLDKPLADSEKLPIQKHRNTETSKSPEKDVPMVEKKSKKPKKKEKKHKEKERDKEKKKEKEKKAEDLDFWLSTTPPPAPAPAPAPVPSTDECEDAKTEAQGEEDDAEGQDQDKKSPKPKKKKHRKEKEERTKGKKKSKKQPPGSEEAAGEPVQNGAPEEEQLPPESSYSLLAENSYVKMTCDIRGSLQEDSQVTVAIVLENRSSSILKGMELSVLDSLNARMARPQGSSVHDGVPVPFQLPPGVSNEAQYVFTIQSIVMAQKLKGTLSFIAKNDEGATHEKLDFRLHFSCSSYLITTPCYSDAFAKLLESGDLSMSSIKVDGIRMSFQNLLAKICFHHHFSVVERVDSCASMYSRSIQGHHVCLLVKKGENSVSVDGKCSDSTLLSNLLEEMKATLAKC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	ADP-ribosylation factor 1
Molecular weight formula_weight	20721.7 kDa
EC 编号 ec_number	3.6.5.2
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,I,E,F,G,H

MGNIFANLFKGLFGKKEMRILMVGLDAAGKTTILYKLKLGEIVTTIPTIGFNVETVEYKNISFTVWDVGGQDKIRPLWRHYFQNTQGLIFVVDSNDRERVNEAREELMRMLAEDELRDAVLLVFANKQDLPNAMNAAEITDKLGLHSLRHRNWYIQATCATSGDGLYEGLDWLSNQLRNQK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	AP-3 complex subunit mu-1
Molecular weight formula_weight	47018.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	m,M

MIHSLFLINCSGDIFLEKHWKSVVSQSVCDYFFEAQEKAADVENVPPVISTPHHYLISIYRDKLFFVSVIQTEVSPLFVIEFLHRVADTFQDYFGECSEAAIKDNVVIVYELLEEMLDNGFPLATESNILKELIKPPTILRSVVNSITGSSNVGDTLPTGQLSNIPWRRAGVKYTNNEAYFDVVEEIDAIIDKSGSTVFAEIQGVIDACIKLSGMPDLSLSFMNPRLLDDVSFHPCIRFKRWESERVLSFIPPDGNFRLISYRVSSQNLVAIPVYVKHNISFKENSSCGRFDITIGPKQNMGKTIEGITVTVHMPKVVLNMNLTPTQGSYTFDPVTKVLAWDVGKITPQKLPSLKGLVNLQSGAPKPEENPNLNIQFKIQQLAISGLKVNRLDMYGEKYKPFKGVKYITKAGKFQVRT

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Spodoptera

Entity 5 Entity 5 polymer

Description description	AP-3 complex subunit sigma-1
Molecular weight formula_weight	21780.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	s,S

MIKAILIFNNYGKPRLSKFYQPYSEDTQQQIIRETFHLVSKRDENVCNFLEGGLLIGGSDNKLIYRHYATLYFVFCVDSSESELGILDLIQVFVETLDKCFENVCELDLIFHVDKVHNILAEMVMGGMVLETNMNEIVTQIDAQNKLEKSEAGLAGAPARAVSAVKNMNLPEIPRNINIGDISIKVPNLPSFK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

▶

Resolution resolution	8.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	5678
