SAXSdb — 9dva

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Actin, alpha skeletal muscle

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Catenin alpha-1 × 2 （P26231） Afadin × 1 （Q9QZQ1） ADENOSINE-5'-DIPHOSPHATE × 5 MAGNESIUM ION × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACTS_CHICK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–375； UniProt 3–377 Author chain B； PDBConstruct 1–375； UniProt 3–377 Author chain C； PDBConstruct 1–375； UniProt 3–377 Author chain D； PDBConstruct 1–375； UniProt 3–377 Author chain E； PDBConstruct 1–375； UniProt 3–377

Catenin alpha-1

Mus musculus

UniProt P26231

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Actin, alpha skeletal muscle × 5 （P68139） Afadin × 1 （Q9QZQ1） ADENOSINE-5'-DIPHOSPHATE × 5 MAGNESIUM ION × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CTNA1_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain F； PDBConstruct 1–906； UniProt 1–906 Author chain H； PDBConstruct 1–906； UniProt 1–906

Afadin

Mus musculus

UniProt Q9QZQ1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Actin, alpha skeletal muscle × 5 （P68139） Catenin alpha-1 × 2 （P26231） ADENOSINE-5'-DIPHOSPHATE × 5 MAGNESIUM ION × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AFAD_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 10–219； UniProt 1393–1602

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9dva
Deposition date deposition_date	2024-10-07
Last revision last_revision	2024-10-30
Structure title title	F-actin binding interface of alpha-E-catenin ABD (cadherin-catenin complex) and afadin
Keywords keywords	Cytoskeleton, cell adhesion, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9dva__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9dva__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

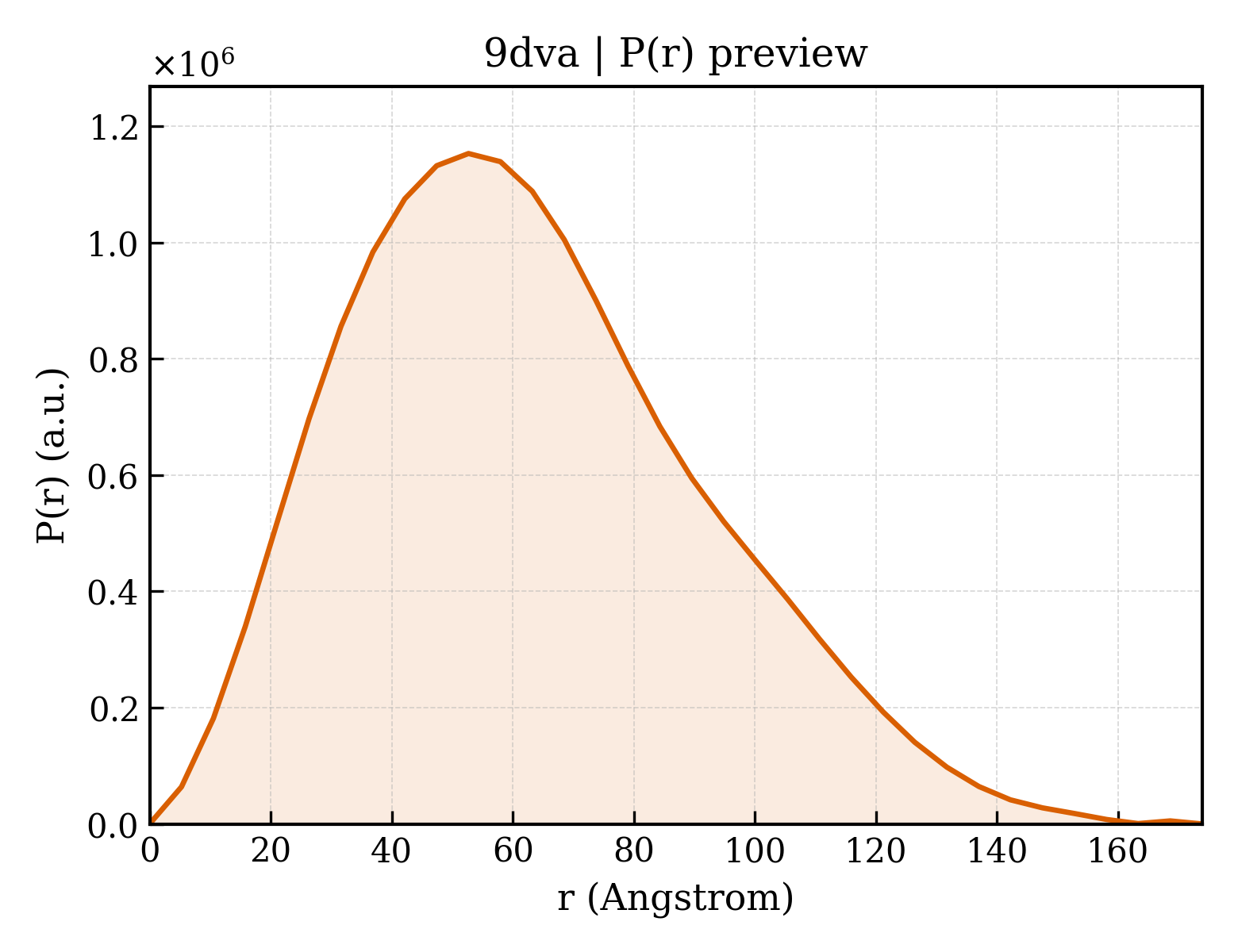

9dva__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	48.28 Å
Rg (electron density)	48.43 Å
Total Rg	48.48 Å
Atom count	18529
Residues	2349
Excluded volume	330280 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9dva__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Actin, alpha skeletal muscle
Molecular weight formula_weight	41875.6 kDa
Source method src_method	nat
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E
Atom count atom_count	18529

DEDETTALVCDNGSGLVKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIITNWDDMEKIWHHTFYNELRVAPEEHPTLLTEAPLNPKANREKMTQIMFETFNVPAMYVAIQAVLSLYASGRTTGIVLDSGDGVTHNVPIYEGYALPHAIMRLDLAGRDLTDYLMKILTERGYSFVTTAEREIVRDIKEKLCYVALDFENEMATAASSSSLEKSYELPDGQVITIGNERFRCPETLFQPSFIGMESAGIHETTYNSIMKCDIDIRKDLYANNVMSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWITKQEYDEAGPSIVHRKCF

Entity 2 Entity 2 polymer

Description description	Catenin alpha-1
Molecular weight formula_weight	100110.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,H

MTAVHAGNINFKWDPKSLEIRTLAVERLLEPLVTQVTTLVNTNSKGPSNKKRGRSKKAHVLAASVEQATENFLEKGDKIAKESQFLKEELVVAVEDVRKQGDLMKSAAGEFADDPCSSVKRGNMVRAARALLSAVTRLLILADMADVYKLLVQLKVVEDGILKLRNAGNEQDLGIQYKALKPEVDKLNIMAAKRQQELKDVGNRDQMAAARGILQKNVPILYTASQACLQHPDVAAYKANRDLIYKQLQQAVTGISNAAQATASDDAAQHQGGSGGELAYALNNFDKQIIVDPLSFSEERFRPSLEERLESIISGAALGADSSCTEDDRRERIVAECNAVRQALQDLLSEYMGNAGRKERSDALNSAIDKMTKKTRDLRRQLRKAVMDHVSDSFLETNVPLLVLIEAAKNGNEKEVKEYAQVFREHANKLIEVANLACSISNNEEGVKLVRMSASQLEALCPQVINAALALAAKPQSKLAQENMDLFKEQWEKQVRVLTDAVDDITSIDDFLAVSENHILEDVNKCVIALQEKDVDGLDRTAGAIRGRAAEVIHVVTSEMDNYEPGVYTEKVLEATKLLSNTVMPRFTEQVEAAVEALSSDPAQPMDENEFIDASRLVYDGIRDIRKAVLMIRTPEELDDSDFETEDFDVRSRTSVQTEDDQLIAGQSARAIMAQLPQEQKAKIAEQVASFQEEKSKLDAEVSKWDDSGNDIIVLAKQMCMIMMEMTDFTRGKGPLKNTSDVISAAKKIAEAGSRMDKLGRTIADHCPDSACKQDLLAYLQRIALYCHQLNICSKVKAEVQNLGGELVVSGVDSAMSLIQAAKNLMNAVVQTVKASYVASTKYQKSQGMASLNLPAVSWKMKAPEKKPLVKREKQDETQTKIKRASQKKHVNPVQALSEFKAMDSI

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Afadin
Molecular weight formula_weight	26150.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

SGTRELRGSANQAGPQSAQVAAAEWKKREEHQRWYEKEKARLEEERERKRREQERKLGQMRSQTLNPASFSPLATQAKPEKPSTLQRPQETVIRELQPQQQPRTIERKDLQYITISKEELSSGDSLSPDPWKRDAREKLEKQQQMHIVDMLSKEIHELQNKVDRTAEESDRLRKLMLEWQFQKRLQESKQKDEDDDEEEDDDVDTMLIMQRLEAERRAR

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	5

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	99745

F-actin binding interface of alpha-E-catenin ABD (cadherin-catenin complex) and afadin
