9dyg

iSAT-PNA-RA20, RA20-B-c class

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Large ribosomal subunit protein bL34

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 13 RNA 1	23S rRNA × 1 Large ribosomal subunit protein uL3 × 1 （P60438） Large ribosomal subunit protein uL4 × 1 （P60723） Large ribosomal subunit protein uL13 × 1 （P0AA12） Large ribosomal subunit protein uL14 × 1 （P0ADY3） Large ribosomal subunit protein bL17 × 1 （P0AG44） Large ribosomal subunit protein bL19 × 1 （P0A7K6） Large ribosomal subunit protein bL20 × 1 （C3T7Q7） Large ribosomal subunit protein bL21 × 1 （C3SSG2） Large ribosomal subunit protein uL22 × 1 （P61175） Large ribosomal subunit protein uL23 × 1 （P0ADZ0） Large ribosomal subunit protein uL24 × 1 （A0A7U9LWC1） Large ribosomal subunit protein uL29 × 1 （C3SQY2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RL34_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain 2； PDBConstruct 1–37； UniProt 9–45

Large ribosomal subunit protein uL3

OrganismNot specified

UniProt P60438

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 13 RNA 1	23S rRNA × 1 Large ribosomal subunit protein bL34 × 1 （P0A7P5） Large ribosomal subunit protein uL4 × 1 （P60723） Large ribosomal subunit protein uL13 × 1 （P0AA12） Large ribosomal subunit protein uL14 × 1 （P0ADY3） Large ribosomal subunit protein bL17 × 1 （P0AG44） Large ribosomal subunit protein bL19 × 1 （P0A7K6） Large ribosomal subunit protein bL20 × 1 （C3T7Q7） Large ribosomal subunit protein bL21 × 1 （C3SSG2） Large ribosomal subunit protein uL22 × 1 （P61175） Large ribosomal subunit protein uL23 × 1 （P0ADZ0） Large ribosomal subunit protein uL24 × 1 （A0A7U9LWC1） Large ribosomal subunit protein uL29 × 1 （C3SQY2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RL3_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–204； UniProt 6–209

Large ribosomal subunit protein uL4

OrganismNot specified

UniProt P60723

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 13 RNA 1	23S rRNA × 1 Large ribosomal subunit protein bL34 × 1 （P0A7P5） Large ribosomal subunit protein uL3 × 1 （P60438） Large ribosomal subunit protein uL13 × 1 （P0AA12） Large ribosomal subunit protein uL14 × 1 （P0ADY3） Large ribosomal subunit protein bL17 × 1 （P0AG44） Large ribosomal subunit protein bL19 × 1 （P0A7K6） Large ribosomal subunit protein bL20 × 1 （C3T7Q7） Large ribosomal subunit protein bL21 × 1 （C3SSG2） Large ribosomal subunit protein uL22 × 1 （P61175） Large ribosomal subunit protein uL23 × 1 （P0ADZ0） Large ribosomal subunit protein uL24 × 1 （A0A7U9LWC1） Large ribosomal subunit protein uL29 × 1 （C3SQY2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RL4_ECOLI
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–201； UniProt 1–201

Large ribosomal subunit protein uL13

OrganismNot specified

UniProt P0AA12

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 13 RNA 1	23S rRNA × 1 Large ribosomal subunit protein bL34 × 1 （P0A7P5） Large ribosomal subunit protein uL3 × 1 （P60438） Large ribosomal subunit protein uL4 × 1 （P60723） Large ribosomal subunit protein uL14 × 1 （P0ADY3） Large ribosomal subunit protein bL17 × 1 （P0AG44） Large ribosomal subunit protein bL19 × 1 （P0A7K6） Large ribosomal subunit protein bL20 × 1 （C3T7Q7） Large ribosomal subunit protein bL21 × 1 （C3SSG2） Large ribosomal subunit protein uL22 × 1 （P61175） Large ribosomal subunit protein uL23 × 1 （P0ADZ0） Large ribosomal subunit protein uL24 × 1 （A0A7U9LWC1） Large ribosomal subunit protein uL29 × 1 （C3SQY2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RL13_ECO57
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain J； PDBConstruct 1–142； UniProt 1–142

Large ribosomal subunit protein uL14

OrganismNot specified

UniProt P0ADY3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 13 RNA 1	23S rRNA × 1 Large ribosomal subunit protein bL34 × 1 （P0A7P5） Large ribosomal subunit protein uL3 × 1 （P60438） Large ribosomal subunit protein uL4 × 1 （P60723） Large ribosomal subunit protein uL13 × 1 （P0AA12） Large ribosomal subunit protein bL17 × 1 （P0AG44） Large ribosomal subunit protein bL19 × 1 （P0A7K6） Large ribosomal subunit protein bL20 × 1 （C3T7Q7） Large ribosomal subunit protein bL21 × 1 （C3SSG2） Large ribosomal subunit protein uL22 × 1 （P61175） Large ribosomal subunit protein uL23 × 1 （P0ADZ0） Large ribosomal subunit protein uL24 × 1 （A0A7U9LWC1） Large ribosomal subunit protein uL29 × 1 （C3SQY2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RL14_ECOLI
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain K； PDBConstruct 1–110； UniProt 9–118

Large ribosomal subunit protein bL17

OrganismNot specified

UniProt P0AG44

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 13 RNA 1	23S rRNA × 1 Large ribosomal subunit protein bL34 × 1 （P0A7P5） Large ribosomal subunit protein uL3 × 1 （P60438） Large ribosomal subunit protein uL4 × 1 （P60723） Large ribosomal subunit protein uL13 × 1 （P0AA12） Large ribosomal subunit protein uL14 × 1 （P0ADY3） Large ribosomal subunit protein bL19 × 1 （P0A7K6） Large ribosomal subunit protein bL20 × 1 （C3T7Q7） Large ribosomal subunit protein bL21 × 1 （C3SSG2） Large ribosomal subunit protein uL22 × 1 （P61175） Large ribosomal subunit protein uL23 × 1 （P0ADZ0） Large ribosomal subunit protein uL24 × 1 （A0A7U9LWC1） Large ribosomal subunit protein uL29 × 1 （C3SQY2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RL17_ECOLI
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain N； PDBConstruct 1–120； UniProt 1–120

Large ribosomal subunit protein bL19

OrganismNot specified

UniProt P0A7K6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 13 RNA 1	23S rRNA × 1 Large ribosomal subunit protein bL34 × 1 （P0A7P5） Large ribosomal subunit protein uL3 × 1 （P60438） Large ribosomal subunit protein uL4 × 1 （P60723） Large ribosomal subunit protein uL13 × 1 （P0AA12） Large ribosomal subunit protein uL14 × 1 （P0ADY3） Large ribosomal subunit protein bL17 × 1 （P0AG44） Large ribosomal subunit protein bL20 × 1 （C3T7Q7） Large ribosomal subunit protein bL21 × 1 （C3SSG2） Large ribosomal subunit protein uL22 × 1 （P61175） Large ribosomal subunit protein uL23 × 1 （P0ADZ0） Large ribosomal subunit protein uL24 × 1 （A0A7U9LWC1） Large ribosomal subunit protein uL29 × 1 （C3SQY2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RL19_ECOLI
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain P； PDBConstruct 1–113； UniProt 3–115

Large ribosomal subunit protein bL20

OrganismNot specified

UniProt C3T7Q7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 13 RNA 1	23S rRNA × 1 Large ribosomal subunit protein bL34 × 1 （P0A7P5） Large ribosomal subunit protein uL3 × 1 （P60438） Large ribosomal subunit protein uL4 × 1 （P60723） Large ribosomal subunit protein uL13 × 1 （P0AA12） Large ribosomal subunit protein uL14 × 1 （P0ADY3） Large ribosomal subunit protein bL17 × 1 （P0AG44） Large ribosomal subunit protein bL19 × 1 （P0A7K6） Large ribosomal subunit protein bL21 × 1 （C3SSG2） Large ribosomal subunit protein uL22 × 1 （P61175） Large ribosomal subunit protein uL23 × 1 （P0ADZ0） Large ribosomal subunit protein uL24 × 1 （A0A7U9LWC1） Large ribosomal subunit protein uL29 × 1 （C3SQY2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C3T7Q7_ECOLX
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain Q； PDBConstruct 1–117； UniProt 2–118

Large ribosomal subunit protein bL21

OrganismNot specified

UniProt C3SSG2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 13 RNA 1	23S rRNA × 1 Large ribosomal subunit protein bL34 × 1 （P0A7P5） Large ribosomal subunit protein uL3 × 1 （P60438） Large ribosomal subunit protein uL4 × 1 （P60723） Large ribosomal subunit protein uL13 × 1 （P0AA12） Large ribosomal subunit protein uL14 × 1 （P0ADY3） Large ribosomal subunit protein bL17 × 1 （P0AG44） Large ribosomal subunit protein bL19 × 1 （P0A7K6） Large ribosomal subunit protein bL20 × 1 （C3T7Q7） Large ribosomal subunit protein uL22 × 1 （P61175） Large ribosomal subunit protein uL23 × 1 （P0ADZ0） Large ribosomal subunit protein uL24 × 1 （A0A7U9LWC1） Large ribosomal subunit protein uL29 × 1 （C3SQY2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C3SSG2_ECOLX
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain R； PDBConstruct 1–103； UniProt 1–103

Large ribosomal subunit protein uL22

OrganismNot specified

UniProt P61175

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 13 RNA 1	23S rRNA × 1 Large ribosomal subunit protein bL34 × 1 （P0A7P5） Large ribosomal subunit protein uL3 × 1 （P60438） Large ribosomal subunit protein uL4 × 1 （P60723） Large ribosomal subunit protein uL13 × 1 （P0AA12） Large ribosomal subunit protein uL14 × 1 （P0ADY3） Large ribosomal subunit protein bL17 × 1 （P0AG44） Large ribosomal subunit protein bL19 × 1 （P0A7K6） Large ribosomal subunit protein bL20 × 1 （C3T7Q7） Large ribosomal subunit protein bL21 × 1 （C3SSG2） Large ribosomal subunit protein uL23 × 1 （P0ADZ0） Large ribosomal subunit protein uL24 × 1 （A0A7U9LWC1） Large ribosomal subunit protein uL29 × 1 （C3SQY2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RL22_ECOLI
Isoform	—
PDB entities	11
Chains and sequence ranges	Author chain S； PDBConstruct 1–110； UniProt 1–110

Large ribosomal subunit protein uL23

OrganismNot specified

UniProt P0ADZ0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 13 RNA 1	23S rRNA × 1 Large ribosomal subunit protein bL34 × 1 （P0A7P5） Large ribosomal subunit protein uL3 × 1 （P60438） Large ribosomal subunit protein uL4 × 1 （P60723） Large ribosomal subunit protein uL13 × 1 （P0AA12） Large ribosomal subunit protein uL14 × 1 （P0ADY3） Large ribosomal subunit protein bL17 × 1 （P0AG44） Large ribosomal subunit protein bL19 × 1 （P0A7K6） Large ribosomal subunit protein bL20 × 1 （C3T7Q7） Large ribosomal subunit protein bL21 × 1 （C3SSG2） Large ribosomal subunit protein uL22 × 1 （P61175） Large ribosomal subunit protein uL24 × 1 （A0A7U9LWC1） Large ribosomal subunit protein uL29 × 1 （C3SQY2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RL23_ECOLI
Isoform	—
PDB entities	12
Chains and sequence ranges	Author chain T； PDBConstruct 1–93； UniProt 1–93

Large ribosomal subunit protein uL24

OrganismNot specified

UniProt A0A7U9LWC1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 13 RNA 1	23S rRNA × 1 Large ribosomal subunit protein bL34 × 1 （P0A7P5） Large ribosomal subunit protein uL3 × 1 （P60438） Large ribosomal subunit protein uL4 × 1 （P60723） Large ribosomal subunit protein uL13 × 1 （P0AA12） Large ribosomal subunit protein uL14 × 1 （P0ADY3） Large ribosomal subunit protein bL17 × 1 （P0AG44） Large ribosomal subunit protein bL19 × 1 （P0A7K6） Large ribosomal subunit protein bL20 × 1 （C3T7Q7） Large ribosomal subunit protein bL21 × 1 （C3SSG2） Large ribosomal subunit protein uL22 × 1 （P61175） Large ribosomal subunit protein uL23 × 1 （P0ADZ0） Large ribosomal subunit protein uL29 × 1 （C3SQY2）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A7U9LWC1_ECOLX
Isoform	—
PDB entities	13
Chains and sequence ranges	Author chain U； PDBConstruct 1–102； UniProt 2–103

Large ribosomal subunit protein uL29

OrganismNot specified

UniProt C3SQY2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 13 RNA 1	23S rRNA × 1 Large ribosomal subunit protein bL34 × 1 （P0A7P5） Large ribosomal subunit protein uL3 × 1 （P60438） Large ribosomal subunit protein uL4 × 1 （P60723） Large ribosomal subunit protein uL13 × 1 （P0AA12） Large ribosomal subunit protein uL14 × 1 （P0ADY3） Large ribosomal subunit protein bL17 × 1 （P0AG44） Large ribosomal subunit protein bL19 × 1 （P0A7K6） Large ribosomal subunit protein bL20 × 1 （C3T7Q7） Large ribosomal subunit protein bL21 × 1 （C3SSG2） Large ribosomal subunit protein uL22 × 1 （P61175） Large ribosomal subunit protein uL23 × 1 （P0ADZ0） Large ribosomal subunit protein uL24 × 1 （A0A7U9LWC1）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C3SQY2_ECOLX
Isoform	—
PDB entities	14
Chains and sequence ranges	Author chain Y； PDBConstruct 1–63； UniProt 1–63

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9dyg
Deposition date deposition_date	2024-10-14
Last revision last_revision	2024-11-13
Structure title title	iSAT-PNA-RA20, RA20-B-c class
Keywords keywords	50S subunit, assembly intermediate, RNA-protein complex, ribosome; RIBOSOME
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9dyg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9dyg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

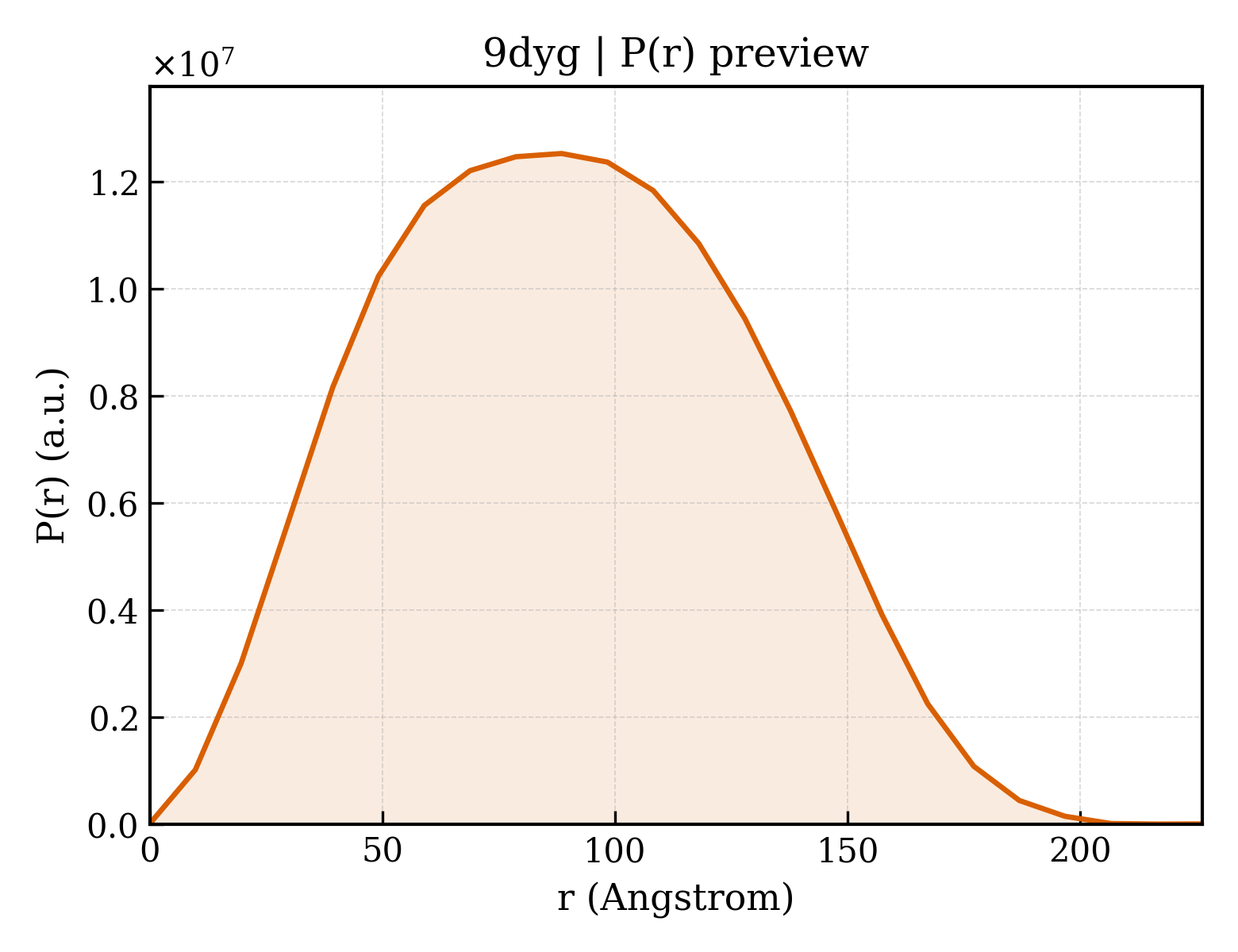

9dyg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	69.42 Å
Rg (electron density)	69.29 Å
Total Rg	69.32 Å
Atom count	42760
Residues	3069
Excluded volume	601010 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9dyg__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (14)

Entity 1 Entity 1 polymer

Description description	23S rRNA
Molecular weight formula_weight	565405.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	CA
Atom count atom_count	42760

UAAGCGACUAAGCGUACACGGUGGAUGCCCUGGCAGUCAGAGGCGAUGAAGGACGUGCUAAUCUGCGAUAAGCGUCGGUAAGGUGAUAUGAACCGUUAUAACCGGCGAUUUCCGAAUGGGGAAACCCAGUGUGUUUCGACACACUAUCAUUAACUGAAUCCAUAGGUUAAUGAGGCGAACCGGGGGAACUGAAACAUCUAAGUACCCCGAGGAAAAGAAAUCAACCGAGAUUCCCCCAGUAGCGGCGAGCGAACGGGGAGCAGCCCAGAGCCUGAAUCAGUGUGUGUGUUAGUGGAAGCGUCUGGAAAGGCGCGCGAUACAGGGUGACAGCCCCGUACACAAAAAUGCACAUGCUGUGAGCUCGAUGAGUAGGGCGGGAGGUAUCCUGUCUGAAUAUGGGGGGACCAUCCUCCAAGGCUAAAUACUCCUGACUGACCGAUAGUGAACCAGUACCGUGAGGGAAAGGCGAAAAGAACCCCGGCGAGGGGAGUGAAAAAGAACCUGAAACCGUGUACGUACAAGCAGUGGGAGCACGCUUAGGCGUGUGACUGCGUUAAUGGGUCAGCGACUUAUAUUCUGUAGCAAGGUUAACCGAAUAGGGGAGCCGAAGGGAAACCGAGUCUUAACUGGGCGUUAAGUUGCAGGGUAUAGACCCGAAACCCGGUGAUCUAGCCUCAAACCGGGAGAUAGCUGGUUCUCCCCGAAAGCUAUUUAGGUAGCGCCUCGUGAAUUCAUCGAAUGUUAUCACGGGAGACACACGGCGGGUGCUAACGUCCGUCGUGAAGAGGGAAACAACCCAGACCGCCAGCUAAGGUCCCAAAGUCAUGGUUAAGUGGGAAACGGGGCUAAACCAUGCACCGAAGCUGCGGCAGCGACGCUUAUGCGUUGUUGGGUAGGGGAGCGUUCUGUAAGCCUGCGAAGGUGUGCUGUGAGGCAUGCUGGAGGUAUCAGAAGUGCGAAUGCUGACAUAAGUAACGAUAAAGCGGGUGAAAAGCCCGCUCGCCGGAAGACCAAGGGUUCCUGUCCAACGUUAAUCGGGGCAGGGUGAGUCGACCCCUAAGGCGAGGCCGAAAGGCGUAGUCGAUGGGAAACAGGUUAAUAUUCCUGUACUUGGUGUUACUGCGAAGGGGGGACGGAGAAGGCUAUGUUGGCCGGGCGACGGUUGUCCCGGUUUAAGCGUGUAGGCUGGUUUUCCAGGCAAAUCCGGAAAAUCAAGGCUGAGGCGUGAUGACGAGGCACUACGGUGCUGAAGCAACAAAUGCCCUGCUUCCAGGAAAAGCCUCUAAGCAUCAGGUAACAUCAAAUCGUACCCCAAACCGACACAGGUGGUCAGGUAGAGAAUACCAAGGCGCUUGAGAGAACUCGGGUGAAGGAACUAGGCAAAAUGGUGCCGUGCACGCUGAUAUGUAGGUGAGGUCCCUCGCGGAUGGAGCUGAAAUCAGUCGAAGAUACCAGCUGGCUGAUGGCCAGGCUGUCUCCACCCGAGACUCAGUGCUGGAGAACUGAGGGGGGCUGCUCCUAGUACGAGAGGACCGGAGUGGACGCAUCACUGGUGUUCGGGUUGUCAUGCCAAUGGCACUGCCCGGUAGCUAAAUGCGGAAGAGAUAAGGAAACUUGCCCCGAGAUGAGUUCUCCCUGACCCUUUAAGGGUCCUGAAGGAACGUUGAAGACGACGACGUUGAUAGGCCGGGUGUGUAAGCGCAGCGAUGCGUUGAGCUAACCGGUACUAAUGAACCGUGAGG

Entity 2 Entity 2 polymer

Description description	Large ribosomal subunit protein bL34
Molecular weight formula_weight	4290.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	2

VLKRNRSHGFRARMATKNGRQVLARRRAKGRARLTVS

Entity 3 Entity 3 polymer

Description description	Large ribosomal subunit protein uL3
Molecular weight formula_weight	21763.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

GKKVGMTRIFTEDGVSIPVTVIEVEANRVTQVKDLANDGYRAIQVTTGAKKANRVTKPEAGHFAKAGVEAGRGLWEFRLAEGEEFTVGQSISVELFADVKKVDVTGTSKGKGFAGTVKRWNFRTQDATHGNSLSHRVPGSIGQNQTPGKVFKGKKMAGQMGNERVTVQSLDVVRVDAERNLLLVKGAVPGATGSDLIVKPAVKA

Entity 4 Entity 4 polymer

Description description	Large ribosomal subunit protein uL4
Molecular weight formula_weight	22121.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MELVLKDAQSALTVSETTFGRDFNEALVHQVVVAYAAGARQGTRAQKTRAEVTGSGKKPWRQKGTGRARSGSIKSPIWRSGGVTFAARPQDHSQKVNKKMYRGALKSILSELVRQDRLIVVEKFSVEAPKTKLLAQKLKDMALEDVLIITGELDENLFLAARNLHKVDVRDATGIDPVSLIAFDKVVMTADAVKQVEEMLA

Entity 5 Entity 5 polymer

Description description	Large ribosomal subunit protein uL13
Molecular weight formula_weight	16050.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

MKTFTAKPETVKRDWYVVDATGKTLGRLATELARRLRGKHKAEYTPHVDTGDYIIVLNADKVAVTGNKRTDKVYYHHTGHIGGIKQATFEEMIARRPERVIEIAVKGMLPKGPLGRAMFRKLKVYAGNEHNHAAQQPQVLDI

Entity 6 Entity 6 polymer

Description description	Large ribosomal subunit protein uL14
Molecular weight formula_weight	12080.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

NVADNSGARRVMCIKVLGGSHRRYAGVGDIIKITIKEAIPRGKVKKGDVLKAVVVRTKKGVRRPDGSVIRFDGNACVLLNNNSEQPIGTRIFGPVTRELRSEKFMKIISL

Entity 7 Entity 7 polymer

Description description	Large ribosomal subunit protein bL17
Molecular weight formula_weight	13721.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

MRHRKSGRQLNRNSSHRQAMFRNMAGSLVRHEIIKTTLPKAKELRRVVEPLITLAKTDSVANRRLAFARTRDNEIVAKLFNELGPRFASRAGGYTRILKCGFRAGDNAPMAYIELVDRSE

Entity 8 Entity 8 polymer

Description description	Large ribosomal subunit protein bL19
Molecular weight formula_weight	12941.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

NIIKQLEQEQMKQDVPSFRPGDTVEVKVWVVEGSKKRLQAFEGVVIAIRNRGLHSAFTVRKISNGEGVERVFQTHSPVVDSISVKRRGAVRKAKLYYLRERTGKAARIKERLN

Entity 9 Entity 9 polymer

Description description	Large ribosomal subunit protein bL20
Molecular weight formula_weight	13396.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q

ARVKRGVIARARHKKILKQAKGYYGARSRVYRVAFQAVIKAGQYAYRDRRQRKRQFRQLWIARINAAARQNGISYSKFINGLKKASVEIDRKILADIAVFDKVAFTALVEKAKAALA

Entity 10 Entity 10 polymer

Description description	Large ribosomal subunit protein bL21
Molecular weight formula_weight	11586.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

MYAVFQSGGKQHRVSEGQTVRLEKLDIATGETVEFAEVLMIANGEEVKIGVPFVDGGVIKAEVVAHGRGEKVKIVKFRRRKHYRKQQGHRQWFTDVKITGISA

Entity 11 Entity 11 polymer

Description description	Large ribosomal subunit protein uL22
Molecular weight formula_weight	12253.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

METIAKHRHARSSAQKVRLVADLIRGKKVSQALDILTYTNKKAAVLVKKVLESAIANAEHNDGADIDDLKVTKIFVDEGPSMKRIMPRAKGRADRILKRTSHITVVVSDR

Entity 12 Entity 12 polymer

Description description	Large ribosomal subunit protein uL23
Molecular weight formula_weight	10546.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	T

MIREERLLKVLRAPHVSEKASTAMEKSNTIVLKVAKDATKAEIKAAVQKLFEVEVEVVNTLVVKGKVKRHGQRIGRRSDWKKAYVTLKEGQNL

Entity 13 Entity 13 polymer

Description description	Large ribosomal subunit protein uL24
Molecular weight formula_weight	11078.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	U

AAKIRRDDEVIVLTGKDKGKRGKVKNVLSSGKVIVEGINLVKKHQKPVPALNQPGGIVEKEAAIQVSNVAIFNAATGKADRVGFRFEDGKKVRFFKSNSETI

Entity 14 Entity 14 polymer

Description description	Large ribosomal subunit protein uL29
Molecular weight formula_weight	7286.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Y

MKAKELREKSVEELNTELLNLLREQFNLRMQAASGQLQQSHLLKQVRRDVARVKTLLNEKAGA

▶

Resolution resolution	5.27 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	9000

iSAT-PNA-RA20, RA20-B-c class

1. Protein Identity and Related Structures Protein Identity & Related Structures

Large ribosomal subunit protein bL34

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Large ribosomal subunit protein uL3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Large ribosomal subunit protein uL4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Large ribosomal subunit protein uL13

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Large ribosomal subunit protein uL14

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Large ribosomal subunit protein bL17

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Large ribosomal subunit protein bL19

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Large ribosomal subunit protein bL20

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Large ribosomal subunit protein bL21

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Large ribosomal subunit protein uL22

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer
