Structure of a de novo designed interleukin-21 mimetic complex with IL-21R and IL-2Rg

Method: X-RAY DIFFRACTION D_max: 205.3 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-21 receptor

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 20–228	Fragment：extracellular domain	21h10 × 1 Cytokine receptor common subunit gamma × 1 （P31785） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.2M Potassium thiocyanate, 0.1M Bis-Tris propane, pH 6.5, 20% w/v PEG 3350	Resolution 2.28 Å R-free 0.242
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain E； UniProt 20–228	Fragment：extracellular domain	21h10 × 1 Cytokine receptor common subunit gamma × 1 （P31785） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.2M Potassium thiocyanate, 0.1M Bis-Tris propane, pH 6.5, 20% w/v PEG 3350	Resolution 2.28 Å R-free 0.242
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 20–228	Fragment：extracellular domain	21h10 × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.2M Potassium thiocyanate, 0.1M Bis-Tris propane, pH 6.5, 20% w/v PEG 3350	Resolution 2.28 Å R-free 0.242
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain J； UniProt 20–228	Fragment：extracellular domain	21h10 × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.2M Potassium thiocyanate, 0.1M Bis-Tris propane, pH 6.5, 20% w/v PEG 3350	Resolution 2.28 Å R-free 0.242

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9E2T	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3TGX IL-21:IL21R complex Deposited 2011-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 20–232（213 aa） Fragment：Interleukin 21 receptor extracellular domain	Mutation：N78Q, N85Q, N106D, N116Q	MAN alpha-D-mannopyranose × 1 NI NICKEL (II) ION × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291.3 K；1,8-1,9 M di-Ammonium sulphate and 0.1 M Sodium acetate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291.3K	Resolution 2.80 Å R-free 0.273
3TGX IL-21:IL21R complex Deposited 2011-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 20–232（213 aa） Fragment：Interleukin 21 receptor extracellular domain	Mutation：N78Q, N85Q, N106D, N116Q	MAN alpha-D-mannopyranose × 1 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291.3 K；1,8-1,9 M di-Ammonium sulphate and 0.1 M Sodium acetate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291.3K	Resolution 2.80 Å R-free 0.273
3TGX IL-21:IL21R complex Deposited 2011-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 20–232（213 aa） Fragment：Interleukin 21 receptor extracellular domain	Mutation：N78Q, N85Q, N106D, N116Q	MAN alpha-D-mannopyranose × 1 NI NICKEL (II) ION × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291.3 K；1,8-1,9 M di-Ammonium sulphate and 0.1 M Sodium acetate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291.3K	Resolution 2.80 Å R-free 0.273
3TGX IL-21:IL21R complex Deposited 2011-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 20–232（213 aa） Fragment：Interleukin 21 receptor extracellular domain	Mutation：N78Q, N85Q, N106D, N116Q	MAN alpha-D-mannopyranose × 1 NI NICKEL (II) ION × 1 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291.3 K；1,8-1,9 M di-Ammonium sulphate and 0.1 M Sodium acetate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291.3K	Resolution 2.80 Å R-free 0.273
3TGX IL-21:IL21R complex Deposited 2011-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 20–232（213 aa） Fragment：Interleukin 21 receptor extracellular domain	Mutation：N78Q, N85Q, N106D, N116Q	MAN alpha-D-mannopyranose × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291.3 K；1,8-1,9 M di-Ammonium sulphate and 0.1 M Sodium acetate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291.3K	Resolution 2.80 Å R-free 0.273
3TGX IL-21:IL21R complex Deposited 2011-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 20–232（213 aa） Fragment：Interleukin 21 receptor extracellular domain	Mutation：N78Q, N85Q, N106D, N116Q	MAN alpha-D-mannopyranose × 1 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291.3 K；1,8-1,9 M di-Ammonium sulphate and 0.1 M Sodium acetate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291.3K	Resolution 2.80 Å R-free 0.273
3TGX IL-21:IL21R complex Deposited 2011-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 20–232（213 aa） Fragment：Interleukin 21 receptor extracellular domain	Mutation：N78Q, N85Q, N106D, N116Q	MAN alpha-D-mannopyranose × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291.3 K；1,8-1,9 M di-Ammonium sulphate and 0.1 M Sodium acetate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291.3K	Resolution 2.80 Å R-free 0.273
3TGX IL-21:IL21R complex Deposited 2011-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain O 20–232（213 aa） Fragment：Interleukin 21 receptor extracellular domain	Mutation：N78Q, N85Q, N106D, N116Q	MAN alpha-D-mannopyranose × 1 NI NICKEL (II) ION × 1 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；291.3 K；1,8-1,9 M di-Ammonium sulphate and 0.1 M Sodium acetate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 291.3K	Resolution 2.80 Å R-free 0.273
4NZD Interleukin 21 receptor Deposited 2013-12-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 20–232（213 aa）	Not recorded	MAN alpha-D-mannopyranose × 1 NA SODIUM ION × 3 CL CHLORIDE ION × 4 TLA L(+)-TARTARIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；278 K；5 mg/ml Protein in 10 mM Hepes, 150 mM NaCl, pH7.5 Crystalized in 1M Potassium sodium tartrate tetrahydrate, 3% W/V Peg5000 and 0.1 M tris Ph 8.5. Drops were 1:1, VAPOR DIFFUSION, SITTING DROP, temperature 278K	Resolution 2.75 Å R-free 0.275
4NZD Interleukin 21 receptor Deposited 2013-12-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 20–232（213 aa）	Not recorded	MAN alpha-D-mannopyranose × 1 CL CHLORIDE ION × 5 TLA L(+)-TARTARIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；278 K；5 mg/ml Protein in 10 mM Hepes, 150 mM NaCl, pH7.5 Crystalized in 1M Potassium sodium tartrate tetrahydrate, 3% W/V Peg5000 and 0.1 M tris Ph 8.5. Drops were 1:1, VAPOR DIFFUSION, SITTING DROP, temperature 278K	Resolution 2.75 Å R-free 0.275
4NZD Interleukin 21 receptor Deposited 2013-12-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain C 20–232（213 aa）	Not recorded	MAN alpha-D-mannopyranose × 1 NA SODIUM ION × 2 CL CHLORIDE ION × 2 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；278 K；5 mg/ml Protein in 10 mM Hepes, 150 mM NaCl, pH7.5 Crystalized in 1M Potassium sodium tartrate tetrahydrate, 3% W/V Peg5000 and 0.1 M tris Ph 8.5. Drops were 1:1, VAPOR DIFFUSION, SITTING DROP, temperature 278K	Resolution 2.75 Å R-free 0.275
4NZD Interleukin 21 receptor Deposited 2013-12-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 20–232（213 aa） Chain B 20–232（213 aa） Chain C 20–232（213 aa）	Not recorded	MAN alpha-D-mannopyranose × 6 NA SODIUM ION × 10 CL CHLORIDE ION × 22 TLA L(+)-TARTARIC ACID × 6 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；278 K；5 mg/ml Protein in 10 mM Hepes, 150 mM NaCl, pH7.5 Crystalized in 1M Potassium sodium tartrate tetrahydrate, 3% W/V Peg5000 and 0.1 M tris Ph 8.5. Drops were 1:1, VAPOR DIFFUSION, SITTING DROP, temperature 278K	Resolution 2.75 Å R-free 0.275
6PLH FAB fragment complexed with C-mannosylated tryptophan peptide Deposited 2019-06-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 202–232（31 aa） Fragment：UNP Residues 202-232	Not recorded	PO4 PHOSPHATE ION × 1 MAN alpha-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；25% (w/v) polyethylene glycol 1500, 0.1 M succinate-phosphate-glycine, pH 7.0	Resolution 1.60 Å R-free 0.221
7KQ7 Crystal structure of IL21R in complex with an antibody Fab fragment Deposited 2020-11-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 20–233（214 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；300 K；10% PEG MME 5000 and 0.1M MES, pH 6.5	Resolution 2.20 Å R-free 0.240
8ENT Interleukin-21 signaling complex with IL-21R and IL-2Rg Deposited 2022-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 20–229（210 aa）	Mutation：N78Q, N85Q, N106D, N116Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1M Tris pH 8, 20% PEG 6000	Resolution 2.83 Å R-free 0.300
8ENT Interleukin-21 signaling complex with IL-21R and IL-2Rg Deposited 2022-09-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 20–229（210 aa）	Mutation：N78Q, N85Q, N106D, N116Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1M Tris pH 8, 20% PEG 6000	Resolution 2.83 Å R-free 0.300
8ENT Interleukin-21 signaling complex with IL-21R and IL-2Rg Deposited 2022-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 20–229（210 aa）	Mutation：N78Q, N85Q, N106D, N116Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1M Tris pH 8, 20% PEG 6000	Resolution 2.83 Å R-free 0.300
8ENT Interleukin-21 signaling complex with IL-21R and IL-2Rg Deposited 2022-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 20–229（210 aa）	Mutation：N78Q, N85Q, N106D, N116Q	EDO 1,2-ETHANEDIOL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1M Tris pH 8, 20% PEG 6000	Resolution 2.83 Å R-free 0.300

5 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL21R_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 4–212； UniProt 20–228 Author chain E； PDBConstruct 4–212； UniProt 20–228 Author chain H； PDBConstruct 4–212； UniProt 20–228 Author chain J； PDBConstruct 4–212； UniProt 20–228

Cytokine receptor common subunit gamma

Homo sapiens

UniProt P31785

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 55–254	Fragment：residues 55-254	21h10 × 1 Interleukin-21 receptor × 1 （Q9HBE5） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.2M Potassium thiocyanate, 0.1M Bis-Tris propane, pH 6.5, 20% w/v PEG 3350	Resolution 2.28 Å R-free 0.242
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain F； UniProt 55–254	Fragment：residues 55-254	21h10 × 1 Interleukin-21 receptor × 1 （Q9HBE5） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.2M Potassium thiocyanate, 0.1M Bis-Tris propane, pH 6.5, 20% w/v PEG 3350	Resolution 2.28 Å R-free 0.242

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9E2T	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2B5I cytokine receptor complex Deposited 2005-09-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 56–254（199 aa）	Mutation：N53Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.1；293 K；29% Pentaerythritol Ethoxylate 15/4; 50 mM Ammonium Sulfate; 50 mM Bis Tris, pH 6.1, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.269
2ERJ Crystal structure of the heterotrimeric interleukin-2 receptor in complex with interleukin-2 Deposited 2005-10-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 23–255（233 aa）	Mutation：N58Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.1；295.5 K；MPEG 550, sodium acetate, sodium citrate, phenol, pH 5.1, VAPOR DIFFUSION, SITTING DROP, temperature 295.5K	Resolution 3.00 Å R-free 0.263
2ERJ Crystal structure of the heterotrimeric interleukin-2 receptor in complex with interleukin-2 Deposited 2005-10-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 23–255（233 aa）	Mutation：N58Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.1；295.5 K；MPEG 550, sodium acetate, sodium citrate, phenol, pH 5.1, VAPOR DIFFUSION, SITTING DROP, temperature 295.5K	Resolution 3.00 Å R-free 0.263
3BPL Crystal structure of the IL4-IL4R-Common Gamma ternary complex Deposited 2007-12-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 56–254（199 aa） Fragment：Extracellular domain, residues 56-254	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；10% PEG8K, 8% ethylene glycol, 0.1M HEPES pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.93 Å R-free 0.297
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain d 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 11 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain g 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 12 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain j 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain O 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain U 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain X 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain a 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QB7 Interleukin-4 mutant RGA bound to cytokine receptor common gamma Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 55–254（200 aa） Fragment：UNP residues 55-254	Mutation：N53Q	SO4 SULFATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.3；298 K；100 mM (NH4)2SO4, 100 mM Cacodylate, 20% PEG-3350, pH 6.3, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.25 Å R-free 0.292
3QB7 Interleukin-4 mutant RGA bound to cytokine receptor common gamma Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 55–254（200 aa） Fragment：UNP residues 55-254	Mutation：N53Q	SO4 SULFATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.3；298 K；100 mM (NH4)2SO4, 100 mM Cacodylate, 20% PEG-3350, pH 6.3, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.25 Å R-free 0.292
4GS7 Structure of the Interleukin-15 quaternary complex Deposited 2012-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 55–254（200 aa）	Mutation：N75Q Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 1 ACT ACETATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.75；298 K；22.5% PEG3350, 0.1M BIS-TRIS propane, 0.2M sodium acetate, pH 8.75, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.35 Å R-free 0.227
5M5E Crystal structure of a interleukin-2 variant in complex with interleukin-2 receptor Deposited 2016-10-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 23–262（240 aa）	Not recorded	MAN alpha-D-mannopyranose × 1 SO4 SULFATE ION × 4 CYS CYSTEINE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.1M HEPES, pH 7.0, 2M ammonium sulfate	Resolution 2.30 Å R-free 0.235
6OEL Engineered Fab bound to IL-4 receptor Deposited 2019-03-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 61–249（189 aa） Fragment：UNP residues 61-249	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 NO3 NITRATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；22.5% PurePEG (Microlytic), 0.1 M sodium citrate, pH 5.5, 0.6 M ammonium nitrate	Resolution 3.10 Å R-free 0.256
7S2R nanobody bound to IL-2Rg Deposited 2021-09-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 55–254（200 aa） Fragment：extracellular domain	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 SO4 SULFATE ION × 8 GOL GLYCEROL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；295 K；2M ammonium sulfate, 0.2M BIS-Tris pH5.5	Resolution 2.49 Å R-free 0.271
8ENT Interleukin-21 signaling complex with IL-21R and IL-2Rg Deposited 2022-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 55–254（200 aa）	Mutation：N53Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1M Tris pH 8, 20% PEG 6000	Resolution 2.83 Å R-free 0.300
8ENT Interleukin-21 signaling complex with IL-21R and IL-2Rg Deposited 2022-09-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 55–254（200 aa）	Mutation：N53Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1M Tris pH 8, 20% PEG 6000	Resolution 2.83 Å R-free 0.300
8ENT Interleukin-21 signaling complex with IL-21R and IL-2Rg Deposited 2022-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 55–254（200 aa）	Mutation：N53Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1M Tris pH 8, 20% PEG 6000	Resolution 2.83 Å R-free 0.300
8EPA Structure of interleukin receptor common gamma chain (IL2Rgamma) in complex with two antibodies Deposited 2022-10-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain I 23–262（240 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9JQT Structure of interleukin receptor common gamma chain (IL2Rgamma/CD132) in complex with 2D4 Deposited 2024-09-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 23–262（240 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
9KMC Cryo-EM structure of the heterotrimeric interleukin-2 receptor in complex with interleukin-2 and anti-CD25 Fab S417 Deposited 2024-11-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 23–255（233 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.97 Å

13 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL2RG_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 4–203； UniProt 55–254 Author chain F； PDBConstruct 4–203； UniProt 55–254

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

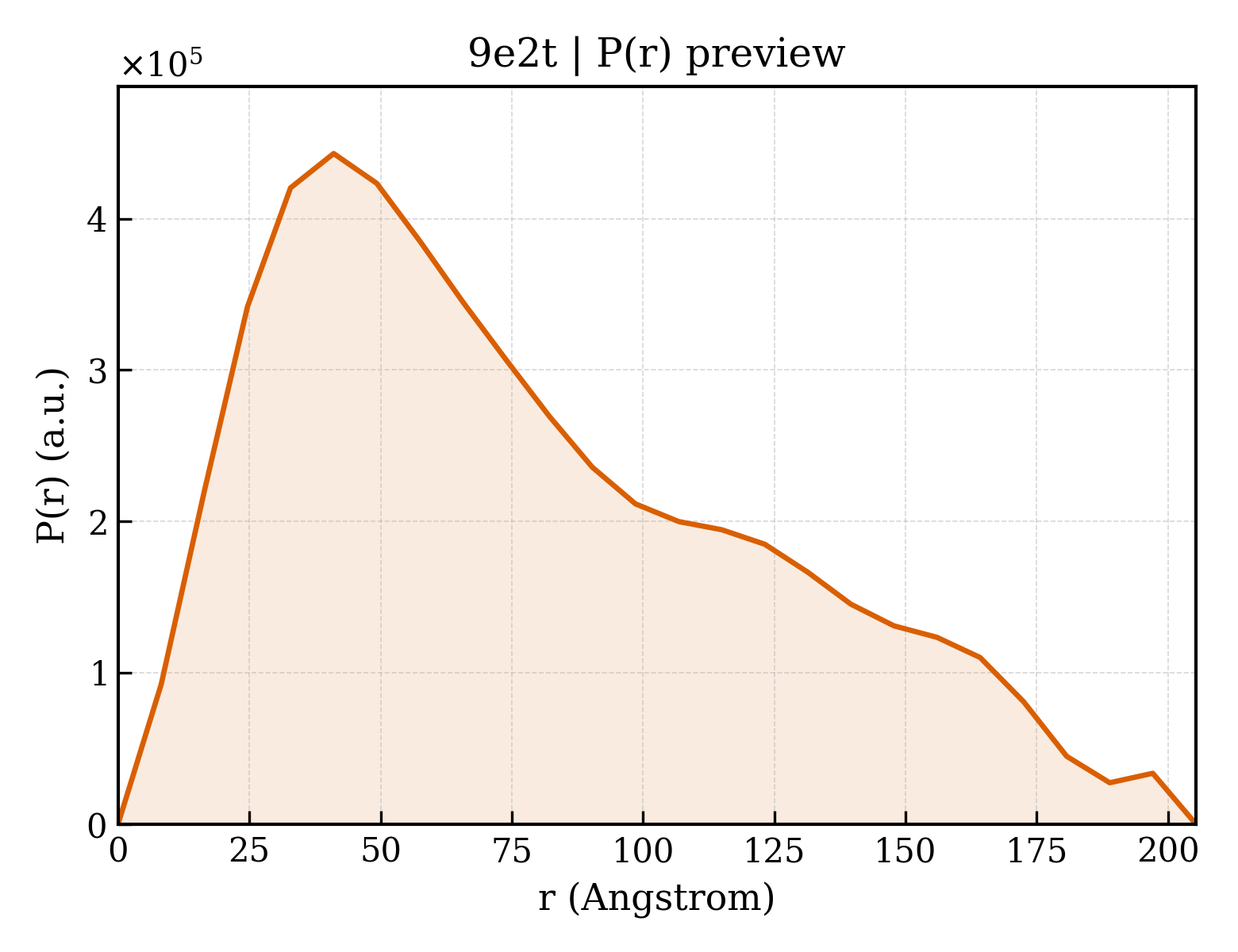

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9e2t
Deposition date deposition_date	2024-10-22
Structure title title	Structure of a de novo designed interleukin-21 mimetic complex with IL-21R and IL-2Rg
Keywords keywords	cytokine, immunology, interleukin, DE NOVO PROTEIN, DE NOVO PROTEIN-IMMUNE SYSTEM complex; DE NOVO PROTEIN/IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	61.81 Å
Radius of gyration Rg (electron density) rg_electron	63.56 Å
Forward intensity I(0) i0	530020000.00
Molecular weight molecular_weight	187850.0 kDa
Excluded volume excluded_volume	233370 Å³
Envelope volume envelope_volume	357470 Å³
Hydration-shell volume shell_volume	54766 Å³
Envelope diameter envelope_diameter	226.1 Å
Shell Rg shell_rg	49.56 Å
Envelope Rg envelope_rg	63.82 Å
Shape Rg shape_rg	63.57 Å
Total Rg total_rg	63.09 Å
Total atoms total_atoms	13210
Residues n_residues	1591
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	205.3 Å
Rg (real space) rg_real	63.22 Å
Rg uncertainty (real space) rg_real_error	2.24 Å
I(0) (real space) i0_real	5.2990e+08
I(0) uncertainty (real space) i0_real_error	1.1630e+07
Rg (reciprocal space) rg_reciprocal	60.52 Å
I(0) (reciprocal space) i0_reciprocal	527600000.0000
Solution quality estimate total_estimate	0.6955
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	41.1 Å
Skewness Skewness skewness	0.621
Kurtosis Kurtosis kurtosis	-0.522
Angular range angular_range	— – 0.1250 Å⁻¹
Current regularization parameter α current_alpha	0.0002
Highest regularization parameter α highest_alpha	18740000.0000
Real-space data points n_real_points	26
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.503; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.511; Smooth: 0.023

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	21h10
Molecular weight formula_weight	12186.1 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D,G,I
Atom count atom_count	13255

DEEELKEIMKEAAECARKELEKLDNTDEDTRWLKITLKKIVRMANRIVRMREREADSKRFEIRMRGLIDIADHVKREFASEDLKEVMERAKSAAQKALGRWL

来源 Source

来源生物 organism	synthetic construct
NCBI Class编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Interleukin-21 receptor
Molecular weight formula_weight	24405.1 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E,H,J

ADPCPDLVCYTDYLQTVICILEMWNLHPSTLTLTWQDQYEELKDEATSCSLHRSAHNATHATYTCHMDVFHFMADDIFSVQITDQSGQYSQECGSFLLAESIKPAPPFDVTVTFSGQYQISWRSDYEDPAFYMLKGKLQYELQYRNRGDPWAVSPRRKLISVDSRSVSLLPLEFRKDSSYELQVRAGPMPGSSYQGTWSEWSDPVIFQTQSE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Cytokine receptor common subunit gamma
Molecular weight formula_weight	24295.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

ADPLPLPEVQCFVFNVEYMNCTWNSSSEPQPTNLTLHYWYKNSDNDKVQKCSHYLFSEEITSGCQLQKKEIHLYQTFVVQLQDPREPRRQATQMLKLQNLVIPWAPENLTLHKLSESQLELNWNNRFLNHCLEHLVQYRTDWDHSWTEQSVDYRHKFSLPSVDGQKRYTFRVRSRFNPLCGSAQHWSEWSHPIHWGSNTSKEN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	9

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	31

▶

8. Citations (1)

▶

Unit-cell length a length_a	75.499 Å
Unit-cell length b length_b	78.082 Å
Unit-cell length c length_c	101.219 Å
Unit-cell angle α angle_alpha	94.63 °
Unit-cell angle β angle_beta	103.39 °
Unit-cell angle γ angle_gamma	114.55 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.280 Å
Low-resolution limit resolution_low	41.170 Å
R factor r_factor	0.2006
R_work r_work	0.1988
R_free r_free	0.2422

fit	/app/data/saxs_computation/e2/9e2t/9e2t.fit
pddf	/app/data/pr_computation/e2/9e2t/9e2t.pr.out
profile	/app/data/saxs_computation/e2/9e2t/9e2t.dat
