9e4o

E. coli acetyl-CoA carboxylase, wide stacked tube, 3.98 Angstrom

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 160	Biotin carboxyl carrier protein of acetyl-CoA carboxylase × 40 （P0ABD8） Biotin carboxylase × 40 （P24182） Acetyl-coenzyme A carboxylase carboxyl transferase subunit beta × 40 （P0A9Q5） BIOTIN × 40 ADENOSINE-5'-DIPHOSPHATE × 40 MAGNESIUM ION × 40 ZINC ION × 40 ACETYL COENZYME *A × 40	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACCA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–316； UniProt 4–319

Biotin carboxyl carrier protein of acetyl-CoA carboxylase

Escherichia coli

UniProt P0ABD8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 160	Acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha × 40 （P0ABD5） Biotin carboxylase × 40 （P24182） Acetyl-coenzyme A carboxylase carboxyl transferase subunit beta × 40 （P0A9Q5） BIOTIN × 40 ADENOSINE-5'-DIPHOSPHATE × 40 MAGNESIUM ION × 40 ZINC ION × 40 ACETYL COENZYME *A × 40	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BCCP_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–77； UniProt 80–156

Biotin carboxylase

Escherichia coli

UniProt P24182

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 160	Acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha × 40 （P0ABD5） Biotin carboxyl carrier protein of acetyl-CoA carboxylase × 40 （P0ABD8） Acetyl-coenzyme A carboxylase carboxyl transferase subunit beta × 40 （P0A9Q5） BIOTIN × 40 ADENOSINE-5'-DIPHOSPHATE × 40 MAGNESIUM ION × 40 ZINC ION × 40 ACETYL COENZYME *A × 40	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACCC_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–449； UniProt 1–449

Acetyl-coenzyme A carboxylase carboxyl transferase subunit beta

Escherichia coli

UniProt P0A9Q5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 160	Acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha × 40 （P0ABD5） Biotin carboxyl carrier protein of acetyl-CoA carboxylase × 40 （P0ABD8） Biotin carboxylase × 40 （P24182） BIOTIN × 40 ADENOSINE-5'-DIPHOSPHATE × 40 MAGNESIUM ION × 40 ZINC ION × 40 ACETYL COENZYME *A × 40	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACCD_ECOLI
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–284； UniProt 2–285

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9e4o
Deposition date deposition_date	2024-10-25
Structure title title	E. coli acetyl-CoA carboxylase, wide stacked tube, 3.98 Angstrom
Keywords keywords	complex, enzyme, biosynthesis of fatty acids, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9e4o__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9e4o__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

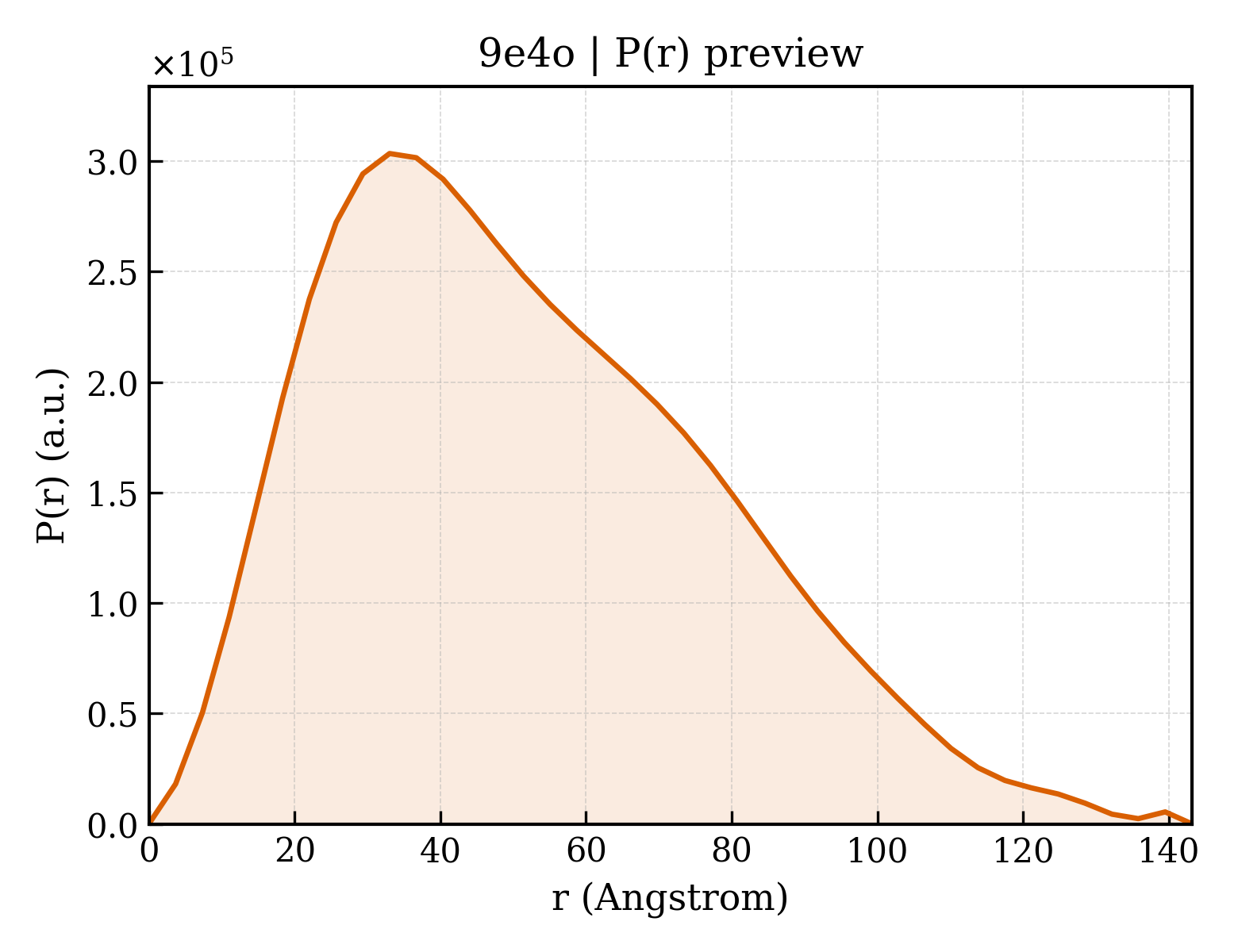

9e4o__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	168.60 Å
Total Rg	168.60 Å
Atom count	350600
Residues	45040
Excluded volume	6259100 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9e4o__assembly_1__model_1`	160-meric （160）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha
Molecular weight formula_weight	34956.1 kDa
EC 编号 ec_number	2.1.3.15
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8765

NFLDFEQPIAELEAKIDSLTAVSRQDEKLDINIDEEVHRLREKSVELTRKIFADLGAWQIAQLARHPQRPYTLDYVRLAFDEFDELAGDRAYADDKAIVGGIARLDGRPVMIIGHQKGRETKEKIRRNFGMPAPEGYRKALRLMQMAERFKMPIITFIDTPGAYPGVGAEERGQSEAIARNLREMSRLGVPVVCTVIGEGGSGGALAIGVGDKVNMLQYSTYSVISPEGCASILWKSADKAPLAAEAMGIIAPRLKELKLIDSIIPEPLGGAHRNPEAMAASLKAQLLADLADLDVLSTEDLKNRRYQRLMSYGYA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Biotin carboxyl carrier protein of acetyl-CoA carboxylase
Molecular weight formula_weight	8370.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GHIVRSPMVGTFYRTPSPDAKAFIEVGQKVNVGDTLCIVEAMKMMNQIEADKSGTVKAILVESGQPVEFDEPLVVIE

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Biotin carboxylase
Molecular weight formula_weight	49386.7 kDa
EC 编号 ec_number	6.3.4.14
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MLDKIVIANRGEIALRILRACKELGIKTVAVHSSADRDLKHVLLADETVCIGPAPSVKSYLNIPAIISAAEITGAVAIHPGYGFLSENANFAEQVERSGFIFIGPKAETIRLMGDKVSAIAAMKKAGVPCVPGSDGPLGDDMDKNRAIAKRIGYPVIIKASGGGGGRGMRVVRGDAELAQSISMTRAEAKAAFSNDMVYMEKYLENPRHVEIQVLADGQGNAIYLAERDCSMQRRHQKVVEEAPAPGITPELRRYIGERCAKACVDIGYRGAGTFEFLFENGEFYFIEMNTRIQVEHPVTEMITGVDLIKEQLRIAAGQPLSIKQEEVHVRGHAVECRINAEDPNTFLPSPGKITRFHAPGGFGVRWESHIYAGYTVPPYYDSMIGKLICYGENRDVAIARMKNALQELIIDGIKTNVDLQIRIMNDENFQHGGTNIHYLEKKLGLQEK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	Acetyl-coenzyme A carboxylase carboxyl transferase subunit beta
Molecular weight formula_weight	31234.6 kDa
EC 编号 ec_number	2.1.3.15
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

SWIERIKSNITPTRKASIPEGVWTKCDSCGQVLYRAELERNLEVCPKCDHHMRMTARNRLHSLLDEGSLVELGSELEPKDVLKFRDSKKYKDRLASAQKETGEKDALVVMKGTLYGMPVVAAAFEFAFMGGSMGSVVGARFVRAVEQALEDNCPLICFSASGGARMQEALMSLMQMAKTSAALAKMQERGLPYISVLTDPTMGGVSASFAMLGDLNIAEPKALIGFAGPRVIEQTVREKLPPGFQRSEFLIEKGAIDMIVRRPEMRLKLASILAKLMNLPAPNP

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 non-polymer

Description description	BIOTIN
Molecular weight formula_weight	244.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	ACETYL COENZYME *A
Molecular weight formula_weight	809.6 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.98 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	697396
