SAXSdb — 9eoa

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fanconi-associated nuclease 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 3	DNA (continuous) × 1 DNA (pre-nick) × 1 DNA (post-nick) × 1 Proliferating cell nuclear antigen × 3 （P12004）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FAN1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–636； UniProt 372–1007

Proliferating cell nuclear antigen

Homo sapiens

UniProt P12004

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 3	Fanconi-associated nuclease 1 × 1 （Q9Y2M0） DNA (continuous) × 1 DNA (pre-nick) × 1 DNA (post-nick) × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PCNA_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain F； PDBConstruct 1–256； UniProt 1–256 Author chain G； PDBConstruct 1–256； UniProt 1–256 Author chain H； PDBConstruct 1–256； UniProt 1–256

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9eoa
Deposition date deposition_date	2024-03-14
Structure title title	Cryo_EM structure of human FAN1 in complex with 5' flap DNA substrate and PCNA
Keywords keywords	FAN1, PCNA, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9eoa__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9eoa__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

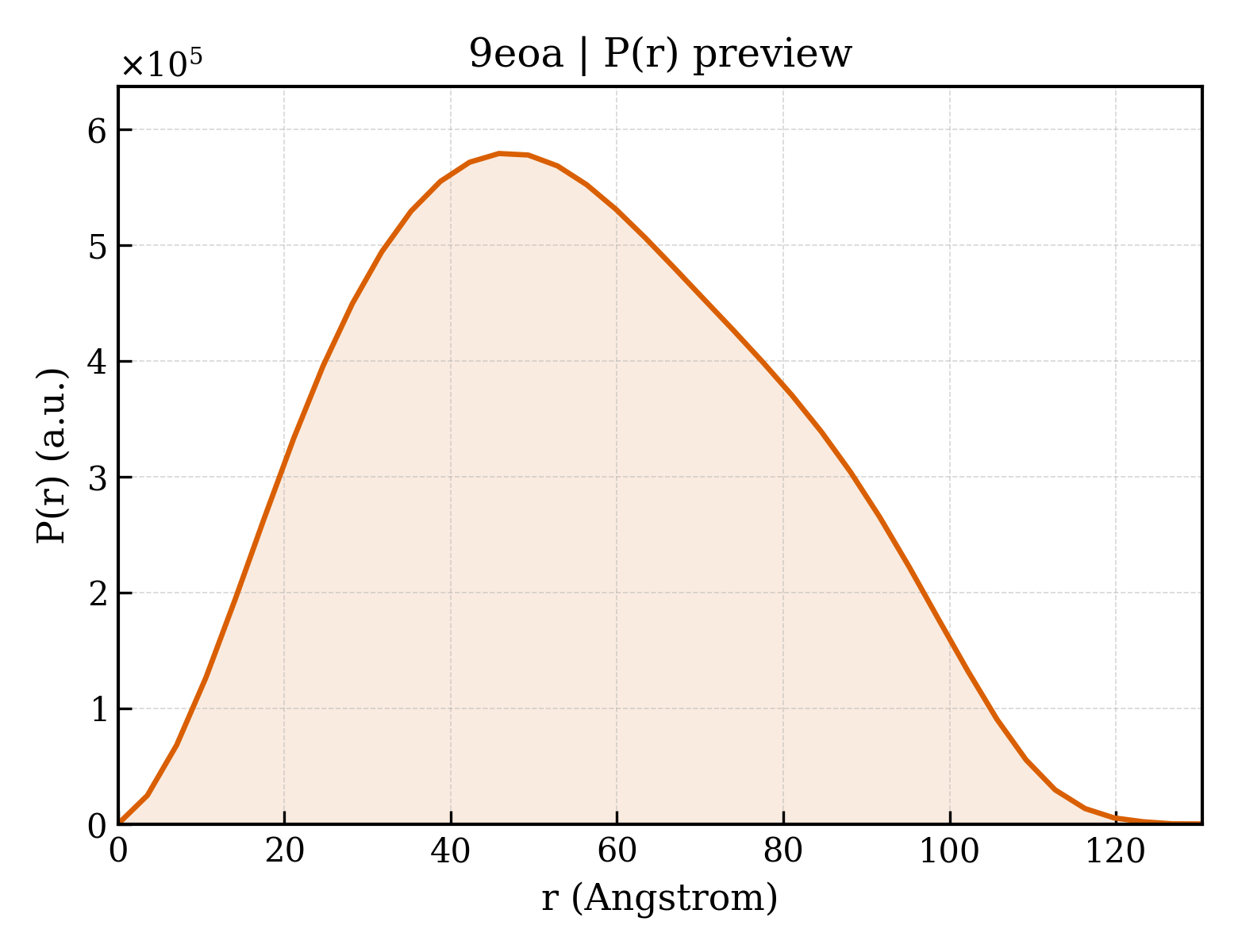

9eoa__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.44 Å
Rg (electron density)	42.75 Å
Total Rg	42.87 Å
Atom count	11807
Residues	1400
Excluded volume	206940 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9eoa__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Fanconi-associated nuclease 1
Molecular weight formula_weight	72629.7 kDa
EC 编号 ec_number	3.1.21.-,3.1.4.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	11807

HPYYLRSFLVVLKTVLENEDDMLLFDEQEKGIVTKFYQLSATGQKLYVRLFQRKLSWIKMTKLEYEEIALDLTPVIEELTNAGFLQTESELQELSEVLELLSAPELKSLAKTFHLVNPNGQKQQLVDAFLKLAKQRSVCTWGKNKPGIGAVILKRAKALAGQSVRICKGPRAVFSRILLLFSLTDSMEDEDAACGGQGQLSTVLLVNLGRMEFPSYTINRKTHIFQDRDDLIRYAAATHMLSDISSAMANGNWEEAKELAQCAKRDWNRLKNHPSLRCHEDLPLFLRCFTVGWIYTRILSRFVEILQRLHMYEEAVRELESLLSQRIYCPDSRGRWWDRLALNLHQHLKRLEPTIKCITEGLADPEVRTGHRLSLYQRAVRLRESPSCKKFKHLFQQLPEMAVQDVKHVTITGRLCPQRGMCKSVFVMEAGEAADPTTVLCSVEELALAHYRRSGFDQGIHGEGSTFSTLYGLLLWDIIFMDGIPDVFRNACQAFPLDLCTDSFFTSRRPALEARLQLIHDAPEESLRAWVAATWHEQEGRVASLVSWDRFTSLQQAQDLVSCLGGPVLSGVCRHLAADFRHCRGGLPDLVVWNSQSRHFKLVEVKGPNDRLSHKQMIWLAELQKLGAEVEVCHVV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	DNA (continuous)
Molecular weight formula_weight	12154.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B

CCCGTCCAGGTCTCGTCCGCGCCACTCGTGTCCAGCGTCG

Entity 3 Entity 3 polymer

Description description	DNA (pre-nick)
Molecular weight formula_weight	8618.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

CGACGCTGGACACGAGTGGCTTTTTTTT

Entity 4 Entity 4 polymer

Description description	DNA (post-nick)
Molecular weight formula_weight	6554.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

TGCGGACGAGACCTGGACGGG

Entity 5 Entity 5 polymer

Description description	Proliferating cell nuclear antigen
Molecular weight formula_weight	28278.3 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,G,H

MFEARLVQGSILKKVLEALKDLINEACWDISSSGVNLQSMDSSHVSLVQLTLRSEGFDTYRCDRNLAMGVNLTSMSKILKCAGNEDIITLRAEDNADTLALVFEAPNQEKVSDYEMKLMDLDVEQLGIPEQEYSCVVKMPSGEFARICRDLSHIGDAVVISCAKDGVKFSASGELGNGNIKLSQTSNVDKEEEAVTIEMNEPVQLTFALRYLNFFTKATPLSSTVTLSMSADVPLVVEYKIADMGHLKYYLAPKIE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.27 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	700432
