1. Protein Identity and Related Structures Protein Identity & Related Structures

LINE-1 retrotransposable element ORF2 protein

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Monomer Protein × 1 DNA 3 RNA 1 PDB declaration: pentameric（5） Consistent with all polymer counts	Chain A； UniProt 2–1275	Not recorded	Genomic DNA (top strand) × 1 Genomic DNA (bottom strand) × 1 Complementary DNA × 1 Template RNA × 1 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 1 ZN ZINC ION × 1 MN MANGANESE (II) ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7；20 mM HEPES pH 7.0, 500 mM NaCl, 1 mM DTT cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9K6H	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7N8K LINE-1 endonuclease domain complex with Mg Deposited 2021-06-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–238（238 aa）	Not recorded	MG MAGNESIUM ION × 1 ACT ACETATE ION × 3 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6；298 K；0.1M LiSO4; 26% PEG 2000 MME	Resolution 2.01 Å R-free 0.236
7N8K LINE-1 endonuclease domain complex with Mg Deposited 2021-06-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–238（238 aa）	Not recorded	MG MAGNESIUM ION × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6；298 K；0.1M LiSO4; 26% PEG 2000 MME	Resolution 2.01 Å R-free 0.236
7N8S LINE-1 endonuclease domain complex with DNA Deposited 2021-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–238（238 aa）	Mutation：D145A, Y226K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 4.5；298 K；0.2M NH4 CH3 CO2; 15% PEG 4000	Resolution 2.79 Å R-free 0.322
7N94 LINE-1 endonuclease domain complex with DNA Deposited 2021-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–238（238 aa）	Mutation：D145A, Y226K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6；293 K；0.1M MES pH 6.0, 0.2M NaCl, 30% Jeffamine ED-2003	Resolution 2.85 Å R-free 0.280
7N94 LINE-1 endonuclease domain complex with DNA Deposited 2021-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain B 1–238（238 aa）	Mutation：D145A, Y226K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6；293 K；0.1M MES pH 6.0, 0.2M NaCl, 30% Jeffamine ED-2003	Resolution 2.85 Å R-free 0.280
8SXT Structure of LINE-1 ORF2p with template:primer hybrid Deposited 2023-05-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–1275（1275 aa）	Not recorded	TTP THYMIDINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6；20mM HEPES pH 7.6, 150mM NaCl, 2mM MgOAc, 2mM DTT, 2mM dTTP cryo-EM vitrification conditions Cryogen ETHANE；Manually blotted from the back	Resolution 3.30 Å
8SXU Structure of LINE-1 ORF2p with an oligo(A) template Deposited 2023-05-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–1275（1275 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6；20mM HEPES pH 7.6, 150mM NaCl, 2mM MgOAc, 2mM DTT, 2mM dTTP cryo-EM vitrification conditions Cryogen ETHANE；Manually blotted from the back	Resolution 3.66 Å
8UW3 Human LINE-1 retrotransposon ORF2 protein engaged with template RNA in elongation state Deposited 2023-11-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–1275（1275 aa）	Not recorded	TTP THYMIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9HDO The Human LINE-1 ORF2p target-primed reverse transcription complex Deposited 2024-11-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: heptameric	Chain A 1–1275（1275 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 1 D3T 2',3'-DIDEOXY-THYMIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.30 Å
9HDP The Human LINE-1 ORF2p target-primed reverse transcription complex with the fingers domain in a closed conformation Deposited 2024-11-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: heptameric	Chain A 1–1275（1275 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 1 D3T 2',3'-DIDEOXY-THYMIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å
9HDQ The Human LINE-1 ORF2p target-primed reverse transcription complex with the fingers domain in an open conformation Deposited 2024-11-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: heptameric	Chain A 1–1275（1275 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.45 Å
9HDR Human LINE-1 ORF2p target-primed reverse transcription complex with EN domain resolved Deposited 2024-11-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: heptameric	Chain A 1–1275（1275 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 1 D3T 2',3'-DIDEOXY-THYMIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9K6G Structure of human LINE-1 ORF2p with endogenous dsDNA and RNA/cDNA hybrid Deposited 2024-10-22	Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: pentameric	Chain A 2–1275（1274 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7；20 mM HEPES pH 7.0, 500 mM NaCl, 1 mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9K6I Structure of full-length human LINE-1 ORF2p with endogenous DNA and RNA/cDNA hybrid Deposited 2024-10-22	Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: pentameric	Chain A 2–1275（1274 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7；20 mM HEPES pH 7.0, 500 mM NaCl, 1 mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å

12 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LORF2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1274； UniProt 2–1275

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9k6h
Deposition date deposition_date	2024-10-22
最后修订 last_revision	2025-10-22
Structure title title	Structure of human LINE-1 ORF2p with endogenous DNA and RNA/cDNA hybrid bound to dNTP and Mn2+
Keywords keywords	Endonuclease, Reverse transcriptase, GENE REGULATION; GENE REGULATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	35.12 Å
Radius of gyration Rg (electron density) rg_electron	34.63 Å
Forward intensity I(0) i0	316746000.00
Molecular weight molecular_weight	138200.0 kDa
Excluded volume excluded_volume	170750 Å³
Envelope volume envelope_volume	222000 Å³
Hydration-shell volume shell_volume	52354 Å³
Envelope diameter envelope_diameter	131.8 Å
Shell Rg shell_rg	42.10 Å
Envelope Rg envelope_rg	34.54 Å
Shape Rg shape_rg	34.61 Å
Total Rg total_rg	35.20 Å
Total atoms total_atoms	9651
Residues n_residues	1082
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

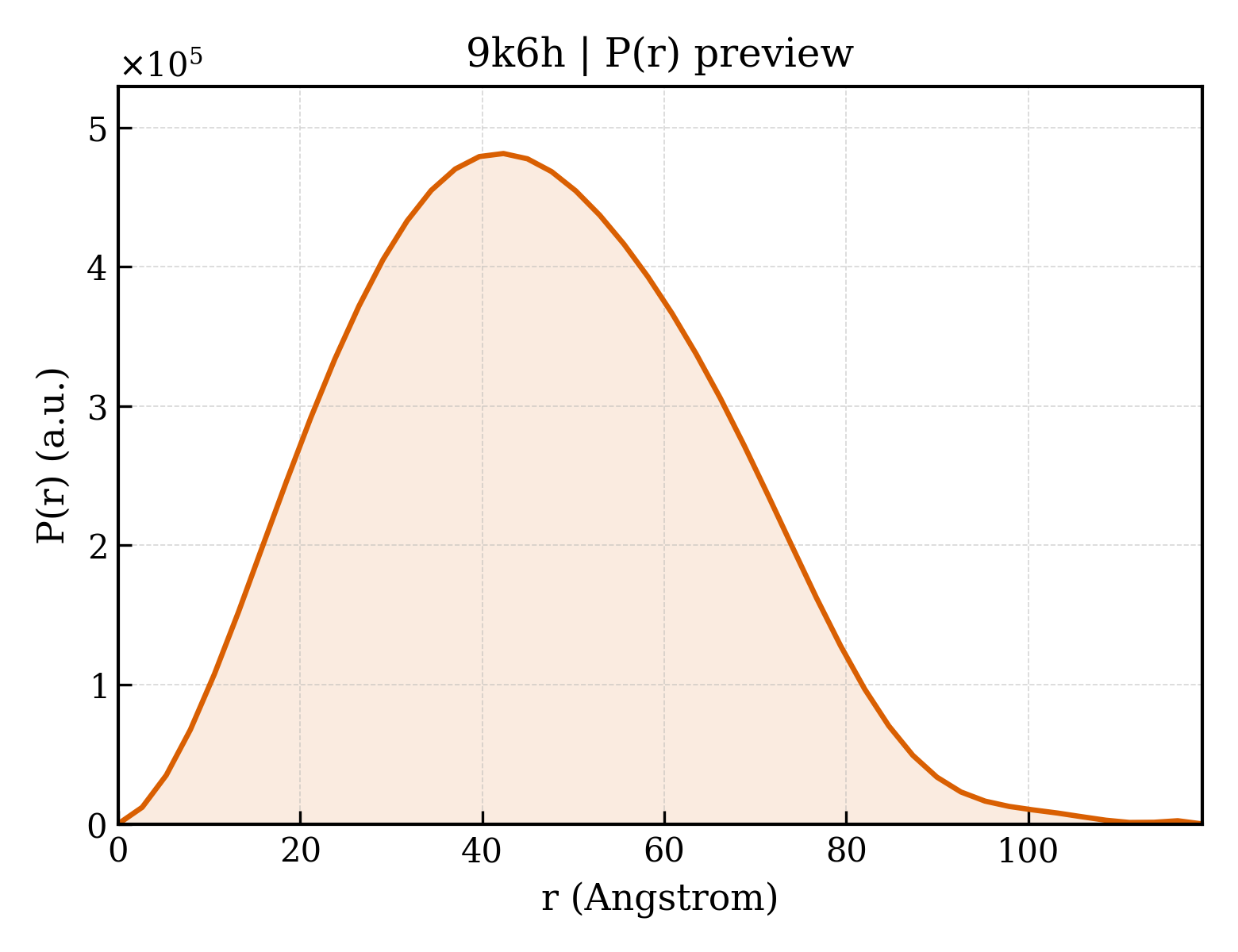

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	119.0 Å
Rg (real space) rg_real	35.01 Å
Rg uncertainty (real space) rg_real_error	1.08 Å
I(0) (real space) i0_real	3.1670e+08
I(0) uncertainty (real space) i0_real_error	5.6380e+06
Rg (reciprocal space) rg_reciprocal	35.08 Å
I(0) (reciprocal space) i0_reciprocal	316800000.0000
Solution quality estimate total_estimate	0.8845
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	42.3 Å
Skewness Skewness skewness	0.227
Kurtosis Kurtosis kurtosis	-0.411
Angular range angular_range	— – 0.2250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	48550000.0000
Real-space data points n_real_points	46
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.841; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.971

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	LINE-1 retrotransposable element ORF2 protein
Molecular weight formula_weight	149153.1 kDa
EC 编号 ec_number	2.7.7.49,3.1.21.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	9651

TGSTSHITILTLNINGLNSAIKRHRLASWIKSQDPSVCCIQETHLTCRDTHRLKIKGWRKIYQANGKQKKAGVAILVSDKTDFKPTKIKRDKEGHYIMVKGSIQQEELTILNIYAPNTGAPRFIKQVLSDLQRDLDSHTLIMGDFNTPLSTLDRSTRQKVNKDTQELNSALHQADLIDIYRTLHPKSTEYTFFSAPHHTYSKIDHIVGSKALLSKCKRTEIITNYLSDHSAIKLELRIKNLTQSRSTTWKLNNLLLNDYWVHNEMKAEIKMFFETNENKDTTYQNLWDAFKAVCRGKFIALNAYKRKQERSKIDTLTSQLKELEKQEQTHSKASRRQEITKIRAELKEIETQKTLQKINESRSWFFERINKIDRPLARLIKKKREKNQIDTIKNDKGDITTDPTEIQTTIREYYKHLYANKLENLEEMDTFLDTYTLPRLNQEEVESLNRPITGSEIVAIINSLPTKKSPGPDGFTAEFYQRYKEELVPFLLKLFQSIEKEGILPNSFYEASIILIPKPGRDTTKKENFRPISLMNIDAKILNKILANRIQQHIKKLIHHDQVGFIPGMQGWFNIRKSINVIQHINRAKDKNHMIISIDAEKAFDKIQQPFMLKTLNKLGIDGTYFKIIRAIYDKPTANIILNGQKLEAFPLKTGTRQGCPLSPLLFNIVLEVLARAIRQEKEIKGIQLGKEEVKLSLFADDMIVYLENPIVSAQNLLKLISNFSKVSGYKINVQKSQAFLYTNNRQTESQIMGELPFTIASKRIKYLGIQLTRDVKDLFKENYKPLLKEIKEETNKWKNIPCSWVGRINIVKMAILPKVIYRFNAIPIKLPMTFFTELEKTTLKFIWNQKRARIAKSILSQKNKAGGITLPDFKLYYKATVTKTAWYWYQNRDIDQWNRTEPSEIMPHIYNYLIFDKPEKNKQWGKDSLFNKWCWENWLAICRKLKLDPFLTPYTKINSRWIKDLNVKPKTIKTLEENLGITIQDIGVGKDFMSKTPKAMATKDKIDKWDLIKLKSFCTAKETTIRVNRQPTTWEKIFATYSSDKGLISRIYNELKQIYKKKTNNPIKKWAKDMNRHFSKEDIYAAKKHMKKCSSSLAIREMQIKTTMRYHLTPVRMAIIKKSGNNRCWRGCGEIGTLLHCWWDCKLVQPLWKSVWRFLRDLELEIPFDPAIPLLGIYPNEYKSCCYKDTCTRMFIAALFTIAKTWNQPKCPTMIDWIKKMWHIYTMEYYAAIKNDEFISFVGTWMKLETIILSKLSQEQKTKHRIFSLIGGN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Genomic DNA (top strand)
Molecular weight formula_weight	6027.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B

AAAAAAAAAAAACCCCCCCC

Entity 3 Entity 3 polymer

Description description	Genomic DNA (bottom strand)
Molecular weight formula_weight	3605.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

TTTTTTTTTTTT

Entity 4 Entity 4 polymer

Description description	Complementary DNA
Molecular weight formula_weight	3087.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

AAAAAAAAAA

Entity 5 Entity 5 polymer

Description description	Template RNA
Molecular weight formula_weight	3629.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	E

UUUUUUUUUUUU

Entity 6 Entity 6 non-polymer

Description description	;2'-DEOXYADENOSINE 5'-TRIPHOSPHATE ;
Molecular weight formula_weight	491.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.00 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	268644

fit	/app/data/saxs_computation/k6/9k6h/9k6h.fit
pddf	/app/data/pr_computation/k6/9k6h/9k6h.pr.out
profile	/app/data/saxs_computation/k6/9k6h/9k6h.dat
