9kj6

Crystal Structure of SpCas9 ternary complex, amino acids (1242-1263) replaced with Gly-Ser linker

Method: X-RAY DIFFRACTION D_max: 145.5 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9kj6
沉积日期 deposition_date	2024-11-12
结构标题 title	Crystal Structure of SpCas9 ternary complex, amino acids (1242-1263) replaced with Gly-Ser linker
关键词 keywords	CRISPR-Cas9, DNA BINDING PROTEIN; DNA BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	40.31 Å
回转半径 Rg (电子) rg_electron	39.47 Å
零角强度 I(0) i0	783433000.00
分子量 molecular_weight	188760.0 kDa
排除体积 excluded_volume	218930 Å³
包络体积 envelope_volume	331580 Å³
水化壳体积 shell_volume	68843 Å³
包络直径 envelope_diameter	157.8 Å
壳层 Rg shell_rg	46.19 Å
包络 Rg envelope_rg	39.12 Å
形状 Rg shape_rg	39.47 Å
总 Rg total_rg	39.80 Å
总原子数 total_atoms	13121
残基数 n_residues	1479
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

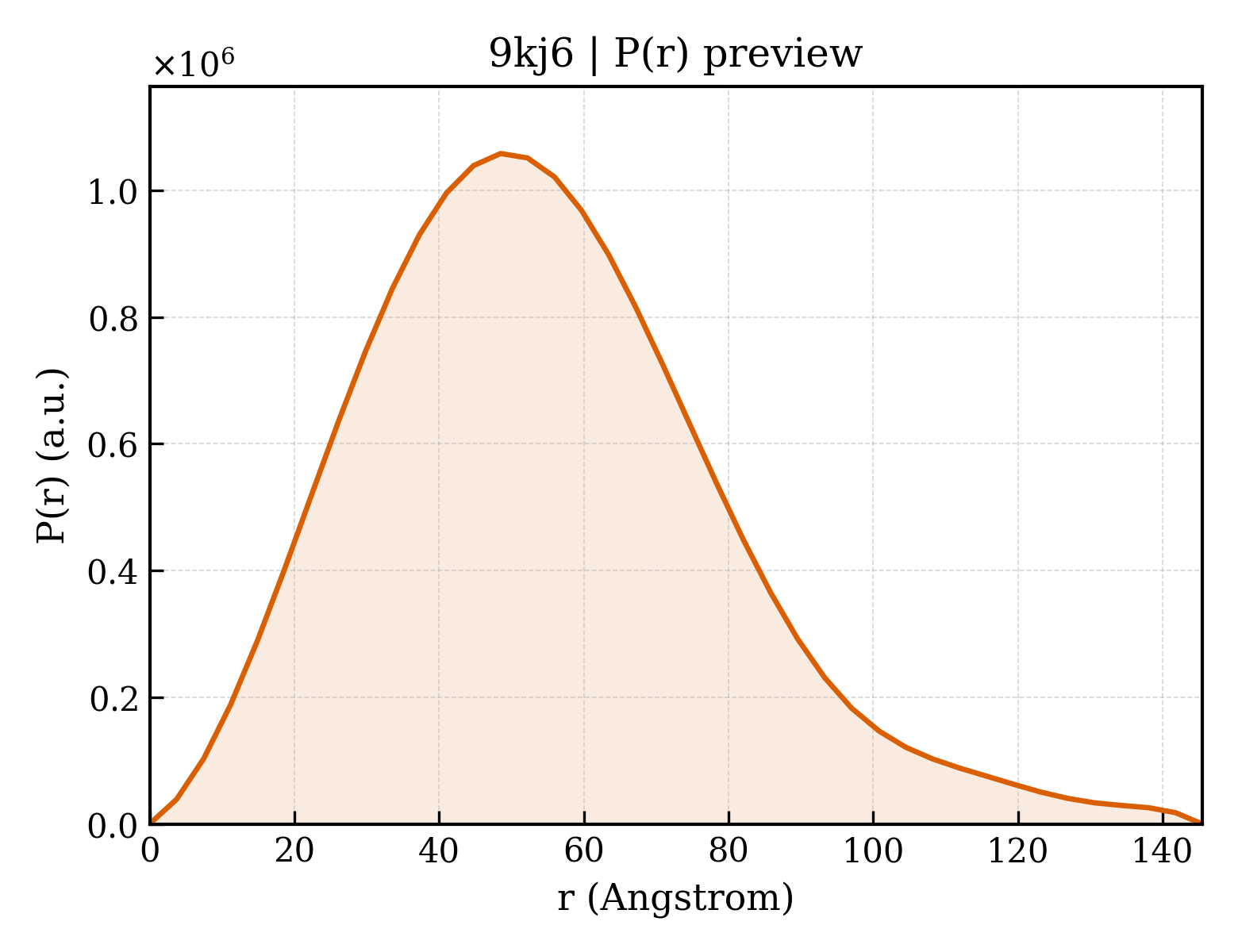

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	145.5 Å
Rg (实空间) rg_real	42.15 Å
Rg 误差 (实空间) rg_real_error	0.66 Å
I(0) (实空间) i0_real	7.8570e+08
I(0) 误差 (实空间) i0_real_error	1.1180e+07
Rg (倒空间) rg_reciprocal	40.31 Å
I(0) (倒空间) i0_reciprocal	783500000.0000
解质量估计 total_estimate	0.6596
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	48.5 Å
偏度 Skewness skewness	0.581
峰度 Kurtosis kurtosis	0.370
角度范围 angular_range	— – 0.1950 Å⁻¹
当前正则化参数 α current_alpha	1.4830
最高正则化参数 α highest_alpha	70160000.0000
实空间数据点数 n_real_points	40
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.726; Stabil: 0.883; Sysdev: 0.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.794

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	CRISPR-associated endonuclease Cas9/Csn1
分子量 formula_weight	156702.6 kDa
EC 编号 ec_number	3.1.-.-
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	13121

GAASMDKKYSIGLAIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKKNLIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEESFLVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIKFRGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRLENLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQIGDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVRQQLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLLRKQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARGNSRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEYFTVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFDSVEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEERLKTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFMQLIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGRHKPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLYLYYLQNGRDMYVDQELDINRLSDYDVDAIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVPSEEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKHVAQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYLNAVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKTEITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSKESILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGITIMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNELALPSKYVNFLYLASHGSGSGSGHYLDEIIEQISEFSKRVILADANLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVLDATLIHQSITGLYETRIDLSQLGGD

来源 Source

来源生物 organism	Streptococcus pyogenes
NCBI 分类编号 ncbi_taxonomy_id	1314
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	single-guide RNA
分子量 formula_weight	32991.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

GGUAAAAGGGCGAUCUAAUGAAGUUUUAGAGCUAGAAAUAGCAAGUUAAAAUAAGGCUAGUCCGUUAUCAACUUGAAAAAGUGGCACCGAGUCGGUGCUUUU

Entity 3 polymer

描述 description	Target Strand of double-stranded DNA
分子量 formula_weight	13126.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	C

TTGATTCTTACAGCGGTCGACCATTCATTAGATCGCCCTTTTA

Entity 4 polymer

描述 description	Non-target Strand of double-stranded DNA
分子量 formula_weight	8349.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	D

TGAATGGTCGACCGCTGTAAGAATCAA

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	88.550 Å
晶胞边长 b length_b	146.850 Å
晶胞边长 c length_c	222.360 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	orthorhombic

分辨率 resolution	3.590 Å
最低分辨率 resolution_low	29.900 Å
R 因子 r_factor	0.2301
R_work r_work	0.2280
R_free r_free	0.2705

fit	/app/data/saxs_computation/kj/9kj6/9kj6.fit
pddf	/app/data/pr_computation/kj/9kj6/9kj6.pr.out
profile	/app/data/saxs_computation/kj/9kj6/9kj6.dat
