SAXSdb — 9l7r

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Camphor 5-monooxygenase

Priestia megaterium

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	PROTOPORPHYRIN IX CONTAINING FE × 1 (3~{a}~{R},5~{a}~{S},9~{a}~{S},9~{b}~{R})-3~{a},6,6,9~{a}-tetramethyl-2,4,5,5~{a},7,8,9,9~{b}-octahydro-1~{H}-benzo[e][1]benzofuran × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	PROTOPORPHYRIN IX CONTAINING FE × 1 (3~{a}~{R},5~{a}~{S},9~{a}~{S},9~{b}~{R})-3~{a},6,6,9~{a}-tetramethyl-2,4,5,5~{a},7,8,9,9~{b}-octahydro-1~{H}-benzo[e][1]benzofuran × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CPXA_PSEPU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 53–467； UniProt 1–415 Author chain B； PDBConstruct 53–467； UniProt 1–415

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9l7r
Deposition date deposition_date	2024-12-27
Structure title title	Crystal structure of P450cam-F87R mutant complex with (-)-ambroxide
Keywords keywords	cytochrome p450, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9l7r__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9l7r__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

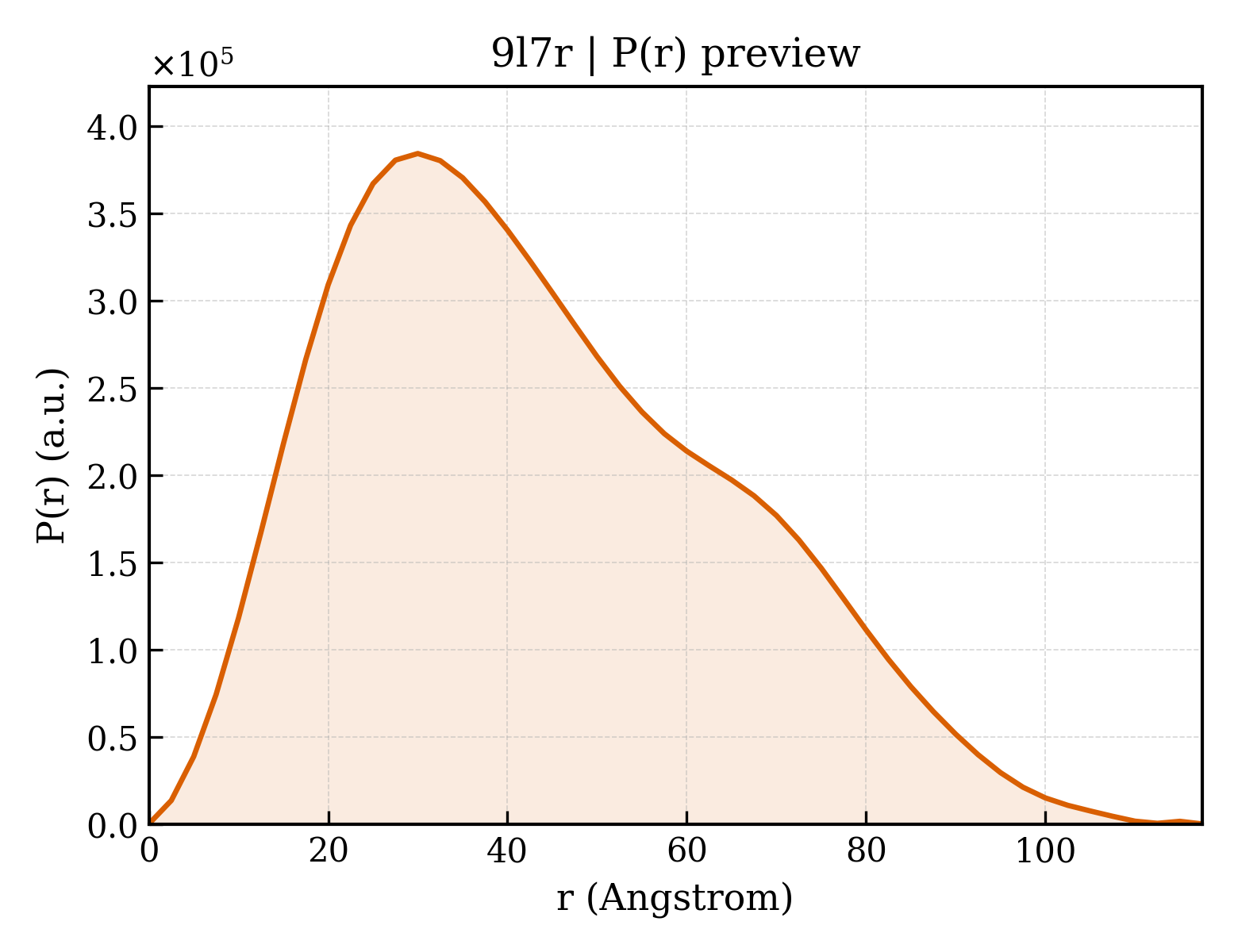

9l7r__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.16 Å
Rg (electron density)	20.98 Å
Total Rg	21.83 Å
Atom count	3227
Residues	400
Excluded volume	57214 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9l7r__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`9l7r__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Camphor 5-monooxygenase
Molecular weight formula_weight	52418.3 kDa
EC 编号 ec_number	1.14.15.1
Mutation mutation	F88R
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6702

MHHHHHHSSGLVPRGSGMKETAAAKFERQHMDSPDLGTDDDDKAMADIGSEFMTTETIQSNANLAPLPPHVPEHLVFDFDMYNPSNLSAGVQEAWAVLQESNVPDLVWTRCNGGHWIATRGQLIREAYEDYRHFSSECPRIPREAGEAYDFIPTSMDPPEQRQFRALANQVVGMPVVDKLENRIQELACSLIESLRPQGQCNFTEDYAEPFPIRIFMLLAGLPEEDIPHLKYLTDQMTRPDGSMTFAEAKEALYDYLIPIIEQRRQKPGTDAISIVANGQVNGRPITSDEAKRMCGLLLVGGLDTVVNFLSFSMEFLAKSPEHRQELIERPERIPAACEELLRRFSLVADGRILTSDYEFHGVQLKKGDQILLPQMLSGLDERENAAPMHVDFSRQKVSHTTFGHGSHLCLGQHLARREIIVTLKEWLTRIPDFSIAPGAQIQHKSGIVSGVQALPLVWDPATTKAV

Source Source

Source organism organism	Priestia megaterium
NCBI taxonomy ID ncbi_taxonomy_id	1404
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	(3~{a}~{R},5~{a}~{S},9~{a}~{S},9~{b}~{R})-3~{a},6,6,9~{a}-tetramethyl-2,4,5,5~{a},7,8,9,9~{b}-octahydro-1~{H}-benzo[e][1]benzofuran
Molecular weight formula_weight	236.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	264

▶

Unit-cell length a length_a	36.487 Å
Unit-cell length b length_b	62.073 Å
Unit-cell length c length_c	96.128 Å
Unit-cell angle α angle_alpha	79.24 °
Unit-cell angle β angle_beta	80.85 °
Unit-cell angle γ angle_gamma	75.42 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.040 Å
Low-resolution limit resolution_low	29.820 Å
R factor r_factor	0.2130
R_work r_work	0.2111
R_free r_free	0.2552
