9lj2

Structure of isw1-nucleosome double-bound complex in ADP-ADP+ state

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3

Xenopus laevis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B × 2 （A0A8J0U496） DNA (147-MER) × 1 DNA (147-MER) × 1 ISWI chromatin-remodeling complex ATPase ISW1 × 2 （P38144） MAGNESIUM ION × 2 ADENOSINE-5'-DIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A310TTQ1_XENLA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–98； UniProt 38–135 Author chain E； PDBConstruct 1–98； UniProt 38–135

Histone H4

Xenopus laevis

UniProt P62799

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3 × 2 （A0A310TTQ1） Histone H2A × 2 （Q6AZJ8） Histone H2B × 2 （A0A8J0U496） DNA (147-MER) × 1 DNA (147-MER) × 1 ISWI chromatin-remodeling complex ATPase ISW1 × 2 （P38144） MAGNESIUM ION × 2 ADENOSINE-5'-DIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_XENLA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–88； UniProt 16–103 Author chain F； PDBConstruct 1–88； UniProt 16–103

Histone H2A

Xenopus laevis

UniProt Q6AZJ8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3 × 2 （A0A310TTQ1） Histone H4 × 2 （P62799） Histone H2B × 2 （A0A8J0U496） DNA (147-MER) × 1 DNA (147-MER) × 1 ISWI chromatin-remodeling complex ATPase ISW1 × 2 （P38144） MAGNESIUM ION × 2 ADENOSINE-5'-DIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6AZJ8_XENLA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–107； UniProt 13–119 Author chain G； PDBConstruct 1–107； UniProt 13–119

Histone H2B

Xenopus laevis

UniProt A0A8J0U496

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3 × 2 （A0A310TTQ1） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） DNA (147-MER) × 1 DNA (147-MER) × 1 ISWI chromatin-remodeling complex ATPase ISW1 × 2 （P38144） MAGNESIUM ION × 2 ADENOSINE-5'-DIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8J0U496_XENLA
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–93； UniProt 33–125 Author chain H； PDBConstruct 1–93； UniProt 33–125

ISWI chromatin-remodeling complex ATPase ISW1

Saccharomyces cerevisiae S288C

UniProt P38144

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3 × 2 （A0A310TTQ1） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B × 2 （A0A8J0U496） DNA (147-MER) × 1 DNA (147-MER) × 1 MAGNESIUM ION × 2 ADENOSINE-5'-DIPHOSPHATE × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ISW1_YEAST
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain K； PDBConstruct 1–1129； UniProt 1–1129 Author chain N； PDBConstruct 1–1129； UniProt 1–1129

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9lj2
Deposition date deposition_date	2025-01-14
Structure title title	Structure of isw1-nucleosome double-bound complex in ADP-ADP+ state
Keywords keywords	Chromatin Remodeler, Nucleosome, DNA BINDING PROTEIN/DNA, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9lj2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9lj2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

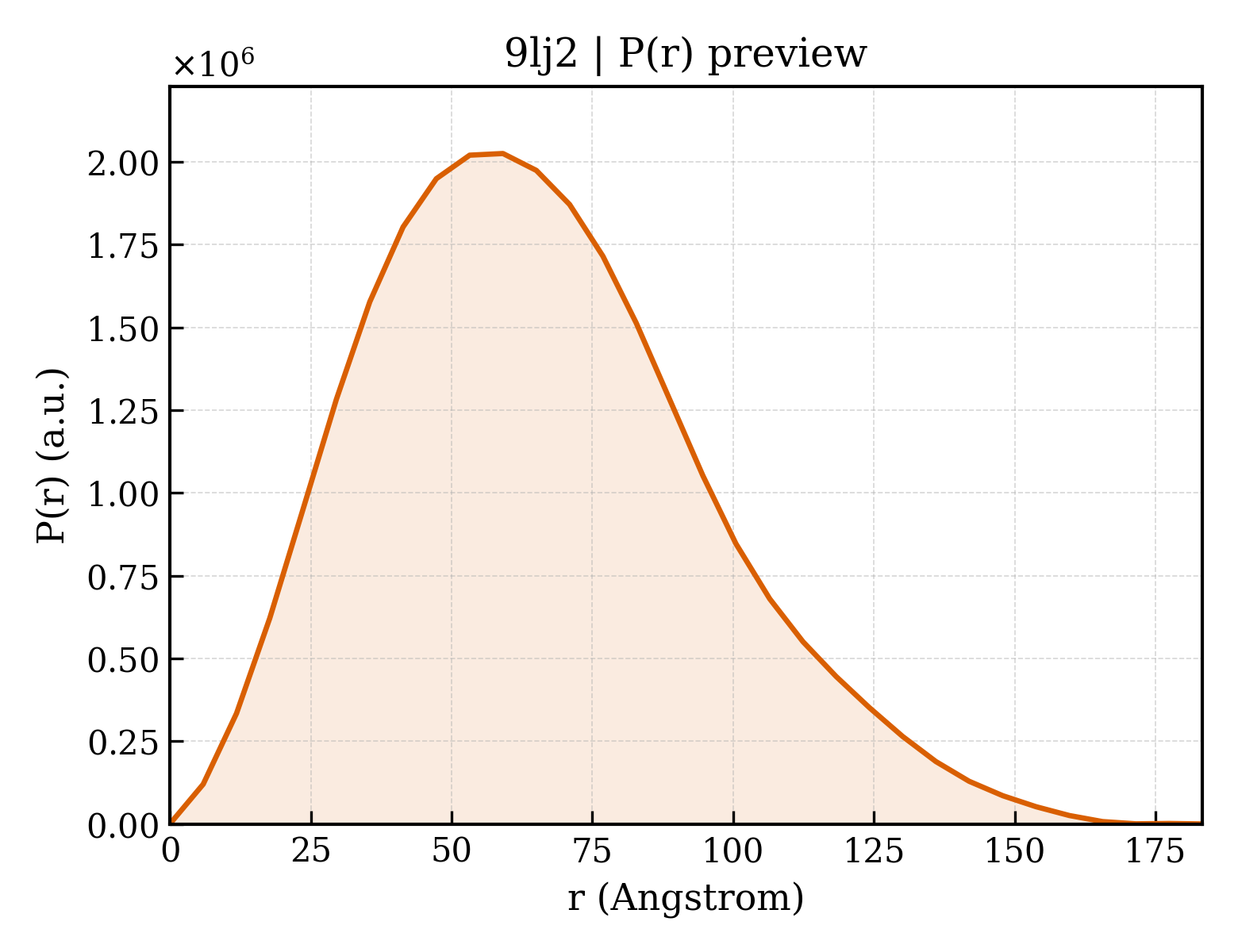

9lj2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	50.45 Å
Rg (electron density)	51.62 Å
Total Rg	51.45 Å
Atom count	21131
Residues	2155
Excluded volume	358100 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9lj2__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Histone H3
Molecular weight formula_weight	11560.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	21131

KPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGER

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	10061.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

AKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A
Molecular weight formula_weight	11694.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

AKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B
Molecular weight formula_weight	10348.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

TRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSA

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	DNA (147-MER)
Molecular weight formula_weight	45222.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

TCAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCGAT

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	DNA (147-MER)
Molecular weight formula_weight	45521.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

TCAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCGAT

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	ISWI chromatin-remodeling complex ATPase ISW1
Molecular weight formula_weight	131303.9 kDa
EC 编号 ec_number	3.6.4.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K,N

MAYMLAIANFHFFKFYTRMRKKHENNSCNEKDKDENLFKIILAIFLQEKKKYDCISSGSIMTASEEYLENLKPFQVGLPPHDPESNKKRYLLKDANGKKFDLEGTTKRFEHLLSLSGLFKHFIESKAAKDPKFRQVLDVLEENKANGKGKGKHQDVRRRKTEHEEDAELLKEEDSDDDESIEFQFRESPAYVNGQLRPYQIQGVNWLVSLHKNKIAGILADEMGLGKTLQTISFLGYLRYIEKIPGPFLVIAPKSTLNNWLREINRWTPDVNAFILQGDKEERAELIQKKLLGCDFDVVIASYEIIIREKSPLKKINWEYIIIDEAHRIKNEESMLSQVLREFTSRNRLLITGTPLQNNLHELWALLNFLLPDIFSDAQDFDDWFSSESTEEDQDKIVKQLHTVLQPFLLRRIKSDVETSLLPKKELNLYVGMSSMQKKWYKKILEKDLDAVNGSNGSKESKTRLLNIMMQLRKCCNHPYLFDGAEPGPPYTTDEHLVYNAAKLQVLDKLLKKLKEEGSRVLIFSQMSRLLDILEDYCYFRNYEYCRIDGSTAHEDRIQAIDDYNAPDSKKFVFLLTTRAGGLGINLTSADVVVLYDSDWNPQADLQAMDRAHRIGQKKQVKVFRLVTDNSVEEKILERATQKLRLDQLVIQQNRTSLKKKENKADSKDALLSMIQHGAADVFKSGTSTGSAGTPEPGSGEKGDDIDLDELLLKSENKTKSLNAKYETLGLDDLQKFNQDSAYEWNGQDFKKKIQRDIISPLLLNPTKRERKENYSIDNYYKDVLNTGRSSTPSHPRMPKPHVFHSHQLQPPQLKVLYEKERMWTAKKTGYVPTMDDVKAAYGDISDEEEKKQKLELLKLSVNNSQPLTEEEEKMKADWESEGFTNWNKLEFRKFITVSGKYGRNSIQAIARELAPGKTLEEVRAYAKAFWSNIERIEDYEKYLKIIENEEEKIKRVKMQQEALRRKLSEYKNPFFDLKLKHPPSSNNKRTYSEEEDRFILLMLFKYGLDRDDVYELVRDEIRDCPLFELDFYFRSRTPVELARRGNTLLQCLEKEFNAGIVLDDATKDRMKKEDENGKRIREEFADQTANEKENVDGVESKKAKIEDTSNVGTEQLVAEKIPENETTH

Source Source

Source organism organism	Saccharomyces cerevisiae S288C
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 8 Entity 8 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 9 Entity 9 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.98 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	154464
