9mou

Structure of native murine cardiac thin filament variant I79N in troponin T at pCa=5.8 in Ca2+-bound partially activated state (upper strand)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Actin, alpha cardiac muscle 1

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Troponin C, slow skeletal and cardiac muscles × 1 （P19123） Troponin I, cardiac muscle × 1 （P48787） Isoform 6 of Troponin T, cardiac muscle × 2 （P45379） Tropomyosin alpha-1 chain × 4 （P58771） ADENOSINE-5'-DIPHOSPHATE × 7 MAGNESIUM ION × 7 CALCIUM ION × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACTC_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–377； UniProt 1–377 Author chain B； PDBConstruct 1–377； UniProt 1–377 Author chain C； PDBConstruct 1–377； UniProt 1–377 Author chain D； PDBConstruct 1–377； UniProt 1–377 Author chain E； PDBConstruct 1–377； UniProt 1–377 Author chain F； PDBConstruct 1–377； UniProt 1–377 Author chain G； PDBConstruct 1–377； UniProt 1–377

Troponin C, slow skeletal and cardiac muscles

OrganismNot specified

UniProt P19123

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Actin, alpha cardiac muscle 1 × 7 （P68033） Troponin I, cardiac muscle × 1 （P48787） Isoform 6 of Troponin T, cardiac muscle × 2 （P45379） Tropomyosin alpha-1 chain × 4 （P58771） ADENOSINE-5'-DIPHOSPHATE × 7 MAGNESIUM ION × 7 CALCIUM ION × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TNNC1_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain H； PDBConstruct 1–161； UniProt 1–161

Troponin I, cardiac muscle

OrganismNot specified

UniProt P48787

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Actin, alpha cardiac muscle 1 × 7 （P68033） Troponin C, slow skeletal and cardiac muscles × 1 （P19123） Isoform 6 of Troponin T, cardiac muscle × 2 （P45379） Tropomyosin alpha-1 chain × 4 （P58771） ADENOSINE-5'-DIPHOSPHATE × 7 MAGNESIUM ION × 7 CALCIUM ION × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TNNI3_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain I； PDBConstruct 1–211； UniProt 1–211

Isoform 6 of Troponin T, cardiac muscle

OrganismNot specified

UniProt P45379

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Actin, alpha cardiac muscle 1 × 7 （P68033） Troponin C, slow skeletal and cardiac muscles × 1 （P19123） Troponin I, cardiac muscle × 1 （P48787） Tropomyosin alpha-1 chain × 4 （P58771） ADENOSINE-5'-DIPHOSPHATE × 7 MAGNESIUM ION × 7 CALCIUM ION × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TNNT2_HUMAN
Isoform	P45379-6
PDB entities	4
Chains and sequence ranges	Author chain J； PDBConstruct 1–288； UniProt 1–288 Author chain K； PDBConstruct 1–288； UniProt 1–288

Tropomyosin alpha-1 chain

OrganismNot specified

UniProt P58771

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Actin, alpha cardiac muscle 1 × 7 （P68033） Troponin C, slow skeletal and cardiac muscles × 1 （P19123） Troponin I, cardiac muscle × 1 （P48787） Isoform 6 of Troponin T, cardiac muscle × 2 （P45379） ADENOSINE-5'-DIPHOSPHATE × 7 MAGNESIUM ION × 7 CALCIUM ION × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TPM1_MOUSE
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain L； PDBConstruct 1–284； UniProt 1–284 Author chain M； PDBConstruct 1–284； UniProt 1–284 Author chain N； PDBConstruct 1–284； UniProt 1–284 Author chain O； PDBConstruct 1–284； UniProt 1–284

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9mou
Deposition date deposition_date	2024-12-27
Structure title title	Structure of native murine cardiac thin filament variant I79N in troponin T at pCa=5.8 in Ca2+-bound partially activated state (upper strand)
Keywords keywords	thin filament, cryo-EM, troponin, tropomyosin, muscle structure, motor protein; MOTOR PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9mou__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9mou__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

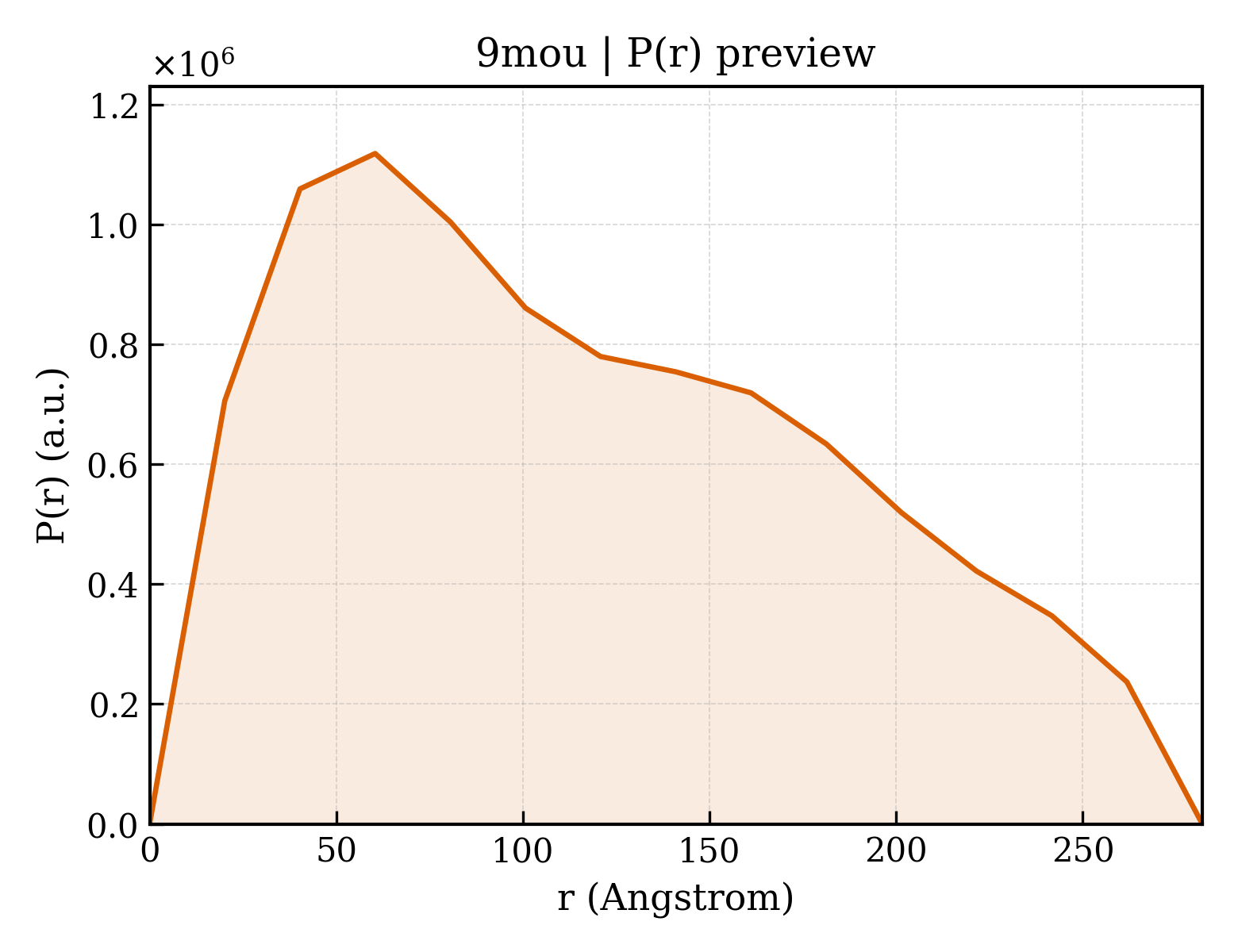

9mou__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	109.10 Å
Total Rg	108.40 Å
Atom count	28660
Residues	3599
Excluded volume	508890 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9mou__assembly_1__model_1`	pentadecameric （15）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Actin, alpha cardiac muscle 1
Molecular weight formula_weight	42064.9 kDa
EC 编号 ec_number	3.6.4.-
Source method src_method	nat
Copy count entity_count	7

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G
Atom count atom_count	28660

MCDDEETTALVCDNGSGLVKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIITNWDDMEKIWHHTFYNELRVAPEEHPTLLTEAPLNPKANREKMTQIMFETFNVPAMYVAIQAVLSLYASGRTTGIVLDSGDGVTHNVPIYEGYALPHAIMRLDLAGRDLTDYLMKILTERGYSFVTTAEREIVRDIKEKLCYVALDFENEMATAASSSSLEKSYELPDGQVITIGNERFRCPETLFQPSFIGMESAGIHETTYNSIMKCDIDIRKDLYANNVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDEAGPSIVHRKCF

Entity 2 Entity 2 polymer

Description description	Troponin C, slow skeletal and cardiac muscles
Molecular weight formula_weight	18437.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MDDIYKAAVEQLTEEQKNEFKAAFDIFVLGAEDGCISTKELGKVMRMLGQNPTPEELQEMIDEVDEDGSGTVDFDEFLVMMVRCMKDDSKGKSEEELSDLFRMFDKNADGYIDLDELKMMLQATGETITEDDIEELMKDGDKNNDGRIDYDEFLEFMKGVE

Entity 3 Entity 3 polymer

Description description	Troponin I, cardiac muscle
Molecular weight formula_weight	24308.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MADESSDAAGEPQPAPAPVRRRSSANYRAYATEPHAKKKSKISASRKLQLKTLMLQIAKQEMEREAEERRGEKGRVLRTRCQPLELDGLGFEELQDLCRQLHARVDKVDEERYDVEAKVTKNITEIADLTQKIYDLRGKFKRPTLRRVRISADAMMQALLGTRAKESLDLRAHLKQVKKEDIEKENREVGDWRKNIDALSGMEGRKKKFEG

Entity 4 Entity 4 polymer

Description description	Isoform 6 of Troponin T, cardiac muscle
Molecular weight formula_weight	34660.3 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,K

MSDIEEVVEEYEEEEQEEAAVEEQEEAAEEDAEAEAETEETRAEEDEEEEEAKEAEDGPMEESKPKPRSFMPNLVPPKNPDGERVDFDDIHRKRMEKDLNELQALIEAHFENRKKEEEELVSLKDRIERRRAERAEQQRIRNEREKERQNRLAEERARREEEENRRKAEDEARKKKALSNMMHFGGYIQKQAQTERKSGKRQTEREKKKKILAERRKVLAIDHLNEDQLREKAKELWQSIYNLEAEKFDLQEKFKQQKYEINVLRNRINDNQKVSKTRGKAKVTGRWK

Entity 5 Entity 5 polymer

Description description	Tropomyosin alpha-1 chain
Molecular weight formula_weight	32735.6 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,M,N,O

MDAIKKKMQMLKLDKENALDRAEQAEADKKAAEDRSKQLEDELVSLQKKLKGTEDELDKYSEALKDAQEKLELAEKKATDAEADVASLNRRIQLVEEELDRAQERLATALQKLEEAEKAADESERGMKVIESRAQKDEEKMEIQEIQLKEAKHIAEDADRKYEEVARKLVIIESDLERAEERAELSEGKCAELEEELKTVTNNLKSLEAQAEKYSQKEDKYEEEIKVLSDKLKEAETRAEFAERSVTKLEKSIDDLEDELYAQKLKYKAISEELDHALNDMTSI

Entity 6 Entity 6 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 8 Entity 8 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	3

▶

Resolution resolution	5.60 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	58913
