9n0d

JUNV GP1, GP2, SSP complex with neutralizing antibody in a pseudotyped virus membrane

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Pre-glycoprotein polyprotein GP complex

Mammarenavirus juninense

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 15 其他Polymer 6	neutralizing antibody light chain × 3 neutralizing antibody heavy chain × 3 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 6 MYRISTIC ACID × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 15	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GLYC_JUNIN
Isoform	—
PDB entities	1, 2, 3
Chains and sequence ranges	Author chain A； PDBConstruct 1–57； UniProt 2–58 Author chain F； PDBConstruct 1–57； UniProt 2–58 Author chain K； PDBConstruct 1–57； UniProt 2–58 Author chain B； PDBConstruct 1–187； UniProt 61–247 Author chain G； PDBConstruct 1–187； UniProt 61–247 Author chain L； PDBConstruct 1–187； UniProt 61–247 Author chain C； PDBConstruct 1–234； UniProt 252–485 Author chain H； PDBConstruct 1–234； UniProt 252–485 Author chain M； PDBConstruct 1–234； UniProt 252–485

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9n0d
Deposition date deposition_date	2025-01-24
Last revision last_revision	2025-07-23
Structure title title	JUNV GP1, GP2, SSP complex with neutralizing antibody in a pseudotyped virus membrane
Keywords keywords	Viral protein, Glycoprotein, GPC, JUNV, Junin mammarenavirus, GP1, GP2, signal peptide, virus membrane, antibody; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9n0d__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9n0d__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

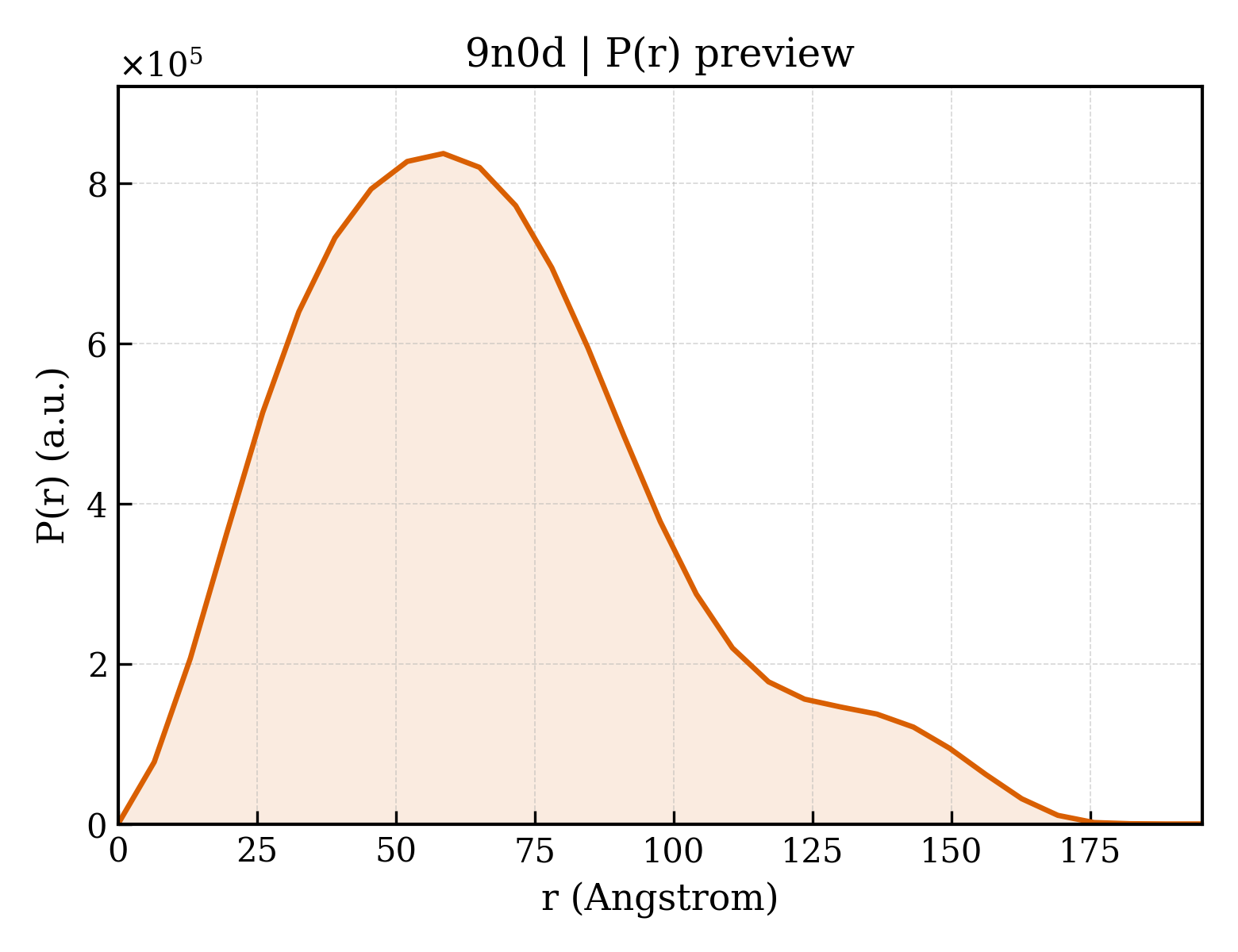

9n0d__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	51.87 Å
Rg (electron density)	52.36 Å
Total Rg	52.39 Å
Atom count	16989
Residues	2079
Excluded volume	303850 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9n0d__assembly_1__model_1`	pentadecameric （15）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Pre-glycoprotein polyprotein GP complex
Molecular weight formula_weight	6242.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,F,K
Atom count atom_count	16989

GQFISFMQEIPTFLQEALNIALVAVSLIAIIKGVVNLYKSGLFQFFVFLALAGRSCT

Source Source

Source organism organism	Mammarenavirus juninense
NCBI taxonomy ID ncbi_taxonomy_id	2169991
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Pre-glycoprotein polyprotein GP complex
Molecular weight formula_weight	21566.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,G,L

AFKIGLHTEFQTVSFSMVGLFSNNPHDLPLLCTLNKSHLYIKGGNASFKISFDDIAVLLPEYDVIIQHPADMSWCSKSDDQIWLSQWFMNAVGHDWYLDPPFLCRNRTKTEGFIFQVNTSKTGINENYAKKFKTGMHHLYREYPDSCLDGKLCLMKAQPTSWPLQCPLDHVNTLHFLTRGKNIQLPR

Source Source

Source organism organism	Mammarenavirus juninense
NCBI taxonomy ID ncbi_taxonomy_id	2169991
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Pre-glycoprotein polyprotein GP complex
Molecular weight formula_weight	27026.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,H,M

AFFSWSLTDSSGKDTPGGYCLEEWMLVAAKMKCFGNTAVAKCNLNHDSEFCDMLRLFDYNKNAIKTLNDETKKQVNLMGQTINALISDNLLMKNKIRELMSVPYCNYTKFWYVNHTLSGQHSLPRCWLIKNNSYLNISDFRNDWILESDFLISEMLSKEYSDRQGKTPLTLVDICFWSTVFFTASLFLHLVGIPTHRHIRGEACPLPHRLNSLGGCRCGKYPNLKKPTVWRRGH

Source Source

Source organism organism	Mammarenavirus juninense
NCBI taxonomy ID ncbi_taxonomy_id	2169991
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	neutralizing antibody light chain
Molecular weight formula_weight	11359.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,I,N

QIVLTQSPAIMSASPGEKVTITCSASSIVSYMHWFQQKPGTSPKLWIYGTSNLASGVPARFSGSGSGTSYSLTISRMEAEDAATYYCQQRNSYPPTFGGGTKLEIK

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Mus musculus

Entity 5 Entity 5 polymer

Description description	neutralizing antibody heavy chain
Molecular weight formula_weight	13082.6 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,J,O

VALVESGGGLVQPGGSLKLSCASGASFSNAGMSWVRQTPDRRLELVAAINRDGDITYHPDSVKGRFTISRDNAKNTLYLQMSSLKSEDTAMYYCAREDYYGLYFYVMDYWGQGTSVTVA

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Mus musculus

Entity 6 Entity 6 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	6

Entity 7 Entity 7 non-polymer

Description description	MYRISTIC ACID
Molecular weight formula_weight	228.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 8 Entity 8 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	15

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.800 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	279624
