9nn2

Composite structure of HSV-1 helicase-primase in complex with a forked DNA and amenamevir

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA replication helicase

Human alphaherpesvirus 1 strain 17

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 3 DNA 1	;DNA (5'-D(PAPTPCPTPGPTP*T)-3') ; × 1 DNA primase × 1 （P10236） DNA helicase/primase complex-associated protein × 1 （P10192） Amenamevir × 1 ZINC ION × 2 water × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HELI_HHV11
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–852； UniProt 31–882

DNA primase

Human alphaherpesvirus 1 strain 17

UniProt P10236

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 3 DNA 1	;DNA (5'-D(PAPTPCPTPGPTP*T)-3') ; × 1 DNA replication helicase × 1 （P10189） DNA helicase/primase complex-associated protein × 1 （P10192） Amenamevir × 1 ZINC ION × 2 water × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PRIM_HHV11
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 1–1058； UniProt 1–1058

DNA helicase/primase complex-associated protein

Human alphaherpesvirus 1 strain 17

UniProt P10192

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 3 DNA 1	;DNA (5'-D(PAPTPCPTPGPTP*T)-3') ; × 1 DNA replication helicase × 1 （P10189） DNA primase × 1 （P10236） Amenamevir × 1 ZINC ION × 2 water × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HEPA_HHV11
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain C； PDBConstruct 1–750； UniProt 1–750

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9nn2
Deposition date deposition_date	2025-03-04
Last revision last_revision	2025-11-19
Structure title title	Composite structure of HSV-1 helicase-primase in complex with a forked DNA and amenamevir
Keywords keywords	DNA replication, HSV-1 helicase-primase, VIRAL PROTEIN, Transferase-Hydrolase complex; Transferase/Hydrolase
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9nn2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9nn2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

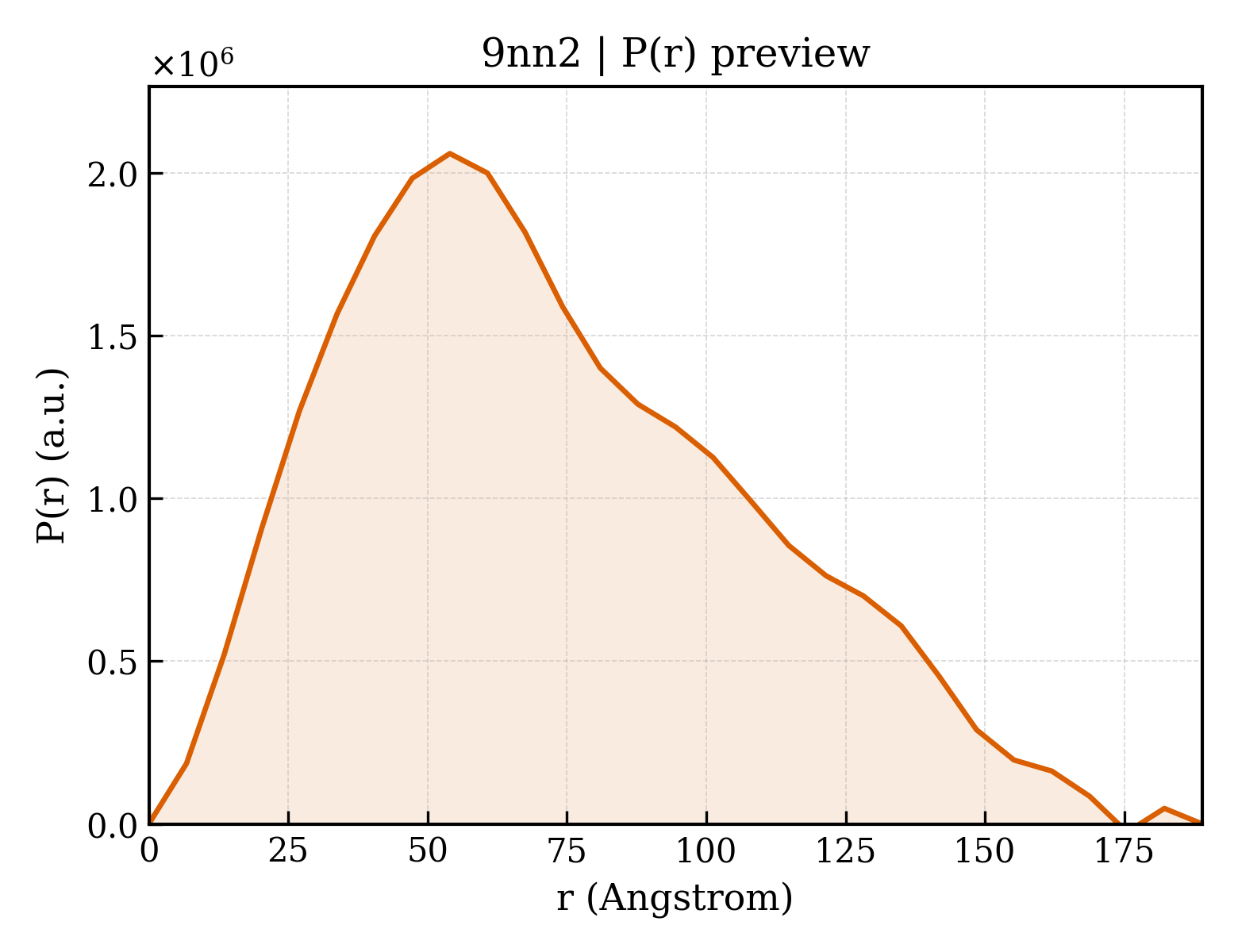

9nn2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	56.29 Å
Rg (electron density)	56.86 Å
Total Rg	56.69 Å
Atom count	19557
Residues	2517
Excluded volume	346710 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9nn2__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	;DNA (5'-D(PAPTPCPTPGPTP*T)-3') ;
Molecular weight formula_weight	13114.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D
Atom count atom_count	19561

GCAGCCTGGACGTCTGCAGCTCGTCCTATCTGTTCACCTGTCA

Entity 2 Entity 2 polymer

Description description	DNA replication helicase
Molecular weight formula_weight	95760.8 kDa
EC 编号 ec_number	3.6.4.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

GRAEAFLNFTSMHGVQPILKRIRELSQQQLDGAQVPHLQWFRDVAALESPAGLPLREFPFAVYLITGNAGSGKSTCVQTINEVLDCVVTGATRIAAQNMYAKLSGAFLSRPINTIFHEFGFRGNHVQAQLGQYPYTLTSNPASLEDLQRRDLTYYWEVILDLTKRALAASGGEELRNEFRALAALERTLGLAEGALTRLAPATHGALPAFTRSNVIVIDEAGLLGRHLLTAVVYCWWMINALYHTPQYAARLRPVLVCVGSPTQTASLESTFEHQKLRCSVRQSENVLTYLICNRTLREYARLSYSWAIFINNKRCVEHEFGNLMKVLEYGLPITEEHMQFVDRFVVPENYITNPANLPGWTRLFSSHKEVSAYMAKLHAYLKVTREGEFVVFTLPVLTFVSVKEFDEYRRLTHQPGLTIEKWLTANASRITNYSQSQDQDAGHMRCEVHSKQQLVVARNDVTYVLNSQIAVTARLRKLVFGFSGTFRAFEAVLRDDSFVKTQGETSVEFAYRFLSRLIFSGLISFYNFLQRPGLDATQRTLAYARMGELTAEILSLRPKSSGVPTQASVMADAGAPGERAFDFKQLGPRDGGPDDFPDDDLDVIFAGLDEQQLDVFYCHYTPGEPETTAAVHTQFALLKRAFLGRFRILQELFGEAFEVAPFSTYVDNVIFRGCEMLTGSPRGGLMSVALQTDNYTLMGYTYARVFAFADELRRRHATANVAELLEEAPLPYVVLRDQHGFMSVVNTNISEFVESIDSTELAMAINADYGISSKLAMTITRSQGLSLDKVAICFTPGNLRLNSAYVAMSRTTSSEFLRMNLNPLRERHERDDVISEHILSALRDPNVVIVY

Source Source

Source organism organism	Human alphaherpesvirus 1 strain 17
NCBI taxonomy ID ncbi_taxonomy_id	10299
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	DNA primase
Molecular weight formula_weight	114558.6 kDa
EC 编号 ec_number	2.7.7.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MGQEDGNRGERRAAGTPVEVTALYATDGCVITSSIALLTNSLLGAEPVYIFSYDAYTHDGRADGPTEQDRFEESRALYQASGGLNGDSFRVTFCLLGTEVGGTHQARGRTRPMFVCRFERADDVAALQDALAHGTPLQPDHIAATLDAEATFALHANMILALTVAINNASPRTGRDAAAAQYDQGASLRSLVGRTSLGQRGLTTLYVHHEVRVLAAYRRAYYGSAQSPFWFLSKFGPDEKSLVLTTRYYLLQAQRLGGAGATYDLQAIKDICATYAIPHAPRPDTVSAASLTSFAAITRFCCTSQYARGAAAAGFPLYVERRIAADVRETSALEKFITHDRSCLRVSDREFITYIYLAHFECFSPPRLATHLRAVTTHDPNPAASTEQPSPLGREAVEQFFCHVRAQLNIGEYVKHNVTPRETVLDGDTAKAYLRARTYAPGALTPAPAYCGAVDSATKMMGRLADAEKLLVPRGWPAFAPASPGEDTAGGTPPPQTCGIVKRLLRLAATEQQGPTPPAIAALIRNAAVQTPLPVYRISMVPTGQAFAALAWDDWARITRDARLAEAVVSAEAAAHPDHGALGRRLTDRIRAQGPVMPPGGLDAGGQMYVNRNEIFNGALAITNIILDLDIALKEPVPFRRLHEALGHFRRGALAAVQLLFPAARVDPDAYPCYFFKSACRPGPASVGSGSGLGNDDDGDWFPCYDDAGDEEWAEDPGAMDTSHDPPDDEVAYFDLCHEVGPTAEPRETDSPVCSCTDKIGLRVCMPVPAPYVVHGSLTMRGVARVIQQAVLLDRDFVEAIGSYVKNFLLIDTGVYAHGHSLRLPYFAKIAPDGPACGRLLPVFVIPPACKDVPAFVAAHADPRRFHFHAPPTYLASPREIRVLHSLGGDYVSFFERKASRNALEHFGRRETLTEVLGRYNVQPDAGGTVEGFASELLGRIVACIETHFPEHAGEYQAVSVRRAVSKDDWVLLQLVPVRGTLQQSLSCLRFKHGRASRATARTFVALSVGANNRLCVSLCQQCFAAKCDSNRLHTLFTIDAGTPCSPSVPCSTSQPSS

Source Source

Source organism organism	Human alphaherpesvirus 1 strain 17
NCBI taxonomy ID ncbi_taxonomy_id	10299
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	DNA helicase/primase complex-associated protein
Molecular weight formula_weight	80005.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MDTADIVWVEESVSAITLYAVWLPPRAREYFHALVYFVCRNAAGEGRARFAEVSVTATELRDFYGSADVSVQAVVAAARAATTPAASPLEPLENPTLWRALYACVLAALERQTGPVALFAPLRIGSDPRTGLVVKVERASWGPPAAPRAALLVAEANIDIDPMALAARVAEHPDARLAWARLAAIRDTPQCASAASLTVNITTGTALFAREYQTLAFPPIKKEGAFGDLVEVCEVGLRPRGHPQRVTARVLLPRDYDYFVSAGEKFSAPALVALFRQWHTTVHAAPGALAPVFAFLGPEFEVRGGPVPYFAVLGFPGWPTFTVPATAESARDLVRGAAAAYAALLGAWPAVGARVVLPPRAWPGVASAAAGCLLPAVREAVARWHPATKIIQLLDPPAAVGPVWTARFCFPGLRAQLLAALADLGGSGLADPHGRTGLARLDALVVAAPSEPWAGAVLERLVPDTCNACPALRQLLGGVMAAVCLQIEETASSVKFAVCGGDGGAFWGVFNVDPQDADAASGVIEDARRAIETAVGAVLRANAVRLRHPLCLALEGVYTHAVAWSQAGVWFWNSRDNTDHLGGFPLRGPAYTTAAGVVRDTLRRVLGLTTACVPEEDALTARGLMEDACDRLILDAFNKRLDAEYWSVRVSPFEASDPLPPTAFRGGALLDAEHYWRRVVRVCPGGGESVGVPVDLYPRPLVLPPVDCAHHLREILREIELVFTGVLAGVWGEGGKFVYPFDDKMSFLFA

Source Source

Source organism organism	Human alphaherpesvirus 1 strain 17
NCBI taxonomy ID ncbi_taxonomy_id	10299
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 non-polymer

Description description	Amenamevir
Molecular weight formula_weight	482.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	nat
Copy count entity_count	2

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	4

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	725691
