9o0h

;The ubiquitin-associated domain of human thirty-eight negative kinase 1, fused to the 3TEL crystallization chaperone via a 2-glycine linker ;

Method: X-RAY DIFFRACTION D_max: 84.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

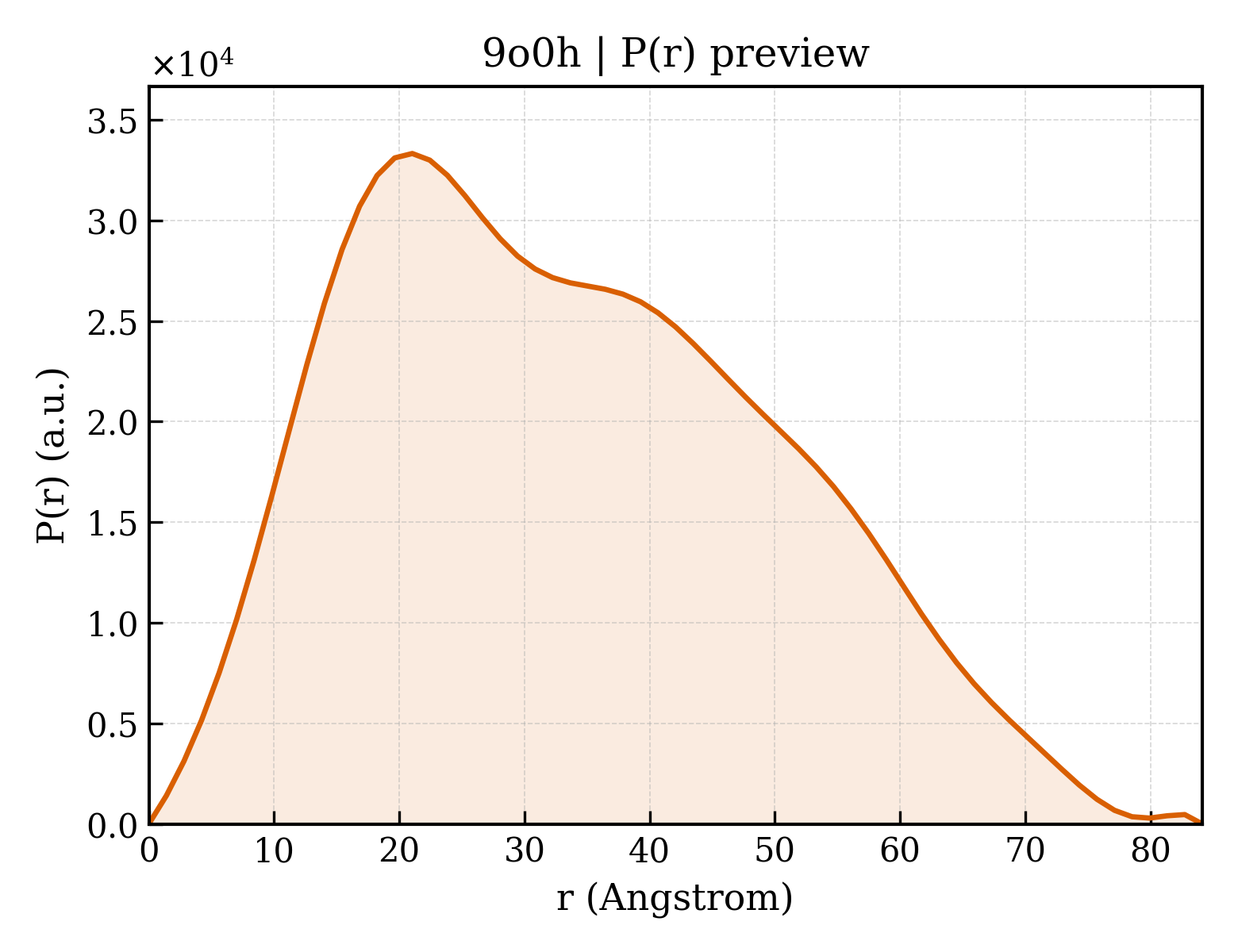

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9o0h
沉积日期 deposition_date	2025-04-02
最后修订 last_revision	2025-04-30
结构标题 title	;The ubiquitin-associated domain of human thirty-eight negative kinase 1, fused to the 3TEL crystallization chaperone via a 2-glycine linker ;
关键词 keywords	TELSAM, 3TEL, Pointed Domain, ETS, TEL, TNK1, UBA Domain, ONCOPROTEIN; ONCOPROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.32 Å
回转半径 Rg (电子) rg_electron	25.65 Å
零角强度 I(0) i0	17701700.00
分子量 molecular_weight	33487.0 kDa
排除体积 excluded_volume	42335 Å³
包络体积 envelope_volume	54385 Å³
水化壳体积 shell_volume	18708 Å³
包络直径 envelope_diameter	89.8 Å
壳层 Rg shell_rg	30.98 Å
包络 Rg envelope_rg	25.78 Å
形状 Rg shape_rg	25.68 Å
总 Rg total_rg	26.19 Å
总原子数 total_atoms	2381
残基数 n_residues	306
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	84.1 Å
Rg (实空间) rg_real	26.47 Å
Rg 误差 (实空间) rg_real_error	0.74 Å
I(0) (实空间) i0_real	1.7700e+07
I(0) 误差 (实空间) i0_real_error	2.7120e+05
Rg (倒空间) rg_reciprocal	26.43 Å
I(0) (倒空间) i0_reciprocal	17700000.0000
解质量估计 total_estimate	0.8659
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	21.0 Å
偏度 Skewness skewness	0.352
峰度 Kurtosis kurtosis	-0.669
角度范围 angular_range	— – 0.3000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	4567000.0000
实空间数据点数 n_real_points	61
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.862; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.731; Smooth: 0.934

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Transcription factor ETV6,Non-receptor tyrosine-protein kinase TNK1
分子量 formula_weight	37595.6 kDa
EC 编号 ec_number	2.7.10.2
突变 mutation	V112E (Uniprot numbering) in the first ETV6 repeat, C610A,C644A (Uniprot numbering) in TNK1
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B
原子数 atom_count	2470

GSIRLPAHLRLQPIYWSRDDVAQWLKWAENEFSLRPIDSNTFEMNGKALLLLTKEDFRYRSPHSGDELYELLQHILKQRPGGGGSTSIRLPAHLRLQPIYWSRDDVAQWLKWAENEFSLRPIDSNTFEMNGKALLLLTKEDFRYRSPHSGDVLYELLQHILKQRPGGGGSTSIRLPAHLRLQPIYWSRDDVAQWLKWAENEFSLRPIDSNTFEMNGKALLLLTKEDFRYRSPHSGDVLYELLQHILGGELQRKIMEVELSVHGVTHQEAQTALGATGGDVVSAIRNLKVDQLFHLSSRSRADAWRILEHYQWDLSAASRYVLARP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	89

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	55.152 Å
晶胞边长 b length_b	65.540 Å
晶胞边长 c length_c	112.902 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	orthorhombic

分辨率 resolution	2.240 Å
最低分辨率 resolution_low	42.200 Å
R 因子 r_factor	0.2257
R_work r_work	0.2244
R_free r_free	0.2490
