7ju2

Crystal structure of the monomeric ETV6 PNT domain

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription factor ETV6

Homo sapiens

UniProt P41212

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein monomer Monomer Protein 1 FORMIC ACID × 1 water × 1 Consistent with protein count
2 Protein monomer Monomer Protein 1 FORMIC ACID × 1 water × 1 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
2dao 7ju2 7ju2 7n2b 7n2b 8e1f 8e1f 8e1f 8e1f 9db5 9dp8 9dvg

16 assemblies; showing the first 12

Homodimer

None

Homotetramer

None

Other homooligomers
1ji7 1lky 1lky 1lky 1lky 1lky

6 assemblies

Heteromeric or nucleic-acid complex
2qb0 2qb0 5l0p 7n1o 7t8j 7tdy 7tw7 7tw8 7tw9 7u4w 7u4z 8bwu

43 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name ETV6_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–83； UniProt 43–125 Author chain B； PDBConstruct 1–83； UniProt 43–125

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7ju2
Deposition date deposition_date2020-08-19
Structure title titleCrystal structure of the monomeric ETV6 PNT domain
Keywords keywordsPNT domain, ETS transcription factor, chromosomal translocation, kinase fusion, ONCOPROTEIN; ONCOPROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7ju2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

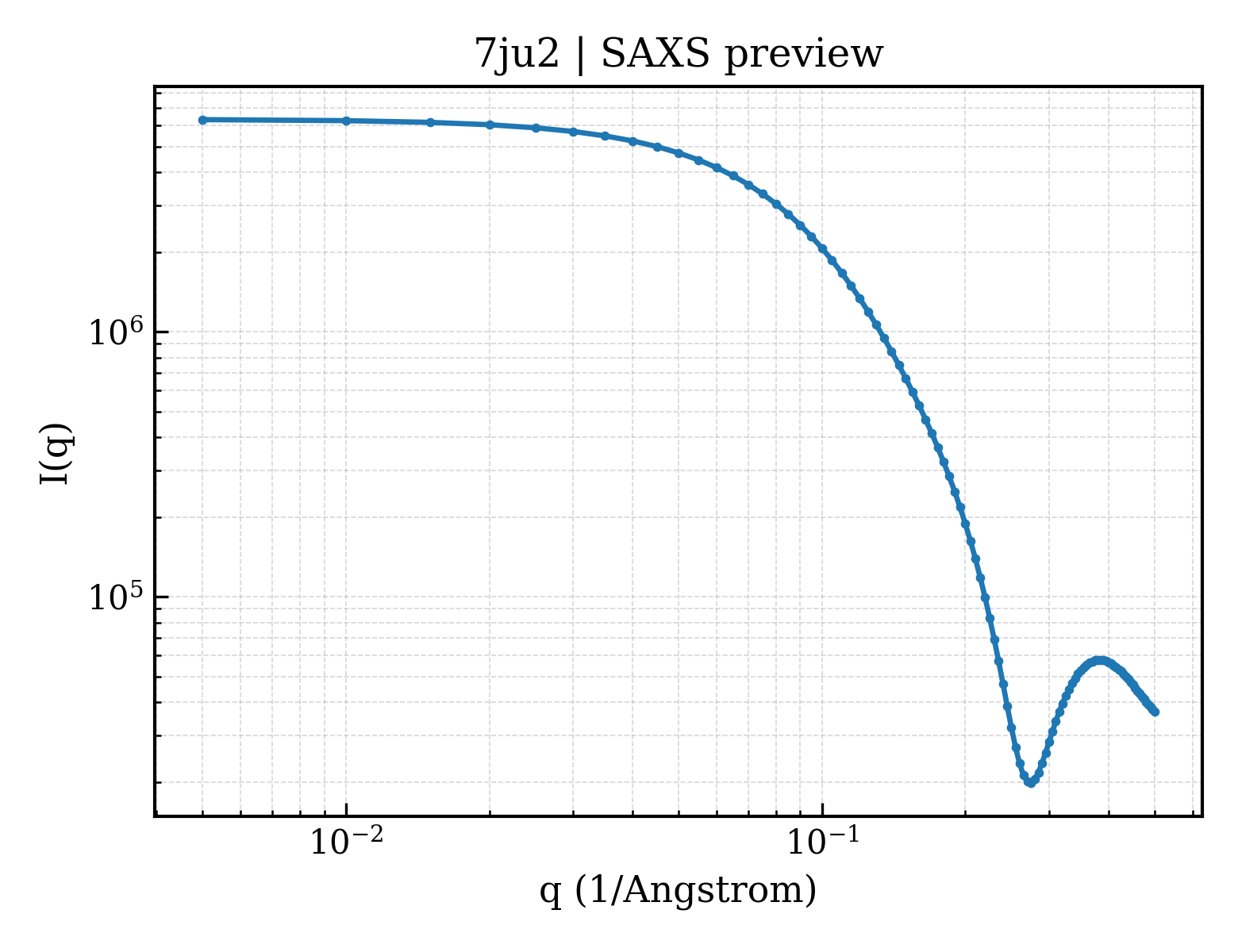

7ju2__assembly_1__model_1 | I(q)

10-2 10-1 105 106 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

7ju2__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）13.33 Å
Rg (electron density)11.67 Å
Total Rg13.20 Å
Atom count662
Residues77
Excluded volume11699 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 7ju2__assembly_1__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
2 1 7ju2__assembly_2__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd7ju2a_
Class classa — All alpha proteins
Fold Fold folda.60 — SAM domain-like
Superfamily Superfamily superfamilya.60.1 — SAM/Pointed domain
Family Family familya.60.1.1 — Pointed domain
Domain ID domain_idd7ju2b_
Class classa — All alpha proteins
Fold Fold folda.60 — SAM domain-like
Superfamily Superfamily superfamilya.60.1 — SAM/Pointed domain
Family Family familya.60.1.1 — Pointed domain
▶

7. Citations (1)
