9prq

In situ structure of human mitoribosome in the A/T-P state from TACO1-knockout cells

Method: ELECTRON MICROSCOPY Dmax: 236.2 Å Quality: EXCELLENT

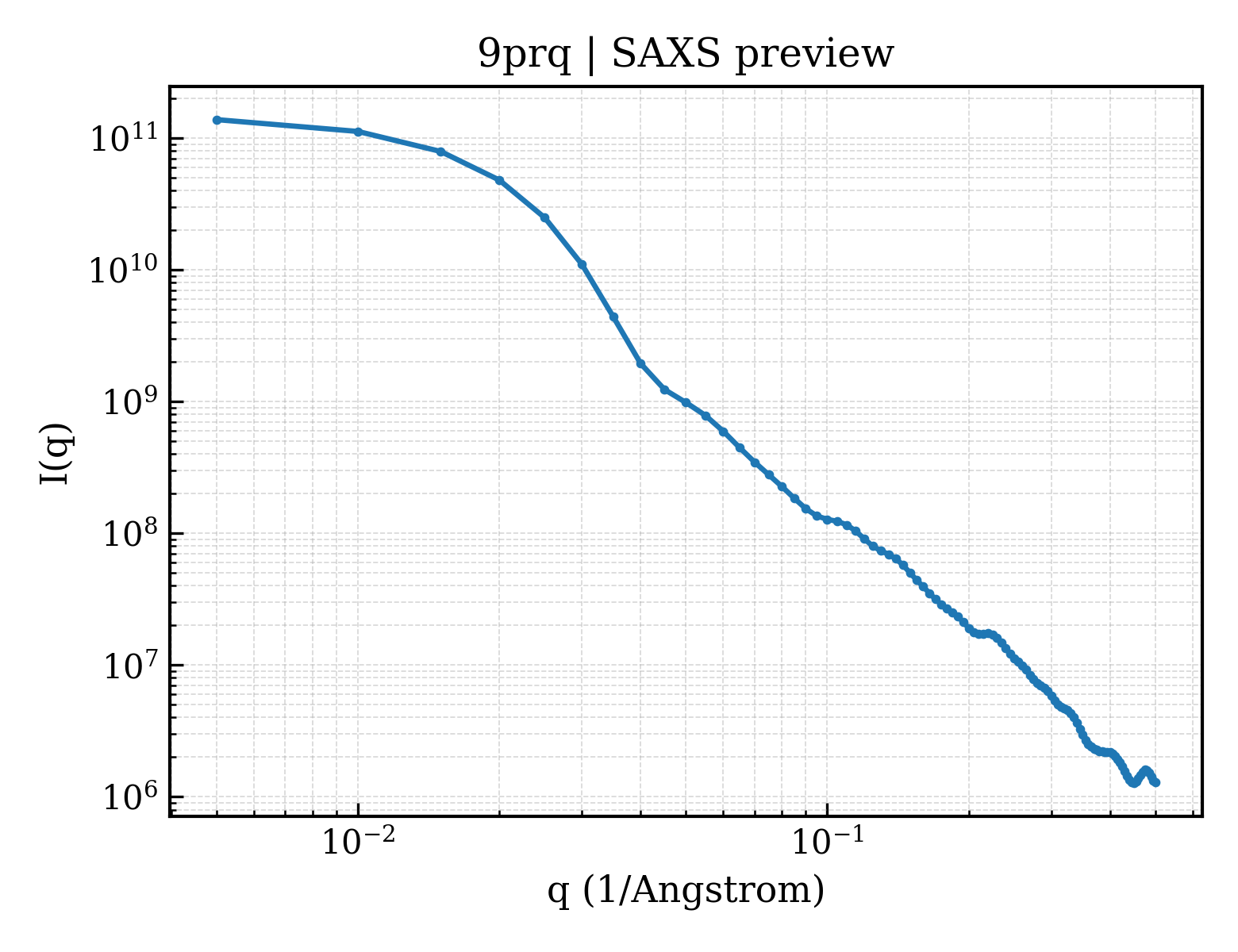

SAXS Profile

SAXS profile for 9prq

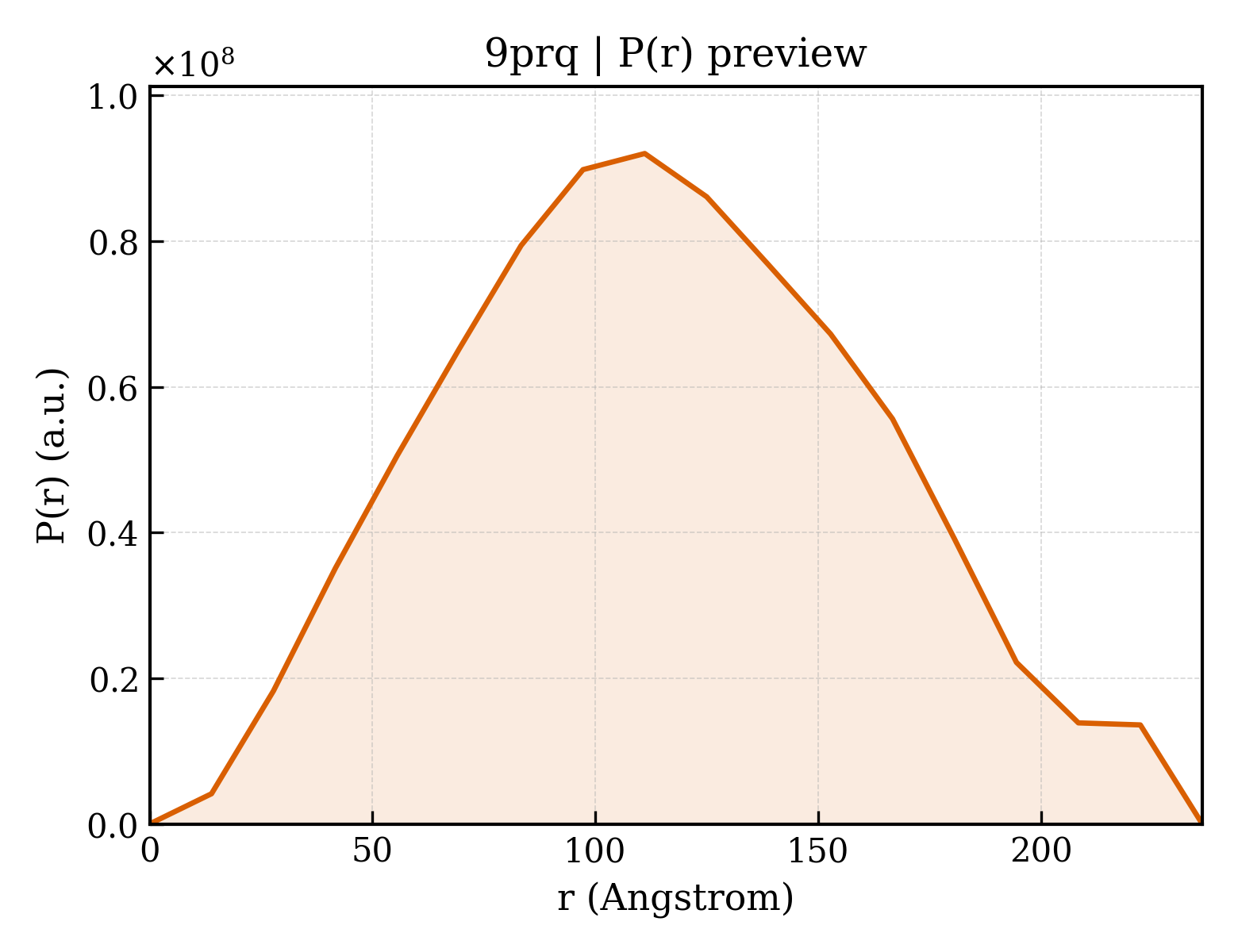

P(r) Distribution

P(r) distribution for 9prq

1. Structure Basics

entry_id9prq
deposition_date2025-07-24
titleIn situ structure of human mitoribosome in the A/T-P state from TACO1-knockout cells
keywordsmitochondria, mitoribosome, inner membrane, RIBOSOME; RIBOSOME
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier90.80
rg_electron95.19
i0147674000000.00
molecular_weight2631600.0 kDa
excluded_volume3022800 ų
envelope_volume5091300 ų
shell_volume411280 ų
envelope_diameter328.7
shell_rg107.20
envelope_rg94.10
shape_rg95.47
total_rg94.49
total_atoms181108
n_residues17738
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax236.2
rg_real87.60
rg_real_error0.39
i0_real1.4120e+11
i0_real_error2.3040e+09
rg_reciprocal91.80
i0_reciprocal148100000000.0000
total_estimate0.9134
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary111.1
skewness0.152
kurtosis-0.547
angular_range— – 0.0850 −1
current_alpha0.6620
highest_alpha10670000000.0000
n_real_points18
gnom_version4.1.3
quality_criteria AN1: 0.001; Oscil: 0.995; Stabil: 0.965; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (101)

6. Citations (1)

7. Files & Curves (10)
