1. Protein Identity and Related Structures Protein Identity & Related Structures

Insulin A chain

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	INS_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–21； UniProt 90–110 Author chain B； PDBConstruct 1–30； UniProt 25–54

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9r4a
Deposition date deposition_date	2025-05-07
Last revision last_revision	2025-12-03
Structure title title	Spitrobot-2 advances time-resolvedcryo-trapping crystallography to under 25 ms: Human insulin, pH 4.5 (50 ms soaking)
Keywords keywords	Human insulin, pH-jump, pH 4.5, Spitrobot-2, HORMONE; HORMONE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9r4a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

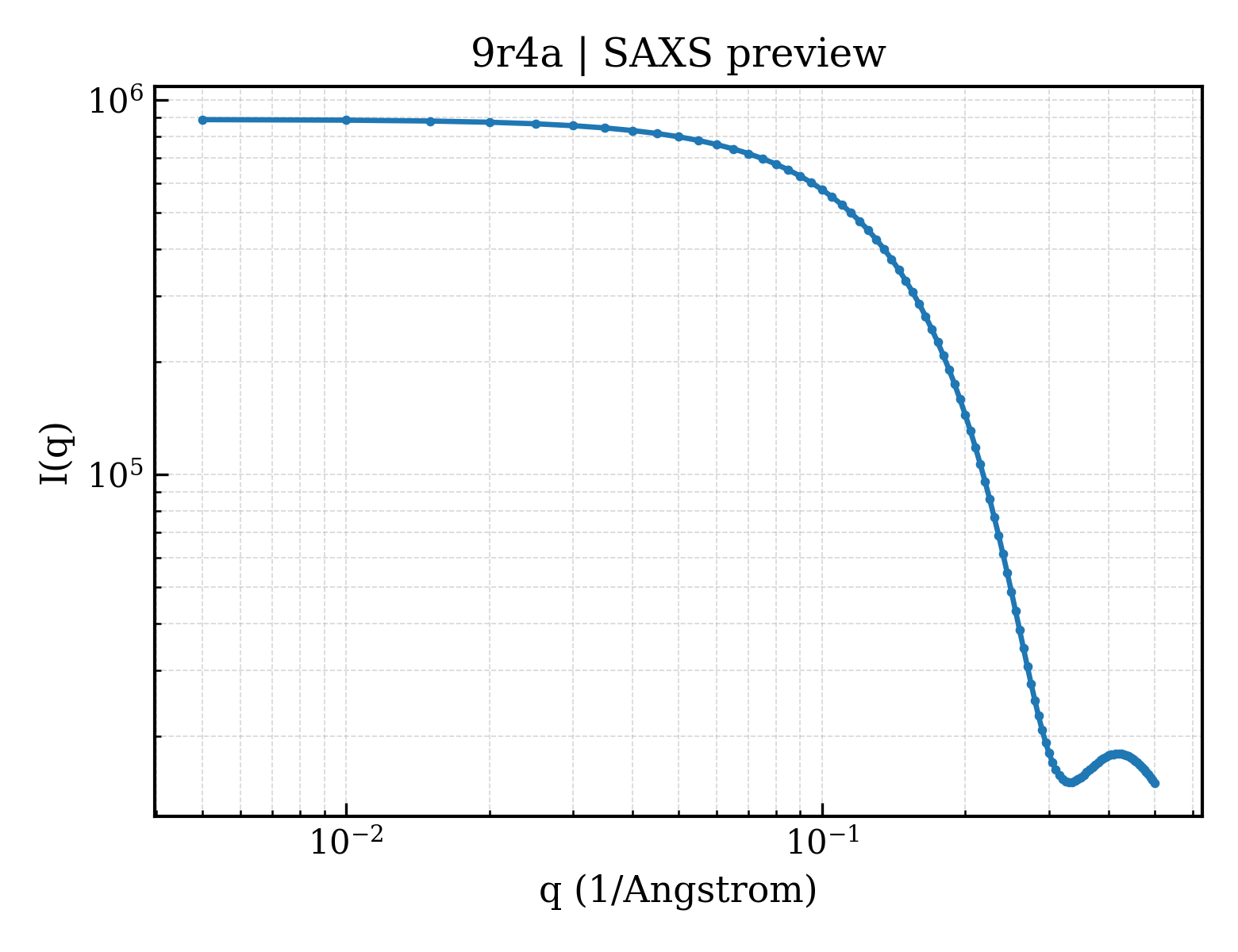

9r4a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

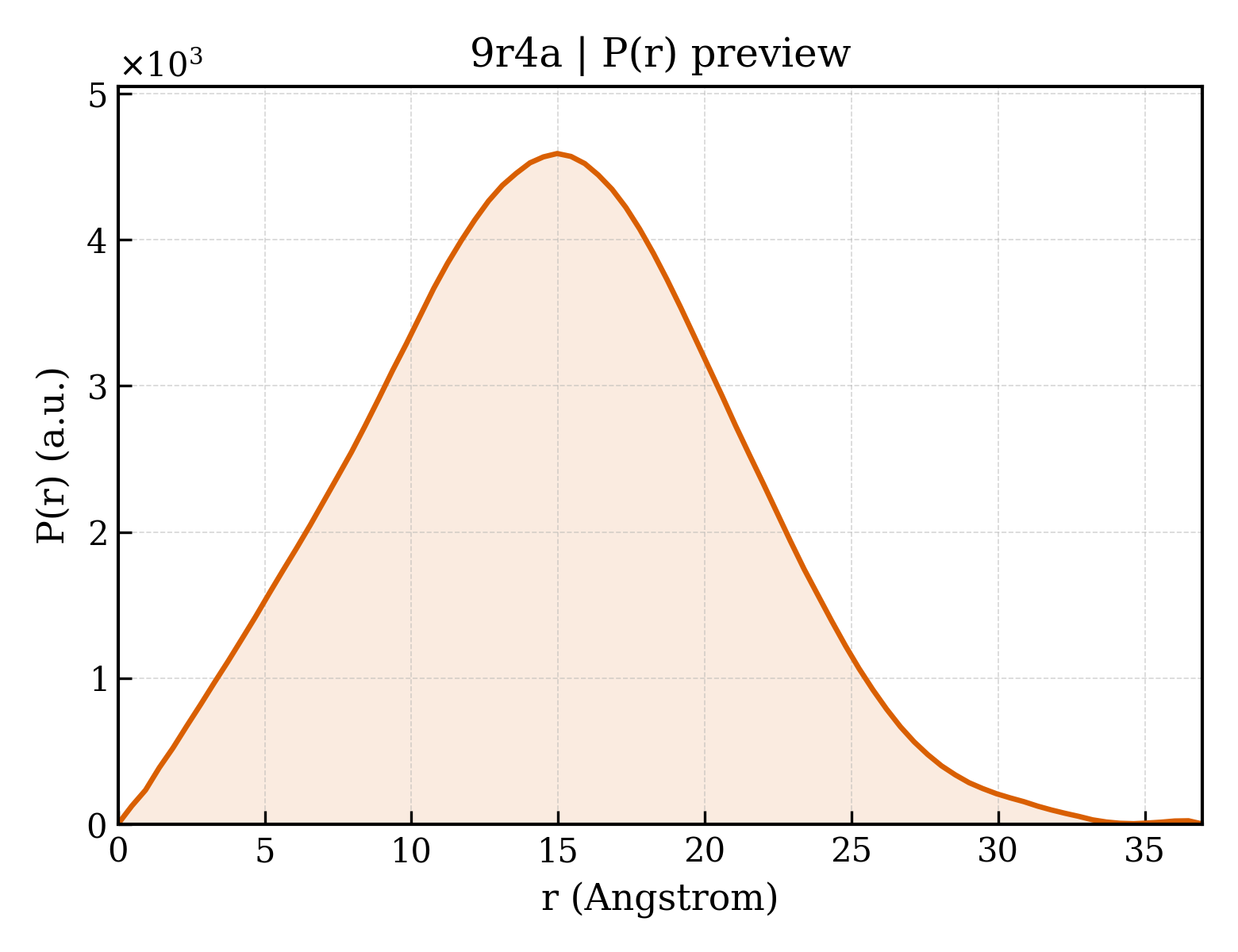

9r4a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	11.34 Å
Rg (electron density)	9.95 Å
Total Rg	11.38 Å
Atom count	410
Residues	51
Excluded volume	7266 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9r4a__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Insulin A chain
Molecular weight formula_weight	2383.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	503

GIVEQCCTSICSLYQLENYCN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Saccharomyces cerevisiae

Entity 2 Entity 2 polymer

Description description	Insulin B chain
Molecular weight formula_weight	3434.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

FVNQHLCGSHLVEALYLVCGERGFFYTPKT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Saccharomyces cerevisiae

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	55

▶

Unit-cell length a length_a	78.345 Å
Unit-cell length b length_b	78.345 Å
Unit-cell length c length_c	78.345 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	I 21 3
Space-group number int_tables_number	199
Crystal system crystal_system	—

Resolution resolution	1.450 Å
Low-resolution limit resolution_low	39.173 Å
R factor r_factor	0.1717
R_work r_work	0.1704
R_free r_free	0.1956
