9r4e
Spitrobot-2 advances time-resolvedcryo-trapping crystallography to under 25 ms: Human insulin, pH 4.5 (5 s soaking)

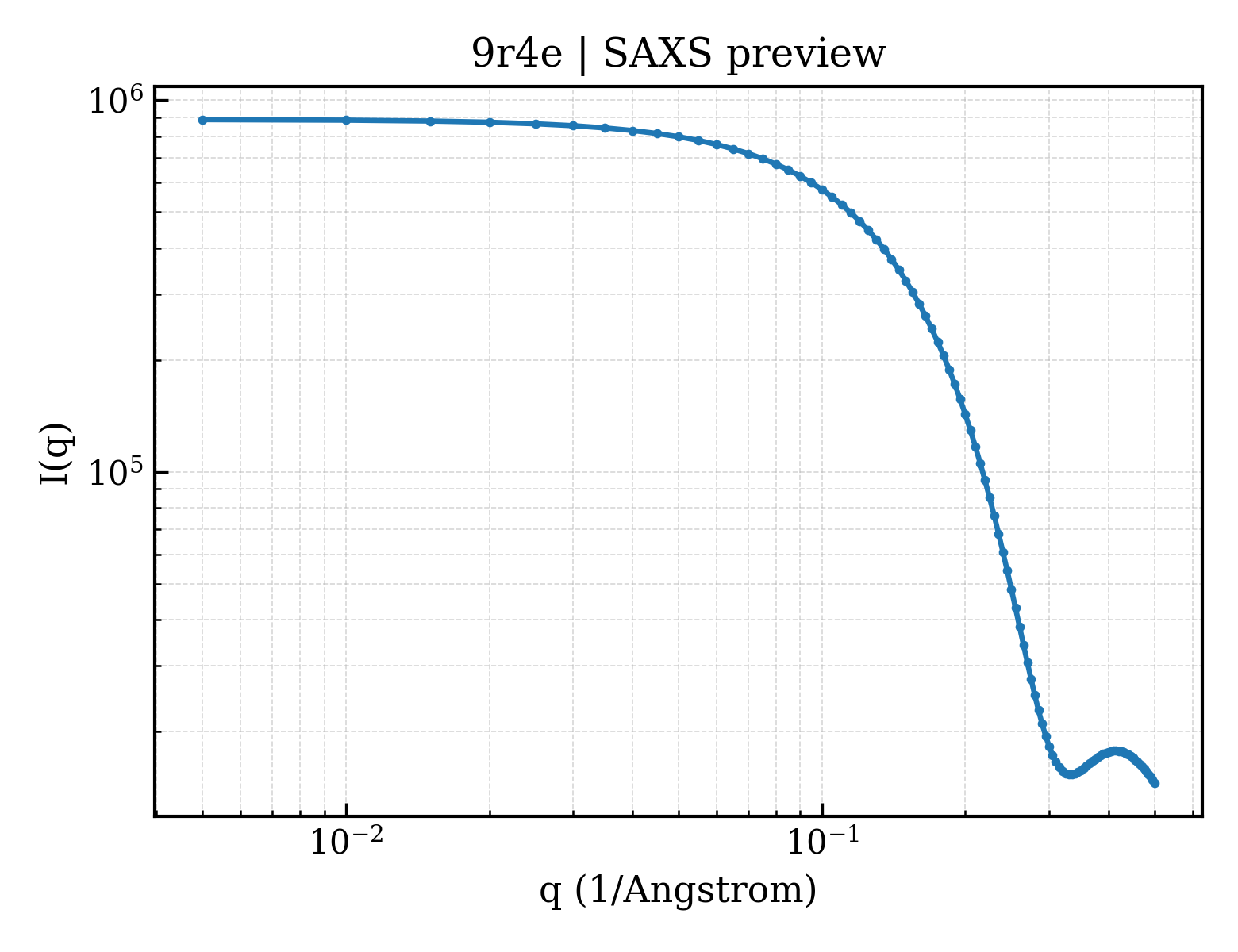

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9r4e |
| deposition_date | 2025-05-07 |
| last_revision | 2025-12-03 |
| title | Spitrobot-2 advances time-resolvedcryo-trapping crystallography to under 25 ms: Human insulin, pH 4.5 (5 s soaking) |
| keywords | Human insulin, pH-jump, HORMONE; HORMONE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.39 Å |
| rg_electron | 9.98 Å |
| i0 | 887083.00 |
| molecular_weight | 5908.0 kDa |
| excluded_volume | 7266 ų |
| envelope_volume | 7868 ų |
| shell_volume | 7020 ų |
| envelope_diameter | 33.8 Å |
| shell_rg | 15.13 Å |
| envelope_rg | 10.36 Å |
| shape_rg | 9.98 Å |
| total_rg | 11.43 Å |
| total_atoms | 410 |
| n_residues | 51 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 36.2 Å |
| rg_real | 11.32 Å |
| rg_real_error | 0.23 Å |
| i0_real | 8.8710e+05 |
| i0_real_error | 8.9770e+03 |
| rg_reciprocal | 11.33 Å |
| i0_reciprocal | 887100.0000 |
| total_estimate | 0.8933 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.1 Å |
| skewness | 0.115 |
| kurtosis | -0.314 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 82530.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.881; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.970 |
