9r61

CPS translocon Wza_C8

Method: ELECTRON MICROSCOPY D_max: 137.7 Å Quality: GOOD

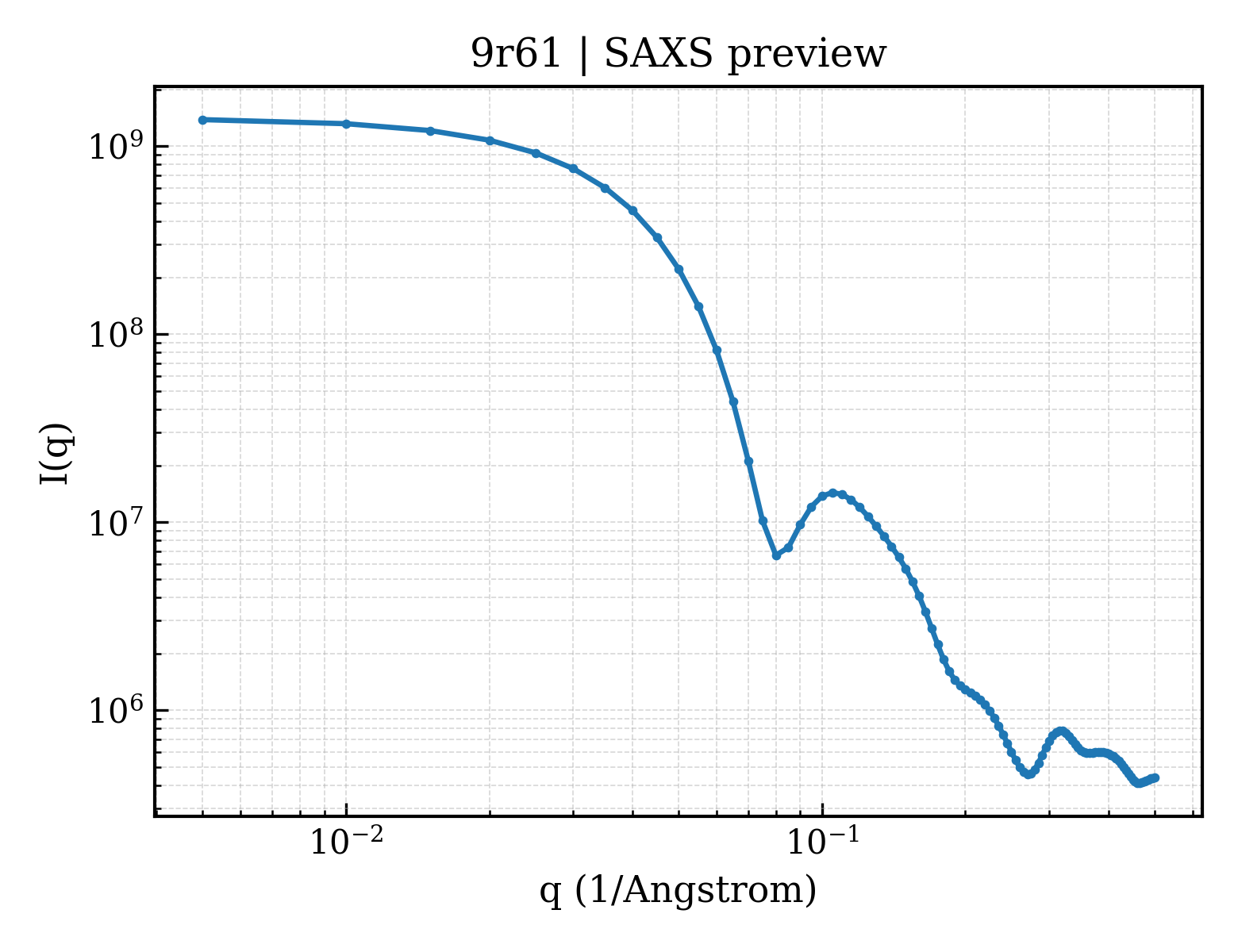

SAXS Profile

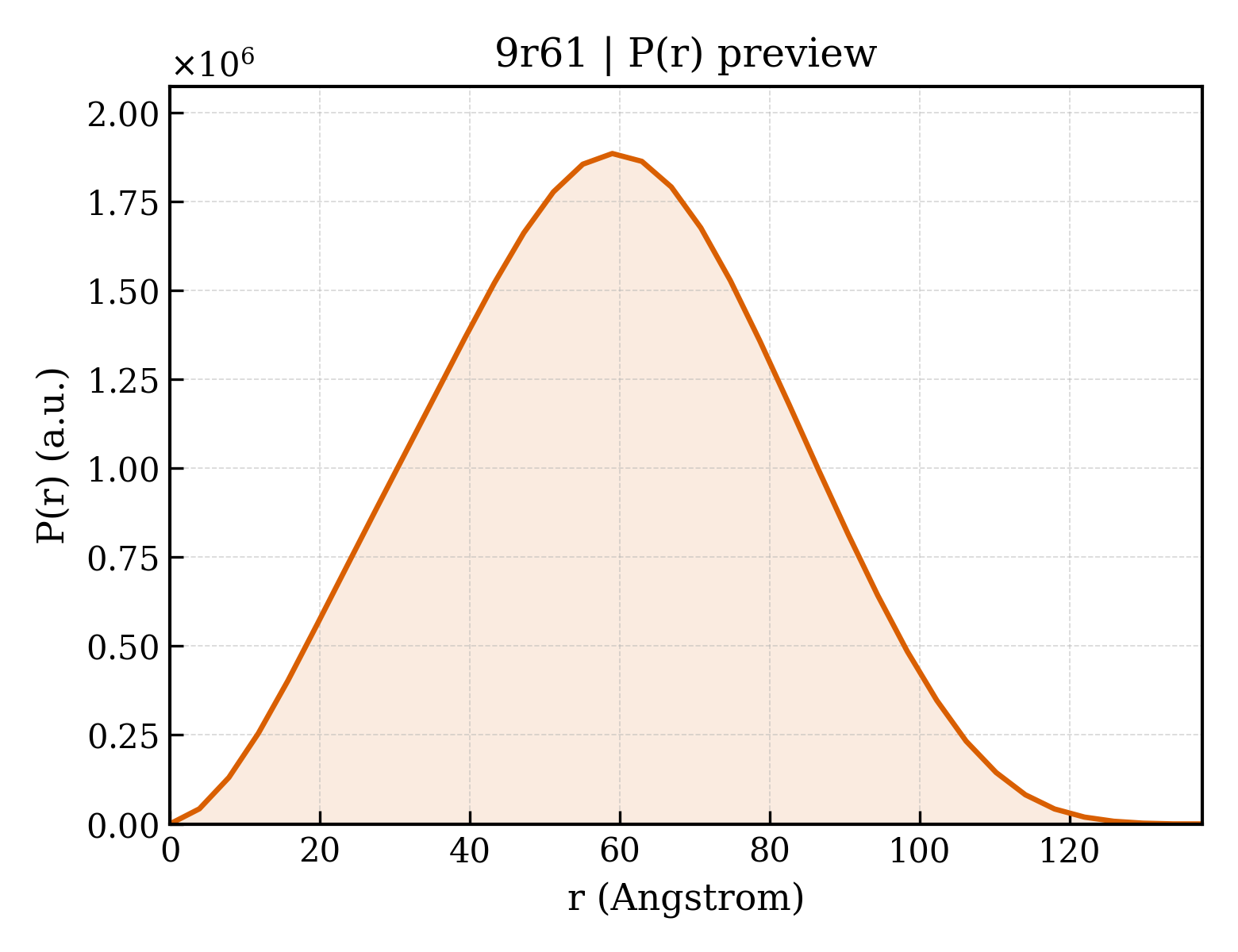

P(r) Distribution

P(r) distribution for 9r61

▼

1. Structure Basics

entry_id	9r61
deposition_date	2025-05-11
title	CPS translocon Wza_C8
keywords	capsular polysaccharide, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	44.83 Å
rg_electron	44.21 Å
i0	1410410000.00
molecular_weight	307650.0 kDa
excluded_volume	384150 Å³
envelope_volume	563830 Å³
shell_volume	101650 Å³
envelope_diameter	135.7 Å
shell_rg	53.28 Å
envelope_rg	42.49 Å
shape_rg	44.22 Å
total_rg	44.57 Å
total_atoms	43200
n_residues	2784
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	137.7 Å
rg_real	44.49 Å
rg_real_error	0.62 Å
i0_real	1.4100e+09
i0_real_error	2.1710e+07
rg_reciprocal	44.83 Å
i0_reciprocal	1411000000.0000
total_estimate	0.8882
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	59.0 Å
skewness	0.048
kurtosis	-0.486
angular_range	— – 0.1750 Å⁻¹
current_alpha	0.0002
highest_alpha	184100000.0000
n_real_points	36
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.892; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.959; Smooth: 0.907

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
