SAXSdb — 9r6a

▼

1. Structure Basics

entry_id	9r6a
deposition_date	2025-05-11
title	CPS secretion pathway Wza-Wzc (Conf 3)
keywords	CPS transporter, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	— Å
rg_electron	114.80 Å
i0	11548300000.00
molecular_weight	914460.0 kDa
excluded_volume	1146300 Å³
envelope_volume	2157200 Å³
shell_volume	180840 Å³
envelope_diameter	370.9 Å
shell_rg	73.98 Å
envelope_rg	109.30 Å
shape_rg	114.80 Å
total_rg	114.50 Å
total_atoms	129144
n_residues	8248
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	314.9 Å
rg_real	108.30 Å
rg_real_error	1.61 Å
i0_real	1.1160e+10
i0_real_error	2.5370e+08
rg_reciprocal	98.11 Å
i0_reciprocal	10990000000.0000
total_estimate	0.8889
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	96.9 Å
skewness	0.465
kurtosis	-0.759
angular_range	— – 0.0650 Å⁻¹
current_alpha	0.6756
highest_alpha	382100000.0000
n_real_points	14
gnom_version	4.1.3
quality_criteria	AN1: 0.001; Oscil: 0.872; Stabil: 0.958; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.089

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Putative polysaccharide export protein Wza
formula_weight	43873.8 kDa
src_method	man
entity_count	8

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F,G,H
atom_count	129144

MMKSKMKLMPLLVSVTLISGCTVLPGSNMSTMGKDVIKQQDADFDLDKMVNVYPLTPRLIDQLRPRPNVARPNMTLESEIANYQYRVGPGDVLNVTVWDHPELTTPAGQYRSSSDTGNWVQPDGTMFYPYIGKVHVVGKTLAEIRSDITGRLATYIADPQVDVNIAAFRSQKAYISGQVNKSGQQAITNVPLTILDAINAAGGLTDTADWRNVVLTHNGREERISLQALMQNGDLNQNRLLYPGDILYVPRNDDLKVFVMGEVKKQSTLKMDFSGMTLTEALGNAEGIDMTTSNASGIFVIRPLKGEGGRNGKIANIYQLDMSDATSLVMATEFRLQPYDVVYVTTAPVSRWNRLINQLLPTISGVRYMTDTASDIHNWENLYFQSWSHPQFEK

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli B

Entity 2 polymer

description	Tyrosine-protein kinase wzc
formula_weight	81557.1 kDa
ec_number	2.7.10.-
src_method	man
entity_count	8

Polymer

type	polypeptide(L)
strand_id	I,J,K,L,M,N,O,P

MTEKVKQHAAPVTGSDEIDIGRLVGTVIEARWWVIGITTVFALCAVVYTFFATPIYSADALVQIEQNSGNSLVQDIGSALANKPPASDAEIQLIRSRLVLGKTVDDLDLDIAVSKNTFPIFGAGWDRLMGRQNETVKVTTFNRPKEMADQVFTLNVLDNKNYTLSSDGGFSARGQAGQMLKKEGVTLMVEAIHASPGSEFTVTKYSTLGMINQLQNSLTVTENGKDAGVLSLTYTGEDREQIRDILNSIARNYQEQNIERKSAEASKSLAFLAQQLPEVRSRLDVAENKLNAFRQDKDSVDLPLEAKAVLDSMVNIDAQLNELTFKEAEISKLYTKVHPAYRTLLEKRQALEDEKAKLNGRVTAMPKTQQEIVRLTRDVESGQQVYMQLLNKEQELKITEASTVGDVRIVDPAITQPGVLKPKKGLIILGAIILGLMLSIVGVLLRSLFNRGIESPQVLEEHGISVYASIPLSEWQKARDSVKTIKGIKRYKQSQLLAVGNPTDLAIEAIRSLRTSLHFAMMQAQNNVLMMTGVSPSIGMTFVCANLAAVISQTNKRVLLIDCDMRKGYTHELLGTNNVNGLSEILIGQGDITTAAKPTSIAKFDLIPRGQVPPNPSELLMSERFAELVNWASKNYDLVLIDTPPILAVTDAAIVGRHVGTTLMVARYAVNTLKEVETSLSRFEQNGIPVKGVILNSIFRRASAYQDYGYYEYEYKSDAKSSGENLYFQGWSHPQFEK

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli B

Entity 3 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	8

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	6.30 Å
resolution_method	—
num_particles	27501

fit	/app/data/saxs_computation/r6/9r6a/9r6a.fit
pddf	/app/data/pr_computation/r6/9r6a/9r6a.pr.out
profile	/app/data/saxs_computation/r6/9r6a/9r6a.dat

CPS secretion pathway Wza-Wzc (Conf 3)

SAXS Profile

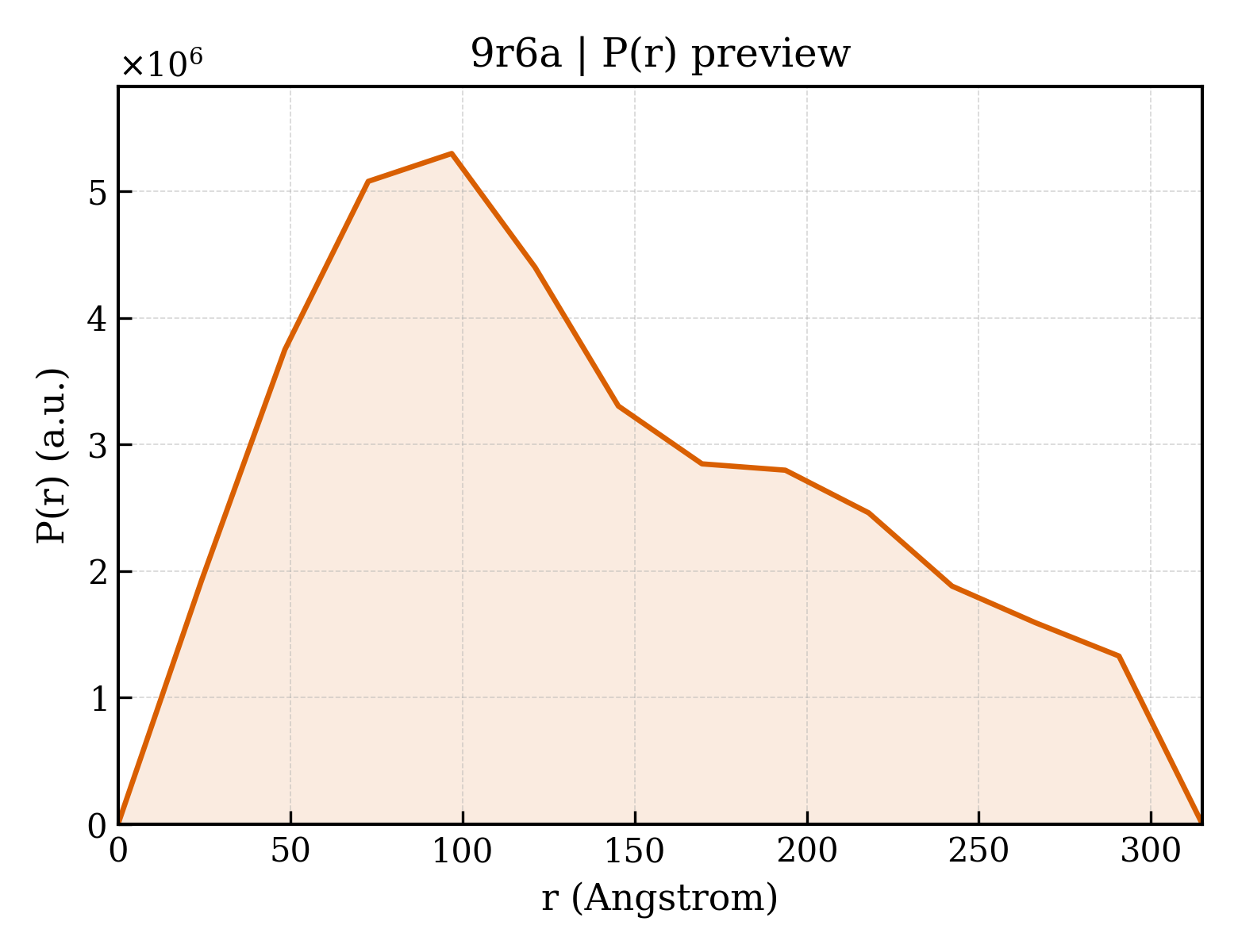

P(r) Distribution
