9rgk
Human Transthyretin I107V Mutant
SAXS Profile

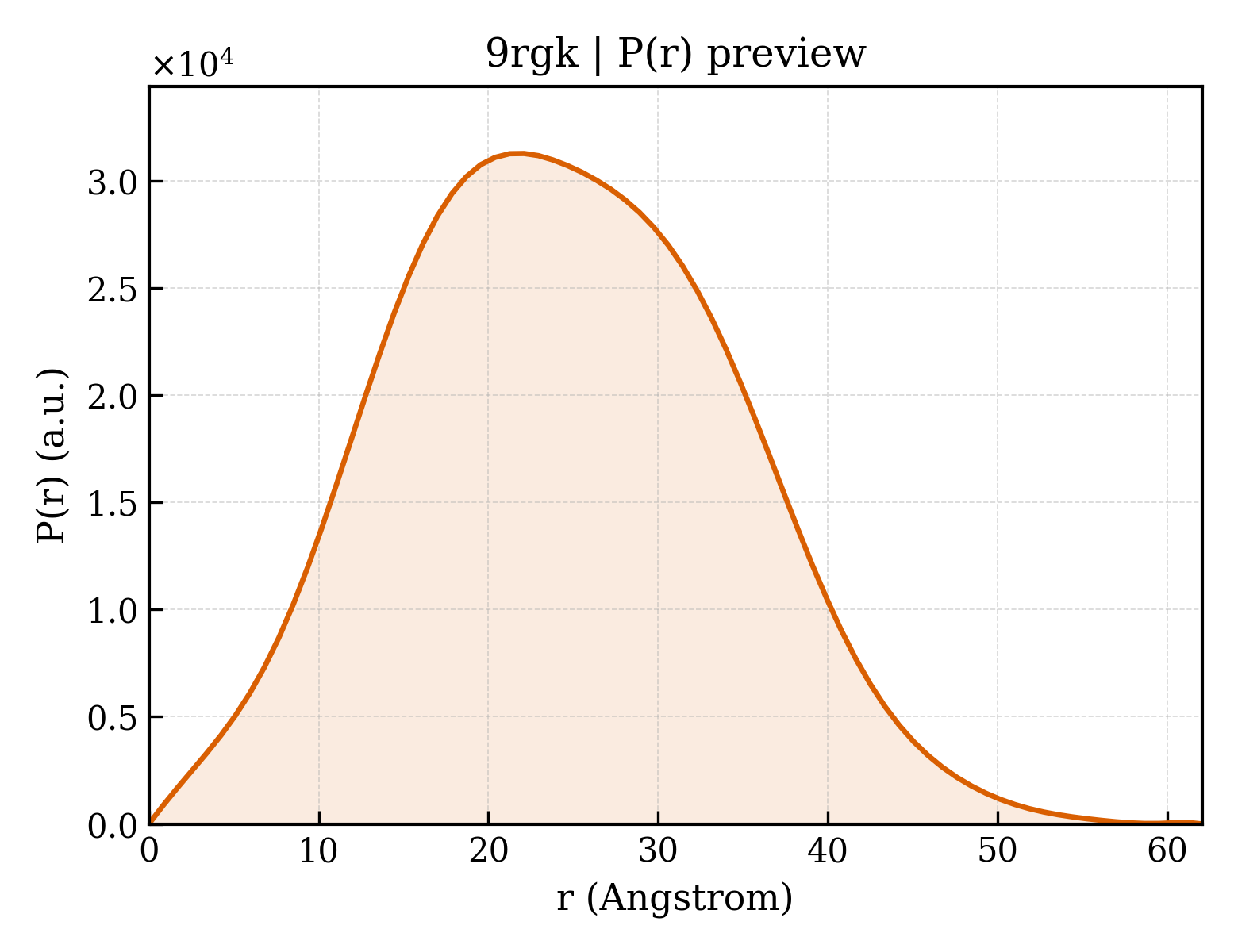

P(r) Distribution
1. Structure Basics
| entry_id | 9rgk |
| deposition_date | 2025-06-06 |
| title | Human Transthyretin I107V Mutant |
| keywords | tetramer destabilization, amyloidosis, ATTR, mutant, TRANSPORT PROTEIN; TRANSPORT PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.68 Å |
| rg_electron | 17.35 Å |
| i0 | 10612000.00 |
| molecular_weight | 24633.0 kDa |
| excluded_volume | 30949 ų |
| envelope_volume | 35480 ų |
| shell_volume | 17164 ų |
| envelope_diameter | 62.5 Å |
| shell_rg | 23.42 Å |
| envelope_rg | 17.61 Å |
| shape_rg | 17.32 Å |
| total_rg | 18.41 Å |
| total_atoms | 3382 |
| n_residues | 231 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 62.0 Å |
| rg_real | 18.58 Å |
| rg_real_error | 0.37 Å |
| i0_real | 1.0610e+07 |
| i0_real_error | 1.3420e+05 |
| rg_reciprocal | 18.60 Å |
| i0_reciprocal | 10610000.0000 |
| total_estimate | 0.8768 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.1 Å |
| skewness | 0.165 |
| kurtosis | -0.379 |
| angular_range | — – 0.4250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2702000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.801; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.991 |
