9rjn

Structure of Mycobacterium tuberculosis InhA in complex with pyridomycin derivative KV32a (compound 14)

Method: X-RAY DIFFRACTION D_max: 91.0 Å Quality: GOOD

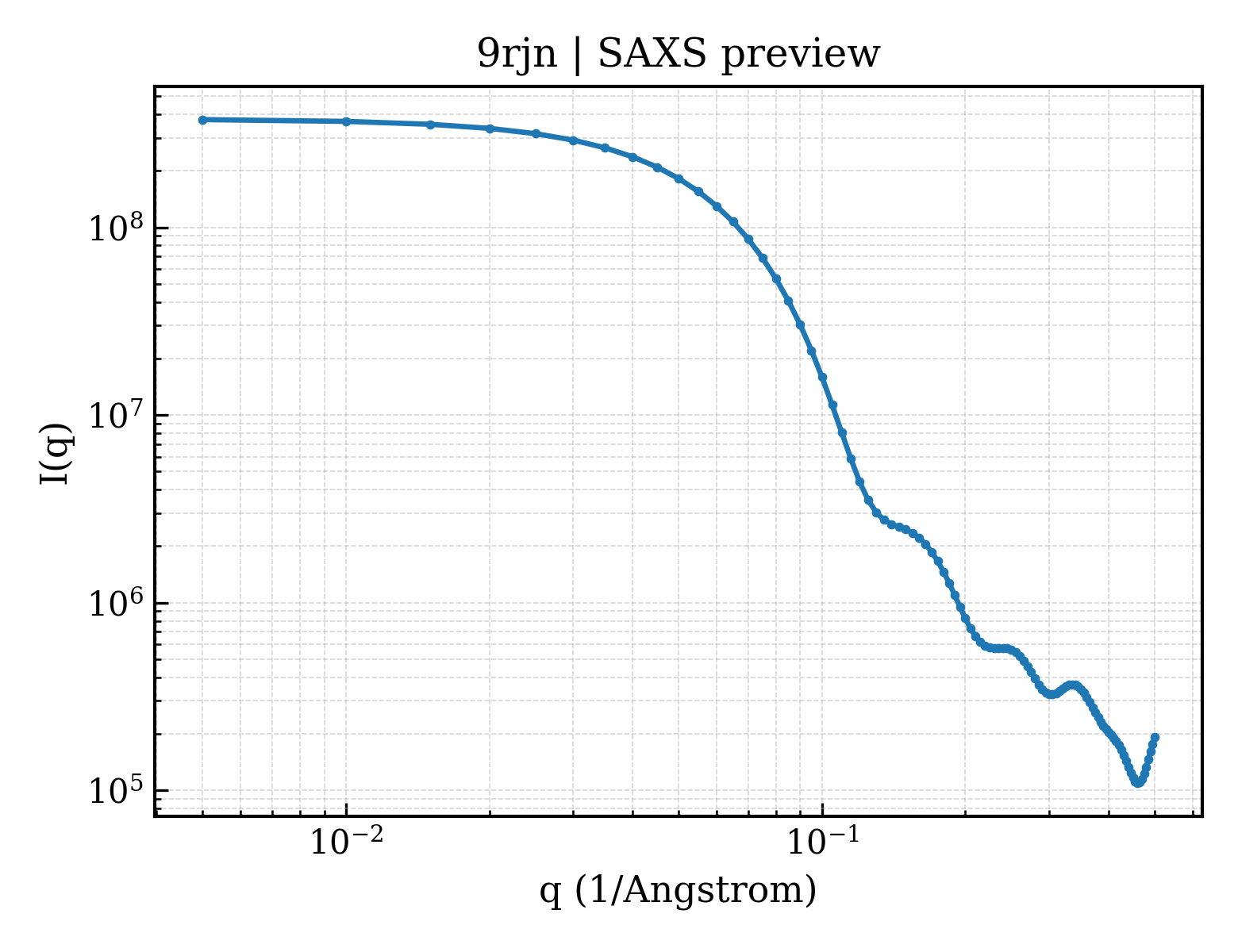

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9rjn
deposition_date	2025-06-12
title	Structure of Mycobacterium tuberculosis InhA in complex with pyridomycin derivative KV32a (compound 14)
keywords	InhA mycobacterium tuberculosis pyridomycin complex inhibitor, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.34 Å
rg_electron	28.48 Å
i0	377528000.00
molecular_weight	103620.0 kDa
excluded_volume	99968 Å³
envelope_volume	165290 Å³
shell_volume	45899 Å³
envelope_diameter	96.0 Å
shell_rg	37.65 Å
envelope_rg	28.73 Å
shape_rg	28.49 Å
total_rg	29.06 Å
total_atoms	7849
n_residues	1045
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	91.0 Å
rg_real	29.19 Å
rg_real_error	0.50 Å
i0_real	3.7750e+08
i0_real_error	5.3120e+06
rg_reciprocal	29.26 Å
i0_reciprocal	377500000.0000
total_estimate	0.8950
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	37.1 Å
skewness	0.204
kurtosis	-0.387
angular_range	— – 0.2700 Å⁻¹
current_alpha	0.0000
highest_alpha	78370000.0000
n_real_points	55
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.910; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.922

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Enoyl-[acyl-carrier-protein] reductase [NADH]
formula_weight	28837.1 kDa
ec_number	1.3.1.9
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D
atom_count	8209

GSHMTGLLDGKRILVSGIITDSSIAFHIARVAQEQGAQLVLTGFDRLRLIQRITDRLPAKAPLLELDVQNEEHLASLAGRVTEAIGAGNKLDGVVHSIGFMPQTGMGINPFFDAPYADVSKGIHISAYSYASMAKALLPIMNPGGSIVGMDFDPSRAMPAYNWMTVAKSALESVNRFVAREAGKYGVRSNLVAAGPIRTLAMSAIVGGALGEEAGAQIQLLEEGWDQRAPIGWNMKDATPVAKTVCALLSDWLPATTGDIIYADGGAHTQLL

Source

organism	Mycobacterium tuberculosis
ncbi_taxonomy_id	1773
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	;~{N}-[(2~{Z},5~{R},6~{S},9~{S},10~{S},11~{R})-2-butan-2-ylidene-5,11-dimethyl-10-oxidanyl-3,7,12-tris(oxidanylidene)-9-(pyridin-3-ylmethyl)-1,4-dioxa-8-azacyclododec-6-yl]-3-oxidanyl-pyrazine-2-carboxamide ;
formula_weight	541.6 kDa
src_method	syn
entity_count	4

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	289

▶

6. Citations (1)

▶

length_a	82.460 Å
length_b	81.300 Å
length_c	95.550 Å
angle_alpha	90.00 °
angle_beta	99.53 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.497 Å
resolution_low	36.370 Å
r_factor	0.2184
r_work	0.2168
r_free	0.2497
