9ruc

WT-HEK 80S ribosome bound to H2B mRNA (WT-H2B)

Method: ELECTRON MICROSCOPY Dmax: 227.5 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 9ruc

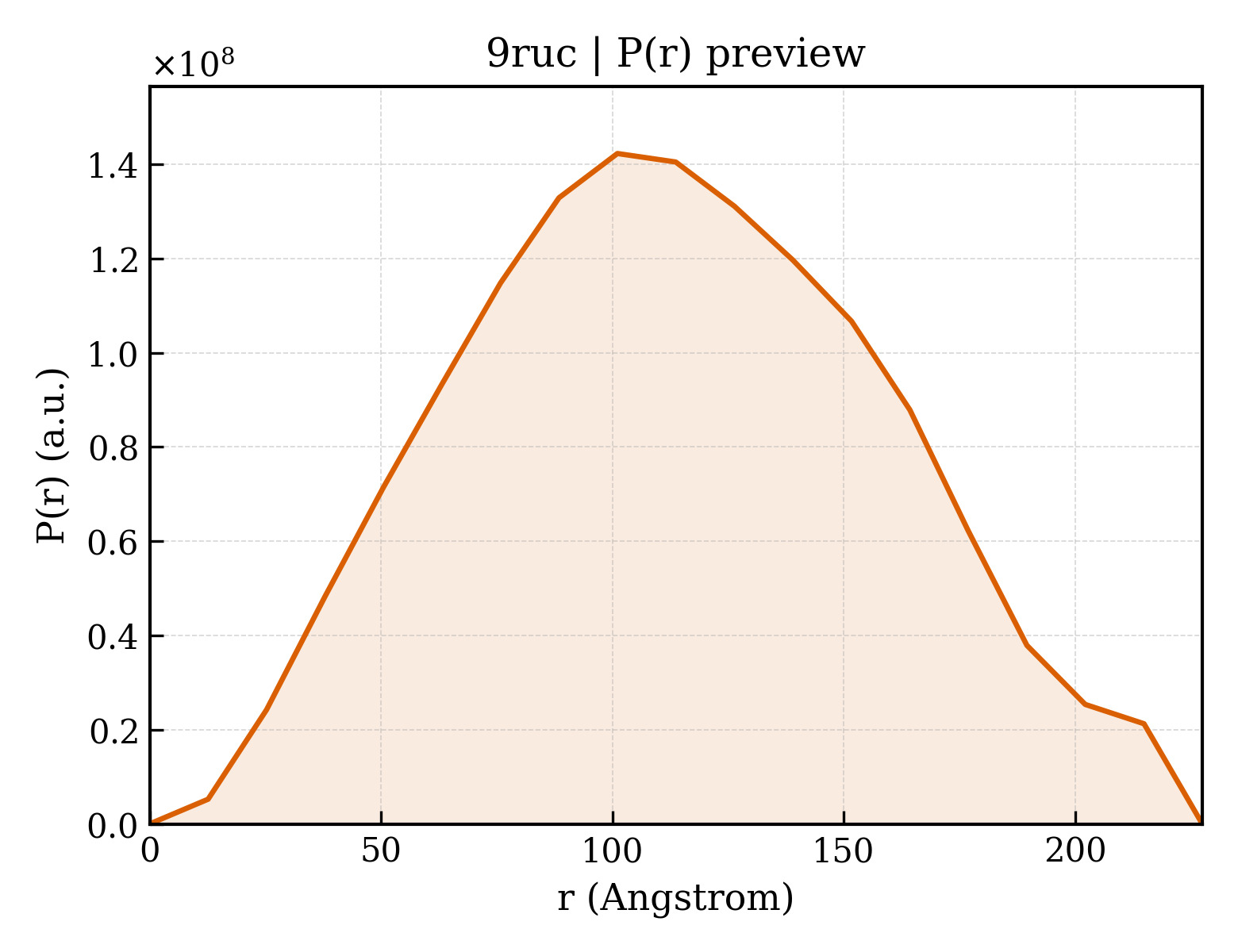

P(r) Distribution

P(r) distribution for 9ruc
▼

1. Structure Basics

entry_id9ruc
deposition_date2025-07-03
titleWT-HEK 80S ribosome bound to H2B mRNA (WT-H2B)
keywords80S Ribosome, H2B mRNA, Human, eS26, WT-HEK, RIBOSOME; RIBOSOME
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier88.46 Å
rg_electron89.82 Å
i0226826000000.00
molecular_weight2800600.0 kDa
excluded_volume2980200 ų
envelope_volume4861800 ų
shell_volume407790 ų
envelope_diameter305.7 Å
shell_rg106.20 Å
envelope_rg89.34 Å
shape_rg89.98 Å
total_rg89.54 Å
total_atoms189602
n_residues15616
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax227.5 Å
rg_real85.96 Å
rg_real_error0.33 Å
i0_real2.1680e+11
i0_real_error3.8500e+09
rg_reciprocal89.85 Å
i0_reciprocal227800000000.0000
total_estimate0.9048
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary101.1 Å
skewness0.112
kurtosis-0.602
angular_range— – 0.0900 Å−1
current_alpha0.9462
highest_alpha17760000000.0000
n_real_points19
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.999; Stabil: 0.968; Sysdev: 1.000; Positv: 1.000; Valcen: 0.870; Smooth: 0.000
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (87)

▶

6. Citations (1)

▶

7. Files & Curves (10)
