9s86

Structure of glycogen phosphorylase - tetrameric form - from Escherichia coli

Method: ELECTRON MICROSCOPY D_max: 146.6 Å Quality: GOOD

SAXS Profile

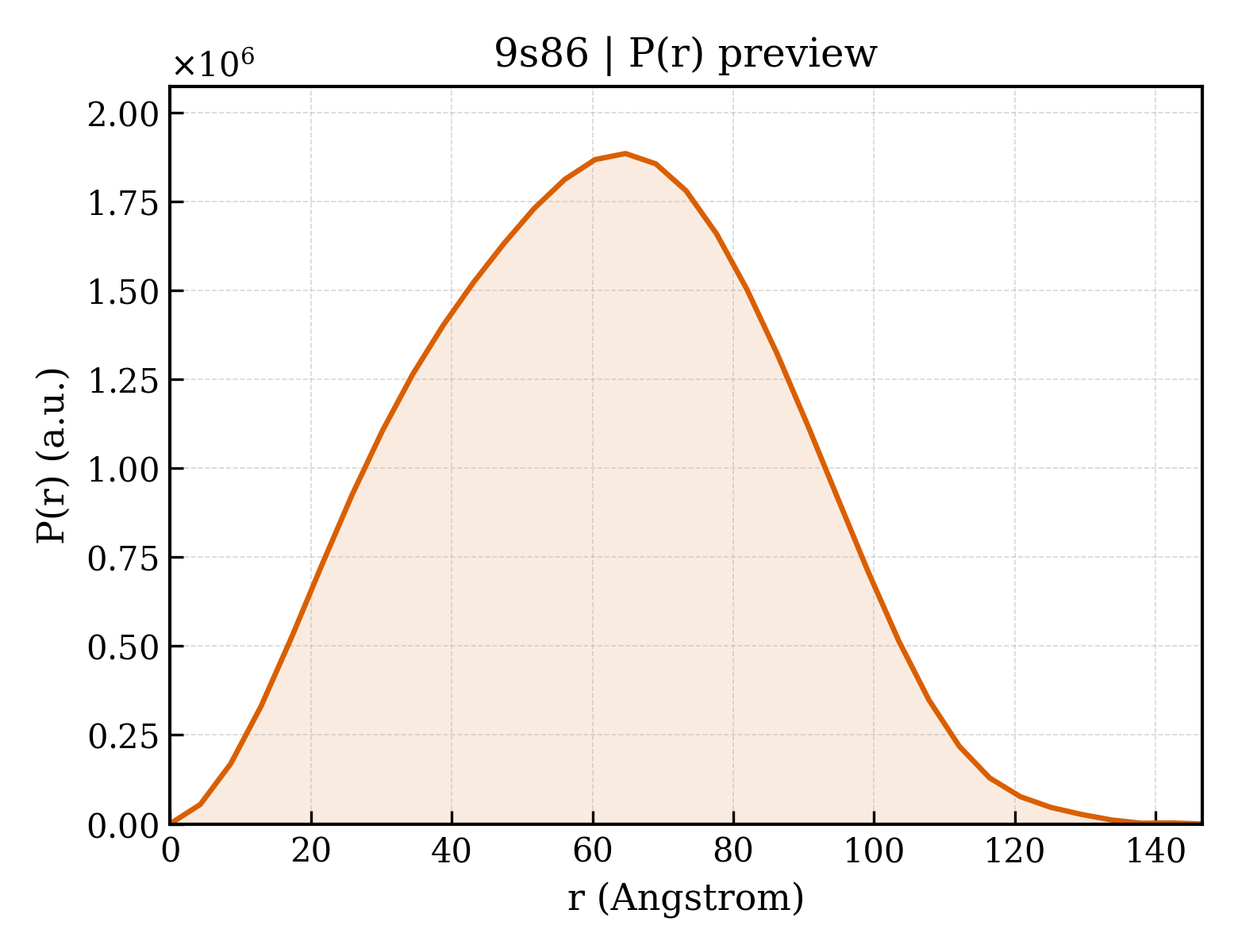

P(r) Distribution

P(r) distribution for 9s86

▼

1. Structure Basics

entry_id	9s86
deposition_date	2025-08-05
title	Structure of glycogen phosphorylase - tetrameric form - from Escherichia coli
keywords	Glycogen phosphorylase, TRANSFERASE; TRANSFERASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	46.92 Å
rg_electron	46.15 Å
i0	1581990000.00
molecular_weight	337470.0 kDa
excluded_volume	424400 Å³
envelope_volume	561900 Å³
shell_volume	97021 Å³
envelope_diameter	152.6 Å
shell_rg	55.00 Å
envelope_rg	44.78 Å
shape_rg	46.15 Å
total_rg	46.49 Å
total_atoms	23894
n_residues	3197
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	146.6 Å
rg_real	46.58 Å
rg_real_error	0.95 Å
i0_real	1.5820e+09
i0_real_error	2.3700e+07
rg_reciprocal	46.92 Å
i0_reciprocal	1583000000.0000
total_estimate	0.8918
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	64.7 Å
skewness	0.053
kurtosis	-0.560
angular_range	— – 0.1700 Å⁻¹
current_alpha	0.0000
highest_alpha	363200000.0000
n_real_points	35
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.910; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.892

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
