1. Structure Basics

entry_id	9s8k
deposition_date	2025-08-05
title	Structure of glycogen phosphorylase - tetrameric form - in complex with HPr from Escherichia coli
keywords	Glycogen phosphorylase, TRANSFERASE; TRANSFERASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	49.11 Å
rg_electron	48.23 Å
i0	2274220000.00
molecular_weight	398940.0 kDa
excluded_volume	498860 Å³
envelope_volume	660480 Å³
shell_volume	107770 Å³
envelope_diameter	155.8 Å
shell_rg	57.68 Å
envelope_rg	47.18 Å
shape_rg	48.21 Å
total_rg	48.57 Å
total_atoms	28156
n_residues	3544
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	150.6 Å
rg_real	48.66 Å
rg_real_error	1.00 Å
i0_real	2.2740e+09
i0_real_error	3.8650e+07
rg_reciprocal	49.11 Å
i0_reciprocal	2276000000.0000
total_estimate	0.8914
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	65.9 Å
skewness	-0.004
kurtosis	-0.606
angular_range	— – 0.1600 Å⁻¹
current_alpha	0.0000
highest_alpha	334100000.0000
n_real_points	33
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.914; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.960; Smooth: 0.881

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Glycogen phosphorylase
formula_weight	95536.6 kDa
ec_number	2.4.1.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	28332

MHHHHHHENLYFQGSGAMNAPFTYSSPTLSVEALKHSIAYKLMFTIGKDPVVANKHEWLNATLFAVRDRLVERWLRSNRAQLSQETRQVYYLSMEFLIGRTLSNAMLSLGIYEDVQGALEAMGLNLEELIDEENDPGLGNGGLGRLAACFLDSLATLGLPGRGYGIRYDYGMFKQNIVNGSQKESPDYWLEYGNPWEFKRHNTRYKVRFGGRIQQEGKKTRWIETEEILGVAYDQIIPGYDTDATNTLRLWSAQASSEINLGKFNQGDYFAAVEDKNHSENVSRVLYPDDSTYSGRELRLRQEYFLVSSTIQDILSRHYQLHKTYDNLADKIAIHLNDTHPVLSIPEMMRLLIDEHQFSWDDAFEVCCQVFSYTNHTLMSEALETWPVDMLGKILPRHLQIIFEINDYFLKTLQEQYPNDTDLLGRASIIDESNGRRVRMAWLAVVVSHKVNGVSELHSNLMVQSLFADFAKIFPGRFTNVTNGVTPRRWLAVANPSLSAVLDEHLGRNWRTDLSLLNELQQHCDFPMVNHAVHQAKLENKKRLAEYIAQQLNVVVNPKALFDVQIKRIHEYKRQLMNVLHVITRYNRIKADPDAKWVPRVNIFGGKAASAYYMAKHIIHLINDVAKVINNDPQIGDKLKVVFIPNYSVSLAQLIIPAADLSEQISLAGTEASGTSNMKFALNGALTIGTLDGANVEMLDHVGADNIFIFGNTAEEVEELRRQGYKPREYYEKDEELHQVLTQIGSGVFSPEDPGRYRDLVDSLINFGDHYQVLADYRSYVDCQDKVDELYELQEEWTAKAMLNIANMGYFSSDRTIKEYADHIWHIDPVRL

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli

Entity 2 polymer

description	Glycogen phosphorylase
formula_weight	95616.6 kDa
ec_number	2.4.1.1
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	B,C,D

MHHHHHHENLYFQGSGAMNAPFTYSSPTLSVEALKHSIAYKLMFTIGKDPVVANKHEWLNATLFAVRDRLVERWLRSNRAQLSQETRQVYYLSMEFLIGRTLSNAMLSLGIYEDVQGALEAMGLNLEELIDEENDPGLGNGGLGRLAACFLDSLATLGLPGRGYGIRYDYGMFKQNIVNGSQKESPDYWLEYGNPWEFKRHNTRYKVRFGGRIQQEGKKTRWIETEEILGVAYDQIIPGYDTDATNTLRLWSAQASSEINLGKFNQGDYFAAVEDKNHSENVSRVLYPDDSTYSGRELRLRQEYFLVSSTIQDILSRHYQLHKTYDNLADKIAIHLNDTHPVLSIPEMMRLLIDEHQFSWDDAFEVCCQVFSYTNHTLMSEALETWPVDMLGKILPRHLQIIFEINDYFLKTLQEQYPNDTDLLGRASIIDESNGRRVRMAWLAVVVSHKVNGVSELHSNLMVQSLFADFAKIFPGRFTNVTNGVTPRRWLAVANPSLSAVLDEHLGRNWRTDLSLLNELQQHCDFPMVNHAVHQAKLENKKRLAEYIAQQLNVVVNPKALFDVQIKRIHEYKRQLMNVLHVITRYNRIKADPDAKWVPRVNIFGGKAASAYYMAKHIIHLINDVAKVINNDPQIGDKLKVVFIPNYSVSLAQLIIPAADLSEQISLAGTEASGTSNMKFALNGALTIGTLDGANVEMLDHVGADNIFIFGNTAEEVEELRRQGYKPREYYEKDEELHQVLTQIGSGVFSPEDPGRYRDLVDSLINFGDHYQVLADYRSYVDCQDKVDELYELQEEWTAKAMLNIANMGYFSSDRTIKEYADHIWHIDPVRL

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli

Entity 3 polymer

description	Phosphocarrier protein HPr
formula_weight	11156.5 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	E,F,G,H

MHHHHHHENLYFQGSGAMFQQEVTITAPNGLHTRPAAQFVKEAKGFTSEITVTSNGKSASAKSLFKLQTLGLTQGTVVTISAEGEDEQKAVEHLVKLMAELE

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	156

▶

6. Citations (1)

▶

resolution	2.060 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.06 Å
resolution_method	—
num_particles	380149

fit	/app/data/saxs_computation/s8/9s8k/9s8k.fit
pddf	/app/data/pr_computation/s8/9s8k/9s8k.pr.out
profile	/app/data/saxs_computation/s8/9s8k/9s8k.dat

Structure of glycogen phosphorylase - tetrameric form - in complex with HPr from Escherichia coli

SAXS Profile

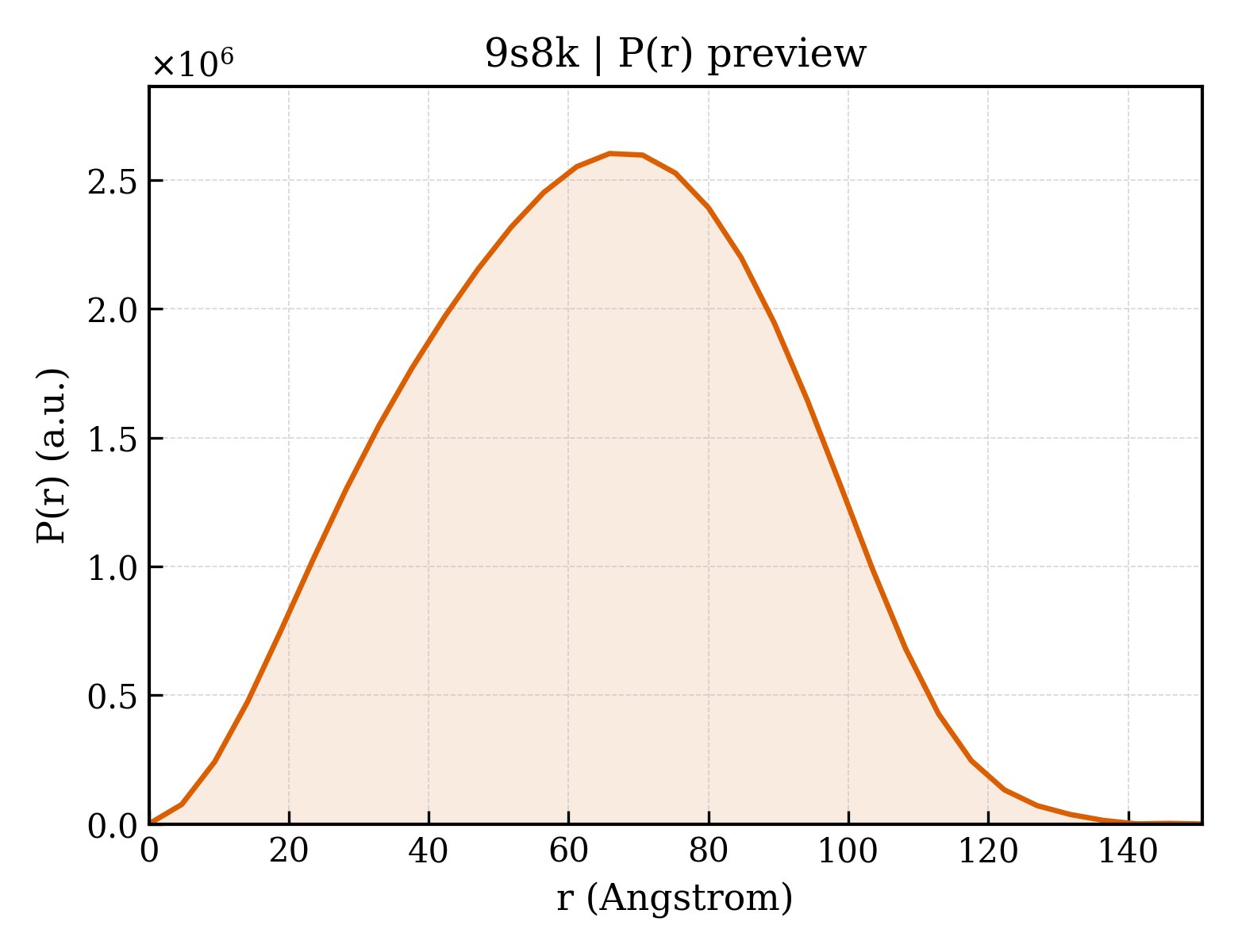

P(r) Distribution
