SAXSdb — 9u9i

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AP-4 complex subunit beta-1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 1–568	Not recorded	AP-4 complex subunit epsilon-1 × 1 （Q9UPM8） AP-4 complex subunit sigma-1 × 1 （Q9Y587） AP-4 complex subunit mu-1 × 1 （O00189）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8	Resolution 4.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9U9I	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2MJ7 Solution NMR structure of beta-adaptin appendage domain of human adaptor protein complex 4 subunit beta, Northeast Structural Genomics Consortium (NESG) Target HR8998C Deposited 2013-12-26	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 610–739（130 aa） Fragment：UNP residues 610-739	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；295 K；Pressure ambient NMR sample composition 0.4 mM HR8998C NC5, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.2 mM HR8998C NC5, 4% PEG/hexanol, 80% H2O/20% D2O \| 80% H2O/20% D2O NMR sample composition 0.2 mM HR8998C NC5, Pf1 phage, 80% H2O/20% D2O \| 80% H2O/20% D2O NMR sample composition 0.2 mM HR8998C NC, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
9U9J M4-CTD-docked AP-4 core in apo form Deposited 2025-03-28	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–568（568 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8	Resolution 4.20 Å
9U9R ARF1(Q71L) bound M4-CTD-undocked AP-4 core Deposited 2025-03-29	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–576（576 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8	Resolution 6.60 Å
9U9S ARF1(Q71L) bound M4-CTD-docked AP-4 core Deposited 2025-03-29	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–576（576 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8	Resolution 6.80 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AP4B1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–568； UniProt 1–568

AP-4 complex subunit epsilon-1

Homo sapiens

UniProt Q9UPM8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain E； UniProt 1–612	Not recorded	AP-4 complex subunit beta-1 × 1 （Q9Y6B7） AP-4 complex subunit sigma-1 × 1 （Q9Y587） AP-4 complex subunit mu-1 × 1 （O00189）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8	Resolution 4.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9U9I	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9U9J M4-CTD-docked AP-4 core in apo form Deposited 2025-03-28	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–612（612 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8	Resolution 4.20 Å
9U9R ARF1(Q71L) bound M4-CTD-undocked AP-4 core Deposited 2025-03-29	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–612（612 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8	Resolution 6.60 Å
9U9S ARF1(Q71L) bound M4-CTD-docked AP-4 core Deposited 2025-03-29	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–612（612 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8	Resolution 6.80 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AP4E1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–612； UniProt 1–612

AP-4 complex subunit sigma-1

Homo sapiens

UniProt Q9Y587

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain S； UniProt 1–144	Not recorded	AP-4 complex subunit beta-1 × 1 （Q9Y6B7） AP-4 complex subunit epsilon-1 × 1 （Q9UPM8） AP-4 complex subunit mu-1 × 1 （O00189）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8	Resolution 4.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9U9I	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9U9J M4-CTD-docked AP-4 core in apo form Deposited 2025-03-28	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain S 1–144（144 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8	Resolution 4.20 Å
9U9R ARF1(Q71L) bound M4-CTD-undocked AP-4 core Deposited 2025-03-29	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain S 1–144（144 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8	Resolution 6.60 Å
9U9S ARF1(Q71L) bound M4-CTD-docked AP-4 core Deposited 2025-03-29	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain S 1–144（144 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8	Resolution 6.80 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AP4S1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain S； PDBConstruct 1–144； UniProt 1–144

AP-4 complex subunit mu-1

Homo sapiens

UniProt O00189

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain M； UniProt 1–453	Not recorded	AP-4 complex subunit beta-1 × 1 （Q9Y6B7） AP-4 complex subunit epsilon-1 × 1 （Q9UPM8） AP-4 complex subunit sigma-1 × 1 （Q9Y587）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8	Resolution 4.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9U9I	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3L81 Crystal structure of adaptor protein complex 4 (AP-4) mu4 subunit C-terminal domain, in complex with a sorting peptide from the amyloid precursor protein (APP) Deposited 2009-12-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 160–453（294 aa） Fragment：C-terminus, residues 160-453	Mutation：C235S,C431S	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；10% PEG 3350, 10mM magnesium chloride, 0.1M HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；15% PEG 6000, 3% trimethylamine N-oxide dihydrate, 0.1M HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.60 Å R-free 0.252
4MDR Crystal structure of adaptor protein complex 4 (AP-4) mu4 subunit C-terminal domain D190A mutant, in complex with a sorting peptide from the amyloid precursor protein (APP) Deposited 2013-08-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 160–453（294 aa） Fragment：C-terminus, residues 160-453	Mutation：D190A,C235S,C431S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；15% PEG 6000, 3% trimethylamine N-oxide dihydrate, 0.1M HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295.0K	Resolution 1.85 Å R-free 0.260
9U9J M4-CTD-docked AP-4 core in apo form Deposited 2025-03-28	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain M 1–453（453 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8	Resolution 4.20 Å
9U9R ARF1(Q71L) bound M4-CTD-undocked AP-4 core Deposited 2025-03-29	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain M 1–453（453 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8	Resolution 6.60 Å
9U9S ARF1(Q71L) bound M4-CTD-docked AP-4 core Deposited 2025-03-29	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain M 1–453（453 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8	Resolution 6.80 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AP4M1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain M； PDBConstruct 1–453； UniProt 1–453

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9u9i
Deposition date deposition_date	2025-03-28
Structure title title	M4-CTD-undocked AP-4 core in apo form
Keywords keywords	adaptor protein complex, cargo transportation, PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	41.70 Å
Radius of gyration Rg (electron density) rg_electron	41.13 Å
Forward intensity I(0) i0	338791000.00
Molecular weight molecular_weight	156310.0 kDa
Excluded volume excluded_volume	198120 Å³
Envelope volume envelope_volume	280420 Å³
Hydration-shell volume shell_volume	55802 Å³
Envelope diameter envelope_diameter	125.6 Å
Shell Rg shell_rg	48.14 Å
Envelope Rg envelope_rg	39.60 Å
Shape Rg shape_rg	41.11 Å
Total Rg total_rg	41.60 Å
Total atoms total_atoms	10976
Residues n_residues	1372
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

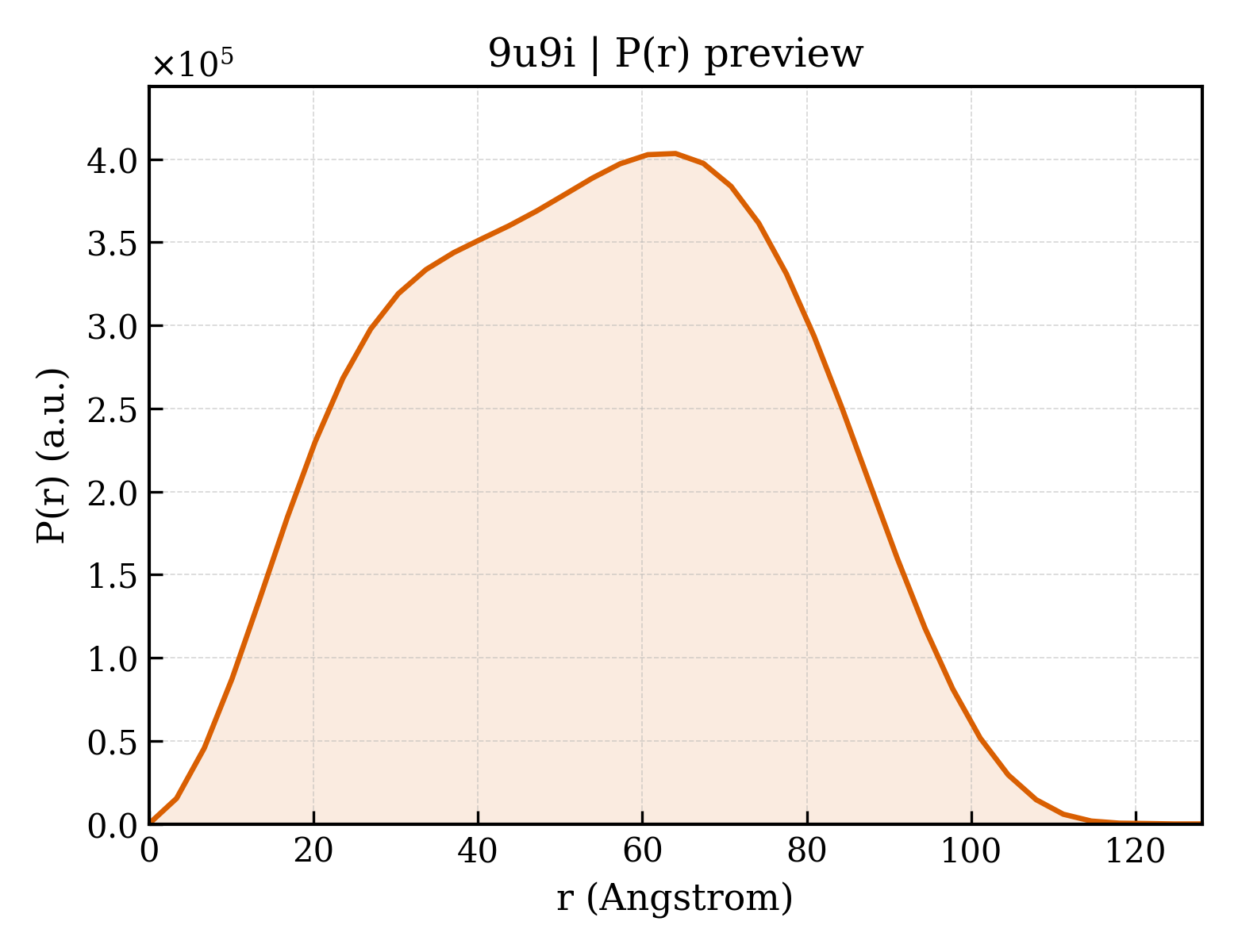

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	128.1 Å
Rg (real space) rg_real	41.52 Å
Rg uncertainty (real space) rg_real_error	0.86 Å
I(0) (real space) i0_real	3.3880e+08
I(0) uncertainty (real space) i0_real_error	5.2520e+06
Rg (reciprocal space) rg_reciprocal	41.70 Å
I(0) (reciprocal space) i0_reciprocal	338900000.0000
Solution quality estimate total_estimate	0.9072
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	64.0 Å
Skewness Skewness skewness	0.000
Kurtosis Kurtosis kurtosis	-0.805
Angular range angular_range	— – 0.1900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	55810000.0000
Real-space data points n_real_points	39
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.944; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.958

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	AP-4 complex subunit beta-1
Molecular weight formula_weight	64265.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	10976

MPYLGSEDVVKELKKALCNPHIQADRLRYRNVIQRVIRYMTQGLDMSGVFMEMVKASATVDIVQKKLVYLYMCTYAPLKPDLALLAINTLCKDCSDPNPMVRGLALRSMCSLRMPGVQEYIQQPILNGLRDKASYVRRVAVLGCAKMHNLHGDSEVDGALVNELYSLLRDQDPIVVVNCLRSLEEILKQEGGVVINKPIAHHLLNRMSKLDQWGQAEVLNFLLRYQPRSEEELFDILNLLDSFLKSSSPGVVMGATKLFLILAKMFPHVQTDVLVRVKGPLLAACSSESRELCFVALCHVRQILHSLPGHFSSHYKKFFCSYSEPHYIKLQKVEVLCELVNDENVQQVLEELRGYCTDVSADFAQAAIFAIGGIARTYTDQCVQILTELLGLRQEHITTVVVQTFRDLVWLCPQCTEAVCQALPGCEENIQDSEGKQALIWLLGVHGERIPNAPYVLEDFVENVKSETFPAVKMELLTALLRLFLSRPAECQDMLGRLLYYCIEEEKDMAVRDRGLFYYRLLLVGIDEVKRILCSPKSDPTLGLLEDPAERPVNSWASDFNTLVPVYG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	AP-4 complex subunit epsilon-1
Molecular weight formula_weight	69470.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MSDIVEKTLTALPGLFLQNQPGGGPAAAKASFSSRLGSLVRGITALTSKHEEEKLIQQELSSLKATVSAPTTTLKMMKECMVRLIYCEMLGYDASFGYIHAIKLAQQGNLLEKRVGYLAVSLFLHESHELLLLLVNTVVKDLQSTNLVEVCMALTVVSQIFPCEMIPAVLPLIEDKLQHSKEIVRRKAVLALYKFHLIAPNQVQHIHIKFRKALCDRDVGVMAASLHIYLRMIKENSSGYKDLTGSFVTILKQVVGGKLPVEFNYHSVPAPWLQIQLLRILGLLGKDDQRTSELMYDVLDESLRRAELNHNVTYAILFECVHTVYSIYPKSELLEKAAKCIGKFVLSPKINLKYLGLKALTYVIQQDPTLALQHQMTIIECLDHPDPIIKRETLELLYRITNAQNITVIVQKMLEYLHQSKEEYVIVNLVGKIAELAEKYAPDNAWFIQTMNAVFSVGGDVMHPDIPNNFLRLLAEGFDDETEDQQLRLYAVQSYLTLLDMENVFYPQRFLQVMSWVLGEYSYLLDKETPEEVIAKLYKLLMNDSVSSETKAWLIAAVTKLTSQAHSSNTVERLIHEFTISLDTCMRQHAFELKHLHENVELMKSLLPVDRS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	AP-4 complex subunit sigma-1
Molecular weight formula_weight	17023.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MIKFFLMVNKQGQTRLSKYYEHVDINKRTLLETEVIKSCLSRSNEQCSFIEYKDFKLIYRQYAALFIVVGVNDTENEMAIYEFIHNFVEVLDEYFSRVSELDIMFNLDKVHIILDEMVLNGCIVETNRARILAPLLILDKMSES

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	AP-4 complex subunit mu-1
Molecular weight formula_weight	50035.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MISQFFILSSKGDPLIYKDFRGDSGGRDVAELFYRKLTGLPGDESPVVMHHHGRHFIHIRHSGLYLVVTTSENVSPFSLLELLSRLATLLGDYCGSLGEGTISRNVALVYELLDEVLDYGYVQTTSTEMLRNFIQTEAVVSKPFSLFDLSSVGLFGAETQQSKVAPSSAASRPVLSSRSDQSQKNEVFLDVVERLSVLIASNGSLLKVDVQGEIRLKSFLPSGSEMRIGLTEEFCVGKSELRGYGPGIRVDEVSFHSSVNLDEFESHRILRLQPPQGELTVMRYQLSDDLPSPLPFRLFPSVQWDRGSGRLQVYLKLRCDLLSKSQALNVRLHLPLPRGVVSLSQELSSPEQKAELAEGALRWDLPRVQGGSQLSGLFQMDVPGPPGPPSHGLSTSASPLGLGPASLSFELPRHTCSGLQVRFLRLAFRPCGNANPHKWVRHLSHSDAYVIRI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.000 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	4.00 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	275020

fit	/app/data/saxs_computation/u9/9u9i/9u9i.fit
pddf	/app/data/pr_computation/u9/9u9i/9u9i.pr.out
profile	/app/data/saxs_computation/u9/9u9i/9u9i.dat
