SAXSdb — 9u9j

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AP-4 complex subunit beta-1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	AP-4 complex subunit epsilon-1 × 1 （Q9UPM8） AP-4 complex subunit mu-1 × 1 （O00189） AP-4 complex subunit sigma-1 × 1 （Q9Y587）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP4B1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–568； UniProt 1–568

AP-4 complex subunit epsilon-1

Homo sapiens

UniProt Q9UPM8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	AP-4 complex subunit beta-1 × 1 （Q9Y6B7） AP-4 complex subunit mu-1 × 1 （O00189） AP-4 complex subunit sigma-1 × 1 （Q9Y587）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP4E1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–612； UniProt 1–612

AP-4 complex subunit mu-1

Homo sapiens

UniProt O00189

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	AP-4 complex subunit beta-1 × 1 （Q9Y6B7） AP-4 complex subunit epsilon-1 × 1 （Q9UPM8） AP-4 complex subunit sigma-1 × 1 （Q9Y587）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP4M1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain M； PDBConstruct 1–453； UniProt 1–453

AP-4 complex subunit sigma-1

Homo sapiens

UniProt Q9Y587

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	AP-4 complex subunit beta-1 × 1 （Q9Y6B7） AP-4 complex subunit epsilon-1 × 1 （Q9UPM8） AP-4 complex subunit mu-1 × 1 （O00189）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP4S1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain S； PDBConstruct 1–144； UniProt 1–144

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9u9j
Deposition date deposition_date	2025-03-28
Structure title title	M4-CTD-docked AP-4 core in apo form
Keywords keywords	AP-4 complex, PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9u9j__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9u9j__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

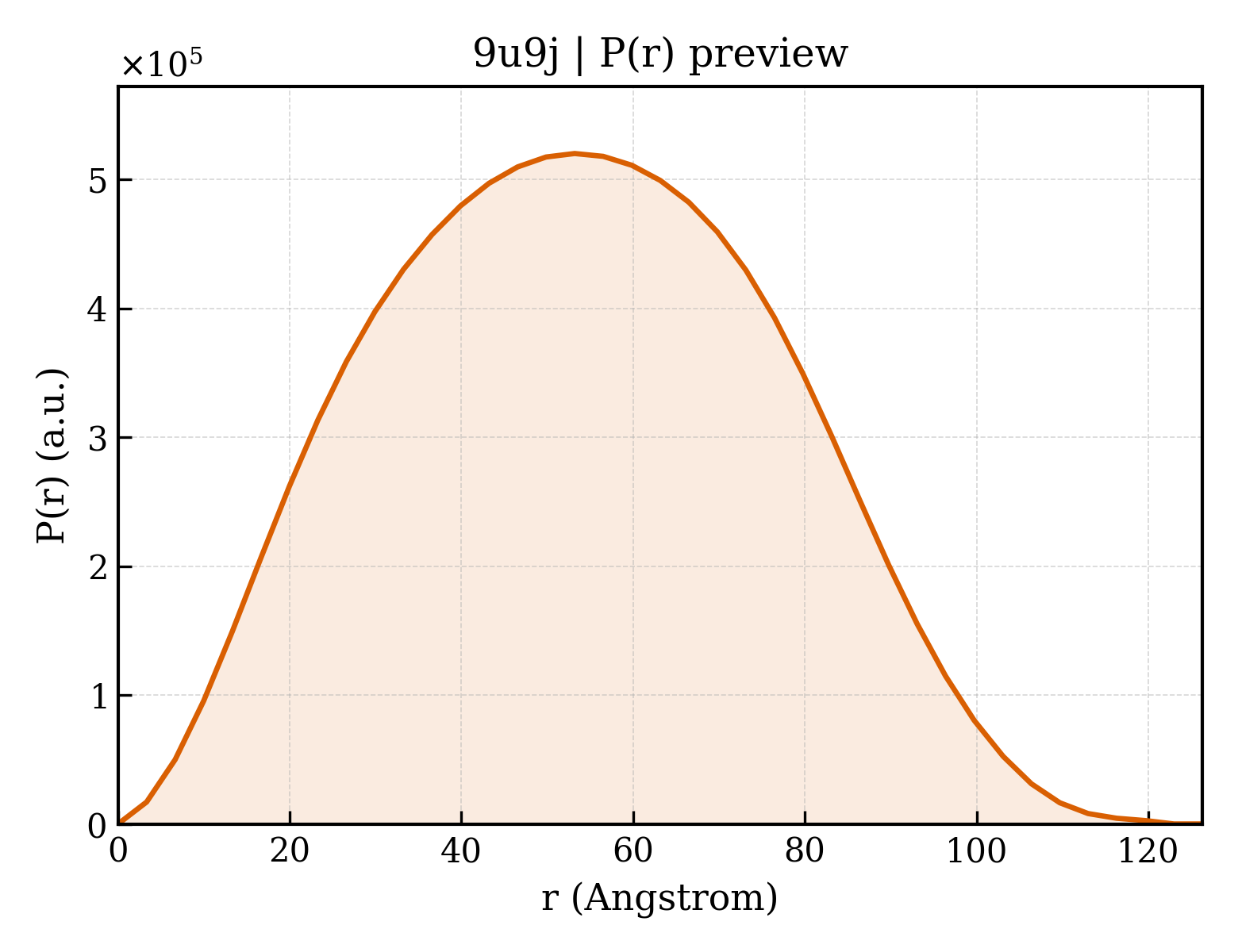

9u9j__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.37 Å
Rg (electron density)	40.80 Å
Total Rg	41.30 Å
Atom count	12243
Residues	1529
Excluded volume	220590 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9u9j__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	AP-4 complex subunit beta-1
Molecular weight formula_weight	64265.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	12243

MPYLGSEDVVKELKKALCNPHIQADRLRYRNVIQRVIRYMTQGLDMSGVFMEMVKASATVDIVQKKLVYLYMCTYAPLKPDLALLAINTLCKDCSDPNPMVRGLALRSMCSLRMPGVQEYIQQPILNGLRDKASYVRRVAVLGCAKMHNLHGDSEVDGALVNELYSLLRDQDPIVVVNCLRSLEEILKQEGGVVINKPIAHHLLNRMSKLDQWGQAEVLNFLLRYQPRSEEELFDILNLLDSFLKSSSPGVVMGATKLFLILAKMFPHVQTDVLVRVKGPLLAACSSESRELCFVALCHVRQILHSLPGHFSSHYKKFFCSYSEPHYIKLQKVEVLCELVNDENVQQVLEELRGYCTDVSADFAQAAIFAIGGIARTYTDQCVQILTELLGLRQEHITTVVVQTFRDLVWLCPQCTEAVCQALPGCEENIQDSEGKQALIWLLGVHGERIPNAPYVLEDFVENVKSETFPAVKMELLTALLRLFLSRPAECQDMLGRLLYYCIEEEKDMAVRDRGLFYYRLLLVGIDEVKRILCSPKSDPTLGLLEDPAERPVNSWASDFNTLVPVYG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	AP-4 complex subunit epsilon-1
Molecular weight formula_weight	69470.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MSDIVEKTLTALPGLFLQNQPGGGPAAAKASFSSRLGSLVRGITALTSKHEEEKLIQQELSSLKATVSAPTTTLKMMKECMVRLIYCEMLGYDASFGYIHAIKLAQQGNLLEKRVGYLAVSLFLHESHELLLLLVNTVVKDLQSTNLVEVCMALTVVSQIFPCEMIPAVLPLIEDKLQHSKEIVRRKAVLALYKFHLIAPNQVQHIHIKFRKALCDRDVGVMAASLHIYLRMIKENSSGYKDLTGSFVTILKQVVGGKLPVEFNYHSVPAPWLQIQLLRILGLLGKDDQRTSELMYDVLDESLRRAELNHNVTYAILFECVHTVYSIYPKSELLEKAAKCIGKFVLSPKINLKYLGLKALTYVIQQDPTLALQHQMTIIECLDHPDPIIKRETLELLYRITNAQNITVIVQKMLEYLHQSKEEYVIVNLVGKIAELAEKYAPDNAWFIQTMNAVFSVGGDVMHPDIPNNFLRLLAEGFDDETEDQQLRLYAVQSYLTLLDMENVFYPQRFLQVMSWVLGEYSYLLDKETPEEVIAKLYKLLMNDSVSSETKAWLIAAVTKLTSQAHSSNTVERLIHEFTISLDTCMRQHAFELKHLHENVELMKSLLPVDRS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	AP-4 complex subunit mu-1
Molecular weight formula_weight	50035.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MISQFFILSSKGDPLIYKDFRGDSGGRDVAELFYRKLTGLPGDESPVVMHHHGRHFIHIRHSGLYLVVTTSENVSPFSLLELLSRLATLLGDYCGSLGEGTISRNVALVYELLDEVLDYGYVQTTSTEMLRNFIQTEAVVSKPFSLFDLSSVGLFGAETQQSKVAPSSAASRPVLSSRSDQSQKNEVFLDVVERLSVLIASNGSLLKVDVQGEIRLKSFLPSGSEMRIGLTEEFCVGKSELRGYGPGIRVDEVSFHSSVNLDEFESHRILRLQPPQGELTVMRYQLSDDLPSPLPFRLFPSVQWDRGSGRLQVYLKLRCDLLSKSQALNVRLHLPLPRGVVSLSQELSSPEQKAELAEGALRWDLPRVQGGSQLSGLFQMDVPGPPGPPSHGLSTSASPLGLGPASLSFELPRHTCSGLQVRFLRLAFRPCGNANPHKWVRHLSHSDAYVIRI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	AP-4 complex subunit sigma-1
Molecular weight formula_weight	17023.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MIKFFLMVNKQGQTRLSKYYEHVDINKRTLLETEVIKSCLSRSNEQCSFIEYKDFKLIYRQYAALFIVVGVNDTENEMAIYEFIHNFVEVLDEYFSRVSELDIMFNLDKVHIILDEMVLNGCIVETNRARILAPLLILDKMSES

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.200 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	4.20 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	208640

M4-CTD-docked AP-4 core in apo form
