SAXSdb — 9u9s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AP-4 complex subunit beta-1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	AP-4 complex subunit epsilon-1 × 1 （Q9UPM8） ADP-ribosylation factor 1 × 1 （P84077） AP-4 complex subunit mu-1 × 1 （O00189） AP-4 complex subunit sigma-1 × 1 （Q9Y587）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP4B1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–576； UniProt 1–576

AP-4 complex subunit epsilon-1

Homo sapiens

UniProt Q9UPM8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	AP-4 complex subunit beta-1 × 1 （Q9Y6B7） ADP-ribosylation factor 1 × 1 （P84077） AP-4 complex subunit mu-1 × 1 （O00189） AP-4 complex subunit sigma-1 × 1 （Q9Y587）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP4E1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–612； UniProt 1–612

ADP-ribosylation factor 1

Homo sapiens

UniProt P84077

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	AP-4 complex subunit beta-1 × 1 （Q9Y6B7） AP-4 complex subunit epsilon-1 × 1 （Q9UPM8） AP-4 complex subunit mu-1 × 1 （O00189） AP-4 complex subunit sigma-1 × 1 （Q9Y587）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARF1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain H； PDBConstruct 1–164； UniProt 18–181

AP-4 complex subunit mu-1

Homo sapiens

UniProt O00189

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	AP-4 complex subunit beta-1 × 1 （Q9Y6B7） AP-4 complex subunit epsilon-1 × 1 （Q9UPM8） ADP-ribosylation factor 1 × 1 （P84077） AP-4 complex subunit sigma-1 × 1 （Q9Y587）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP4M1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain M； PDBConstruct 1–453； UniProt 1–453

AP-4 complex subunit sigma-1

Homo sapiens

UniProt Q9Y587

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	AP-4 complex subunit beta-1 × 1 （Q9Y6B7） AP-4 complex subunit epsilon-1 × 1 （Q9UPM8） ADP-ribosylation factor 1 × 1 （P84077） AP-4 complex subunit mu-1 × 1 （O00189）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AP4S1_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain S； PDBConstruct 1–144； UniProt 1–144

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9u9s
Deposition date deposition_date	2025-03-29
Structure title title	ARF1(Q71L) bound M4-CTD-docked AP-4 core
Keywords keywords	Adaptor protein complex, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9u9s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

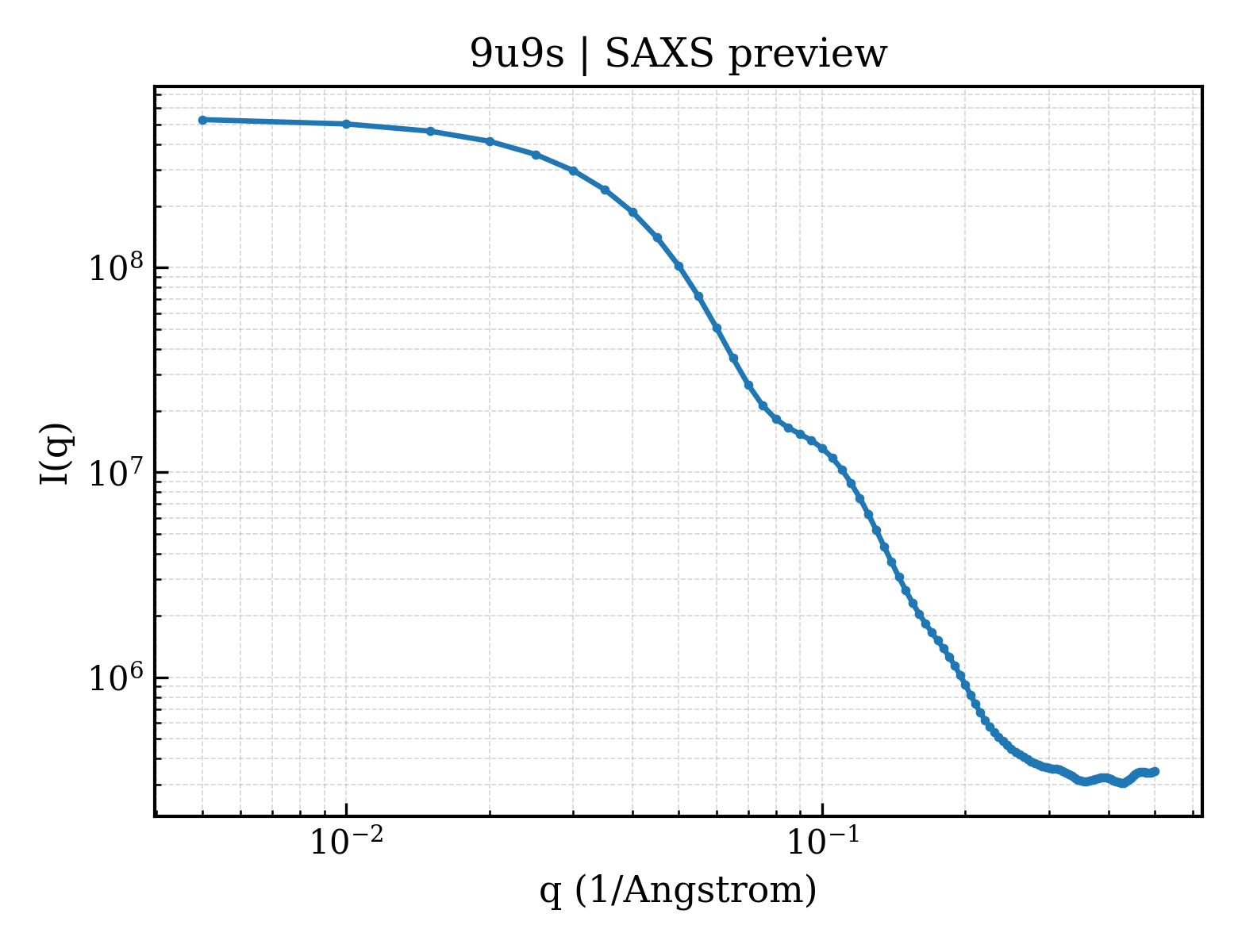

9u9s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

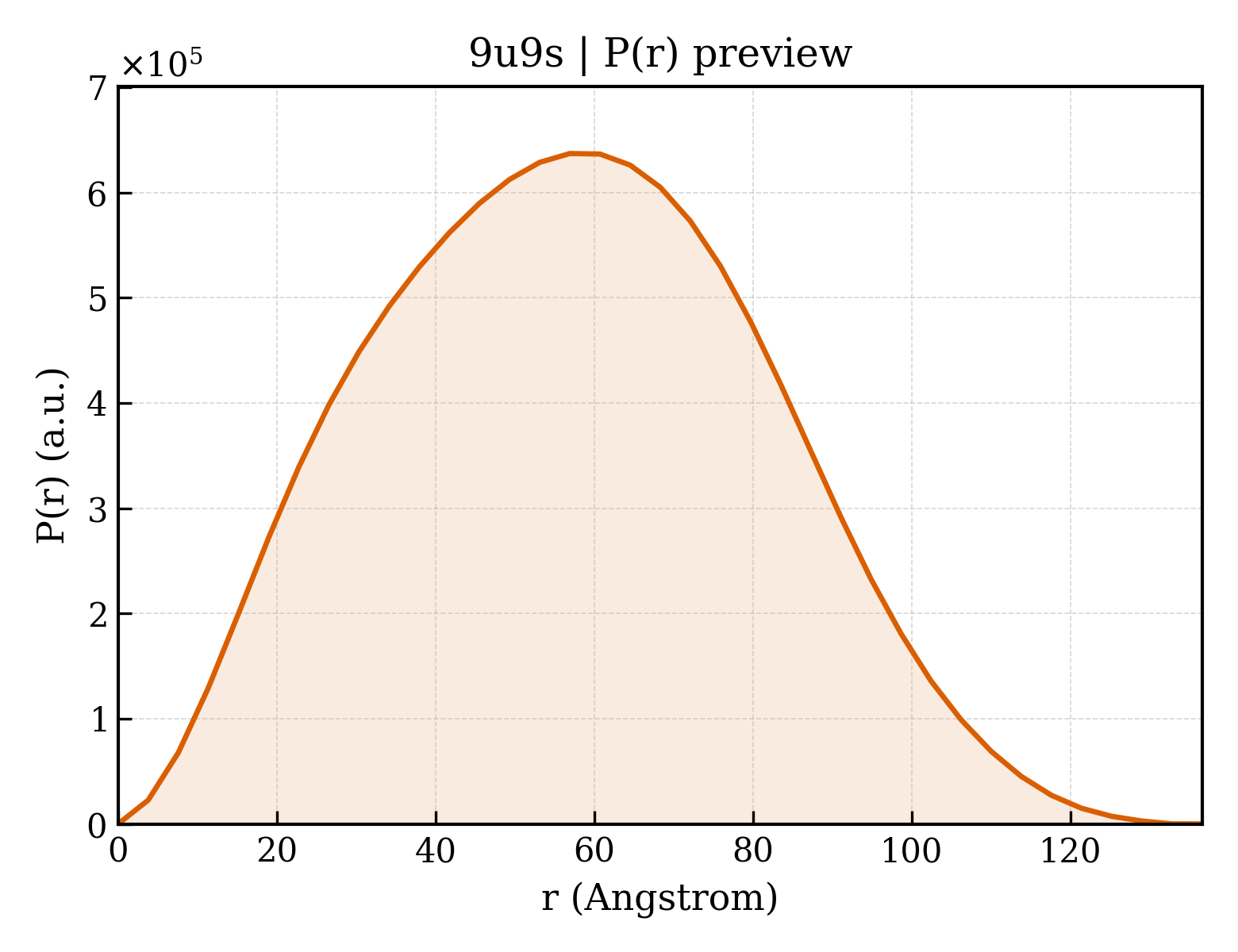

9u9s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.05 Å
Rg (electron density)	43.44 Å
Total Rg	43.80 Å
Atom count	13857
Residues	1731
Excluded volume	249850 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9u9s__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	AP-4 complex subunit beta-1
Molecular weight formula_weight	65162.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	13857

MPYLGSEDVVKELKKALCNPHIQADRLRYRNVIQRVIRYMTQGLDMSGVFMEMVKASATVDIVQKKLVYLYMCTYAPLKPDLALLAINTLCKDCSDPNPMVRGLALRSMCSLRMPGVQEYIQQPILNGLRDKASYVRRVAVLGCAKMHNLHGDSEVDGALVNELYSLLRDQDPIVVVNCLRSLEEILKQEGGVVINKPIAHHLLNRMSKLDQWGQAEVLNFLLRYQPRSEEELFDILNLLDSFLKSSSPGVVMGATKLFLILAKMFPHVQTDVLVRVKGPLLAACSSESRELCFVALCHVRQILHSLPGHFSSHYKKFFCSYSEPHYIKLQKVEVLCELVNDENVQQVLEELRGYCTDVSADFAQAAIFAIGGIARTYTDQCVQILTELLGLRQEHITTVVVQTFRDLVWLCPQCTEAVCQALPGCEENIQDSEGKQALIWLLGVHGERIPNAPYVLEDFVENVKSETFPAVKMELLTALLRLFLSRPAECQDMLGRLLYYCIEEEKDMAVRDRGLFYYRLLLVGIDEVKRILCSPKSDPTLGLLEDPAERPVNSWASDFNTLVPVYGKAHWATIS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	AP-4 complex subunit epsilon-1
Molecular weight formula_weight	69470.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MSDIVEKTLTALPGLFLQNQPGGGPAAAKASFSSRLGSLVRGITALTSKHEEEKLIQQELSSLKATVSAPTTTLKMMKECMVRLIYCEMLGYDASFGYIHAIKLAQQGNLLEKRVGYLAVSLFLHESHELLLLLVNTVVKDLQSTNLVEVCMALTVVSQIFPCEMIPAVLPLIEDKLQHSKEIVRRKAVLALYKFHLIAPNQVQHIHIKFRKALCDRDVGVMAASLHIYLRMIKENSSGYKDLTGSFVTILKQVVGGKLPVEFNYHSVPAPWLQIQLLRILGLLGKDDQRTSELMYDVLDESLRRAELNHNVTYAILFECVHTVYSIYPKSELLEKAAKCIGKFVLSPKINLKYLGLKALTYVIQQDPTLALQHQMTIIECLDHPDPIIKRETLELLYRITNAQNITVIVQKMLEYLHQSKEEYVIVNLVGKIAELAEKYAPDNAWFIQTMNAVFSVGGDVMHPDIPNNFLRLLAEGFDDETEDQQLRLYAVQSYLTLLDMENVFYPQRFLQVMSWVLGEYSYLLDKETPEEVIAKLYKLLMNDSVSSETKAWLIAAVTKLTSQAHSSNTVERLIHEFTISLDTCMRQHAFELKHLHENVELMKSLLPVDRS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	ADP-ribosylation factor 1
Molecular weight formula_weight	18807.5 kDa
EC 编号 ec_number	3.6.5.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MRILMVGLDAAGKTTILYKLKLGEIVTTIPTIGFNVETVEYKNISFTVWDVGGLDKIRPLWRHYFQNTQGLIFVVDSNDRERVNEAREELMRMLAEDELRDAVLLVFANKQDLPNAMNAAEITDKLGLHSLRHRNWYIQATCATSGDGLYEGLDWLSNQLRNQK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	AP-4 complex subunit mu-1
Molecular weight formula_weight	50035.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MISQFFILSSKGDPLIYKDFRGDSGGRDVAELFYRKLTGLPGDESPVVMHHHGRHFIHIRHSGLYLVVTTSENVSPFSLLELLSRLATLLGDYCGSLGEGTISRNVALVYELLDEVLDYGYVQTTSTEMLRNFIQTEAVVSKPFSLFDLSSVGLFGAETQQSKVAPSSAASRPVLSSRSDQSQKNEVFLDVVERLSVLIASNGSLLKVDVQGEIRLKSFLPSGSEMRIGLTEEFCVGKSELRGYGPGIRVDEVSFHSSVNLDEFESHRILRLQPPQGELTVMRYQLSDDLPSPLPFRLFPSVQWDRGSGRLQVYLKLRCDLLSKSQALNVRLHLPLPRGVVSLSQELSSPEQKAELAEGALRWDLPRVQGGSQLSGLFQMDVPGPPGPPSHGLSTSASPLGLGPASLSFELPRHTCSGLQVRFLRLAFRPCGNANPHKWVRHLSHSDAYVIRI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 polymer

Description description	AP-4 complex subunit sigma-1
Molecular weight formula_weight	17023.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MIKFFLMVNKQGQTRLSKYYEHVDINKRTLLETEVIKSCLSRSNEQCSFIEYKDFKLIYRQYAALFIVVGVNDTENEMAIYEFIHNFVEVLDEYFSRVSELDIMFNLDKVHIILDEMVLNGCIVETNRARILAPLLILDKMSES

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	6.800 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	6.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	13372

ARF1(Q71L) bound M4-CTD-docked AP-4 core
