SAXSdb — 9u9r

▼

1. Structure Basics

entry_id	9u9r
deposition_date	2025-03-29
title	ARF1(Q71L) bound M4-CTD-undocked AP-4 core
keywords	Adaptor protein complex, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	44.98 Å
rg_electron	44.30 Å
i0	377496000.00
molecular_weight	166020.0 kDa
excluded_volume	210560 Å³
envelope_volume	319720 Å³
shell_volume	59720 Å³
envelope_diameter	141.4 Å
shell_rg	50.40 Å
envelope_rg	42.59 Å
shape_rg	44.29 Å
total_rg	44.65 Å
total_atoms	11661
n_residues	1454
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	134.5 Å
rg_real	44.79 Å
rg_real_error	0.88 Å
i0_real	3.7750e+08
i0_real_error	6.3160e+06
rg_reciprocal	44.98 Å
i0_reciprocal	377600000.0000
total_estimate	0.6389
solution_quality	REASONABLE a REASONABLE solution
n_peaks	1
r_peak_primary	65.3 Å
skewness	0.036
kurtosis	-0.716
angular_range	— – 0.1750 Å⁻¹
current_alpha	0.0000
highest_alpha	50450000.0000
n_real_points	36
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.967; Stabil: 1.000; Sysdev: 0.010; Positv: 1.000; Valcen: 1.000; Smooth: 0.371

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	AP-4 complex subunit beta-1
formula_weight	65162.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B
atom_count	11661

MPYLGSEDVVKELKKALCNPHIQADRLRYRNVIQRVIRYMTQGLDMSGVFMEMVKASATVDIVQKKLVYLYMCTYAPLKPDLALLAINTLCKDCSDPNPMVRGLALRSMCSLRMPGVQEYIQQPILNGLRDKASYVRRVAVLGCAKMHNLHGDSEVDGALVNELYSLLRDQDPIVVVNCLRSLEEILKQEGGVVINKPIAHHLLNRMSKLDQWGQAEVLNFLLRYQPRSEEELFDILNLLDSFLKSSSPGVVMGATKLFLILAKMFPHVQTDVLVRVKGPLLAACSSESRELCFVALCHVRQILHSLPGHFSSHYKKFFCSYSEPHYIKLQKVEVLCELVNDENVQQVLEELRGYCTDVSADFAQAAIFAIGGIARTYTDQCVQILTELLGLRQEHITTVVVQTFRDLVWLCPQCTEAVCQALPGCEENIQDSEGKQALIWLLGVHGERIPNAPYVLEDFVENVKSETFPAVKMELLTALLRLFLSRPAECQDMLGRLLYYCIEEEKDMAVRDRGLFYYRLLLVGIDEVKRILCSPKSDPTLGLLEDPAERPVNSWASDFNTLVPVYGKAHWATIS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	AP-4 complex subunit epsilon-1
formula_weight	69470.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

MSDIVEKTLTALPGLFLQNQPGGGPAAAKASFSSRLGSLVRGITALTSKHEEEKLIQQELSSLKATVSAPTTTLKMMKECMVRLIYCEMLGYDASFGYIHAIKLAQQGNLLEKRVGYLAVSLFLHESHELLLLLVNTVVKDLQSTNLVEVCMALTVVSQIFPCEMIPAVLPLIEDKLQHSKEIVRRKAVLALYKFHLIAPNQVQHIHIKFRKALCDRDVGVMAASLHIYLRMIKENSSGYKDLTGSFVTILKQVVGGKLPVEFNYHSVPAPWLQIQLLRILGLLGKDDQRTSELMYDVLDESLRRAELNHNVTYAILFECVHTVYSIYPKSELLEKAAKCIGKFVLSPKINLKYLGLKALTYVIQQDPTLALQHQMTIIECLDHPDPIIKRETLELLYRITNAQNITVIVQKMLEYLHQSKEEYVIVNLVGKIAELAEKYAPDNAWFIQTMNAVFSVGGDVMHPDIPNNFLRLLAEGFDDETEDQQLRLYAVQSYLTLLDMENVFYPQRFLQVMSWVLGEYSYLLDKETPEEVIAKLYKLLMNDSVSSETKAWLIAAVTKLTSQAHSSNTVERLIHEFTISLDTCMRQHAFELKHLHENVELMKSLLPVDRS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 3 polymer

description	ADP-ribosylation factor 1
formula_weight	18807.5 kDa
ec_number	3.6.5.2
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R

MRILMVGLDAAGKTTILYKLKLGEIVTTIPTIGFNVETVEYKNISFTVWDVGGLDKIRPLWRHYFQNTQGLIFVVDSNDRERVNEAREELMRMLAEDELRDAVLLVFANKQDLPNAMNAAEITDKLGLHSLRHRNWYIQATCATSGDGLYEGLDWLSNQLRNQK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 4 polymer

description	AP-4 complex subunit mu-1
formula_weight	50035.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	M

MISQFFILSSKGDPLIYKDFRGDSGGRDVAELFYRKLTGLPGDESPVVMHHHGRHFIHIRHSGLYLVVTTSENVSPFSLLELLSRLATLLGDYCGSLGEGTISRNVALVYELLDEVLDYGYVQTTSTEMLRNFIQTEAVVSKPFSLFDLSSVGLFGAETQQSKVAPSSAASRPVLSSRSDQSQKNEVFLDVVERLSVLIASNGSLLKVDVQGEIRLKSFLPSGSEMRIGLTEEFCVGKSELRGYGPGIRVDEVSFHSSVNLDEFESHRILRLQPPQGELTVMRYQLSDDLPSPLPFRLFPSVQWDRGSGRLQVYLKLRCDLLSKSQALNVRLHLPLPRGVVSLSQELSSPEQKAELAEGALRWDLPRVQGGSQLSGLFQMDVPGPPGPPSHGLSTSASPLGLGPASLSFELPRHTCSGLQVRFLRLAFRPCGNANPHKWVRHLSHSDAYVIRI

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 5 polymer

description	AP-4 complex subunit sigma-1
formula_weight	17023.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	S

MIKFFLMVNKQGQTRLSKYYEHVDINKRTLLETEVIKSCLSRSNEQCSFIEYKDFKLIYRQYAALFIVVGVNDTENEMAIYEFIHNFVEVLDEYFSRVSELDIMFNLDKVHIILDEMVLNGCIVETNRARILAPLLILDKMSES

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	6.600 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	6.60 Å
resolution_method	—
num_particles	18467

fit	/app/data/saxs_computation/u9/9u9r/9u9r.fit
pddf	/app/data/pr_computation/u9/9u9r/9u9r.pr.out
profile	/app/data/saxs_computation/u9/9u9r/9u9r.dat

ARF1(Q71L) bound M4-CTD-undocked AP-4 core

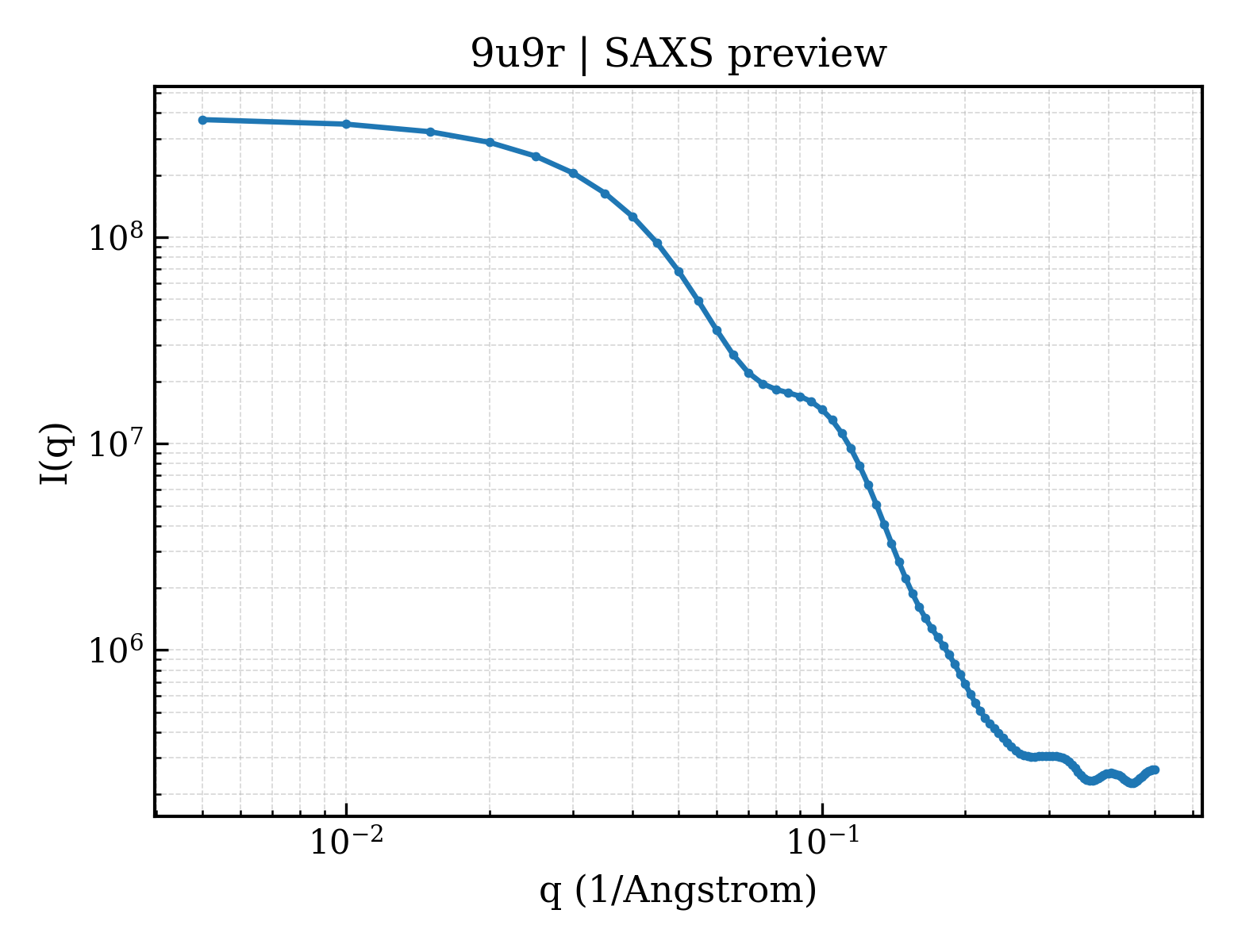

SAXS Profile

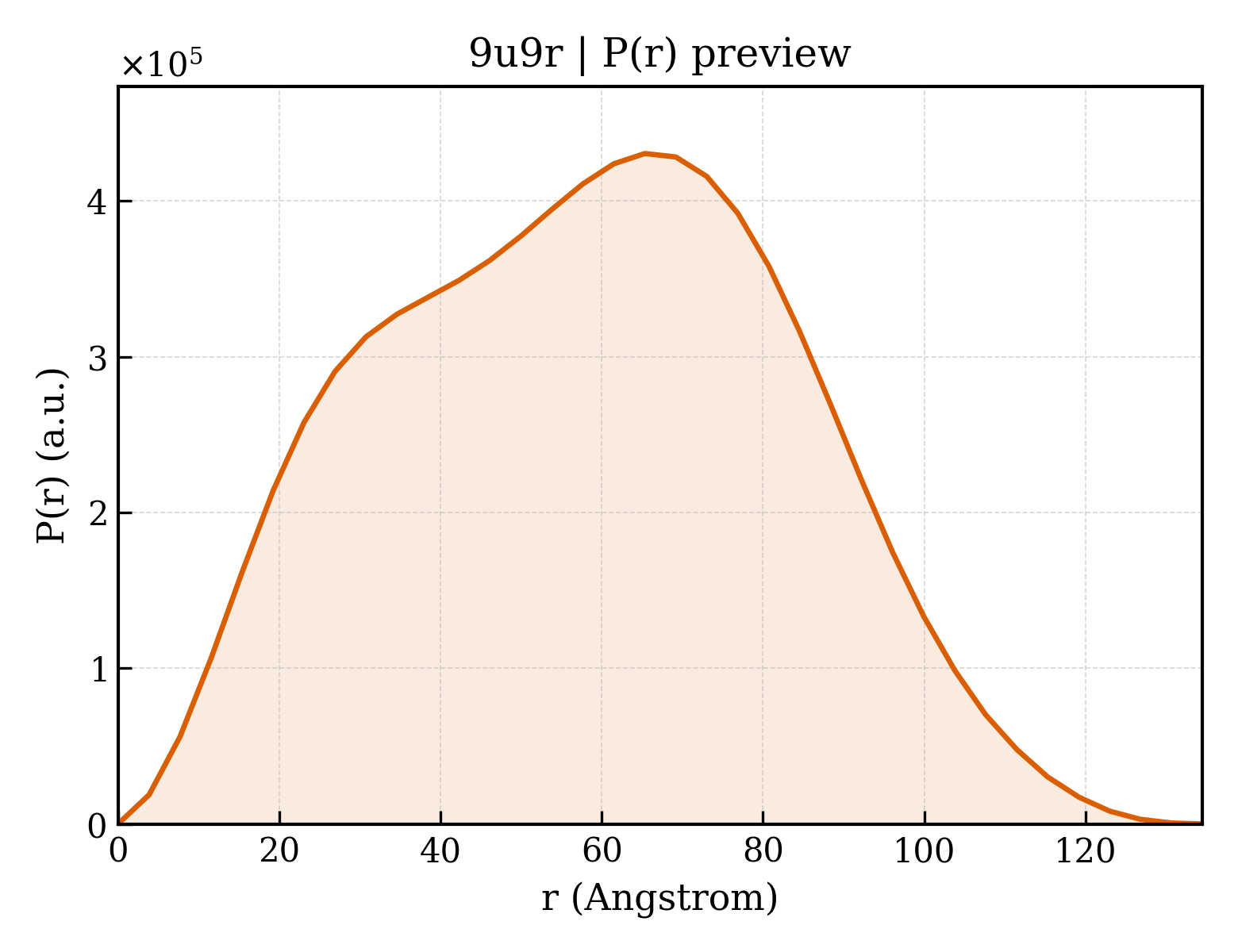

P(r) Distribution
