1. Structure Basics

entry_id	9uc8
deposition_date	2025-04-03
title	structure of human KCNQ1-KCNE1-CaM complex with PIP2
keywords	Ion channels, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	45.65 Å
rg_electron	44.65 Å
i0	662787000.00
molecular_weight	220940.0 kDa
excluded_volume	280040 Å³
envelope_volume	459360 Å³
shell_volume	83032 Å³
envelope_diameter	136.3 Å
shell_rg	52.27 Å
envelope_rg	43.37 Å
shape_rg	44.69 Å
total_rg	44.90 Å
total_atoms	15595
n_residues	2052
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	133.1 Å
rg_real	45.29 Å
rg_real_error	0.66 Å
i0_real	6.6280e+08
i0_real_error	9.6700e+06
rg_reciprocal	45.65 Å
i0_reciprocal	663100000.0000
total_estimate	0.8838
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	57.0 Å
skewness	0.018
kurtosis	-0.546
angular_range	— – 0.1750 Å⁻¹
current_alpha	0.0000
highest_alpha	59690000.0000
n_real_points	36
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.960; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.954; Smooth: 0.651

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Potassium voltage-gated channel subfamily KQT member 1
formula_weight	74800.5 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,D,G,J
atom_count	15595

MAAASSPPRAERKRWGWGRLPGARRGSAGLAKKCPFSLELAEGGPAGGALYAPIAPGAPGPAPPASPAAPAAPPVASDLGPRPPVSLDPRVSIYSTRRPVLARTHVQGRVYNFLERPTGWKCFVYHFAVFLIVLVCLIFSVLSTIEQYAALATGTLFWMEIVLVVFFGTEYVVRLWSAGCRSKYVGLWGRLRFARKPISIIDLIVVVASMVVLCVGSKGQVFATSAIRGIRFLQILRMLHVDRQGGTWRLLGSVVFIHRQELITTLYIGFLGLIFSSYFVYLAEKDAVNESGRVEFGSYADALWWGVVTVTTIGYGDKVPQTWVGKTIASCFSVFAISFFALPAGILGSGFALKVQQKQRQKHFNRQIPAAASLIQTAWRCYAAENPDSSTWKIYIRKAPRSHTLLSPSPKPKKSVVVKKKKFKLDKDNGVTPGEKMLTVPHITCDPPEERRLDHFSVDGYDSSVRKSPTLLEVSMPHFMRTNSFAEDLDLEGETLLTPITHISQLREHHRATIKVIRRMQYFVAKKKFQQARKPYDVRDVIEQYSQGHLNLMVRIKELQRRLDQSIGKPSLFISVSEKSKDRGSNTIGARLNRVEDKVTQLDQRLALITDMLHQLLSLHGGSTPGSGGPPREGGAHITQPCGSGGSVDPELFLPSNTLPTYEQLTVPRRGPDEGS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Calmodulin-1
formula_weight	16852.5 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	B,E,H,K

MADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 polymer

description	Potassium voltage-gated channel subfamily E member 1
formula_weight	3404.1 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	C,F,I,L

DGKLEALYVLMVLGFFGFFTLGIMLSYIRS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 4 non-polymer

description	;[(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate ;
formula_weight	746.6 kDa
src_method	syn
entity_count	8

Entity 5 non-polymer

description	POTASSIUM ION
formula_weight	39.1 kDa
src_method	syn
entity_count	3

▶

6. Citations (1)

▶

resolution	3.36 Å
resolution_method	—
num_particles	168370

fit	/app/data/saxs_computation/uc/9uc8/9uc8.fit
pddf	/app/data/pr_computation/uc/9uc8/9uc8.pr.out
profile	/app/data/saxs_computation/uc/9uc8/9uc8.dat

structure of human KCNQ1-KCNE1-CaM complex with PIP2

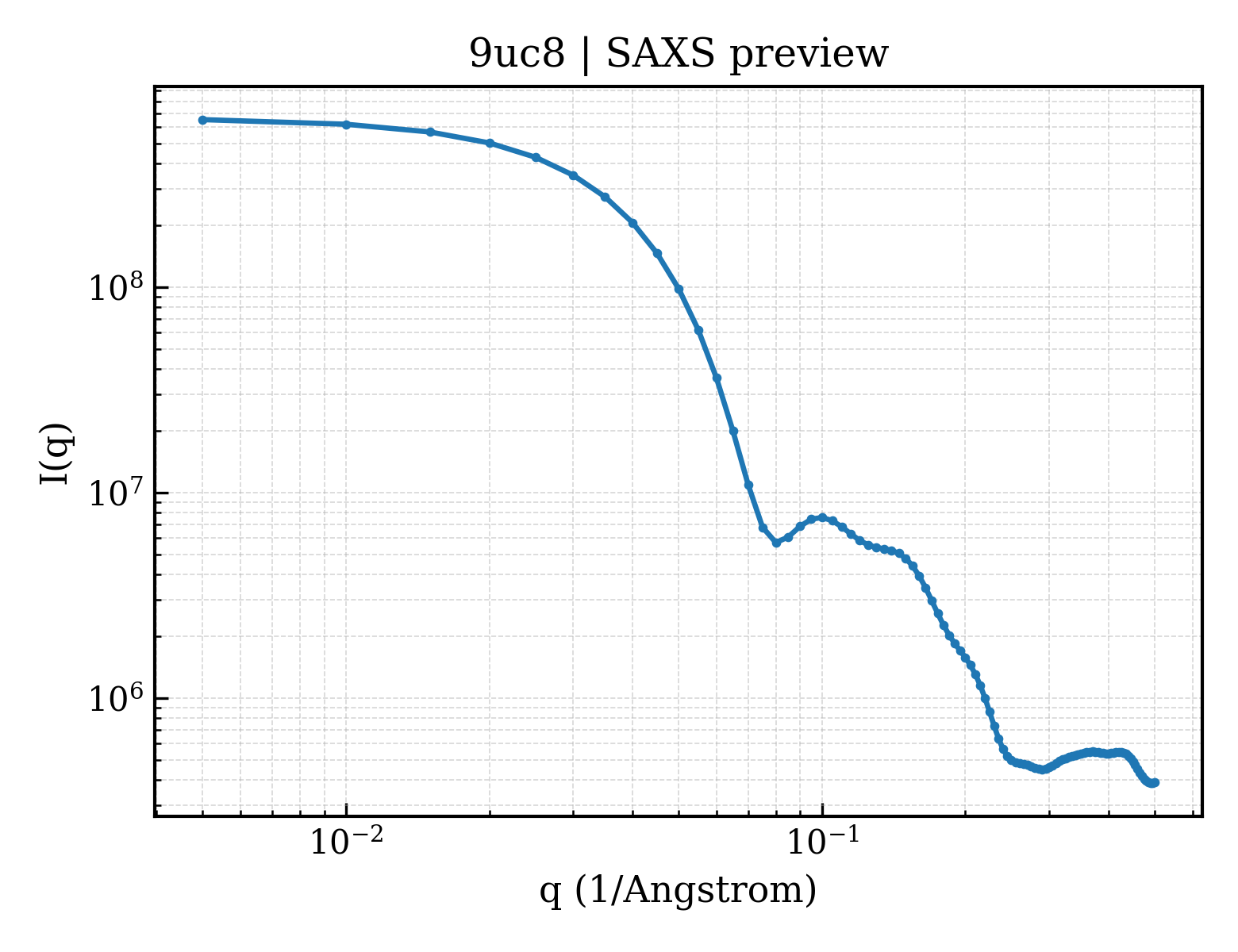

SAXS Profile

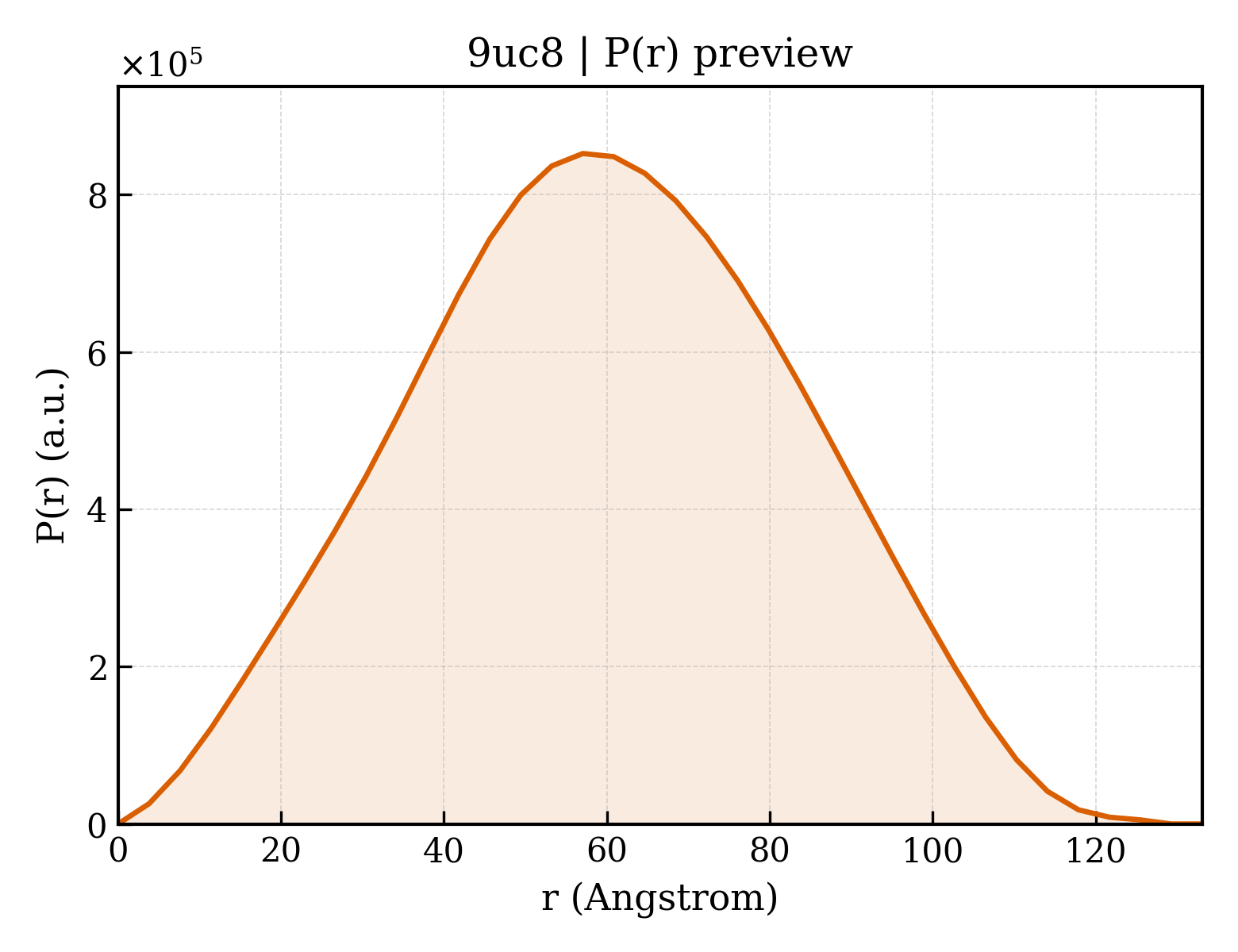

P(r) Distribution
