9utk
Monoclinic crystal structure of acid-stable protracted insulin (293 K)

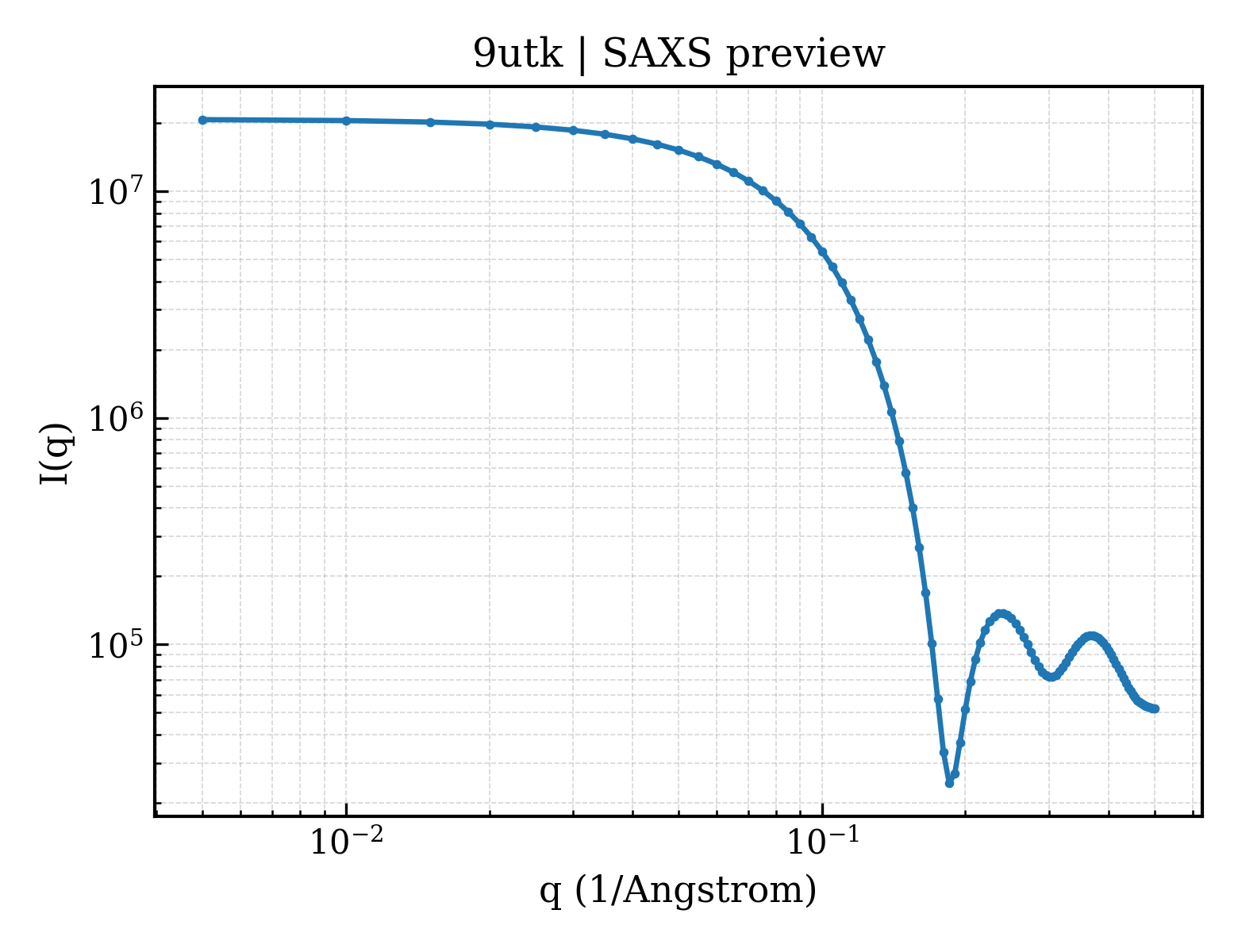

SAXS Profile

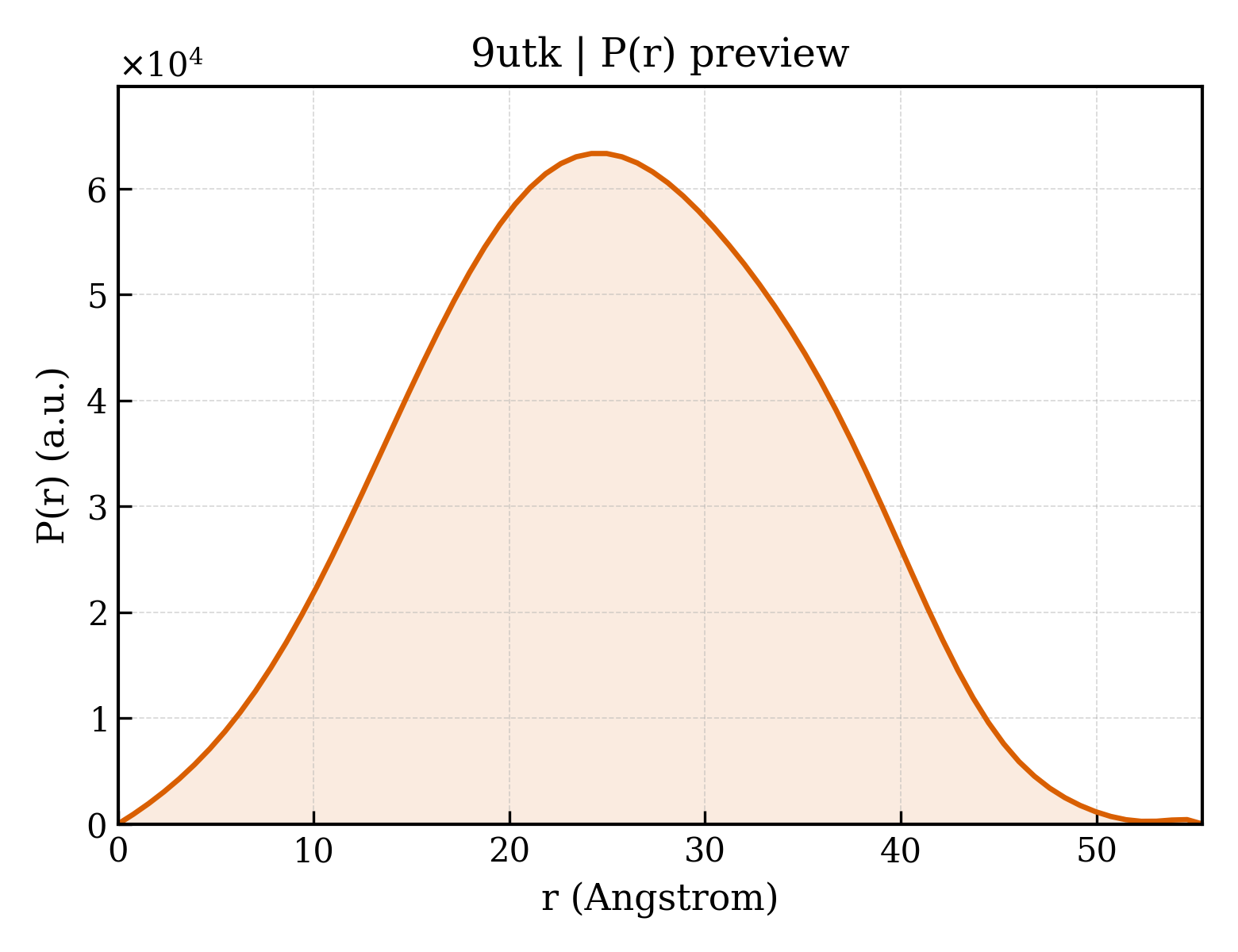

P(r) Distribution
1. Structure Basics
| entry_id | 9utk |
| deposition_date | 2025-05-04 |
| last_revision | 2025-10-29 |
| title | Monoclinic crystal structure of acid-stable protracted insulin (293 K) |
| keywords | Diabetes, Insulin, Structural biology, Molecular dynamics, HORMONE; HORMONE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.35 Å |
| rg_electron | 18.15 Å |
| i0 | 20728700.00 |
| molecular_weight | 34119.0 kDa |
| excluded_volume | 42312 ų |
| envelope_volume | 50157 ų |
| shell_volume | 22093 ų |
| envelope_diameter | 57.1 Å |
| shell_rg | 25.23 Å |
| envelope_rg | 18.31 Å |
| shape_rg | 18.18 Å |
| total_rg | 19.01 Å |
| total_atoms | 2364 |
| n_residues | 297 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 55.4 Å |
| rg_real | 19.16 Å |
| rg_real_error | 0.15 Å |
| i0_real | 2.0730e+07 |
| i0_real_error | 2.2200e+05 |
| rg_reciprocal | 19.19 Å |
| i0_reciprocal | 20730000.0000 |
| total_estimate | 0.9080 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 1 |
| r_peak_primary | 54.6 Å |
| skewness | 0.006 |
| kurtosis | -0.531 |
| angular_range | — – 0.4100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 10860000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.953; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.980 |
