SAXSdb — 9vhz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Entry-fusion complex associated protein OPG095

Monkeypox virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	hmMM1-40 Fab heavy chain × 1 hmMM1-40 Fab light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PG095_MONPV
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain Q； PDBConstruct 1–181； UniProt 1–181

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9vhz
Deposition date deposition_date	2025-06-17
Structure title title	Structure of MPXV M1R and hmMM1-40 Fab complex
Keywords keywords	MPXV, neutralizing antibody, poxvirus, M1R, VIRAL PROTEIN/IMMUNE SYSTEM, VIRAL PROTEIN, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9vhz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9vhz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

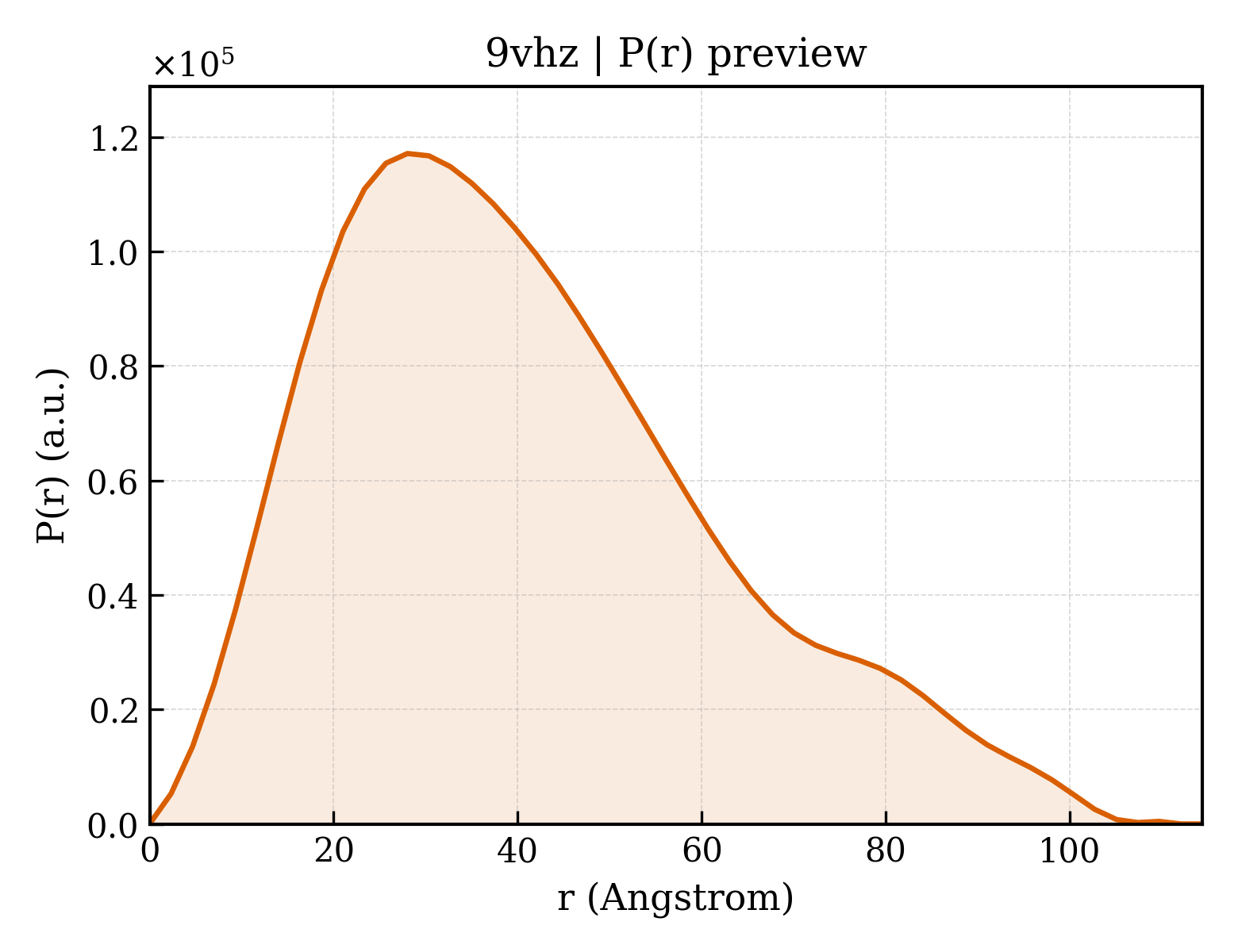

9vhz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.03 Å
Rg (electron density)	32.26 Å
Total Rg	32.65 Å
Atom count	4629
Residues	606
Excluded volume	81822 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9vhz__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	hmMM1-40 Fab heavy chain
Molecular weight formula_weight	25901.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4629

QVQLVQSGAEVKKPGASVKVSCKASGYIFTRYWMHWVRQAPGQGLEWMGYINPSTGYTEYNQKFKDRVTMTRDTSTSTVYMELSSLRSEDTAVYYCARSDYTNYVFEYWGQGTLVTVSSTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTHHHHHHH

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	hmMM1-40 Fab light chain
Molecular weight formula_weight	24132.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

DVVMTQSPLSLPVTLGQPASISCRSSQSLVHSNGNTYLHWFQQRPGQSPRRLIYKVSNRFSGVPDRFSGSGSGTDFTLKISRVEAEDVGVYYCSQSTHVPYTFGGGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGECS

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Entry-fusion complex associated protein OPG095
Molecular weight formula_weight	19306.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q

MGAAASIQTTVNTLSERISSKLEQEANASAQTKCDIEIGNFYIRQNHGCNITVKNMCSADADAQLDAVLSAATETYSGLTPEQKAYVPAMFTAALNIQTSVNTVVRDFENYVKQTCNSSAVVDNKLKIQNVIIDECYGAPGSPTNLEFINTGSSKGNCAIKALMQLTTKATTQIAPRQVAG

Source Source

Source organism organism	Monkeypox virus
NCBI taxonomy ID ncbi_taxonomy_id	10244
Host organism host_organism	Escherichia coli BL21(DE3)

▶

Unit-cell length a length_a	61.361 Å
Unit-cell length b length_b	72.353 Å
Unit-cell length c length_c	170.587 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	55.180 Å
R factor r_factor	0.2118
R_work r_work	0.2075
R_free r_free	0.2957
