1. Structure Basics

entry_id	9vm5
deposition_date	2025-06-27
title	Structure of DOCK6-Rac1 complex
keywords	DOCK, GEF, Rho, small GTPase, Rac, Cdc42, SIGNALING PROTEIN; SIGNALING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	64.68 Å
rg_electron	64.05 Å
i0	2390640000.00
molecular_weight	421550.0 kDa
excluded_volume	531070 Å³
envelope_volume	862690 Å³
shell_volume	111850 Å³
envelope_diameter	196.8 Å
shell_rg	69.80 Å
envelope_rg	60.16 Å
shape_rg	64.06 Å
total_rg	64.11 Å
total_atoms	29712
n_residues	3730
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	205.6 Å
rg_real	64.26 Å
rg_real_error	1.75 Å
i0_real	2.3910e+09
i0_real_error	5.0780e+07
rg_reciprocal	64.98 Å
i0_reciprocal	2394000000.0000
total_estimate	0.8232
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	94.2 Å
skewness	-0.046
kurtosis	-0.707
angular_range	— – 0.1200 Å⁻¹
current_alpha	0.0002
highest_alpha	85660000.0000
n_real_points	25
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.904; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Dedicator of cytokinesis protein 6
formula_weight	230265.3 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,C
atom_count	29712

GGSGGSMAASERRAFAHKINRTVAAEVRKQVSRERSGSPHSSRRCSSSLGVPLTEVVEPLDFEDVLLSRPPDAEPGPLRDLVEFPADDLELLLQPRECRTTEPGIPKDEKLDAQVRAAVEMYIEDWVIVHRRYQYLSAAYSPVTTDTQRERQKGLPRQVFEQDASGDERSGPEDSNDSRRGSGSPEDTPRSSGASSIFDLRNLAADSLLPSLLERAAPEDVDRRNETLRRQHRPPALLTLYPAPDEDEAVERCSRPEPPREHFGQRILVKCLSLKFEIEIEPIFGILALYDVREKKKISENFYFDLNSDSMKGLLRAHGTHPAISTLARSAIFSVTYPSPDIFLVIKLEKVLQQGDISECCEPYMVLKEVDTAKNKEKLEKLRLAAEQFCTRLGRYRMPFAWTAVHLANIVSSAGQLDRDSDSEGERRPAWTDRRRRGPQDRASSGDDACSFSGFRPATLTVTNFFKQEAERLSDEDLFKFLADMRRPSSLLRRLRPVTAQLKIDISPAPENPHFCLSPELLHIKPYPDPRGRPTKEILEFPAREVYAPHTSYRNLLYVYPHSLNFSSRQGSVRNLAVRVQYMTGEDPSQALPVIFGKSSCSEFTREAFTPVVYHNKSPEFYEEFKLHLPACVTENHHLLFTFYHVSCQPRPGTALETPVGFTWIPLLQHGRLRTGPFCLPVSVDQPPPSYSVLTPDVALPGMRWVDGHKGVFSVELTAVSSVHPQDPYLDKFFTLVHVLEEGAFPFRLKDTVLSEGNVEQELRASLAALRLASPEPLVAFSHHVLDKLVRLVIRPPIISGQIVNLGRGAFEAMAHVVSLVHRSLEAAQDARGHCPQLAAYVHYAFRLPGTEPSLPDGAPPVTVQAATLARGSGRPASLYLARSKSISSSNPDLAVAPGSVDDEVSRILASKLLHEELALQWVVSSSAVREAILQHAWFFFQLMVKSMALHLLLGQRLDTPRKLRFPGRFLDDITALVGSVGLEVITRVHKDVELAEHLNASLAFFLSDLLSLVDRGFVFSLVRAHYKQVATRLQSSPNPAALLTLRMEFTRILCSHEHYVTLNLPCCPLSPPASPSPSVSSTTSQSSTFSSQAPDPKVTSMFELSGPFRQQHFLAGLLLTELALALEPEAEGAFLLHKKAISAVHSLLCGHDTDPRYAEATVKARVAELYLPLLSIARDTLPRLHDFAEGPGQRSRLASMLDSDTEGEGDIAGTINPSVAMAIAGGPLAPGSRASISQGPPTASRAGCALSAESSRTLLACVLWVLKNTEPALLQRWATDLTLPQLGRLLDLLYLCLAAFEYKGKKAFERINSLTFKKSLDMKARLEEAILGTIGARQEMVRRSRERSPFGNPENVRWRKSVTHWKQTSDRVDKTKDEMEHEALVEGNLATEASLVVLDTLEIIVQTVMLSEARESVLGAVLKVVLYSLGSAQSALFLQHGLATQRALVSKFPELLFEEDTELCADLCLRLLRHCGSRISTIRTHASASLYLLMRQNFEIGHNFARVKMQVTMSLSSLVGTTQNFSEEHLRRSLKTILTYAEEDMGLRDSTFAEQVQDLMFNLHMILTDTVKMKEHQEDPEMLIDLMYRIARGYQGSPDLRLTWLQNMAGKHAELGNHAEAAQCMVHAAALVAEYLALLEDHRHLPVGCVSFQNISSNVLEESAISDDILSPDEEGFCSGKHFTELGLVGLLEQAAGYFTMGGLYEAVNEVYKNLIPILEAHRDYKKLAAVHGKLQEAFTKIMHQSSGWERVFGTYFRVGFYGAHFGDLDEQEFVYKEPSITKLAEISHRLEEFYTERFGDDVVEIIKDSNPVDKSKLDSQKAYIQITYVEPYFDTYELKDRVTYFDRNYGLRTFLFCTPFTPDGRAHGELPEQHKRKTLLSTDHAFPYIKTRIRVCHREETVLTPVEVAIEDMQKKTRELAFATEQDPPDAKMLQMVLQGSVGPTVNQGPLEVAQVFLAEIPEDPKLFRHHNKLRLCFKDFCKKCEDALRKNKALIGPDQKEYHRELERNYCRLREALQPLLTQRLPQLMAPTPPGLRNSLNRASFRKADL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Ras-related C3 botulinum toxin substrate 1
formula_weight	20244.3 kDa
ec_number	3.6.5.2
mutation	G15A
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,D

GSSGSSGMQAIKCVVVGDGAVAKTCLLISYTTNAFPGEYIPTVFDNYSANVMVDGKPVNLGLWDTAGQEDYDRLRPLSYPQTDVFLICFSLVSPASFENVRAKWYPEVRHHCPNTPIILVGTKLDLRDDKDTIEKLKEKKLTPITYPQGLAMAKEIGAVKYLECSALTQRGLKTVFDEAIRAVL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	5.32 Å
resolution_method	—
num_particles	303033

fit	/app/data/saxs_computation/vm/9vm5/9vm5.fit
pddf	/app/data/pr_computation/vm/9vm5/9vm5.pr.out
profile	/app/data/saxs_computation/vm/9vm5/9vm5.dat

Structure of DOCK6-Rac1 complex

SAXS Profile

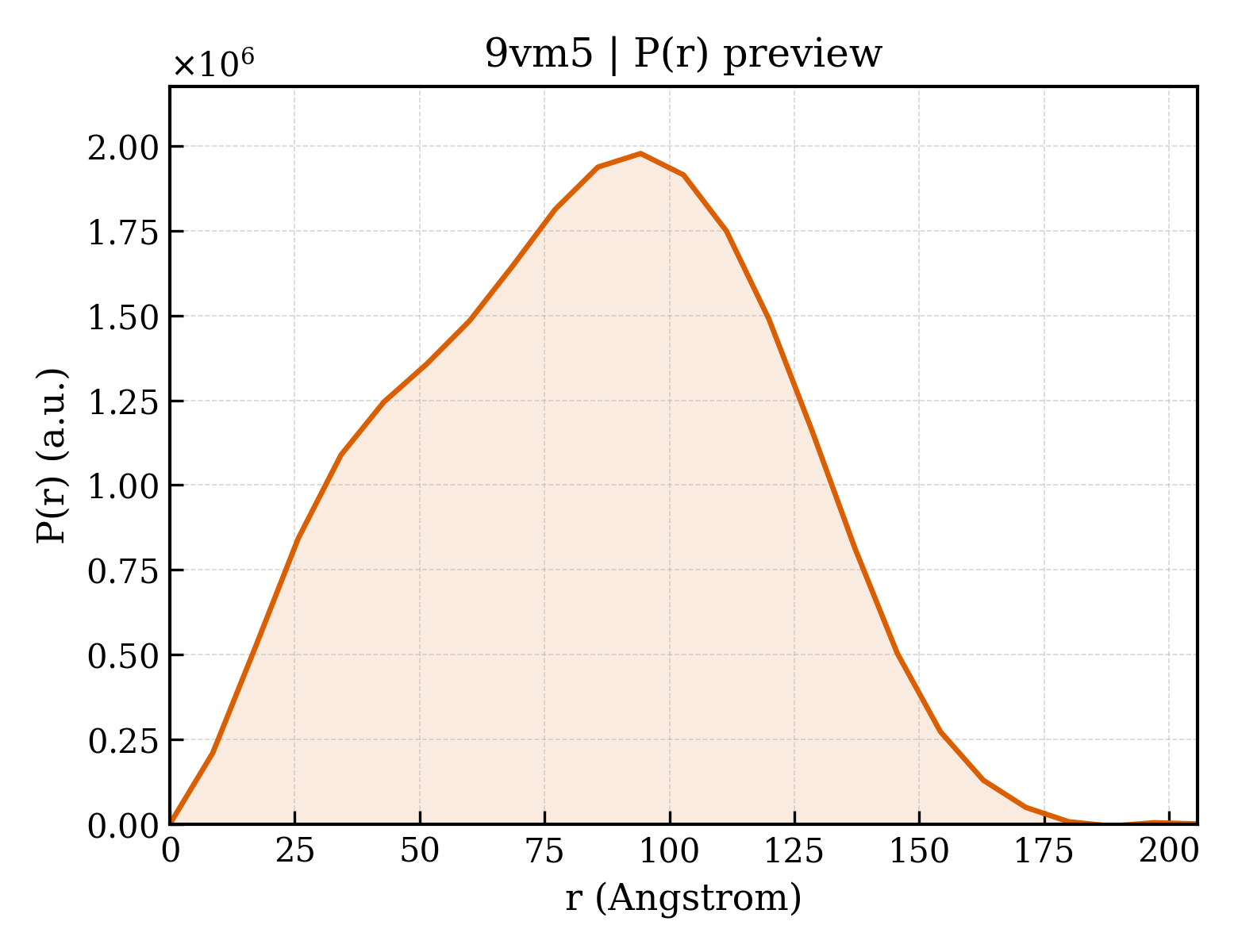

P(r) Distribution
