SAXSdb — 9vm3

▼

1. Structure Basics

entry_id	9vm3
deposition_date	2025-06-27
title	Structure of DOCK6-Cdc42 complex
keywords	DOCK, GEF, Rho, small GTPase, Rac, Cdc42, SIGNALING PROTEIN; SIGNALING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	64.06 Å
rg_electron	63.39 Å
i0	2389820000.00
molecular_weight	421630.0 kDa
excluded_volume	531260 Å³
envelope_volume	854690 Å³
shell_volume	111840 Å³
envelope_diameter	194.8 Å
shell_rg	69.36 Å
envelope_rg	59.48 Å
shape_rg	63.40 Å
total_rg	63.46 Å
total_atoms	29720
n_residues	3732
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

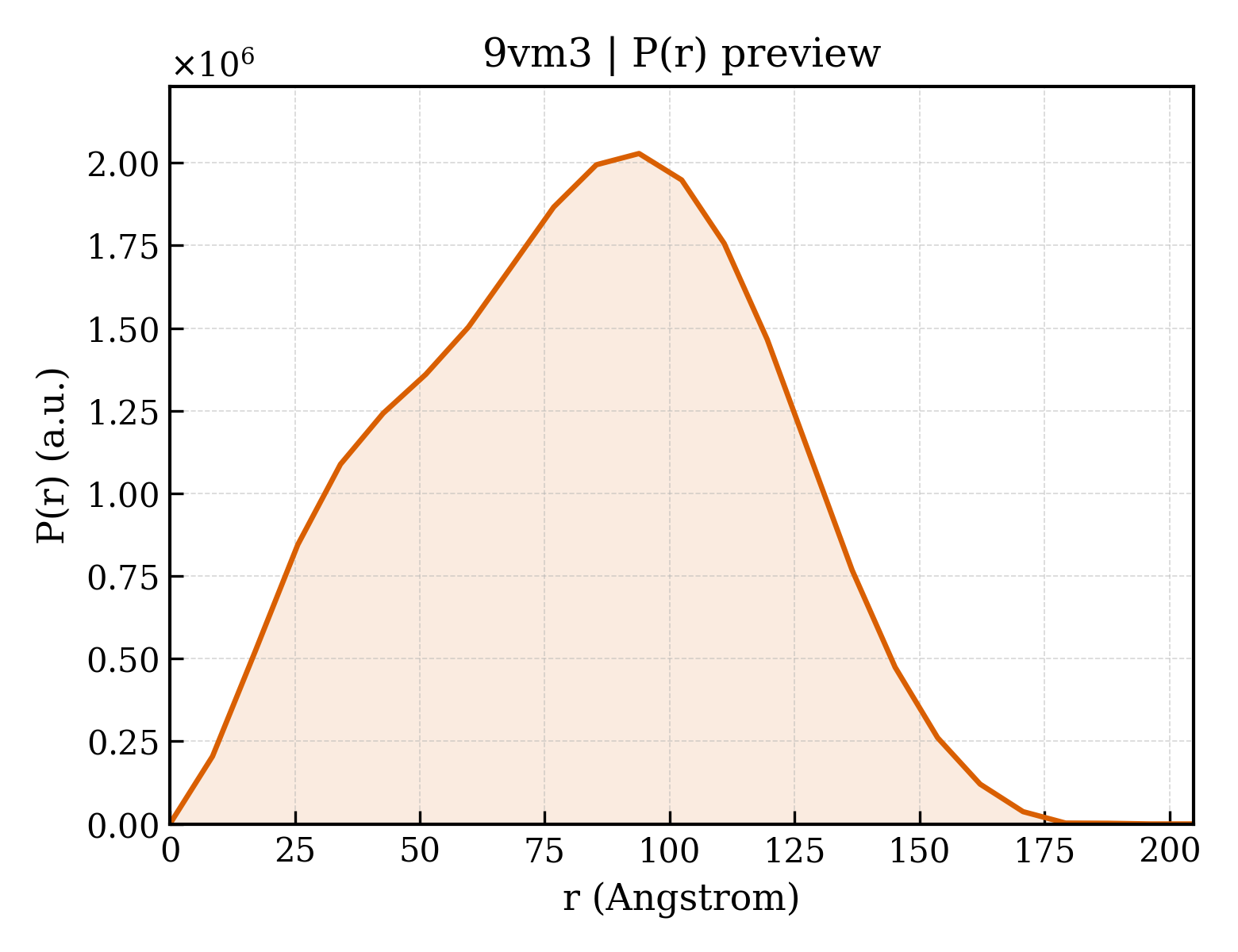

3. P(r) Analysis (GNOM)

dmax	204.8 Å
rg_real	63.63 Å
rg_real_error	1.99 Å
i0_real	2.3900e+09
i0_real_error	5.2160e+07
rg_reciprocal	64.37 Å
i0_reciprocal	2393000000.0000
total_estimate	0.8195
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	93.9 Å
skewness	-0.047
kurtosis	-0.683
angular_range	— – 0.1200 Å⁻¹
current_alpha	0.0000
highest_alpha	85250000.0000
n_real_points	25
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.888; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Dedicator of cytokinesis protein 6
formula_weight	230265.3 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,C
atom_count	29720

GGSGGSMAASERRAFAHKINRTVAAEVRKQVSRERSGSPHSSRRCSSSLGVPLTEVVEPLDFEDVLLSRPPDAEPGPLRDLVEFPADDLELLLQPRECRTTEPGIPKDEKLDAQVRAAVEMYIEDWVIVHRRYQYLSAAYSPVTTDTQRERQKGLPRQVFEQDASGDERSGPEDSNDSRRGSGSPEDTPRSSGASSIFDLRNLAADSLLPSLLERAAPEDVDRRNETLRRQHRPPALLTLYPAPDEDEAVERCSRPEPPREHFGQRILVKCLSLKFEIEIEPIFGILALYDVREKKKISENFYFDLNSDSMKGLLRAHGTHPAISTLARSAIFSVTYPSPDIFLVIKLEKVLQQGDISECCEPYMVLKEVDTAKNKEKLEKLRLAAEQFCTRLGRYRMPFAWTAVHLANIVSSAGQLDRDSDSEGERRPAWTDRRRRGPQDRASSGDDACSFSGFRPATLTVTNFFKQEAERLSDEDLFKFLADMRRPSSLLRRLRPVTAQLKIDISPAPENPHFCLSPELLHIKPYPDPRGRPTKEILEFPAREVYAPHTSYRNLLYVYPHSLNFSSRQGSVRNLAVRVQYMTGEDPSQALPVIFGKSSCSEFTREAFTPVVYHNKSPEFYEEFKLHLPACVTENHHLLFTFYHVSCQPRPGTALETPVGFTWIPLLQHGRLRTGPFCLPVSVDQPPPSYSVLTPDVALPGMRWVDGHKGVFSVELTAVSSVHPQDPYLDKFFTLVHVLEEGAFPFRLKDTVLSEGNVEQELRASLAALRLASPEPLVAFSHHVLDKLVRLVIRPPIISGQIVNLGRGAFEAMAHVVSLVHRSLEAAQDARGHCPQLAAYVHYAFRLPGTEPSLPDGAPPVTVQAATLARGSGRPASLYLARSKSISSSNPDLAVAPGSVDDEVSRILASKLLHEELALQWVVSSSAVREAILQHAWFFFQLMVKSMALHLLLGQRLDTPRKLRFPGRFLDDITALVGSVGLEVITRVHKDVELAEHLNASLAFFLSDLLSLVDRGFVFSLVRAHYKQVATRLQSSPNPAALLTLRMEFTRILCSHEHYVTLNLPCCPLSPPASPSPSVSSTTSQSSTFSSQAPDPKVTSMFELSGPFRQQHFLAGLLLTELALALEPEAEGAFLLHKKAISAVHSLLCGHDTDPRYAEATVKARVAELYLPLLSIARDTLPRLHDFAEGPGQRSRLASMLDSDTEGEGDIAGTINPSVAMAIAGGPLAPGSRASISQGPPTASRAGCALSAESSRTLLACVLWVLKNTEPALLQRWATDLTLPQLGRLLDLLYLCLAAFEYKGKKAFERINSLTFKKSLDMKARLEEAILGTIGARQEMVRRSRERSPFGNPENVRWRKSVTHWKQTSDRVDKTKDEMEHEALVEGNLATEASLVVLDTLEIIVQTVMLSEARESVLGAVLKVVLYSLGSAQSALFLQHGLATQRALVSKFPELLFEEDTELCADLCLRLLRHCGSRISTIRTHASASLYLLMRQNFEIGHNFARVKMQVTMSLSSLVGTTQNFSEEHLRRSLKTILTYAEEDMGLRDSTFAEQVQDLMFNLHMILTDTVKMKEHQEDPEMLIDLMYRIARGYQGSPDLRLTWLQNMAGKHAELGNHAEAAQCMVHAAALVAEYLALLEDHRHLPVGCVSFQNISSNVLEESAISDDILSPDEEGFCSGKHFTELGLVGLLEQAAGYFTMGGLYEAVNEVYKNLIPILEAHRDYKKLAAVHGKLQEAFTKIMHQSSGWERVFGTYFRVGFYGAHFGDLDEQEFVYKEPSITKLAEISHRLEEFYTERFGDDVVEIIKDSNPVDKSKLDSQKAYIQITYVEPYFDTYELKDRVTYFDRNYGLRTFLFCTPFTPDGRAHGELPEQHKRKTLLSTDHAFPYIKTRIRVCHREETVLTPVEVAIEDMQKKTRELAFATEQDPPDAKMLQMVLQGSVGPTVNQGPLEVAQVFLAEIPEDPKLFRHHNKLRLCFKDFCKKCEDALRKNKALIGPDQKEYHRELERNYCRLREALQPLLTQRLPQLMAPTPPGLRNSLNRASFRKADL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Cell division control protein 42 homolog
formula_weight	21475.6 kDa
ec_number	3.6.5.2
mutation	G15A
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,D

GSSGSSGMQTIKCVVVGDGAVAKTCLLISYTTNKFPSEYVPTVFDNYAVTVMIGGEPYTLGLFDTAGQEDYDRLRPLSYPQTDVFLVCFSVVSPSSFENVKEKWVPEITHHCPKTPFLLVGTQIDLRDDPSTIEKLAKNKQKPITPETAEKLARDLKAVKYVECSALTQKGLKNVFDEAILAALEPPEPKKSRRS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	4.52 Å
resolution_method	—
num_particles	370326

fit	/app/data/saxs_computation/vm/9vm3/9vm3.fit
pddf	/app/data/pr_computation/vm/9vm3/9vm3.pr.out
profile	/app/data/saxs_computation/vm/9vm3/9vm3.dat
