1cee

SOLUTION STRUCTURE OF CDC42 IN COMPLEX WITH THE GTPASE BINDING DOMAIN OF WASP

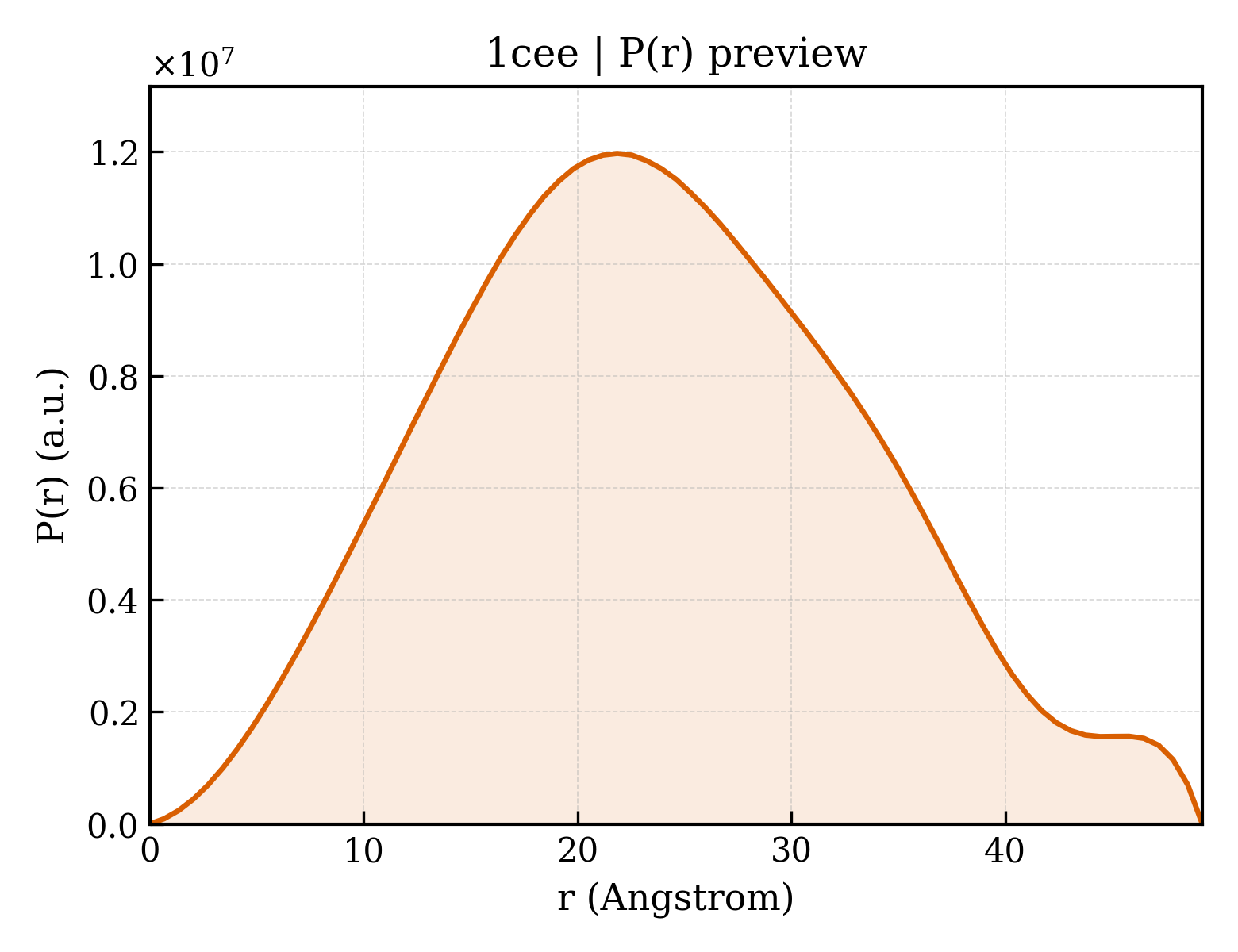

Method: SOLUTION NMR Dmax: 49.2 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GTP-BINDING RHO-LIKE PROTEIN

Homo sapiens

UniProt P60953

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 1–179 Fragment：CDC42 WISKOTT-ALDRICH SYNDROME PROTEIN WASP × 1 （P42768） MG MAGNESIUM ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 SOLUTION NMR NMR measurement conditions：pH 7；298 K；Ionic strength (raw mmCIF value) 50mM；Pressure 1 Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1CEE Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1A4R G12V MUTANT OF HUMAN PLACENTAL CDC42 GTPASE IN THE GDP FORM Deposited 1998-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–191（191 aa）
Chain B 1–191（191 aa）
Mutation：YES Mutation：YES MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 GNH AMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.6；pH 4.60
Resolution 2.50 Å R-free 0.280
1AJE CDC42 FROM HUMAN, NMR, 20 STRUCTURES Deposited 1997-05-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–187（187 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 5.5；298 K
Resolution not provided
1AM4 COMPLEX BETWEEN CDC42HS.GMPPNP AND P50 RHOGAP (H. SAPIENS) Deposited 1997-06-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 2–177（176 aa）
Mutation：M501P MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.9；pH 5.9
Resolution 2.70 Å R-free 0.280
1AM4 COMPLEX BETWEEN CDC42HS.GMPPNP AND P50 RHOGAP (H. SAPIENS) Deposited 1997-06-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 2–177（176 aa）
Mutation：M501P MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.9；pH 5.9
Resolution 2.70 Å R-free 0.280
1AM4 COMPLEX BETWEEN CDC42HS.GMPPNP AND P50 RHOGAP (H. SAPIENS) Deposited 1997-06-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 2–177（176 aa）
Mutation：M501P MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.9；pH 5.9
Resolution 2.70 Å R-free 0.280
1AN0 CDC42HS-GDP COMPLEX Deposited 1997-06-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–190（189 aa）
Chain B 2–190（189 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.8；pH 4.8
Resolution 2.80 Å R-free 0.344
1CF4 CDC42/ACK GTPASE-BINDING DOMAIN COMPLEX Deposited 1999-03-23 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–191（191 aa）
Mutation：Q61L MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 SOLUTION NMR
NMR measurement conditions pH 5.5；298 K
NMR sample composition [50%2H; 100%15N,13C]-labelled Cdc42, unlabelled f-ACK, 90% H2O/10% | 90% H2O/10% D2O
NMR sample composition [U-15N] f-ACK, Cdc42, 90% H2O/10% | 90% H2O/10% D2O
NMR sample composition [U-13C; U-15N] f-ACK, Cdc42, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition [U-13C; U-15N] Cdc42, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition [U-100% 15N] Cdc42, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
1DOA Structure of the rho family gtp-binding protein cdc42 in complex with the multifunctional regulator rhogdi Deposited 1999-12-20 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–188（188 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 1 GER GERAN-8-YL GERAN × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；291 K；15% PEG 4000, 100 mM Glutamic Acid, 25 mM MgSO4, 50 mM Tris, 2 mM NaN3, 2 mM LDAO , pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 18K, temperature 291K
Resolution 2.60 Å R-free 0.320
1DOA Structure of the rho family gtp-binding protein cdc42 in complex with the multifunctional regulator rhogdi Deposited 1999-12-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–188（188 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 6 GDP GUANOSINE-5'-DIPHOSPHATE × 3 GER GERAN-8-YL GERAN × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；291 K；15% PEG 4000, 100 mM Glutamic Acid, 25 mM MgSO4, 50 mM Tris, 2 mM NaN3, 2 mM LDAO , pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 18K, temperature 291K
Resolution 2.60 Å R-free 0.320
1E0A Cdc42 complexed with the GTPase binding domain of p21 activated kinase Deposited 2000-03-16 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–184（184 aa） Fragment：1-184
Mutation：YES GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 SOLUTION NMR
NMR measurement conditions pH 5.5；298 K；Ionic strength (raw mmCIF value) 5 MM NA2HPO4, 25MM NACL；Pressure 1
NMR sample composition 90% WATER, 10% D2O
Resolution not provided
1EES SOLUTION STRUCTURE OF CDC42HS COMPLEXED WITH A PEPTIDE DERIVED FROM P-21 ACTIVATED KINASE, NMR, 20 STRUCTURES Deposited 2000-02-02 Different construct Different ligand/ion Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–178（178 aa） Fragment：AMINO ACIDS 1-178
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 5.5；298 K；Ionic strength (raw mmCIF value) 64 mM；Pressure ambient
NMR sample composition 0.8 mM U-15N,13C Cdc42Hs, 0.8 mM PBD46; 25 mM NaCl, 5 mM Na2PO4, 5 mM MgCl2, 1 mM NaN3, pH 5.5 | 90% H2O/10% D2O
NMR sample composition 0.8 mM U-15N Cdc42Hs, 0.8 mM PBD46; 25 mM NaCl, 5 mM Na2PO4, 5 mM MgCl2, 1 mM NaN3, pH 5.5 | 90% H2O/10% D2O
NMR sample composition 0.8 mM Cdc42Hs, 0.8 mM U-15N,13C PBD46; 25 mM NaCl, 5 mM Na2PO4, 5 mM MgCl2, 1 mM NaN3, pH 5.5 | 90% H2O/10% D2O
NMR sample composition 0.8 mM Cdc42Hs, 0.8 mM U-15N PBD46; 25 mM NaCl, 5 mM Na2PO4, 5 mM MgCl2, 1 mM NaN3, pH 5.5 | 90% H2O/10% D2O
NMR sample composition 0.8 mM 70%-2H,U-15N,13C Cdc42Hs, 0.8 mM PBD46; 25 mM NaCl, 5 mM Na2PO4, 5 mM MgCl2, 1 mM NaN3, pH 5.5 | 90% H2O/10% D2O
NMR sample composition 0.8 mM U-2H,15N Cdc42Hs, 0.8 mM PBD46; 25 mM NaCl, 5 mM Na2PO4, 5 mM MgCl2, 1 mM NaN3, pH 5.5 | 90% H2O/10% D2O
NMR sample composition 0.8 mM U-15N,13C Cdc42Hs, 0.8 mM PBD46; 25 mM NaCl, 5 mM Na2PO4, 5 mM MgCl2, 1 mM NaN3, pH 5.5 | 100% D2O
NMR sample composition 0.8 mM Cdc42Hs, 0.8 mM U-15N,13C PBD46; 25 mM NaCl, 5 mM Na2PO4, 5 mM MgCl2, 1 mM NaN3, pH 5.5 | 100% D2O
Resolution not provided
1GRN CRYSTAL STRUCTURE OF THE CDC42/CDC42GAP/ALF3 COMPLEX. Deposited 1998-07-30 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–191（191 aa） Fragment：CDC42
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；pH 6.0
Resolution 2.10 Å R-free 0.259
1KI1 Guanine Nucleotide Exchange Region of Intersectin in Complex with Cdc42 Deposited 2001-12-02 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–188（188 aa） Fragment：residues 1-188
Mutation：C188S SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG 4000, ammonium sulfate, Tris, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.30 Å R-free 0.247
1KI1 Guanine Nucleotide Exchange Region of Intersectin in Complex with Cdc42 Deposited 2001-12-02 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–188（188 aa） Fragment：residues 1-188
Mutation：C188S SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG 4000, ammonium sulfate, Tris, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.30 Å R-free 0.247
1KZ7 Crystal Structure of the DH/PH Fragment of Murine Dbs in Complex with the Placental Isoform of Human Cdc42 Deposited 2002-02-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–188（188 aa） Fragment：residues 1-188
Mutation：C188S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；PEG 8000, sodium formate, Tris HCL, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.40 Å R-free 0.239
1KZ7 Crystal Structure of the DH/PH Fragment of Murine Dbs in Complex with the Placental Isoform of Human Cdc42 Deposited 2002-02-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–188（188 aa） Fragment：residues 1-188
Mutation：C188S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；PEG 8000, sodium formate, Tris HCL, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.40 Å R-free 0.239
1KZG DbsCdc42(Y889F) Deposited 2002-02-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–188（188 aa） Fragment：residues 1-188
Mutation：C188S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；PEG 8000,Tris HCL, NaFormate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.60 Å R-free 0.259
1KZG DbsCdc42(Y889F) Deposited 2002-02-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–188（188 aa） Fragment：residues 1-188
Mutation：C188S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；PEG 8000,Tris HCL, NaFormate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.60 Å R-free 0.259
1NF3 Structure of Cdc42 in a complex with the GTPase-binding domain of the cell polarity protein, Par6 Deposited 2002-12-12 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–181（180 aa）
Mutation：Q61L MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；24% PEG 4000, 100mM sodium citrate, 0.2M ammonium acetate, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.273
1NF3 Structure of Cdc42 in a complex with the GTPase-binding domain of the cell polarity protein, Par6 Deposited 2002-12-12 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2–181（180 aa）
Mutation：Q61L MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；24% PEG 4000, 100mM sodium citrate, 0.2M ammonium acetate, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.273
1NF3 Structure of Cdc42 in a complex with the GTPase-binding domain of the cell polarity protein, Par6 Deposited 2002-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 2–181（180 aa）
Chain B 2–181（180 aa）
Mutation：Q61L Mutation：Q61L MG MAGNESIUM ION × 2 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；24% PEG 4000, 100mM sodium citrate, 0.2M ammonium acetate, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.273
2ASE NMR structure of the F28L mutant of Cdc42Hs Deposited 2005-08-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–178（178 aa）
Mutation：F28L No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 5.5；298 K；Ionic strength (raw mmCIF value) 30 mM；Pressure ambient
NMR sample composition U-15N Cdc42Hs, 25 mM phosphate buffer, 5 mM MgCl2, pH 5.5, 90% H2O, 10% D2O | 90% H2O/10% D2O
NMR sample composition U-15N Cdc42Hs, 25 mM phosphate buffer, 5 mM MgCl2, pH 5.5, 100% D2O | 100% D2O
NMR sample composition Cdc42Hs, 25 mM phosphate buffer, 5 mM MgCl2, pH 5.5, 100% D2O | 100% D2O
Resolution not provided
2DFK Crystal structure of the CDC42-Collybistin II complex Deposited 2006-03-02 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–191（191 aa）
Not recorded GOL GLYCEROL × 4 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；PEG 8000, Potassium dihydrogen phosphate, NaCl, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298K, pH 8.00
Resolution 2.15 Å R-free 0.229
2DFK Crystal structure of the CDC42-Collybistin II complex Deposited 2006-03-02 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–191（191 aa）
Not recorded GOL GLYCEROL × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；PEG 8000, Potassium dihydrogen phosphate, NaCl, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298K, pH 8.00
Resolution 2.15 Å R-free 0.229
2DFK Crystal structure of the CDC42-Collybistin II complex Deposited 2006-03-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–191（191 aa）
Chain D 1–191（191 aa）
Not recorded GOL GLYCEROL × 6 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；PEG 8000, Potassium dihydrogen phosphate, NaCl, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298K, pH 8.00
Resolution 2.15 Å R-free 0.229
2KB0 Cdc42(T35A) Deposited 2008-11-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–178（178 aa）
Mutation：T35A No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 5.5；298 K；Pressure ambient
NMR sample composition 0.4 mM [U-100% 13C; U-100% 15N] Cdc42(T35A), 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2NGR TRANSITION STATE COMPLEX FOR GTP HYDROLYSIS BY CDC42: COMPARISONS OF THE HIGH RESOLUTION STRUCTURES FOR CDC42 BOUND TO THE ACTIVE AND CATALYTICALLY COMPROMISED FORMS OF THE CDC42-GAP. Deposited 1998-07-31 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–191（191 aa） Fragment：FULL-LENGTH CDC42 IN COMPLEX WITH A C-TERMINAL ACTIVE DOMAIN OF CDC42GAP(R305A) MUTANT.
Not recorded MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；pH 6.0
Resolution 1.90 Å R-free 0.293
2ODB The crystal structure of human cdc42 in complex with the CRIB domain of human p21-activated kinase 6 (PAK6) Deposited 2006-12-22 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–181（181 aa）
Not recorded CL CHLORIDE ION × 1 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 3 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1M acetate, 2M (NH4)2SO4, pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.40 Å R-free 0.232
2ODB The crystal structure of human cdc42 in complex with the CRIB domain of human p21-activated kinase 6 (PAK6) Deposited 2006-12-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–181（181 aa）
Not recorded CL CHLORIDE ION × 2 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 6 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1M acetate, 2M (NH4)2SO4, pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.40 Å R-free 0.232
2ODB The crystal structure of human cdc42 in complex with the CRIB domain of human p21-activated kinase 6 (PAK6) Deposited 2006-12-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–181（181 aa）
Not recorded CL CHLORIDE ION × 2 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 6 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1M acetate, 2M (NH4)2SO4, pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.40 Å R-free 0.232
2ODB The crystal structure of human cdc42 in complex with the CRIB domain of human p21-activated kinase 6 (PAK6) Deposited 2006-12-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–181（181 aa）
Not recorded CL CHLORIDE ION × 2 MG MAGNESIUM ION × 2 SO4 SULFATE ION × 6 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1M acetate, 2M (NH4)2SO4, pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.40 Å R-free 0.232
2QRZ Cdc42 bound to GMP-PCP: Induced Fit by Effector is Required Deposited 2007-07-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–189（189 aa）
Chain B 1–189（189 aa）
Not recorded MG MAGNESIUM ION × 2 SO4 SULFATE ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；12% PEG 6K, 100 mM Na Acetate, 50 mM MES, pH 6.0, 100 mM Ammonium Sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.40 Å R-free 0.263
2WM9 Structure of the complex between DOCK9 and Cdc42. Deposited 2009-06-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–188（188 aa）
Not recorded GOL GLYCEROL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；THE PROTEIN WAS CONCENTRATED TO 6 MG/ML. CRYSTALS WERE GROWN USING HANGING DROP VAPOUR DIFFUSION. 1 UL OF COMPLEX WITH 200 MM NDSB-201 ADDED TO PROTEIN PRIOR TO CRYSTALLIZATION WAS MIXED WITH EQUAL VOLUME OF CRYSTALLIZATION BUFFER: 14% (W/V) PEG3350,100 MM MES (PH 6.0), 200 MM AMMONIUM ACETATE, 12% GLYCEROL. CRYSTALS WERE GROWN AT 20C.
Resolution 2.20 Å R-free 0.251
2WMN Structure of the complex between DOCK9 and Cdc42-GDP. Deposited 2009-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–188（188 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；pH 6.0
Resolution 2.39 Å R-free 0.276
2WMO Structure of the complex between DOCK9 and Cdc42. Deposited 2009-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–188（188 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；pH 6.0
Resolution 2.20 Å R-free 0.272
3GCG crystal structure of MAP and CDC42 complex Deposited 2009-02-22 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–178（177 aa） Fragment：UNP residues 2-178
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M Hepes pH 7.5, 10% PEG 6000, 5% MPD, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.30 Å R-free 0.277
3QBV Structure of designed orthogonal interaction between CDC42 and nucleotide exchange domains of intersectin Deposited 2011-01-14 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–178（178 aa） Fragment：UNP Residues 1-178
Mutation：F56R GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；100mm TRIS pH 7.5, 25% PEG 3350, 150mm ammonium sulfate, and 1mM DTT, temperature 295k, VAPOR DIFFUSION, HANGING DROP
Resolution 2.65 Å R-free 0.284
3QBV Structure of designed orthogonal interaction between CDC42 and nucleotide exchange domains of intersectin Deposited 2011-01-14 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–178（178 aa） Fragment：UNP Residues 1-178
Mutation：F56R GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；100mm TRIS pH 7.5, 25% PEG 3350, 150mm ammonium sulfate, and 1mM DTT, temperature 295k, VAPOR DIFFUSION, HANGING DROP
Resolution 2.65 Å R-free 0.284
3VHL Crystal structure of the DHR-2 domain of DOCK8 in complex with Cdc42 (T17N mutant) Deposited 2011-08-26 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–188（188 aa）
Mutation：T17N, C188S PO4 PHOSPHATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.2M Potassium phosphate, 20% PEG 3350, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.08 Å R-free 0.232
4DID Crystal structure of Salmonella effector N-terminal domain SopB in complex with Cdc42 Deposited 2012-01-30 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–183（183 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；277 K；0.2M sodium chloride, 0.1M phosphate-citrate pH 4.2, 20% PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.35 Å R-free 0.237
4ITR Crystal Structure of IbpAFic2-H3717A in complex with adenylylated Cdc42 Deposited 2013-01-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–191（191 aa）
Chain D 1–191（191 aa）
Not recorded SO4 SULFATE ION × 4 AMP ADENOSINE MONOPHOSPHATE × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；PEG 3350, Bis-Tris, (NH4)2SO4, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 2.30 Å R-free 0.226
4JS0 Complex of Cdc42 with the CRIB-PR domain of IRSp53 Deposited 2013-03-22 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–178（178 aa）
Mutation：G12V GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 2 PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；18-20% PEG 4000, 0.2M magnesium chloride, 0.004M betain hydrochloride, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 1.90 Å R-free 0.199
4YC7 Crystal structure of human FMNL2 GBD-FH3 Domains bound to Cdc42-GppNHp Deposited 2015-02-19 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–179（179 aa） Fragment：UNP residues 1-179
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；20 mM Tris/HCl (pH 8.0), 14% (v/v) PEG 3350, 0.25 M magnesium acetate
Resolution 2.50 Å R-free 0.253
4YDH The structure of human FMNL1 N-terminal domains bound to Cdc42 Deposited 2015-02-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–179（179 aa）
Chain D 1–179（179 aa）
Not recorded GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；17% (v/v) PEG 3350, 0.16 M tri-ammonium citrate
Resolution 3.80 Å R-free 0.281
5FI1 Crystal Structure of the P-Rex1 DH/PH tandem in complex with Cdc42 Deposited 2015-12-22 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–191（191 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；294 K；Ammonium citrate, PEG 3350
Resolution 3.20 Å R-free 0.198
5HZK Crystal structure of photoinhibitable Intersectin1 containing wildtype LOV2 domain in complex with Cdc42 Deposited 2016-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–188（188 aa）
Mutation：C188S GDP GUANOSINE-5'-DIPHOSPHATE × 1 FMN FLAVIN MONONUCLEOTIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；0.1 M MES, 20% (w/v) PEG 6000
Resolution 3.30 Å R-free 0.257
5HZK Crystal structure of photoinhibitable Intersectin1 containing wildtype LOV2 domain in complex with Cdc42 Deposited 2016-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–188（188 aa）
Mutation：C188S GDP GUANOSINE-5'-DIPHOSPHATE × 1 FMN FLAVIN MONONUCLEOTIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；0.1 M MES, 20% (w/v) PEG 6000
Resolution 3.30 Å R-free 0.257
5UPK CDC42 binds PAK4 via an extended GTPase-effector interface - 3 peptide: PAK4cat, PAK4-N45, CDC42 Deposited 2017-02-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–177（177 aa）
Mutation：Q61L ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；0.1M HEPES pH 7.5, 22% PEG1,000
Resolution 2.40 Å R-free 0.264
5UPL CDC42 binds PAK4 via an extended GTPase-effector inteface - 2 peptide: PAK4FL, CDC42 - UNREFINED Deposited 2017-02-03 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–177（177 aa） Fragment：UNP residues 1-177
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；0.1M Tris-HCl pH 8.5, 50mM Na2SO4, 6% PEG6000
Resolution 3.00 Å R-free 0.310
6AJ4 Crystal structure of the DHR-2 domain of DOCK7 in complex with Cdc42 Deposited 2018-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–188（188 aa）
Mutation：C188S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；PEG3350 and tri-potassium citrate monohydrate
Resolution 3.26 Å R-free 0.259
6AJ4 Crystal structure of the DHR-2 domain of DOCK7 in complex with Cdc42 Deposited 2018-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–188（188 aa）
Mutation：C188S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；PEG3350 and tri-potassium citrate monohydrate
Resolution 3.26 Å R-free 0.259
6AJ4 Crystal structure of the DHR-2 domain of DOCK7 in complex with Cdc42 Deposited 2018-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 1–188（188 aa）
Mutation：C188S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；PEG3350 and tri-potassium citrate monohydrate
Resolution 3.26 Å R-free 0.259
6AJ4 Crystal structure of the DHR-2 domain of DOCK7 in complex with Cdc42 Deposited 2018-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 1–188（188 aa）
Mutation：C188S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；PEG3350 and tri-potassium citrate monohydrate
Resolution 3.26 Å R-free 0.259
6AJL DOCK7 mutant I1836Y complexed with Cdc42 Deposited 2018-08-28 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–188（188 aa）
Mutation：C188S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG3350, tri-potassium citrate monohydrate
Resolution 3.23 Å R-free 0.259
6AJL DOCK7 mutant I1836Y complexed with Cdc42 Deposited 2018-08-28 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–188（188 aa）
Mutation：C188S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG3350, tri-potassium citrate monohydrate
Resolution 3.23 Å R-free 0.259
6AJL DOCK7 mutant I1836Y complexed with Cdc42 Deposited 2018-08-28 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 1–188（188 aa）
Mutation：C188S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG3350, tri-potassium citrate monohydrate
Resolution 3.23 Å R-free 0.259
6AJL DOCK7 mutant I1836Y complexed with Cdc42 Deposited 2018-08-28 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 1–188（188 aa）
Mutation：C188S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG3350, tri-potassium citrate monohydrate
Resolution 3.23 Å R-free 0.259
6SIU Crystal structure of IbpAFic2 covalently tethered to Cdc42 Deposited 2019-08-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–191（191 aa）
Chain D 1–191（191 aa）
Not recorded SO4 SULFATE ION × 10 GDP GUANOSINE-5'-DIPHOSPHATE × 2 GOL GLYCEROL × 2 LJN [(2~{R},3~{S},4~{R},5~{R})-5-[4-(acetamidomethyl)-1,2,3-triazol-1-yl]-3,4-bis(oxidanyl)oxolan-2-yl]methyl dihydrogen phosphate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；1.6 M ammonium sulfate and 0.1 M citric acid
Resolution 2.49 Å R-free 0.239
6SUP Crystal Structure of TcdB2-TccC3-Cdc42 Deposited 2019-09-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 167–179（13 aa）
Not recorded MG MAGNESIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293.15 K；0.1 M sodium chloride, 0.1 M magnesium chloride, 0.1 M tri-sodium citrate pH 5.5, 12 % PEG 4000 Seeding: 0.1 M magnesium chloride, 0.1 M tri-sodium acetate pH 4.6, 12 % PEG 6000
Resolution 2.00 Å R-free 0.320
6TKY Crystal structure of the DHR2 domain of DOCK10 in complex with CDC42 Deposited 2019-11-29 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–188（188 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 7.5；293 K；25% (w/v) PEG 3350, 200 mM potassium acetate, 8% (v/v) 1,1,1,3,3,3-Hexafluoro-2-propanol.
Resolution 2.55 Å R-free 0.246
6TKY Crystal structure of the DHR2 domain of DOCK10 in complex with CDC42 Deposited 2019-11-29 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–188（188 aa）
Not recorded GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 7.5；293 K；25% (w/v) PEG 3350, 200 mM potassium acetate, 8% (v/v) 1,1,1,3,3,3-Hexafluoro-2-propanol.
Resolution 2.55 Å R-free 0.246
6TKZ Crystal structure of the DHR2 domain of DOCK10 in complex with CDC42 Deposited 2019-11-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: dimeric
Chain C 1–188（188 aa）
Chain D 1–188（188 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 2 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 7.5；293 K；25% (w/v) PEG 3350, 200 mM potassium acetate, 8% (v/v) 1,1,1,3,3,3-Hexafluoro-2-propanol.
Resolution 2.64 Å R-free 0.274
6TKZ Crystal structure of the DHR2 domain of DOCK10 in complex with CDC42 Deposited 2019-11-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: dimeric
Chain C 1–188（188 aa）
Chain D 1–188（188 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 2 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 7.5；293 K；25% (w/v) PEG 3350, 200 mM potassium acetate, 8% (v/v) 1,1,1,3,3,3-Hexafluoro-2-propanol.
Resolution 2.64 Å R-free 0.274
7S0Y Structures of TcdB in complex with Cdc42 Deposited 2021-08-31 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 4–179（176 aa）
Not recorded MN MANGANESE (II) ION × 1 UDP URIDINE-5'-DIPHOSPHATE × 1 SO4 SULFATE ION × 11 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M sodium cacodylate (pH 6.6), 2.4 M ammonium sulfate, and 2.5% (v/v) Jeffamine M-600 (pH 7.0)
Resolution 2.79 Å R-free 0.259
8I5F Crystal structure of the DHR-2 domain of DOCK10 in complex with Cdc42 (T17N mutant) Deposited 2023-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–188（188 aa）
Chain D 1–188（188 aa）
Mutation：T17N, C188S Mutation：T17N, C188S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；PEG 8000, sodium chloride
Resolution 2.80 Å R-free 0.296
9GRM Cdc42 in complex with inhibitory peptide Deposited 2024-09-11 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–184（184 aa） Fragment：1-184
Mutation：Q61L GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 SOLUTION NMR
NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 200；Pressure 1
NMR sample composition 0.48 mM [U-100% 15N] Cdc42, 0.58 mM None Peptide, 50 mM None sodium phosphate, 150 mM None sodium chloride, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.4 mM [U-13C; U-15N] Cdc42, 0.45 mM None Peptide, 50 mM None sodium phosphate, 150 mM None sodium chloride, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.415 mM [U-100% 15N] Peptide, 0.45 mM None Cdc42, 50 mM None sodium phosphate, 150 mM None sodium chloride, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
9VM2 Structure of DOCK6-Cdc42 complex protomer Deposited 2025-06-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–187（187 aa）
Mutation：G15A No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.94 Å
9VM3 Structure of DOCK6-Cdc42 complex Deposited 2025-06-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–187（187 aa）
Chain D 1–187（187 aa）
Mutation：G15A Mutation：G15A No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 4.52 Å

45 other PDB entries and 68 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CDC42_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–179； UniProt 1–179

WISKOTT-ALDRICH SYNDROME PROTEIN WASP

Homo sapiens

UniProt P42768

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 230–288 Fragment：GTPASE BINDING DOMAIN OF WASP GTP-BINDING RHO-LIKE PROTEIN × 1 （P60953） MG MAGNESIUM ION × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 SOLUTION NMR NMR measurement conditions：pH 7；298 K；Ionic strength (raw mmCIF value) 50mM；Pressure 1 Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1CEE Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1EJ5 SOLUTION STRUCTURE OF THE AUTOINHIBITED CONFORMATION OF WASP Deposited 2000-02-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 242–310（69 aa）
Chain A 461–492（32 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 75mM；Pressure ambient
NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 75mM；Pressure ambient
NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 75mM；Pressure ambient
NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 75mM；Pressure ambient
NMR sample composition 1.6 mM protein U-15N; 25 mM phosphate buffer pH 6.5, 50 mM NaCl, 1 mM EDTA, 2 mM DTT | 90% H2O/10% D2O
NMR sample composition 1.6 mM protein U-15N,13C; 25 mM phosphate buffer pH 6.5, 50 mM NaCl, 1 mM EDTA, 2 mM DTT | 90% H2O/10% D2O
NMR sample composition 1.6 mM protein U-15N, 10% 13C; 25 mM phosphate buffer pH 6.5, 50 mM NaCl, 1 mM EDTA, 2 mM DTT | 90% H2O/10% D2O
NMR sample composition 1.6 mM protein U-15N,13C; 25 mM phosphate buffer pH 6.5, 50 mM NaCl, 1 mM EDTA, 2 mM DTT | 100% D2O
Resolution not provided
1T84 Solution structure of the Wiskott-Aldrich Syndrome Protein (WASP) autoinhibited core domain complexed with (S)-wiskostatin, a small molecule inhibitor Deposited 2004-05-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 242–310（69 aa） Fragment：core autoinhibited domain (GTPase binding domain is covalently linked to the cofilin homology and acidic regions)
Chain A 361–492（132 aa） Fragment：core autoinhibited domain (GTPase binding domain is covalently linked to the cofilin homology and acidic regions)
Not recorded WSK (2S)-1-(3,6-DIBROMO-9H-CARBAZOL-9-YL)-3-(DIMETHYLAMINO)PROPAN-2-OL × 1 SOLUTION NMR
NMR measurement conditions pH 5；298 K；Ionic strength (raw mmCIF value) 20mM；Pressure ambient
NMR sample composition 1mM WASP U-15N,13C; 1mM (S)-wiskostatin | 20 mM Acetate-d3 pH 5.0; 20mM NaCl; 1mM DTT-d10; 5% DMSO-d6; 90% H2O/10% D2O or 100% D2O
Resolution not provided
2K42 Solution Structure of the GTPase Binding Domain of WASP in Complex with EspFU, an EHEC Effector Deposited 2008-05-27 Different construct Different ligand/ion Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 242–310（69 aa） Fragment：CRIB domain, UNP residues 242-310
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；298.15 K；Pressure ambient
NMR sample composition 1~1.5 mM [U-100% 13C; U-100% 15N] GBD/R33 complex, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 1~1.5 mM [U-100% 13C; U-100% 15N] GBD/R33 complex, 100% D2O | 100% D2O
Resolution not provided
2OT0 Fructose-1,6-bisphosphate aldolase from rabbit muscle in complex with a C-terminal peptide of Wiskott-Aldrich syndrome protein Deposited 2007-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 488–502（15 aa）
Chain F 488–502（15 aa）
Chain G 488–502（15 aa）
Chain H 488–502（15 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；HEPES, MgCl2, PEG 550 MME, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.05 Å R-free 0.200

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name WASP_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–59； UniProt 230–288

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1cee

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1cee
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1cee
Deposition date deposition_date1999-03-08
Structure title titleSOLUTION STRUCTURE OF CDC42 IN COMPLEX WITH THE GTPASE BINDING DOMAIN OF WASP
Keywords keywordsCDC42 ACTIN REGULATOR GTPASE AND THE GTPASE BINDING DOMAIN OF ITS EFFECTOR WASP, Structural protein Regulation; Structural protein Regulation
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier18.92 Å
Radius of gyration Rg (electron density) rg_electron18.57 Å
Forward intensity I(0) i03926820000.00
Molecular weight molecular_weight535490.0 kDa
Excluded volume excluded_volume670900 ų
Envelope volume envelope_volume89200 ų
Hydration-shell volume shell_volume30452 ų
Envelope diameter envelope_diameter84.1 Å
Shell Rg shell_rg32.06 Å
Envelope Rg envelope_rg24.98 Å
Shape Rg shape_rg18.54 Å
Total Rg total_rg18.86 Å
Total atoms total_atoms75020
Residues n_residues4760
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax49.2 Å
Rg (real space) rg_real18.01 Å
Rg uncertainty (real space) rg_real_error0.06 Å
I(0) (real space) i0_real3.7450e+09
I(0) uncertainty (real space) i0_real_error3.2240e+07
Rg (reciprocal space) rg_reciprocal18.92 Å
I(0) (reciprocal space) i0_reciprocal3927000000.0000
Solution quality estimate total_estimate0.6846
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary21.9 Å
Skewness Skewness skewness0.204
Kurtosis Kurtosis kurtosis-0.434
Angular range angular_range— – 0.4200 Å−1
Current regularization parameter α current_alpha2.3900
Highest regularization parameter α highest_alpha3848000.0000
Real-space data points n_real_points73
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.001; Oscil: 0.986; Stabil: 0.984; Sysdev: 0.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd1ceea_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamilyc.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family familyc.37.1.8 — G proteins

CATH v4.4 (2 domains)

Domain ID domain_id1ceeA00
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id1ceeB00
Class class3 — Alpha Beta
Architecture architecture90 — Alpha-Beta Complex
Topology topology810 — SerineThreonine-protein kinase PAK-alpha; Chain A
Homologous superfamily homologous superfamily10 — CRIB domain
▶

8. Citations (1)

▶

9. Files and Curves (10)
