SAXSdb — 1nf3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

G25K GTP-binding protein, placental isoform

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	PAR-6B × 1 （Q9JK83） MAGNESIUM ION × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	PAR-6B × 1 （Q9JK83） MAGNESIUM ION × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 4	PAR-6B × 2 （Q9JK83） MAGNESIUM ION × 2 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDC42_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–195； UniProt 2–181 Author chain B； PDBConstruct 6–195； UniProt 2–181

PAR-6B

Mus musculus

UniProt Q9JK83

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	G25K GTP-binding protein, placental isoform × 1 （P60953） MAGNESIUM ION × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	G25K GTP-binding protein, placental isoform × 1 （P60953） MAGNESIUM ION × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 4	G25K GTP-binding protein, placental isoform × 2 （P60953） MAGNESIUM ION × 2 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PAR6B_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–128； UniProt 126–253 Author chain D； PDBConstruct 1–128； UniProt 126–253

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1nf3
Deposition date deposition_date	2002-12-12
Structure title title	Structure of Cdc42 in a complex with the GTPase-binding domain of the cell polarity protein, Par6
Keywords keywords	semi-CRIB motif, Switch I and II, PDZ domain, GTPase binding domain, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1nf3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1nf3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

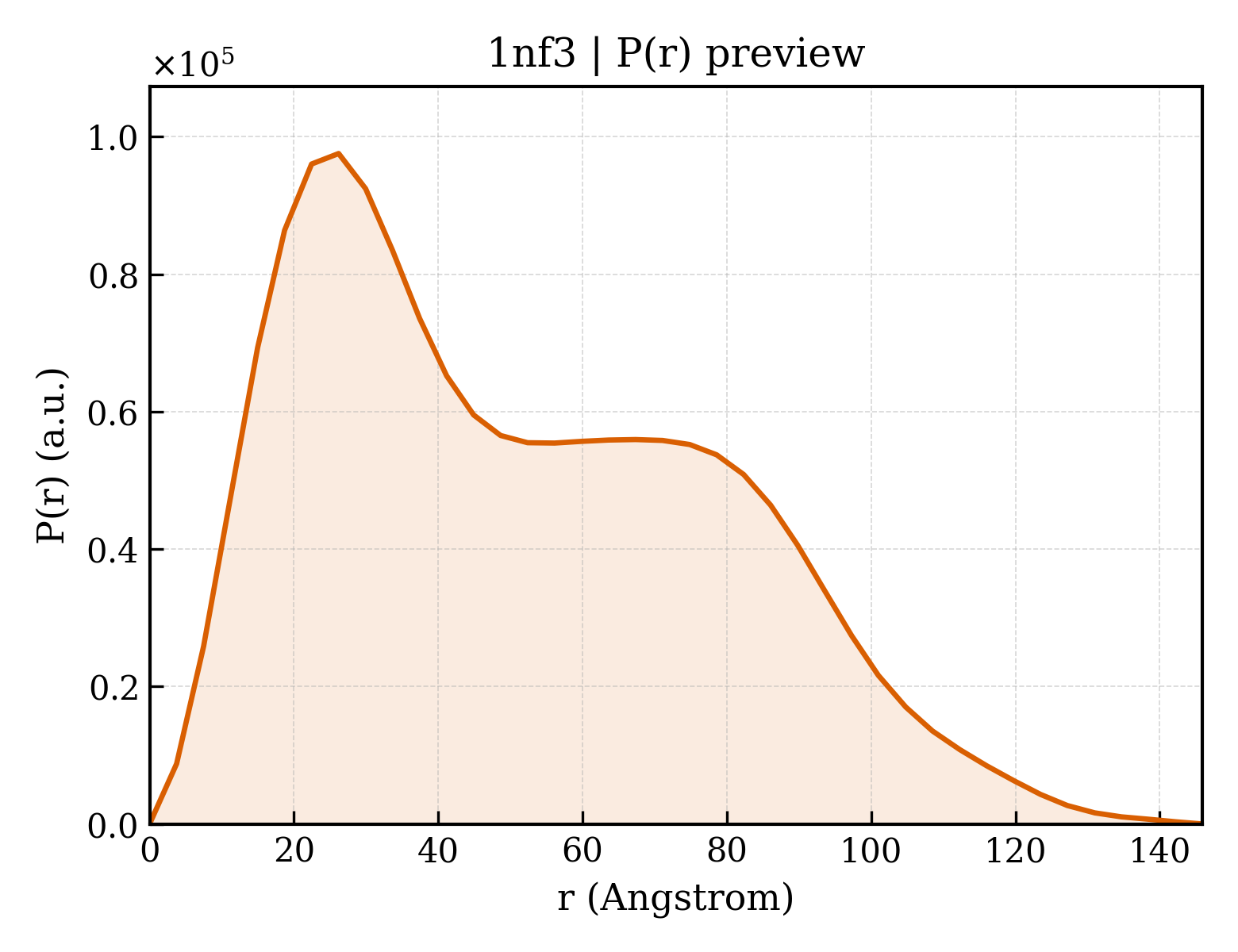

1nf3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.10 Å
Rg (electron density)	21.28 Å
Total Rg	22.20 Å
Atom count	2486
Residues	317
Excluded volume	44636 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1nf3__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1nf3__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1nf3__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	G25K GTP-binding protein, placental isoform
Molecular weight formula_weight	21566.9 kDa
Mutation mutation	Q61L
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5395

GAMGIQTIKCVVVGDGAVGKTCLLISYTTNKFPSEYVPTVFDNYAVTVMIGGEPYTLGLFDTAGLEDYDRLRPLSYPQTDVFLVCFSVVSPSSFENVKEKWVPEITHHCPKTPFLLVGTQIDLRDDPSTIEKLAKNKQKPITPETAEKLARDLKAVKYVECSALTQKGLKNVFDEAILAALEPPEPKKSRRCVLL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	PAR-6B
Molecular weight formula_weight	14175.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

RKKPHIVISMPQDFRPVSSIIDVDILPETHRRVRLCKYGTEKPLGFYIRDGSSVRVTPHGLEKVPGIFISRLVPGGLAQSTGLLAVNDEVLEVNGIEVSGKSLDQVTDMMIANSRNLIITVRPANQRN

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
Molecular weight formula_weight	522.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	423

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1nf3a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1nf3a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1nf3b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1nf3b2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1nf3c_
Class class	b — All beta proteins
Fold Fold fold	b.36 — PDZ domain-like
Superfamily Superfamily superfamily	b.36.1 — PDZ domain-like
Family Family family	b.36.1.1 — PDZ domain

Domain ID domain_id	d1nf3d_
Class class	b — All beta proteins
Fold Fold fold	b.36 — PDZ domain-like
Superfamily Superfamily superfamily	b.36.1 — PDZ domain-like
Family Family family	b.36.1.1 — PDZ domain

CATH v4.4 (4 domains)

Domain ID domain_id	1nf3A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1nf3B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1nf3C00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

Domain ID domain_id	1nf3D00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

▶

Unit-cell length a length_a	41.744 Å
Unit-cell length b length_b	53.787 Å
Unit-cell length c length_c	79.521 Å
Unit-cell angle α angle_alpha	81.55 °
Unit-cell angle β angle_beta	76.59 °
Unit-cell angle γ angle_gamma	90.04 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	29.170 Å
R factor r_factor	0.2190
R_work r_work	0.2190
R_free r_free	0.2730

Structure of Cdc42 in a complex with the GTPase-binding domain of the cell polarity protein, Par6
