SAXSdb — 9x0j

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-33 (109-270)

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 113–270	Not recorded	Tozorakimab-L Chain × 1 Tozorakimab-H Chain × 1 Etokimab-H Chain × 1 Etokimab-K Chain × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.57 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9X0J	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2KLL Solution structure of human interleukin-33 Deposited 2009-07-06	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 111–270（160 aa） Fragment：UNP residues 110-270	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；308 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 1 mM [U-100% 15N] Interleukin-33, 20 mM sodium phosphate, 100 mM sodium chloride, 5 mM beta-mercaptoethanol, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 1 mM Interleukin-33, 20 mM sodium phosphate, 100 mM sodium chloride, 5 mM [U-100% 2H] beta-mercaptoethanol, 100% D2O \| 100% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] Interleukin-33, 20 mM sodium phosphate, 100 mM sodium chloride, 5 mM beta-mercaptoethanol, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] Interleukin-33, 20 mM sodium phosphate, 100 mM sodium chloride, 5 mM [U-100% 2H] beta-mercaptoethanol, 100% D2O \| 100% D2O	Resolution not provided
4KC3 Cytokine/receptor binary complex Deposited 2013-04-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 112–270（159 aa） Fragment：UNP residues 112-270	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；291 K；12% PEG3350, 100 mM Sodium Malonate pH 4.5, 7% v/v MPD, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.27 Å R-free 0.283
9WWH Crystal structure of IL-33 and antibody Tozorakimab fab binary complex Deposited 2025-09-23	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 117–268（152 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M Magnesium chloride hexahydrate 0.1 M Na citrate tribasic dihydrate pH 5.0 15% w/v Polyethylene glycol 20,000	Resolution 3.51 Å R-free 0.259
9WWH Crystal structure of IL-33 and antibody Tozorakimab fab binary complex Deposited 2025-09-23	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 117–268（152 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M Magnesium chloride hexahydrate 0.1 M Na citrate tribasic dihydrate pH 5.0 15% w/v Polyethylene glycol 20,000	Resolution 3.51 Å R-free 0.259
9WWH Crystal structure of IL-33 and antibody Tozorakimab fab binary complex Deposited 2025-09-23	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 117–268（152 aa） Chain D 117–268（152 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M Magnesium chloride hexahydrate 0.1 M Na citrate tribasic dihydrate pH 5.0 15% w/v Polyethylene glycol 20,000	Resolution 3.51 Å R-free 0.259
9X05 IL-33 and Itepekimab fab and Tozorakimab fab ternary complex structure Deposited 2025-09-29	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 113–270（158 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.64 Å

4 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL33_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–158； UniProt 113–270

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9x0j
Deposition date deposition_date	2025-09-30
Structure title title	IL-33 and Etokimab fab and Tozorakimab fab ternary complex structure
Keywords keywords	IL33, antibody Etokimab fab, antibody Tozorakimab fab, CYTOKINE/IMMUNE SYSTEM, CYTOKINE-IMMUNE SYSTEM complex; CYTOKINE/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	45.45 Å
Radius of gyration Rg (electron density) rg_electron	46.04 Å
Forward intensity I(0) i0	149003000.00
Molecular weight molecular_weight	91875.0 kDa
Excluded volume excluded_volume	111550 Å³
Envelope volume envelope_volume	181000 Å³
Hydration-shell volume shell_volume	35932 Å³
Envelope diameter envelope_diameter	165.2 Å
Shell Rg shell_rg	44.02 Å
Envelope Rg envelope_rg	46.21 Å
Shape Rg shape_rg	45.99 Å
Total Rg total_rg	46.09 Å
Total atoms total_atoms	6496
Residues n_residues	995
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

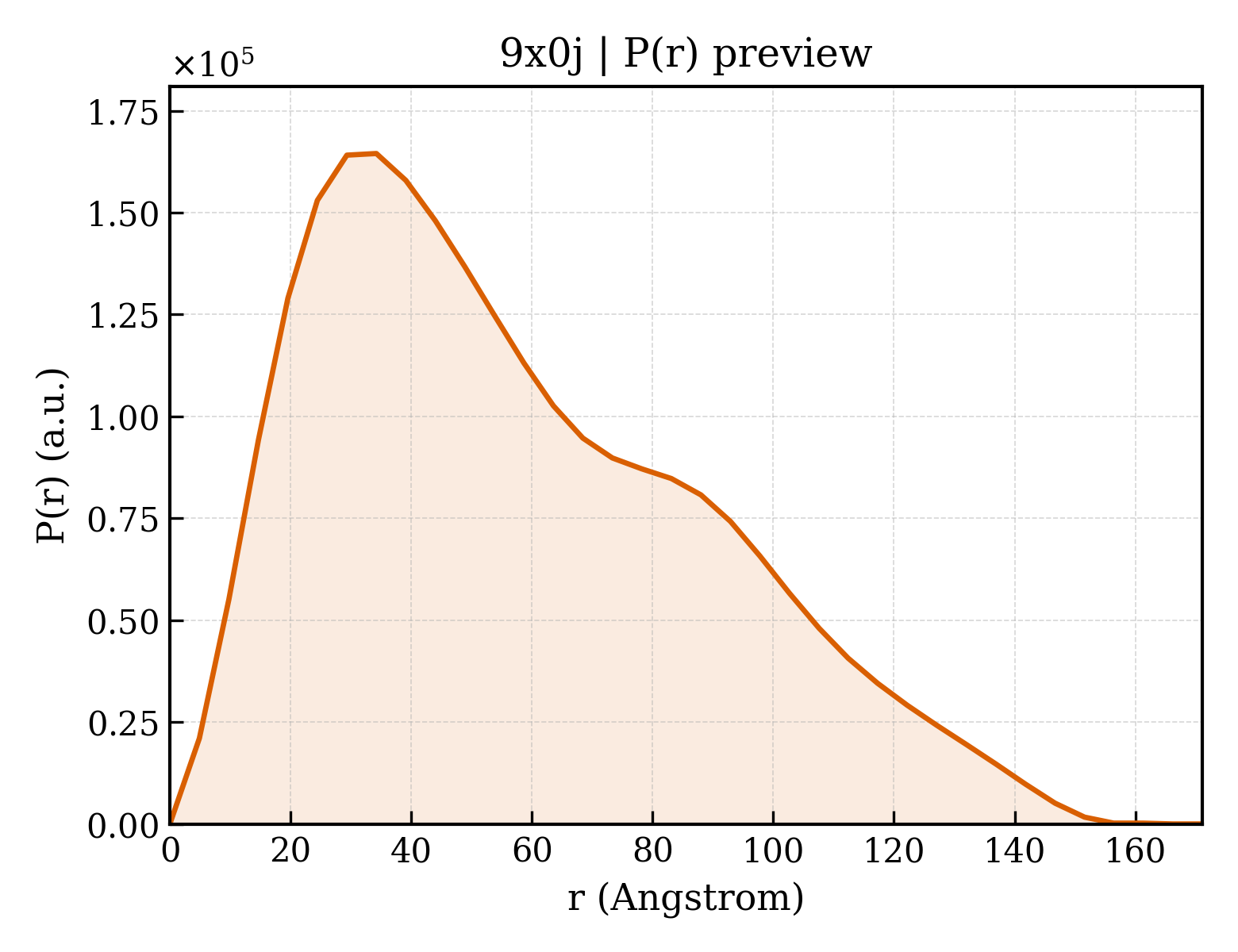

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	171.1 Å
Rg (real space) rg_real	46.29 Å
Rg uncertainty (real space) rg_real_error	2.63 Å
I(0) (real space) i0_real	1.4900e+08
I(0) uncertainty (real space) i0_real_error	2.8260e+06
Rg (reciprocal space) rg_reciprocal	45.45 Å
I(0) (reciprocal space) i0_reciprocal	148900000.0000
Solution quality estimate total_estimate	0.6306
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	34.2 Å
Skewness Skewness skewness	0.596
Kurtosis Kurtosis kurtosis	-0.440
Angular range angular_range	— – 0.1750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	9274000.0000
Real-space data points n_real_points	36
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.357; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.123; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Interleukin-33 (109-270)
Molecular weight formula_weight	17912.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6499

ITGISPITEYLASLSTYNDQSITFALEDESYEIYVEDLKKDEKKDKVLLSYYESQHPSNESGDGVDGKMLMVTLSPTKDFWLHANNKEHSVELHKCEKPLPDQAFFVLHNMHSNCVSFECKTDPGVFIGVKDNHLALIKVDSSENLSTENILFKLSET

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Tozorakimab-L Chain
Molecular weight formula_weight	22409.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

SYVLTQPPSVSVSPGQTASITCSGEGMGDKYAAWYQQKPGQSPVLVIYRDTKRPSGIPERFSGSNSGNTATLTISGTQAMDEADYYCGVIQDNTGVFGGGTKLTVLGQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Tozorakimab-H Chain
Molecular weight formula_weight	24224.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

EVQLLESGGGLVQPGGSLRLSCAASGFTFSSYAMSWVRQAPGKGLEWVSGISAIDQSTYYADSVKGRFTISRDNSKNTLYLQMNSLRAEDTAVYYCARQKFMQLWGGGLRYPFGYWGQGTMVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPK

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Etokimab-H Chain
Molecular weight formula_weight	24016.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

QVQLMQSGAEVKKPGASVKVSCKASGYTFTSYWMHWVRQAPGQGLEWMGTIYPRNSNTDYNQKFKARVTMTRDTSTSTVYMELSSLRSEDTAVYYCARPLYYYLTSPPTLFWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVE

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	Etokimab-K Chain
Molecular weight formula_weight	23407.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

DIQLTQSPSFLSASVGDRVTITCKASQDVGTAVAWYQQKPGKAPKLLIYWASTRHTGVPSRFSGSGSGTEFTLTISSLQPEDFATYYCQQAKTYPFTFGSGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.57 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	297408

fit	/app/data/saxs_computation/x0/9x0j/9x0j.fit
pddf	/app/data/pr_computation/x0/9x0j/9x0j.pr.out
profile	/app/data/saxs_computation/x0/9x0j/9x0j.dat
