9xbn
Cryo-EM structure of Sup35NM fibril formed at 4 degrees (Sc4)

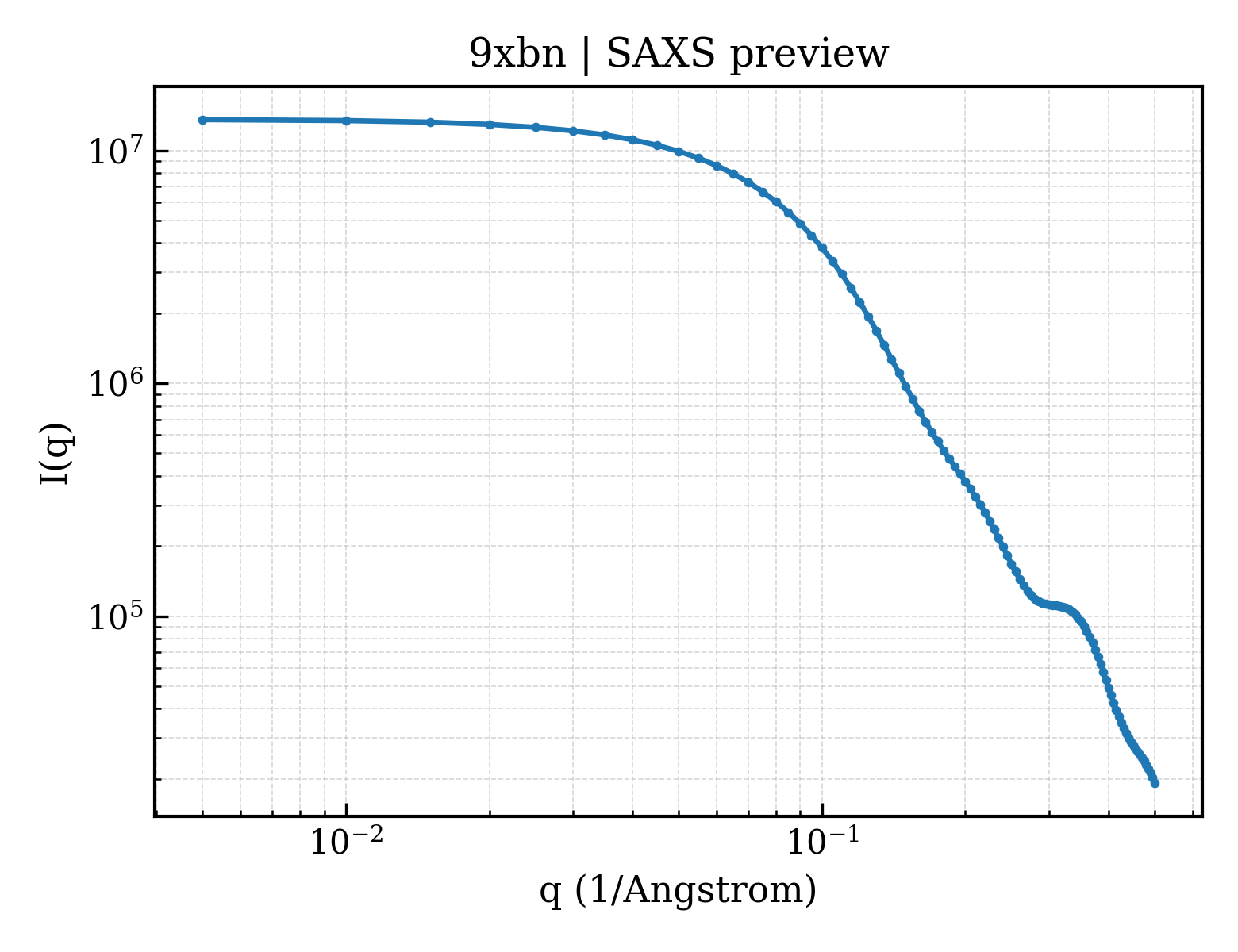

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9xbn |
| deposition_date | 2025-10-24 |
| last_revision | 2025-12-10 |
| title | Cryo-EM structure of Sup35NM fibril formed at 4 degrees (Sc4) |
| keywords | Yeast, Sup35NM, Amyloid, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.49 Å |
| rg_electron | 18.94 Å |
| i0 | 13614600.00 |
| molecular_weight | 23053.0 kDa |
| excluded_volume | 26783 ų |
| envelope_volume | 36045 ų |
| shell_volume | 16565 ų |
| envelope_diameter | 62.5 Å |
| shell_rg | 24.26 Å |
| envelope_rg | 19.15 Å |
| shape_rg | 18.93 Å |
| total_rg | 19.68 Å |
| total_atoms | 1635 |
| n_residues | 195 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 62.3 Å |
| rg_real | 19.44 Å |
| rg_real_error | 0.41 Å |
| i0_real | 1.3610e+07 |
| i0_real_error | 1.7450e+05 |
| rg_reciprocal | 19.45 Å |
| i0_reciprocal | 13610000.0000 |
| total_estimate | 0.9060 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 22.8 Å |
| skewness | 0.216 |
| kurtosis | -0.560 |
| angular_range | — – 0.4100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1585000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.934; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.986 |
